Whiteline Rear Control Arm Lower - Bushing Kit to Suit Nissan X-Trail T30

SKU: W63216

Benefit Note: Suffering uneven tyre wear, unbalanced braking or a less predictable vehicle while cornering. It could be your suspension bushings have failed. Replace these worn parts with Whiteline synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability that offer a safer more predictable vehicle.

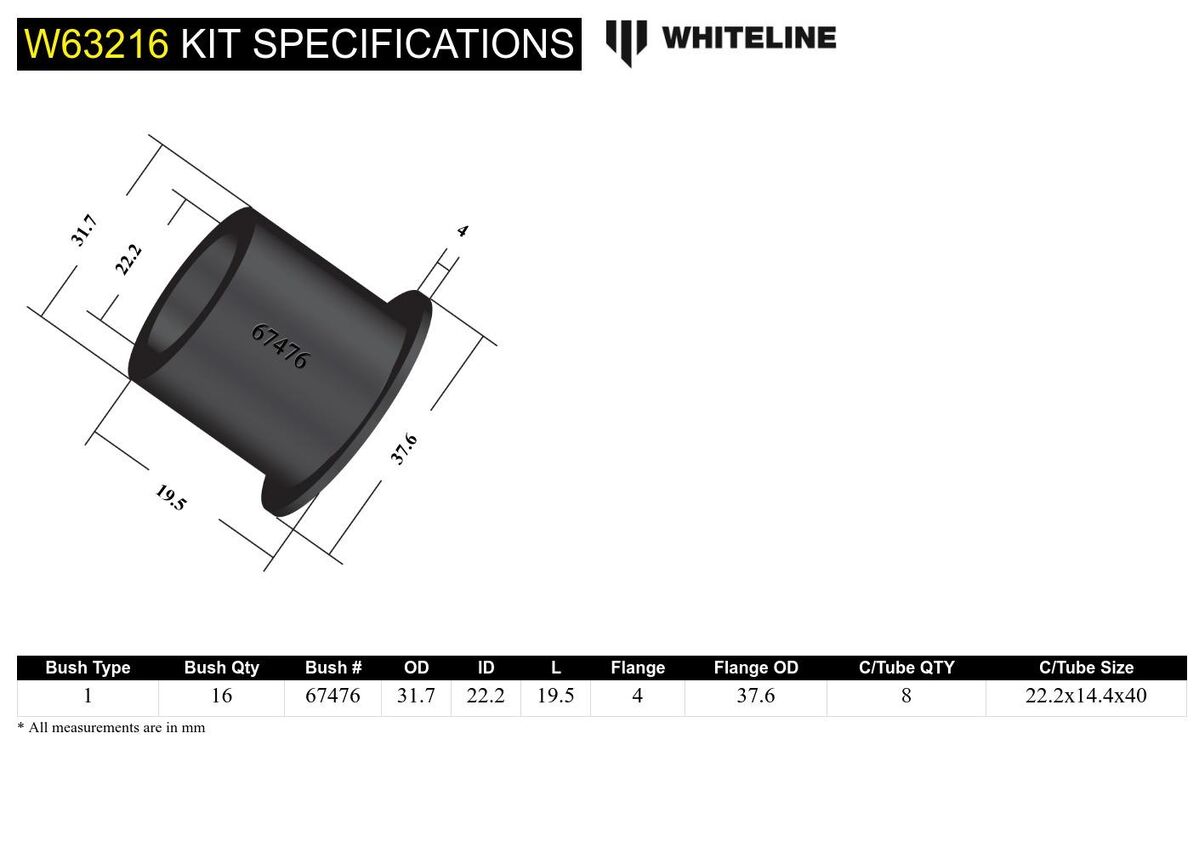

Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 16 mm
OD (A) 31.7 mm
ID (B) 22.2 mm
Length (C) 19.5 mm
Flange Thickness (D) 4 mm
Flange OD (E) 37.6 mm
C/Tube Quantity 8
C/Tube ODxIDxL 22.2x14.4x40 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 16
OD (A) 31.7
ID (B) 22.2
Length (C) 19.5
FL (D) 4
FLOD (E) 37.6
C/Tube Qty 8
C/Tube Size 22.2x14.4x40
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.748kg1.65lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW63216

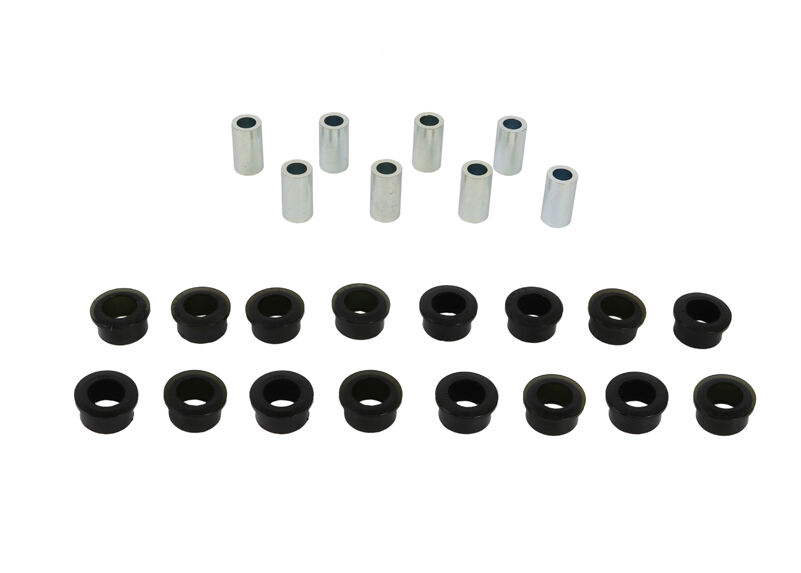

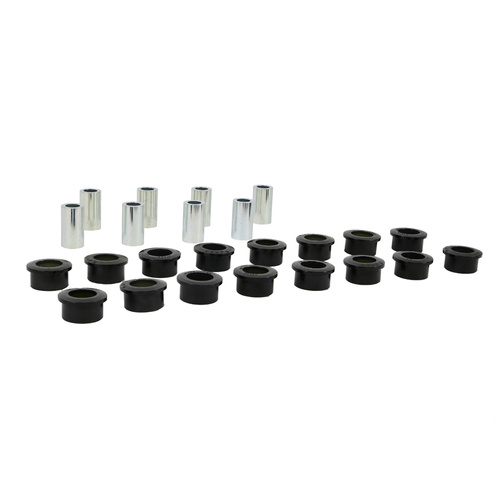

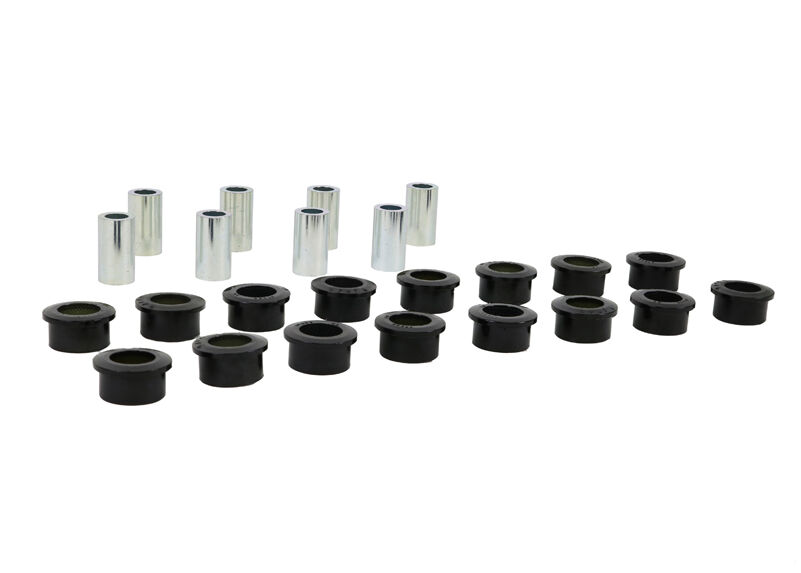

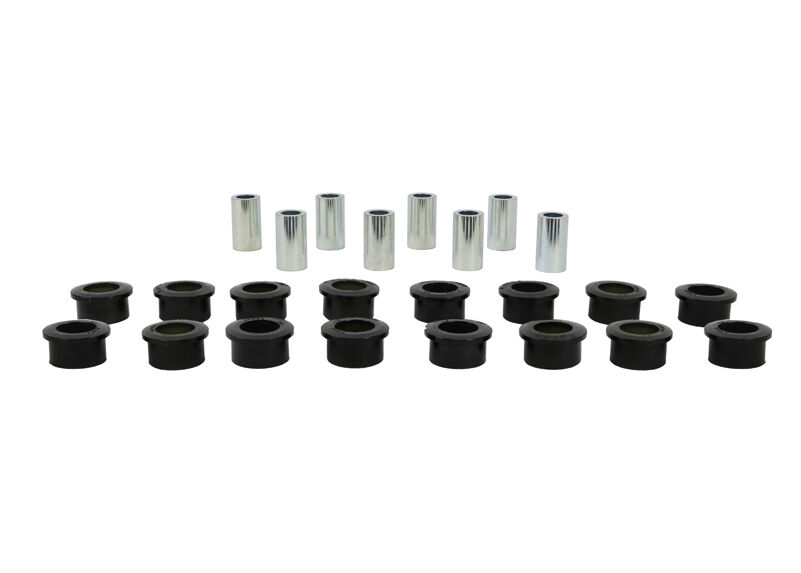

Components Per16 Bushings, 8 Tubes
Kits Required1
Sub brandReplacement
Product NoteDelivers a balanced mix of comfort, precision, and durability; the perfect, complete upgrade. Includes: 16 Bushings, 8 Tubes
EAN9319924376339
  • Lifetime Warranty
Brand Whiteline
SKU W63216
Unit Of Measure Kit
