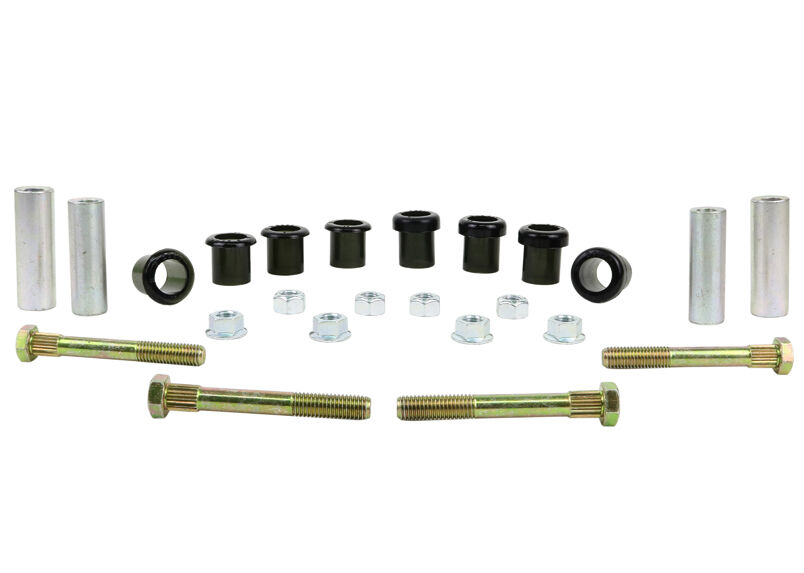

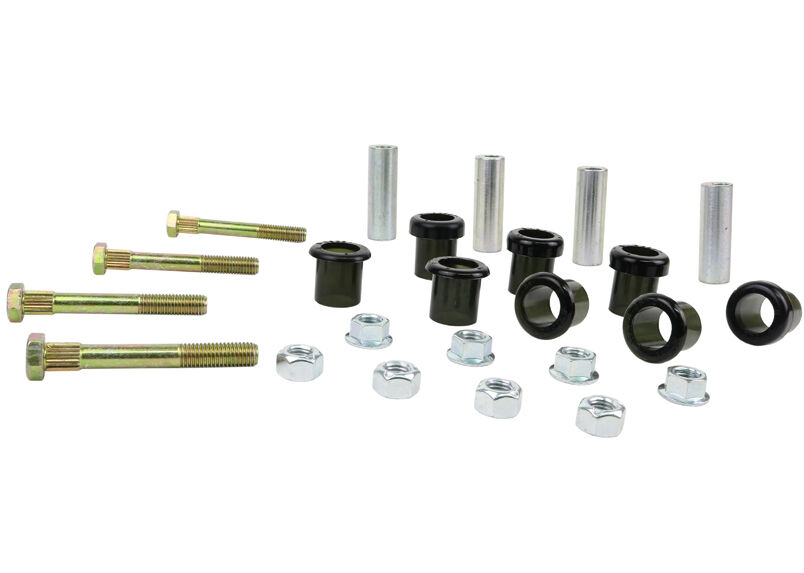

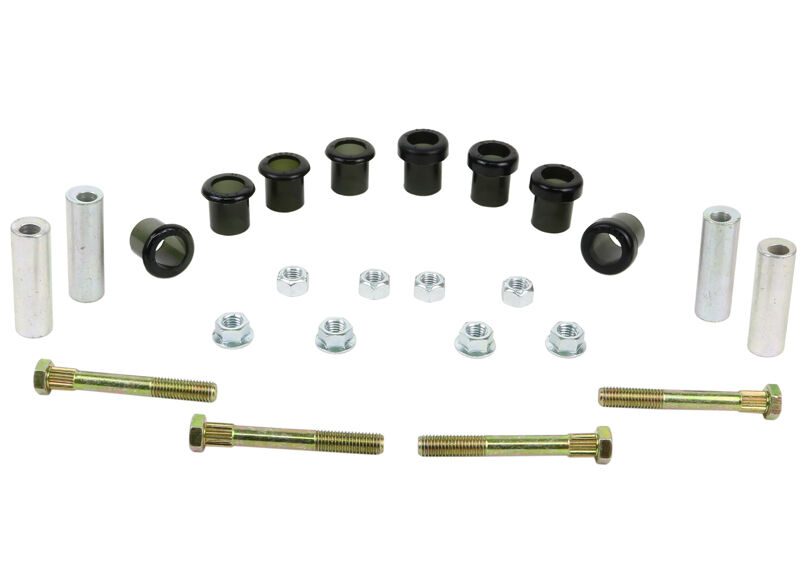

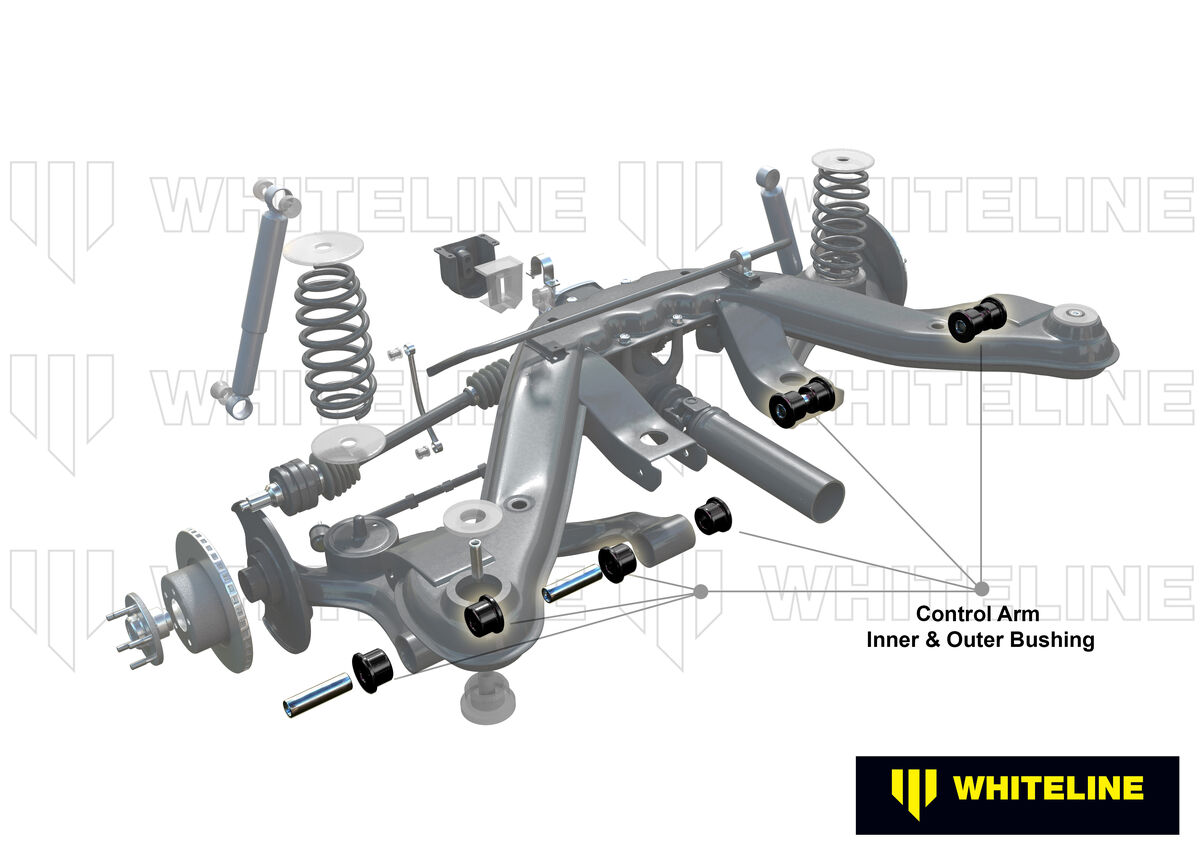

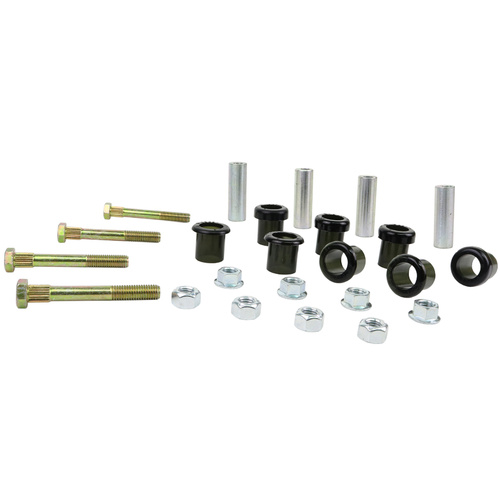

Whiteline Rear Control Arm Lower - Bushing Kit Double Offset to Suit BMW 3 Series E30 and Z3

SKU: W62188

Benefit Note: Whiteline caster kits are designed to improve cornering grip and vehicle straight line stability. This kit is supplied with dual offset bushings to give greater steering feel, more steering weight, greater precision all through increased static caster and dynamic negative camber gain. In addition, Whiteline bushings provide improved braking performance, and less under load alignment change.


Kit Specifications

Bush Type 1 - Shackle Bushing 1 - Shackle Bushing
Bush Quantity 4 mm 4 mm
OD (A) 27 mm 27 mm
ID (B) 22.2 mm 22.2 mm
Length (C) 38 mm 38 mm
Flange Thickness (D) 11 mm 4 mm
Flange OD (E) 36.2 mm 36.2 mm
C/Tube Quantity 4 4
C/Tube ODxIDxL 22.2x11.9x70 mm 22.2x11.9x70 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 1 - Shackle Bushing
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Camber / Toe Eccentric Yes
Camber / Toe Eccentric Yes

Bushing Design Dimensions (mm)

Bush Type 1 1
QTY 4 4
OD (A) 27 27
ID (B) 22.2 22.2
Length (C) 38.0 38.0
FL (D) 11 4
FLOD (E) 36.2 36.2
C/Tube Qty 4 4
C/Tube Size 22.2x11.9x70 22.2x11.9x70
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.2kg2.65lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW62188
Components Per8 Bushings, 4 Tubes
Kits Required1
Sub brandReplacement
Product NoteEnhances steering response, delivering sharper handling and more predictable vehicle dynamics; the perfect, complete upgrade. Includes: 8 Bushings, 4 Tubes
EAN9319924354535
  • Lifetime Warranty
Brand Whiteline
SKU W62188
Unit Of Measure Kit
