Whiteline Rear Control Arm - Inner Bushing Double Offset Camber Kit to Suit Honda Accord Euro CL

SKU: KCA516

Benefit Note: Whiteline fixed camber kits provide additional camber angle resulting in increased grip during cornering and traction under power. The kit includes low compliance synthetic elastomer bushings which maintain preferred alignment settings as well as enhanced steering response.

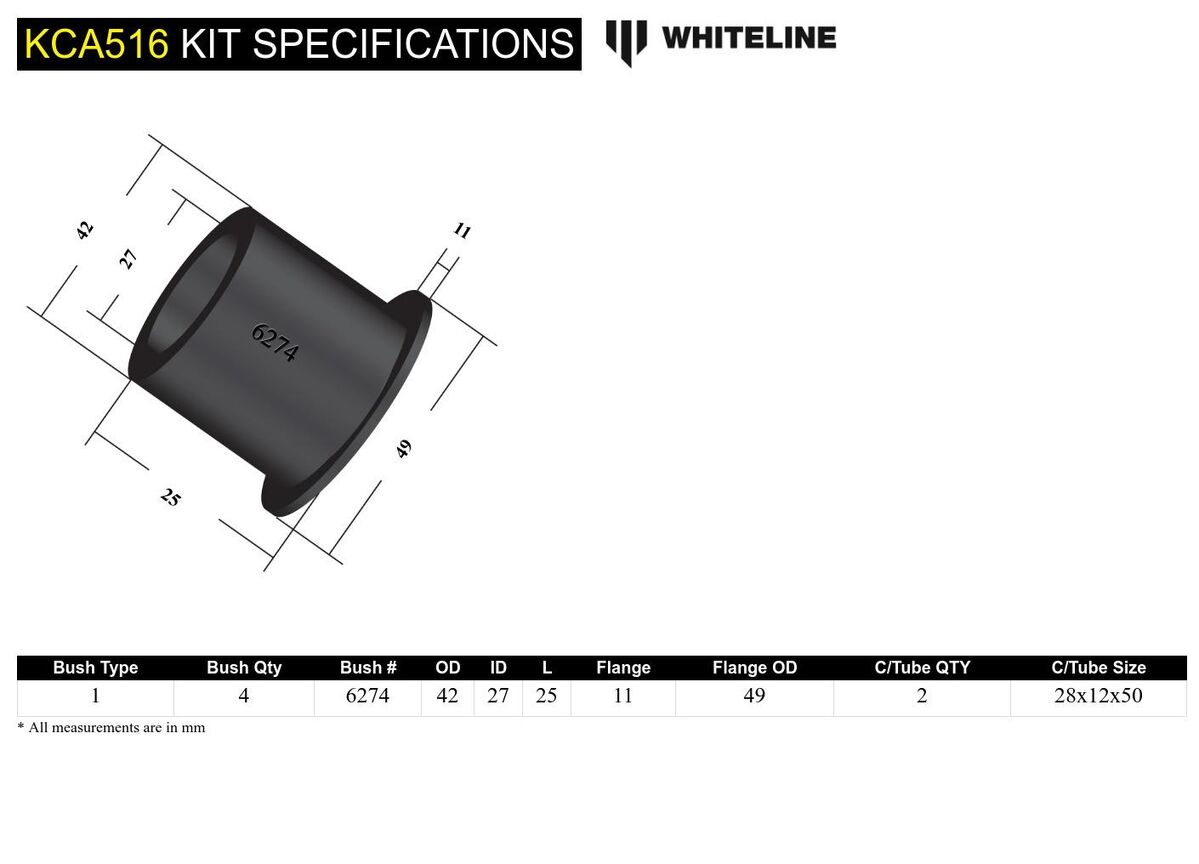

Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 42 mm
ID (B) 27 mm
Length (C) 25 mm
Flange Thickness (D) 11 mm
Flange OD (E) 49 mm
C/Tube Quantity 2
C/Tube ODxIDxL 28x12x50 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Camber Eccentric Yes

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 42
ID (B) 27
Length (C) 25.0
FL (D) 11
FLOD (E) 49
C/Tube Qty 2
C/Tube Size 28x12x50
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.715kg1.58lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUKCA516
Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandPerformance
Product NoteEnsures long-lasting durability, matter matter the purpose; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes
EAN9319924468836
  • Lifetime Warranty
Brand Whiteline
SKU KCA516
Unit Of Measure Kit
