Benefit Note: Whiteline fixed Camber and Toe kits provide additional alignment resulting in increased grip during cornering and traction under power. The kit includes low compliance synthetic elastomer bushings which maintain preferred alignment settings as well as enhanced steering response.

Kit Specifications

Bush Type	16 - Shell Without Flange Bushing
Bush Quantity	4 mm
OD (A)	33 mm
ID (B)	20 mm
Length (C)	40 mm
Flange Thickness (D)	2.1 mm
Flange OD (E)	29 mm
C/Tube Quantity	4
C/Tube ODxIDxL	20x12.x40 mm
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Alignment	Alignment Adjustment Type	Alignment On Car Adjustable
Camber / Toe	Eccentric	Yes

Bushing Design Dimensions (mm)

Bush Type	16
QTY	4
OD (A)	33
ID (B)	20
Length (C)	40.0
FL (D)	2.1
FLOD (E)	29
C/Tube Qty	4
C/Tube Size	20x12.x40
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

Units	cm/kg	in/lbs
Weight	0.5kg	1.1lbs
Length	7cm	2.76"
Width	20cm	7.87"
Height	14cm	5.51"

Misc. Product Information

More Information

SKU	KCA553

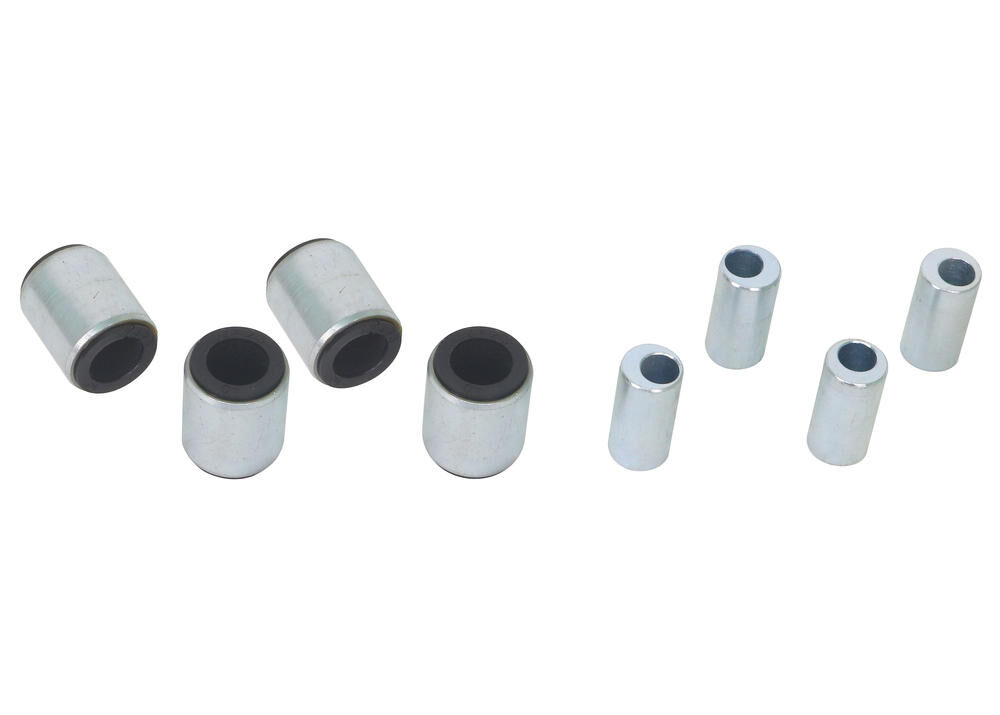

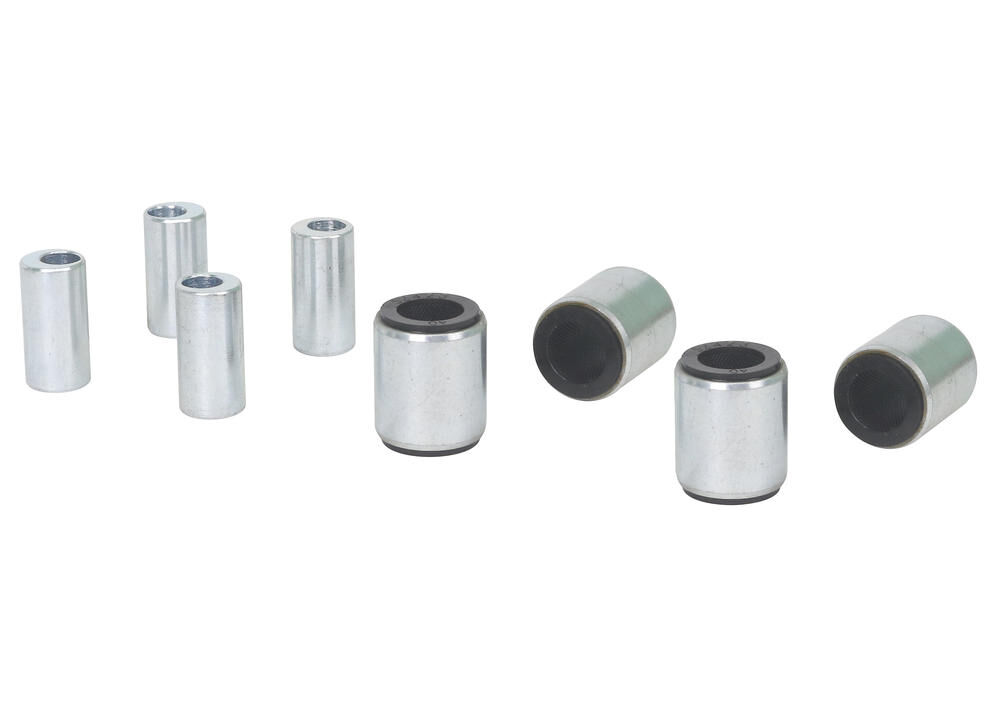

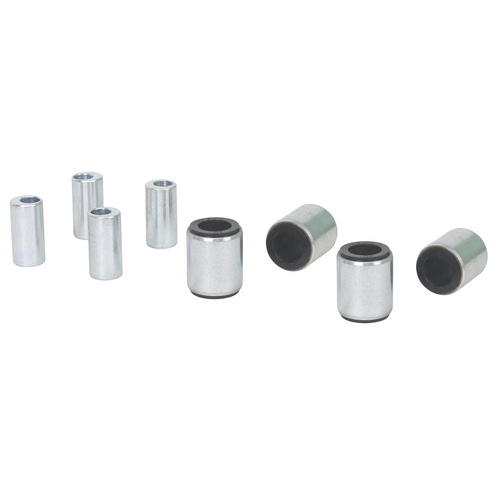

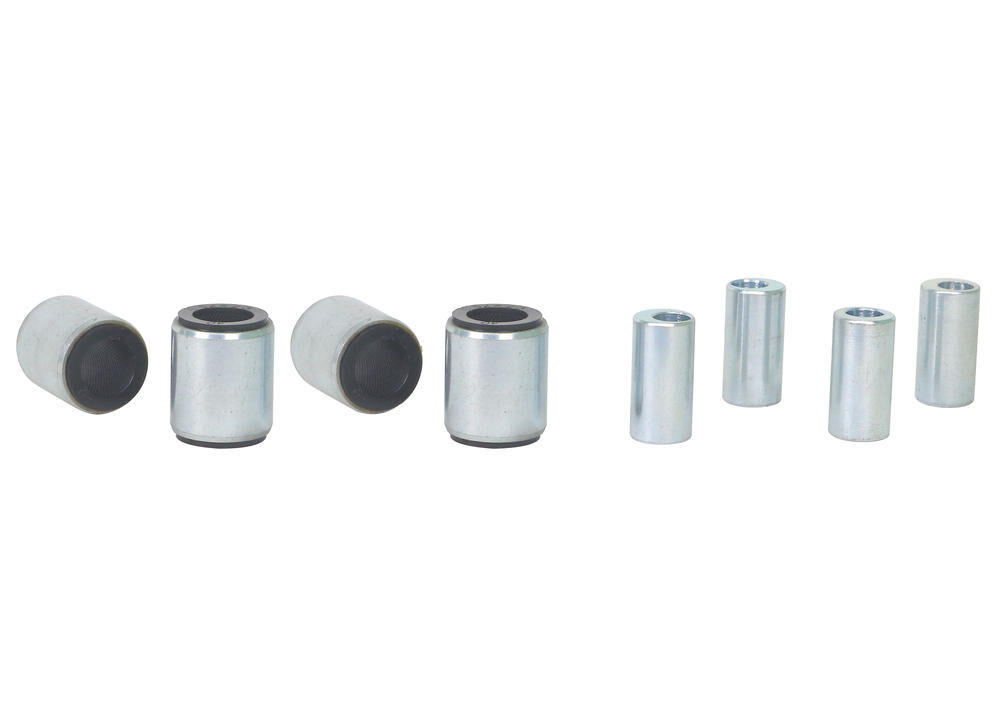

Components Per	4 Shell Bushings, 2 Tubes
Kits Required	1
Sub brand	Performance
Product Note	Ensures long-lasting durability, matter matter the purpose; the perfect, complete upgrade. Includes: 4 Shell Bushings, 2 Tubes
EAN	9319924477982
