Whiteline Rear Coil Spring Pad - Bushing Kit Standard Height to Suit Ford Falcon/Fairlane BA-FGX, Territory SX, SY and FPV

SKU: W72718

Benefit Note: Whether its replacing deteriorated original units, to compensate loading one side of a vehicle common to 4x4 or looking to obtain that preferred ride height setting Whiteline spring pads are an economical solution.

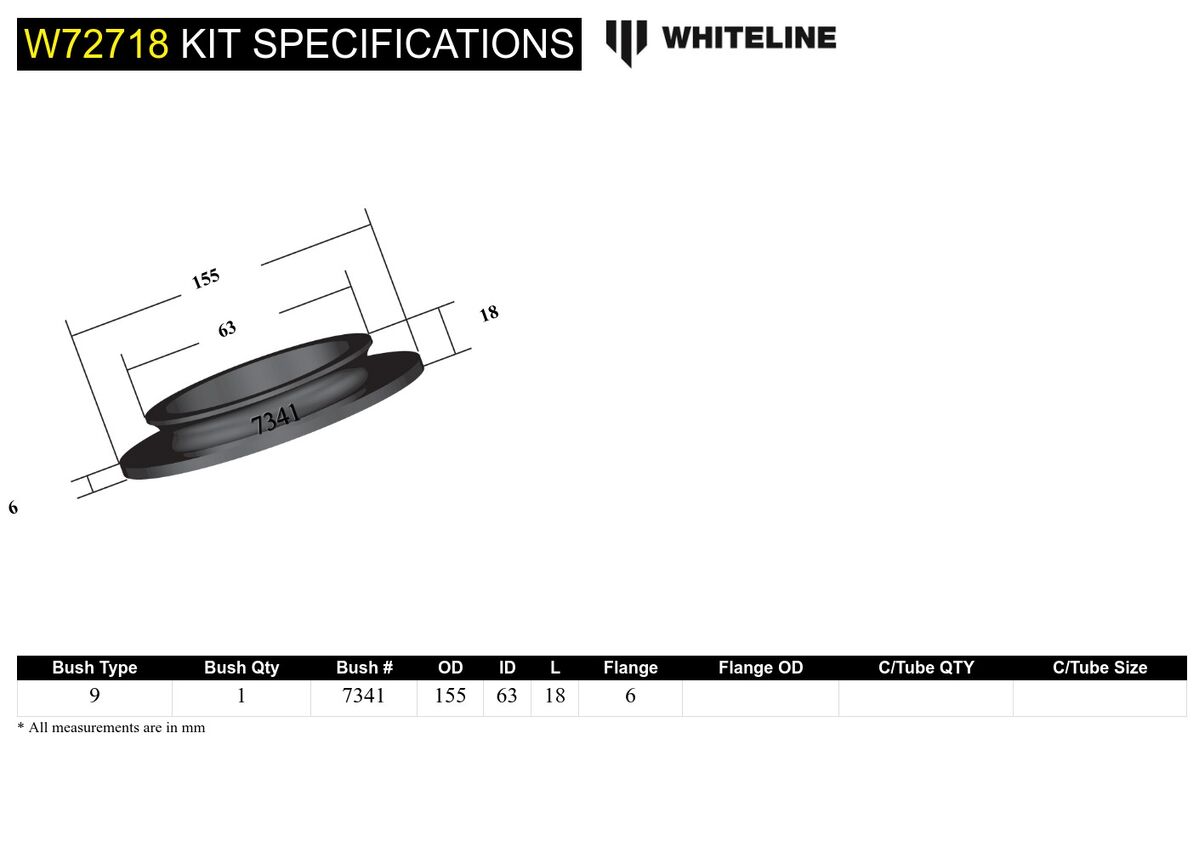

Kit Specifications

Bush Type 9 - Coil Spring Seats And Spacer Bushing
Bush Quantity 1 mm
OD (A) 155 mm
ID (B) 63 mm
Length (C) 18 mm
Flange Thickness (D) 6 mm
Flange OD (E)
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 9 - Coil Spring Seats And Spacer Bushing

Bushing Design Dimensions (mm)

Bush Type 9
QTY 1
OD (A) 155
ID (B) 63
Length (C) 18.0
FL (D) 6
FLOD (E)
C/Tube Qty
C/Tube Size
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 9

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.167kg0.37lbs
Length40cm15.75"
Width10cm3.94"
Height20cm7.87"

Misc. Product Information

More Information
SKUW72718
Components Per1 Bushing
Kits Required2
Sub brandReplacement
Product NoteBoosts handling and performance, while optimising suspension geometry; the perfect, complete upgrade. Includes: 1 Bushing
EAN9319924375455
  • Lifetime Warranty
Brand Whiteline
SKU W72718
Unit Of Measure Kit
