Whiteline Rear Camber/Toe Kit - Single Bolt Design Incl Removal Tool to Suit Holden Commodore VN-VZ and HSV

SKU: W61309S

Benefit Note: This IRS suspension systems suffers from uneven rear tyre wear especially when lowered or when towing. The Whiteline 2 point camber / toe correction kits improve rear wheel alignment settings and saves you on replacing costly tyres. This kit comes with a bush removal tool for quicker installation.


Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 41.4 mm
ID (B) 29.5 mm
Length (C) 36.5 mm
Flange Thickness (D) 9.5 mm
Flange OD (E)
C/Tube Quantity 2
C/Tube ODxIDxL 29.5x11.9x71 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Camber / Toe Eccentric Yes

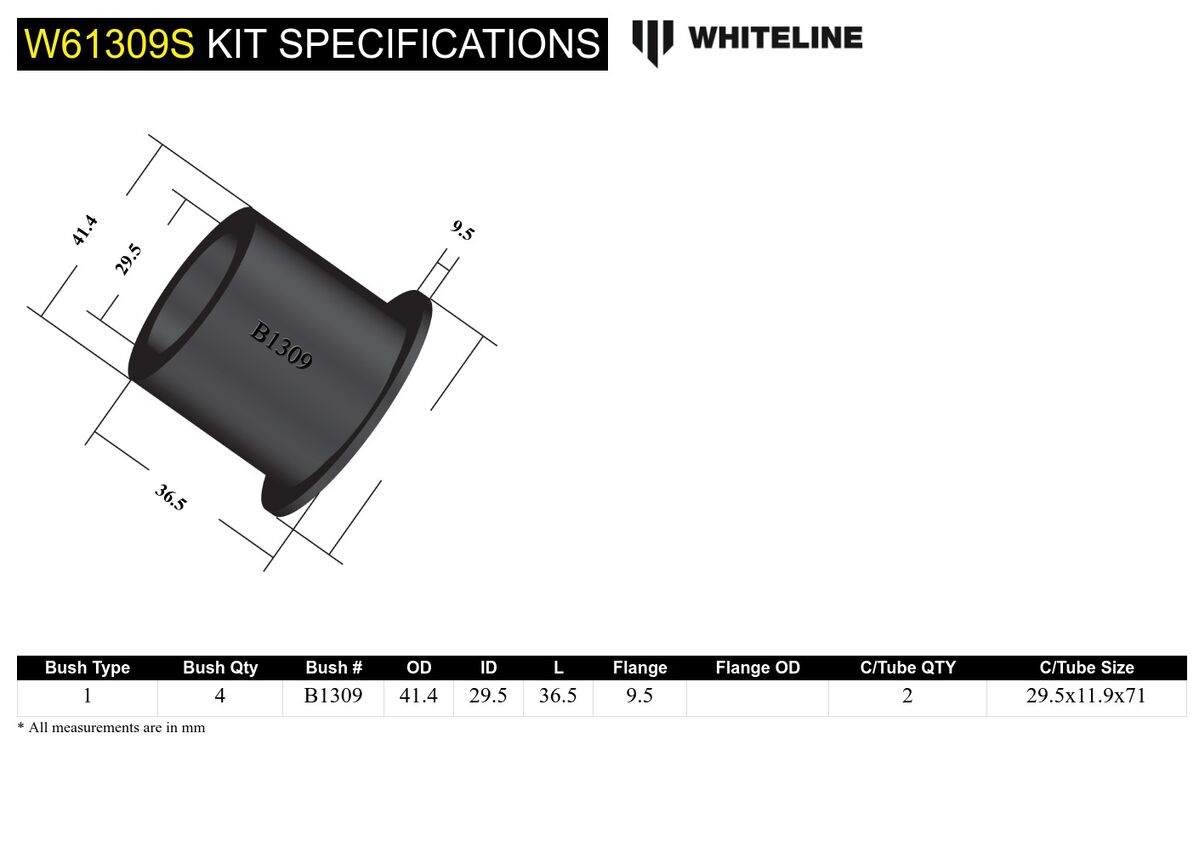

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 41.4
ID (B) 29.5
Length (C) 36.5
FL (D) 9.5
FLOD (E)
C/Tube Qty 2
C/Tube Size 29.5x11.9x71
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.57kg3.46lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW61309S

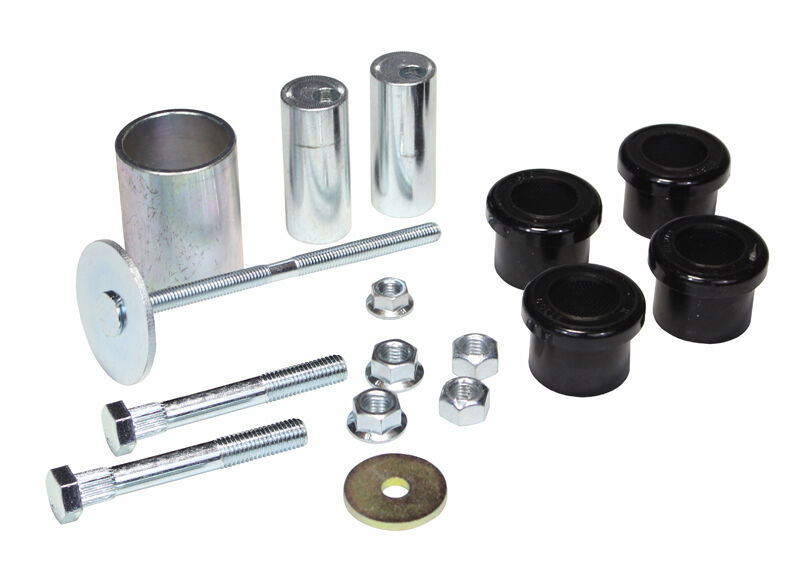

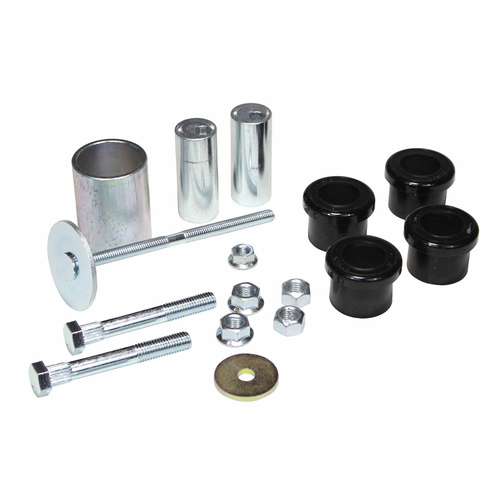

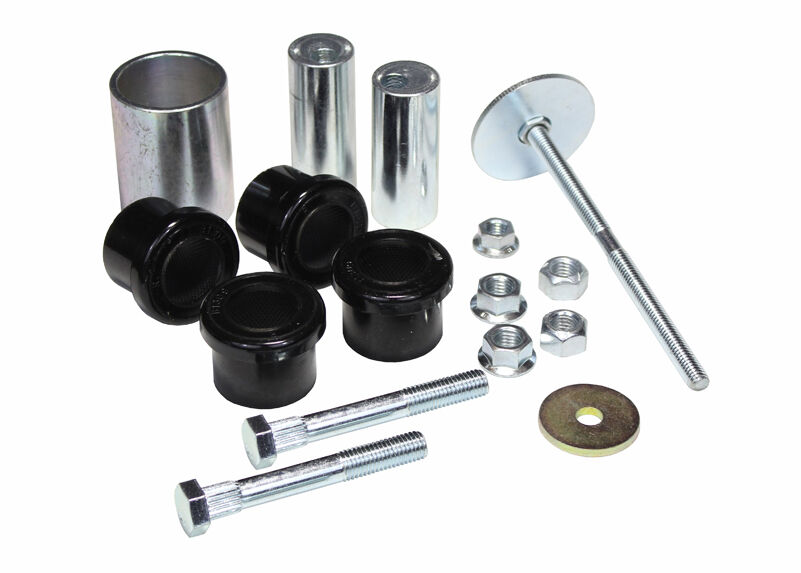

Components Per4 Bushings, 2 Tubes, 2 Bolts, 4 Nuts, Removal Tool
Kits Required1
Sub brandReplacement
Product NoteBalances comfort with performance while minimising noise and vibrations; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes, 2 Bolts, 4 Nuts & Removal Tool
EAN9319924353835
  • Lifetime Warranty
Brand Whiteline
SKU W61309S
Unit Of Measure Kit
