Whiteline Rear Camber/Toe Kit - Single Bolt Design 3deg to Suit Holden Commodore VN-VX and HSV

SKU: W62946

Benefit Note: For super low vehicles, this 4 point camber/ toe correction kit improves rear wheel alignment settings and saves you on replacing costly tyres. Kit includes removal tool.

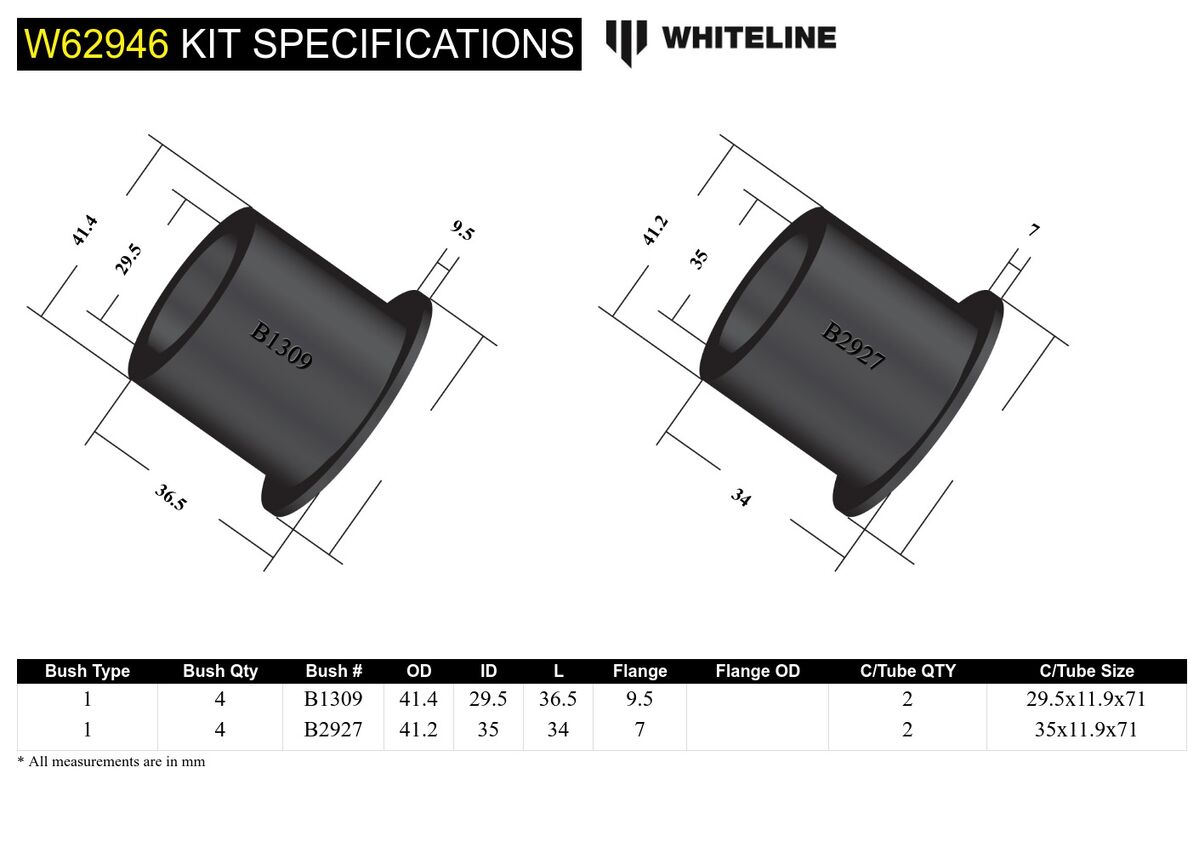

Kit Specifications

Bush Type 1 - Shackle Bushing 1 - Shackle Bushing
Bush Quantity 4 mm 4 mm
OD (A) 41.4 mm 41.2 mm
ID (B) 29.5 mm 35 mm
Length (C) 36.5 mm 34 mm
Flange Thickness (D) 9.5 mm 7 mm
Flange OD (E)
C/Tube Quantity 2 2
C/Tube ODxIDxL 29.5x11.9x71 mm 35x11.9x71 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 1 - Shackle Bushing
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Camber / Toe Eccentric Yes
Camber / Toe Eccentric Yes

Bushing Design Dimensions (mm)

Bush Type 1 1
QTY 4 4
OD (A) 41.4 41.2
ID (B) 29.5 35
Length (C) 36.5 34.0
FL (D) 9.5 7
FLOD (E)
C/Tube Qty 2 2
C/Tube Size 29.5x11.9x71 35x11.9x71
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.22kg0.49lbs
Length27cm10.63"
Width10cm3.94"
Height20cm7.87"

Misc. Product Information

More Information
SKUW62946

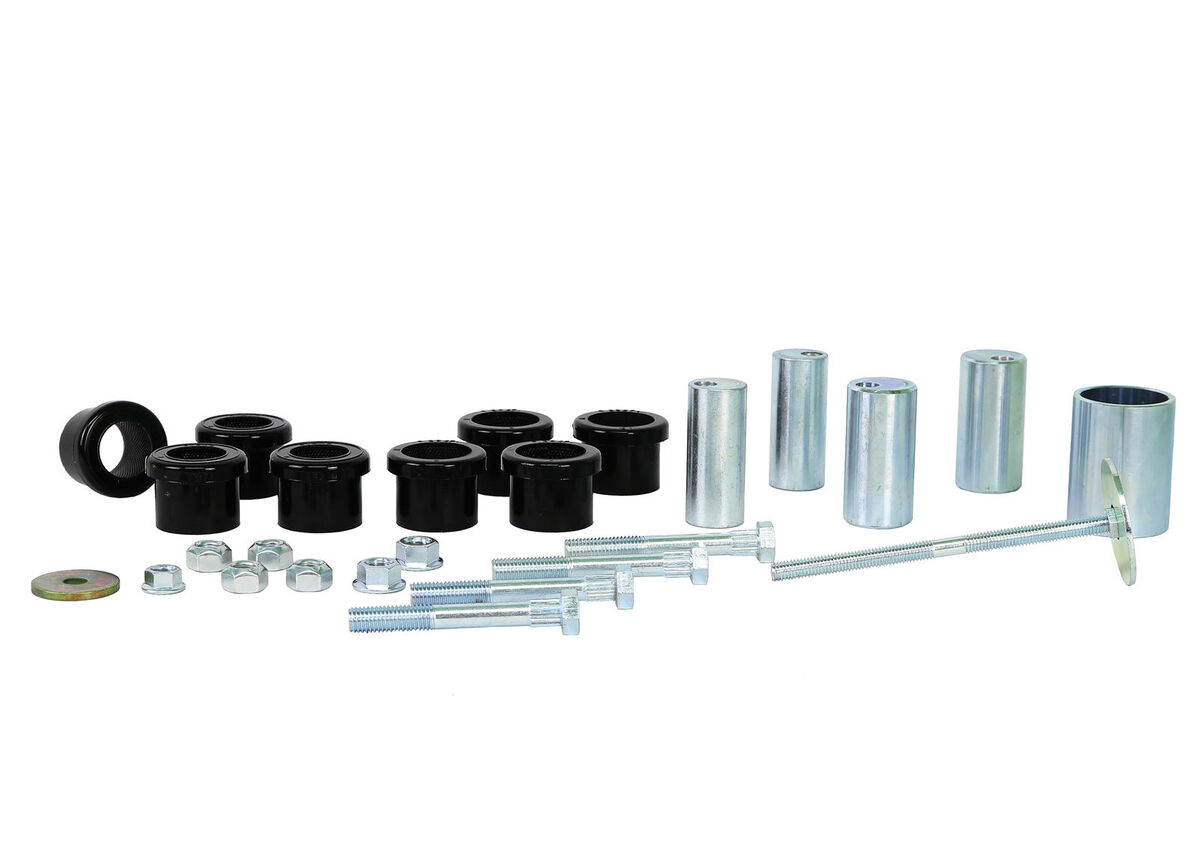

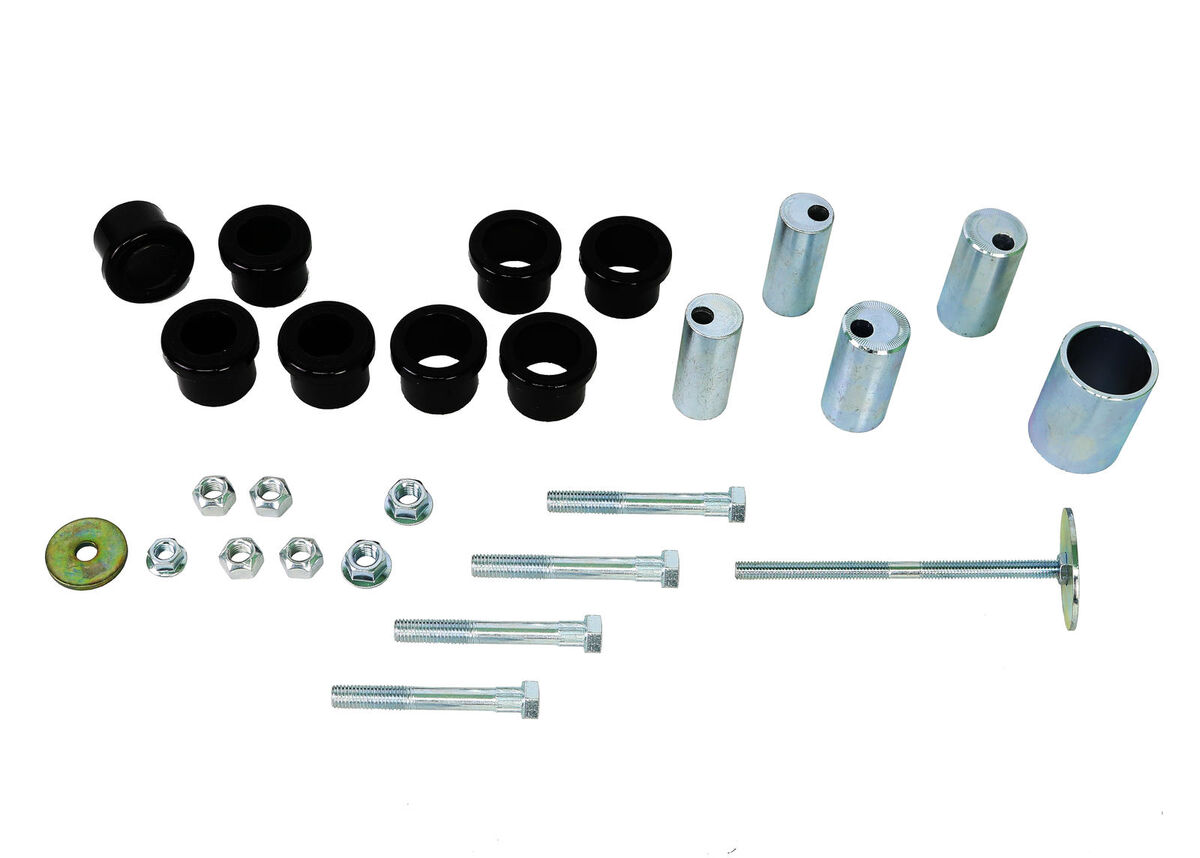

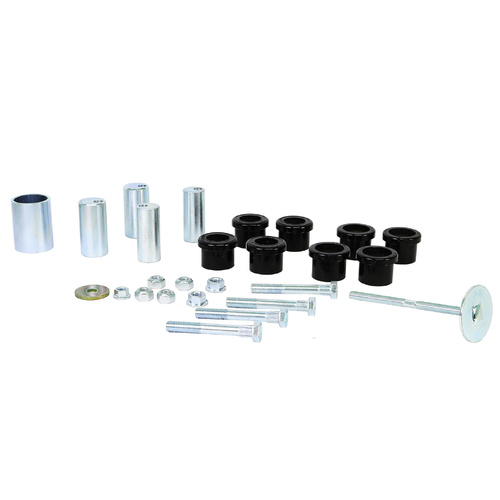

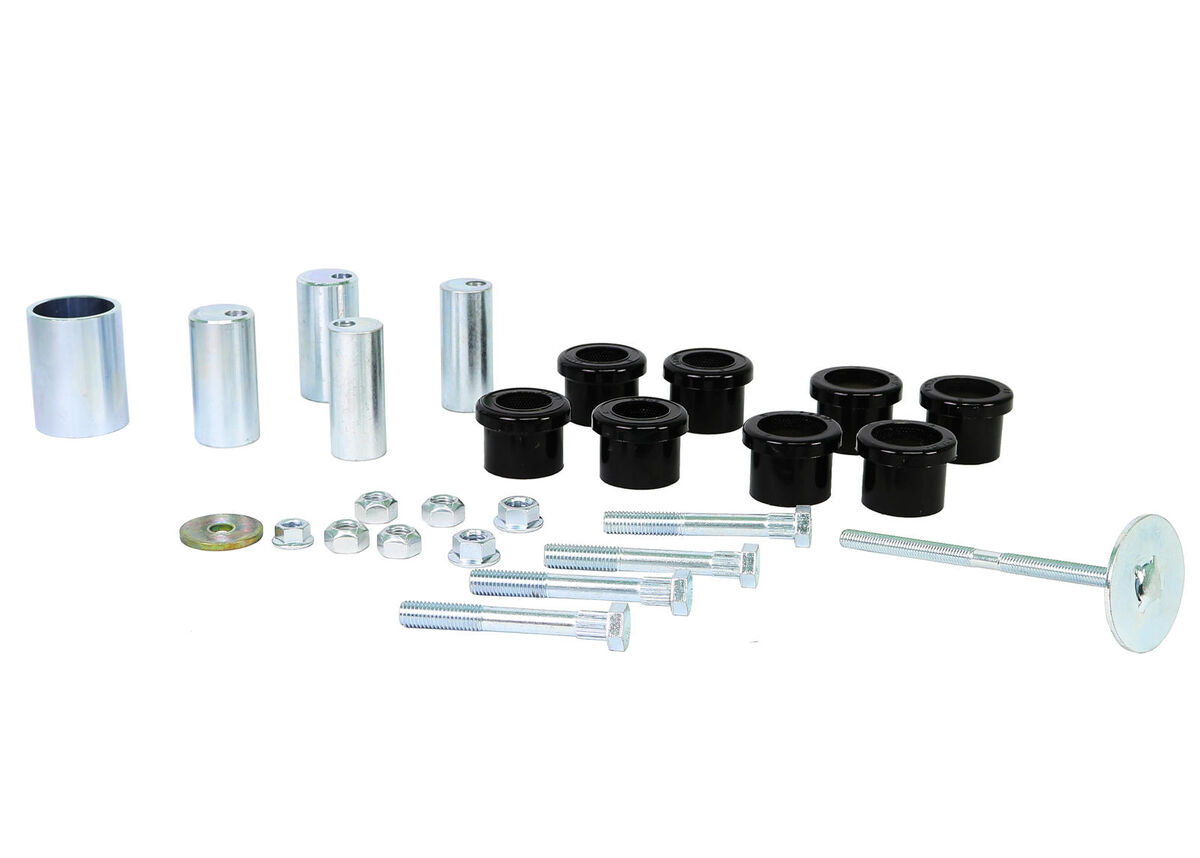

Components Per8 Bushings, 4 Tubes, Removal Tool, 4 Bolts, 8 Nuts
Kits Required1
Sub brandReplacement
Product NoteEnhances steering response, delivering sharper handling and more predictable vehicle dynamics; the perfect, complete upgrade. Includes: 8 Bushings, 4 Tubes, Removal Tool, 4 Bolts, 8 Nuts
EAN9319924354832
  • Lifetime Warranty
Brand Whiteline
SKU W62946
Unit Of Measure Kit
