Whiteline Rear Camber/Toe Kit - Single/2 Bolt Design 2deg to Suit Holden Commodore VN-VX and HSV

SKU: W63366

Benefit Note: Suffering from uneven rear tyre wear especially when lowered or when towing. The Whiteline 2 point camber / toe correction kits improve rear wheel alignment settings and saves you on replacing costly tyres.


Kit Specifications

Bush Type 1 - Shackle Bushing 1 - Shackle Bushing
Bush Quantity 4 mm 4 mm
OD (A) 41.6 mm 41.4 mm
ID (B) 24.7 mm 29.5 mm
Length (C) 34.1 mm 36.5 mm
Flange Thickness (D) 8.5 mm 9.5 mm
Flange OD (E) 49.8 mm
C/Tube Quantity 2 2
C/Tube ODxIDxL 25.4x12.5x70.8 mm 29.5x11.9x71 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 1 - Shackle Bushing
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Camber / Toe Eccentric Yes
Camber / Toe Eccentric Yes

Bushing Design Dimensions (mm)

Bush Type 1 1
QTY 4 4
OD (A) 41.6 41.4
ID (B) 24.7 29.5
Length (C) 34.1 36.5
FL (D) 8.5 9.5
FLOD (E) 49.8
C/Tube Qty 2 2
C/Tube Size 25.4x12.5x70.8 29.5x11.9x71
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.84kg4.06lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW63366

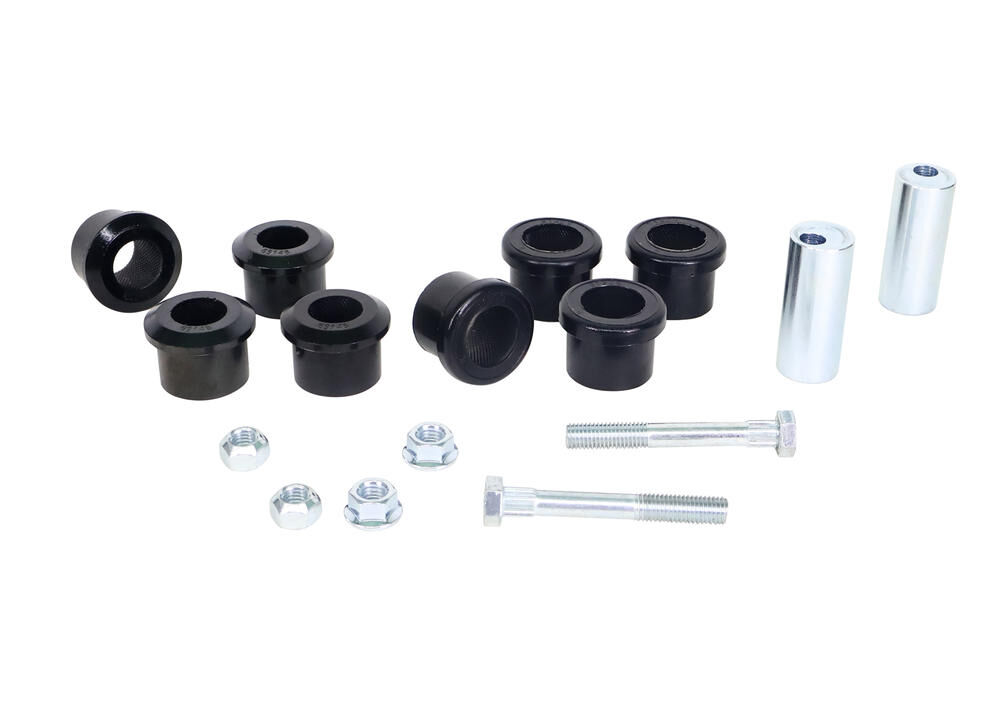

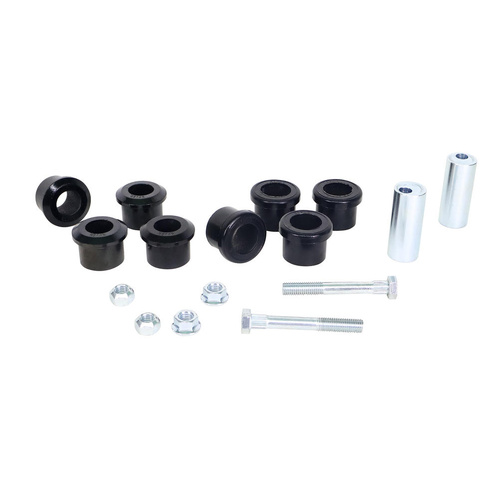

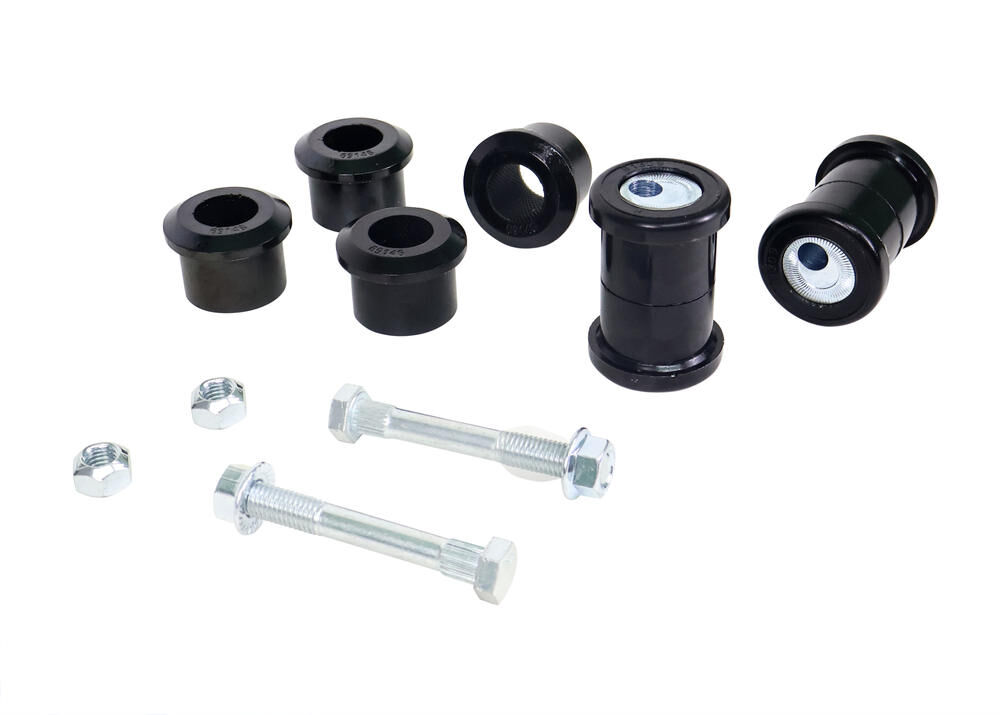

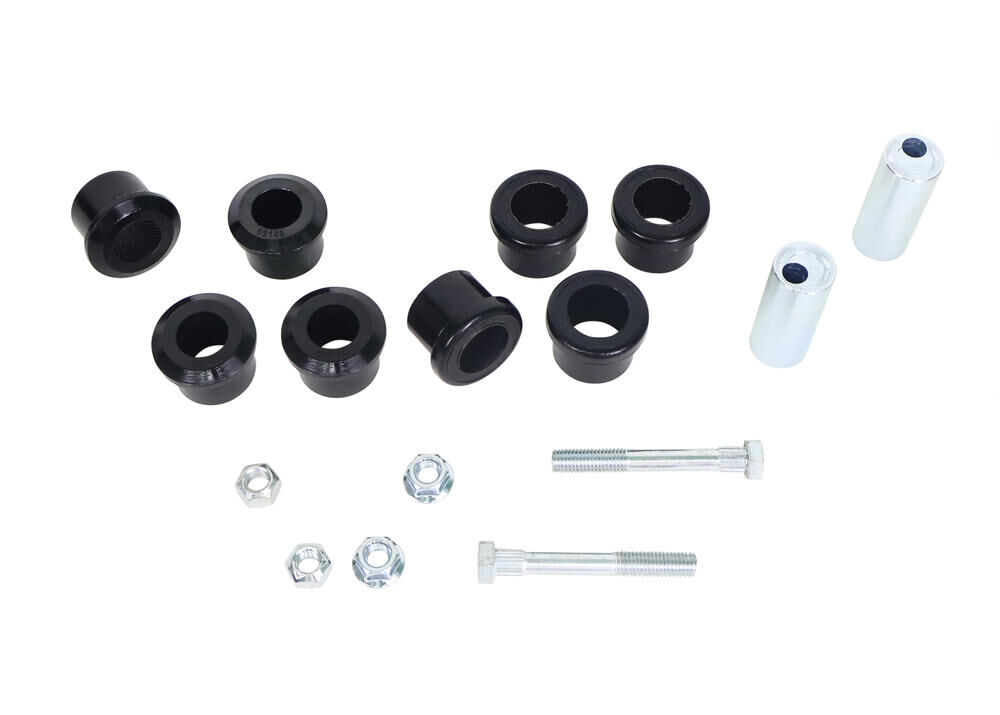

Components Per8 Bushings, 4 Tubes, 6 Bolts, 6 Washers, 4 Nuts
Kits Required1
Sub brandReplacement
Product NoteGreatly increases control and confidence; the perfect, complete upgrade. Includes: 8 Bushings, 4 Tubes, 6 Bolts, 6 Washers, 4 Nuts
EAN9319924379583
  • Lifetime Warranty
Brand Whiteline
SKU W63366
Unit Of Measure Kit
