Whiteline Rear Camber Kit - Single Bolt Design 3deg to Suit Holden Commodore VN-VZ and HSV

SKU: W62927

Benefit Note: For super low vehicles, this 2 point camber/ toe correction kit improves rear wheel alignment settings and saves you on replacing costly tyres.


Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 41 mm
ID (B) 35 mm
Length (C) 36 mm
Flange Thickness (D) 9 mm
Flange OD (E) 50 mm
C/Tube Quantity 2
C/Tube ODxIDxL 35x11.9x71 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Camber Eccentric Yes

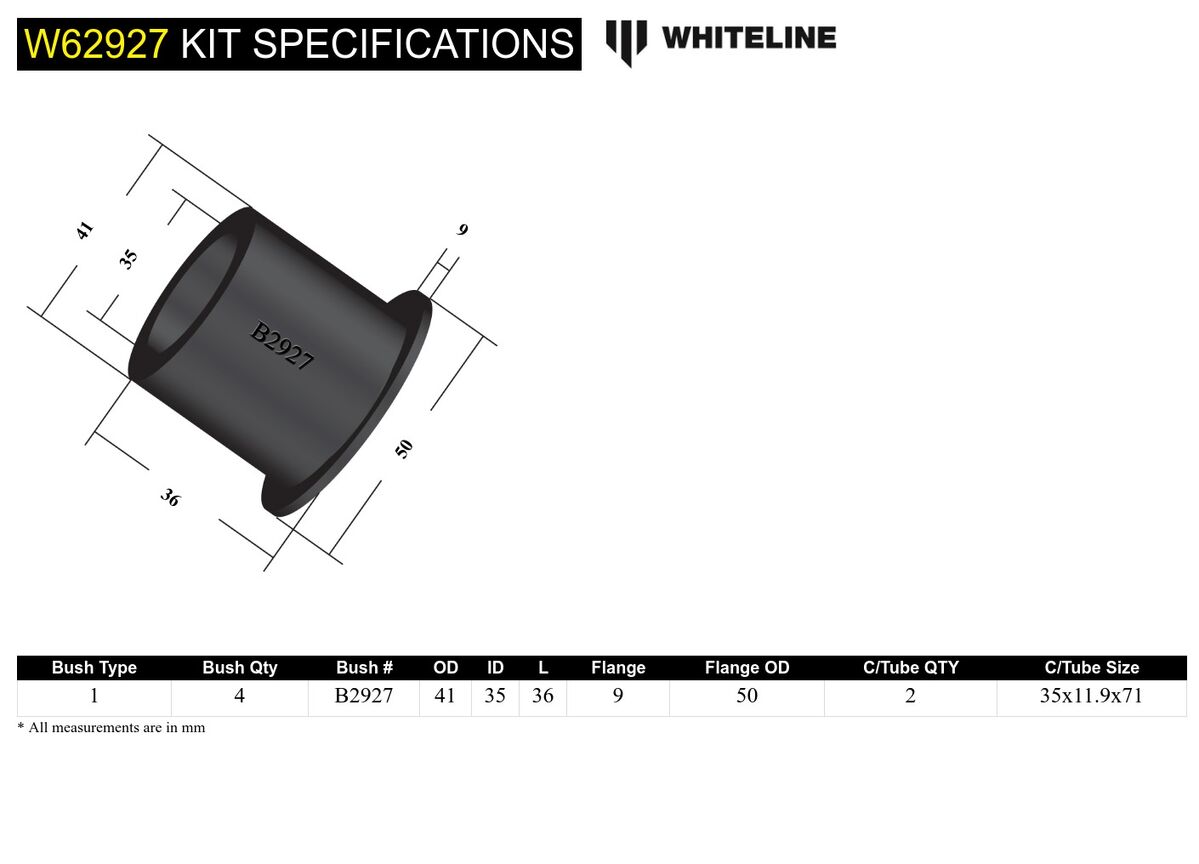

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 41
ID (B) 35
Length (C) 36.0
FL (D) 9
FLOD (E) 50
C/Tube Qty 2
C/Tube Size 35x11.9x71
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.382kg3.05lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW62927

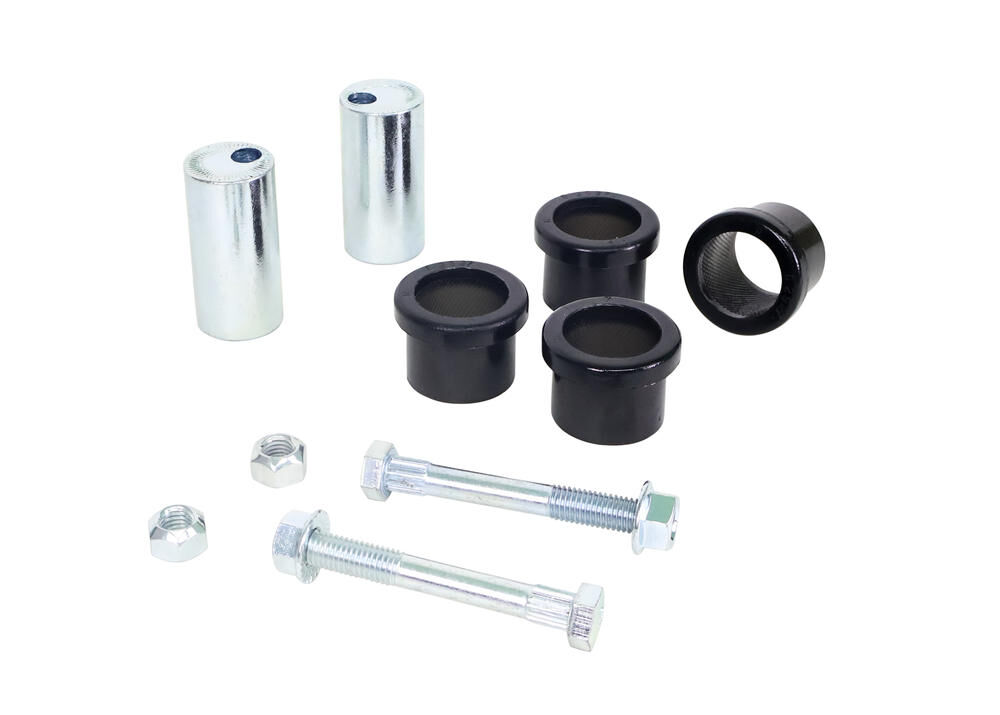

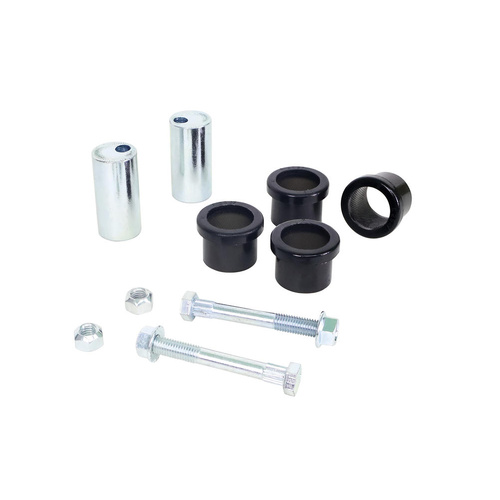

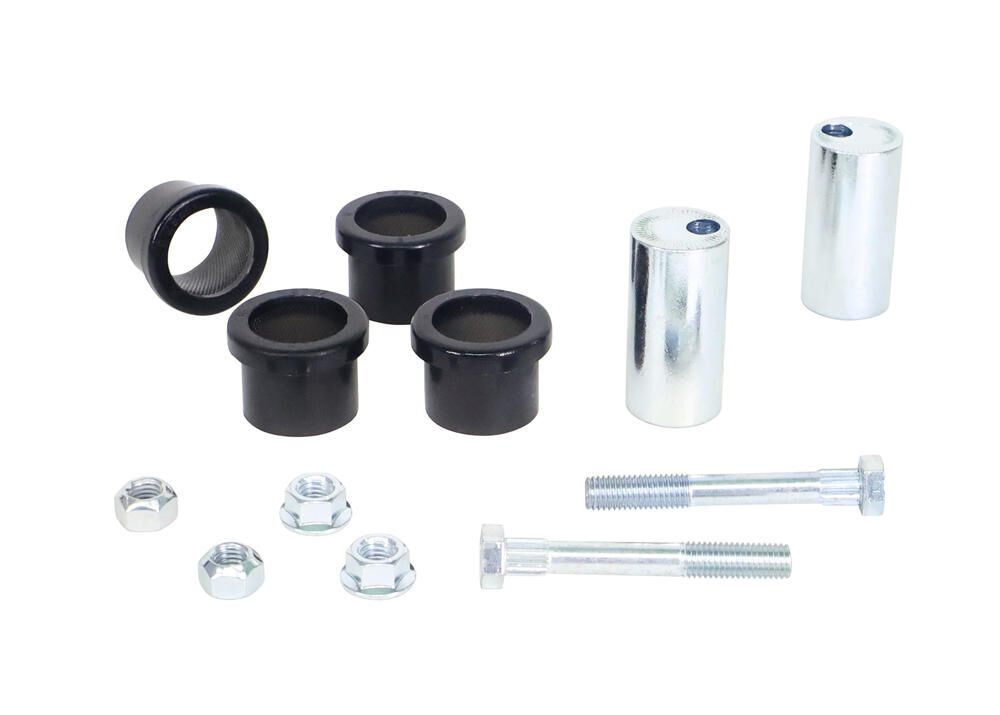

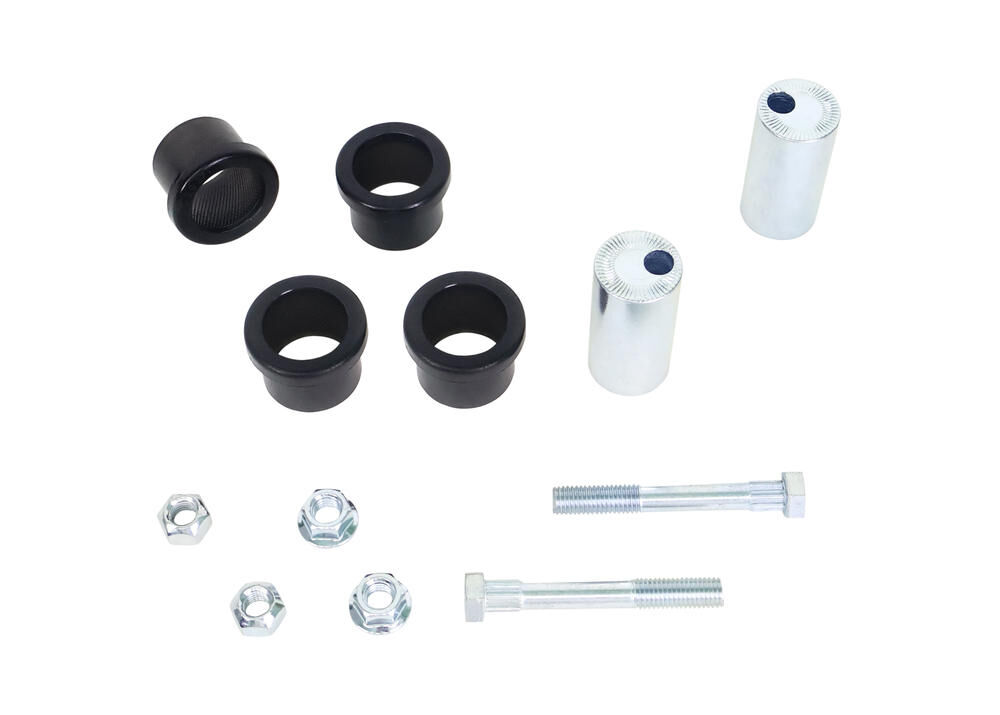

Components Per4 Bushings, 2 Tubes, 2 Bolts, 4 Nuts
Kits Required1
Sub brandReplacement
Product NoteMaximises tyre contact with the road, improving cornering and grip; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes, 2 Bolts, 4 Nuts
EAN9319924354825
  • Lifetime Warranty
Brand Whiteline
SKU W62927
Unit Of Measure Kit
