Whiteline Rear Bump Steer - Correction Kit to Suit Mitsubishi Lancer Evo 4 5 6 7 8 9

SKU: KCA388

Benefit Note: Whiteline bump steer correction kits are designed to correct suspension geometry improving dynamic toe settings during wheel travel. A reduction to bump steer results in sharper handling and reduced understeer.


Kit Specifications

Bush Type 10 - Cotton Reel With & Without Tapper Bushing
Bush Quantity 2 mm
OD (A) 36.2 mm
ID (B) 21.4 mm
Length (C) 37.8 mm
Flange Thickness (D) 7.5 mm
Flange OD (E) 39.8 mm
C/Tube Quantity 2
C/Tube ODxIDxL 22.2x12.2x39 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10 - Cotton Reel With & Without Tapper Bushing
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Bumpsteer Eccentric Yes

Bushing Design Dimensions (mm)

Bush Type 10
QTY 2
OD (A) 36.2
ID (B) 21.4
Length (C) 37.8
FL (D) 7.5
FLOD (E) 39.8
C/Tube Qty 2
C/Tube Size 22.2x12.2x39
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.25kg0.55lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUKCA388

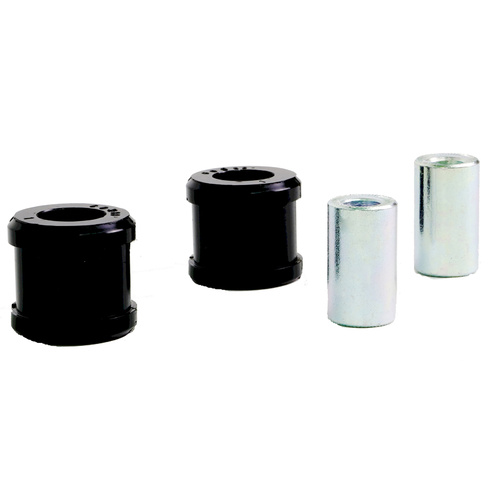

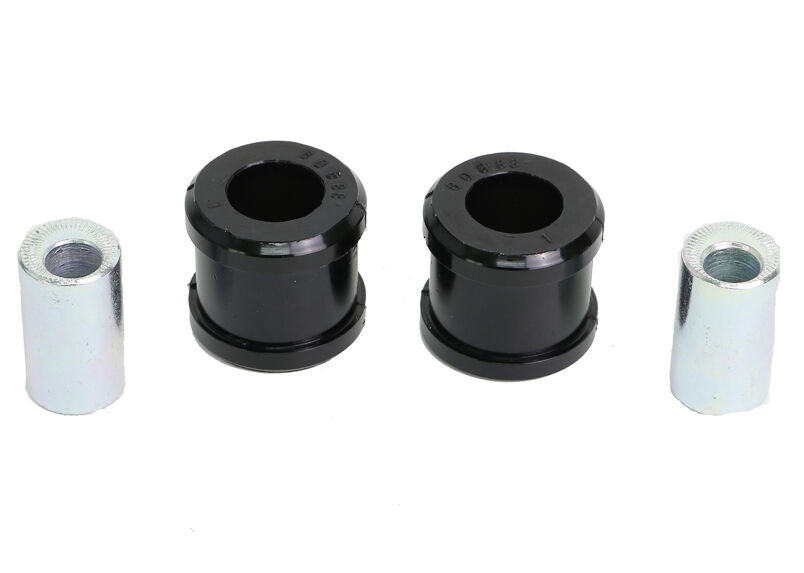

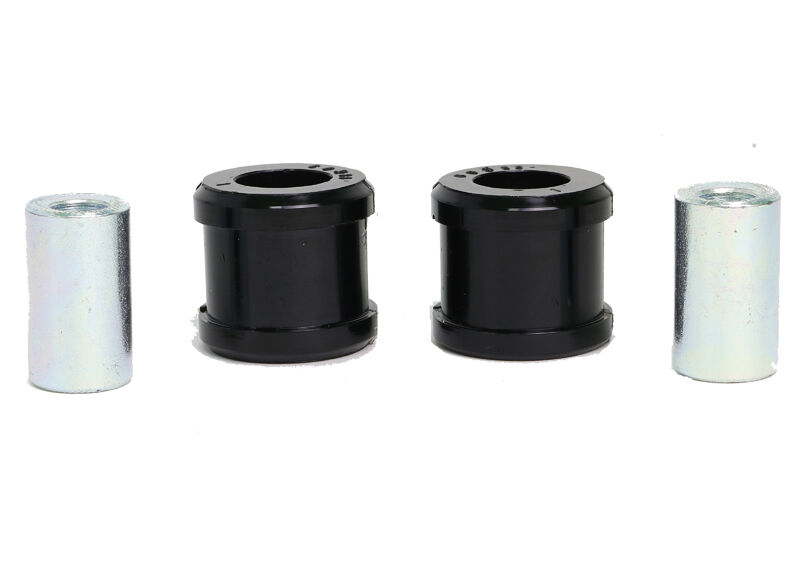

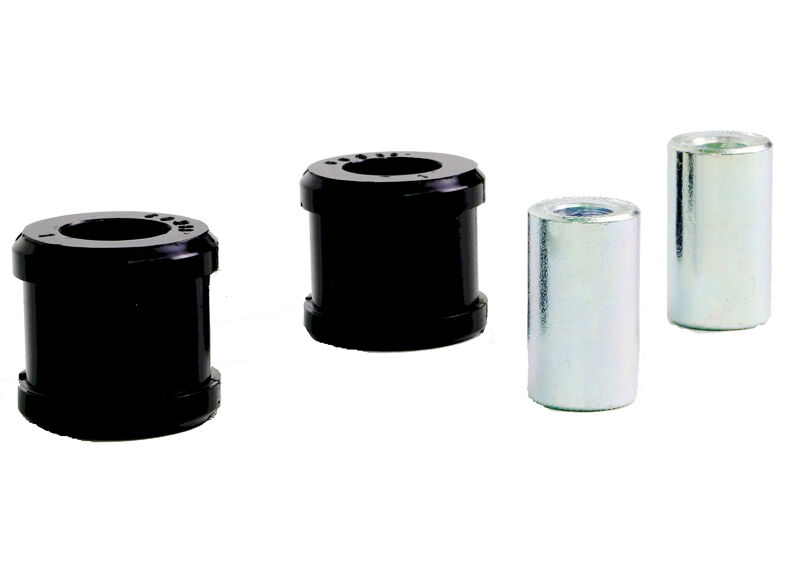

Components Per2 Bushings, 2 Tubes
Kits Required1
Sub brandPerformance
Product NoteMaximises grip and stability for better control; the perfect, complete upgrade. Includes: 2 Bushings & 2 Tubes
EAN9319924344673
  • 3 years warranty or up to 60,000km
Brand Whiteline
SKU KCA388
Unit Of Measure Kit
