Whiteline Rear Beam Axle - Bushing Kit to Suit VW Golf Mk2 and Jetta Mk2 A2

SKU: W63389

Benefit Note: A critical rear end bushing for any front wheel drive vehicle as it absorbs all the cornering and braking energy. Over compliance leads to early wear and tear, especially in performance applications. Reduce rear end cornering squirm and improve braking efficiencies with the Whiteline beam axle kit.

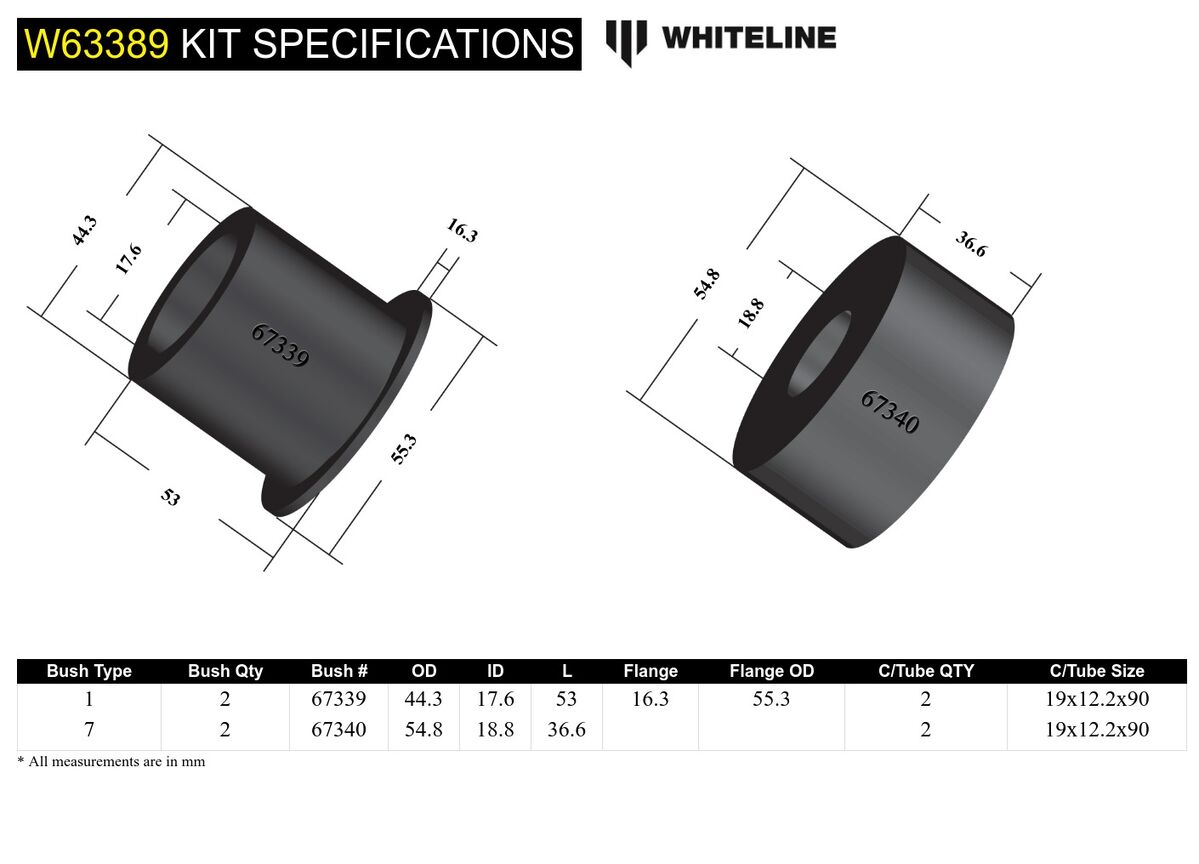

Kit Specifications

Bush Type 7 - Pin Bush With & Without Spigot 1 - Shackle Bushing
Bush Quantity 2 mm 2 mm
OD (A) 54.8 mm 44.3 mm
ID (B) 18.8 mm 17.6 mm
Length (C) 36.6 mm 53 mm
Flange Thickness (D) 16.3 mm
Flange OD (E) 55.3 mm
C/Tube Quantity 2 2
C/Tube ODxIDxL 19x12.2x90 mm 19x12.2x90 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 7 - Pin Bush With & Without Spigot
Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 7 1
QTY 2 2
OD (A) 54.8 44.3
ID (B) 18.8 17.6
Length (C) 36.6 53.0
FL (D) 16.3
FLOD (E) 55.3
C/Tube Qty 2 2
C/Tube Size 19x12.2x90 19x12.2x90
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1
Bushing Type 7

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.575kg1.27lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW63389

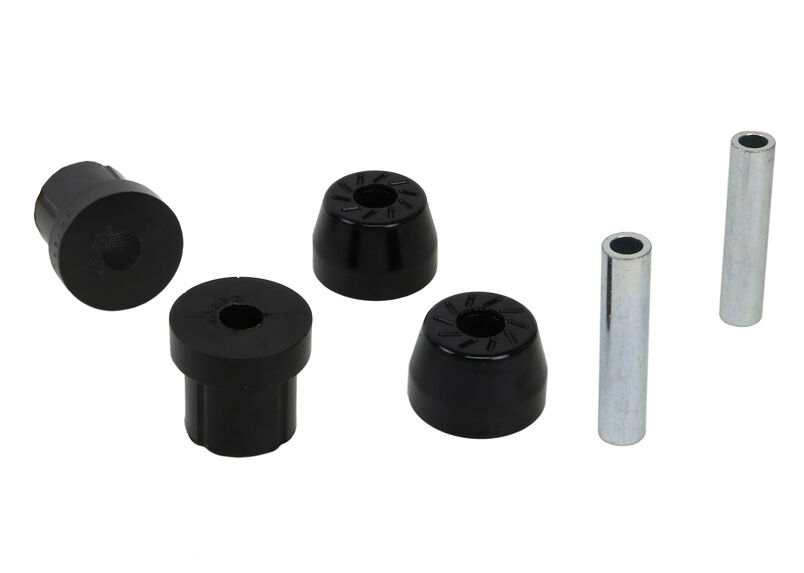

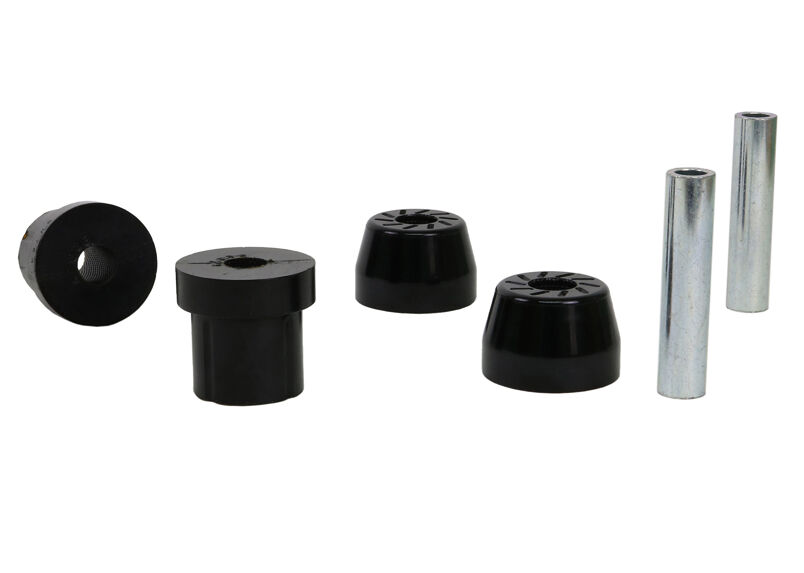

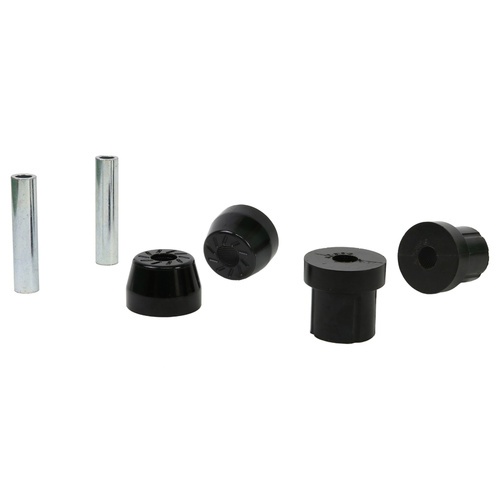

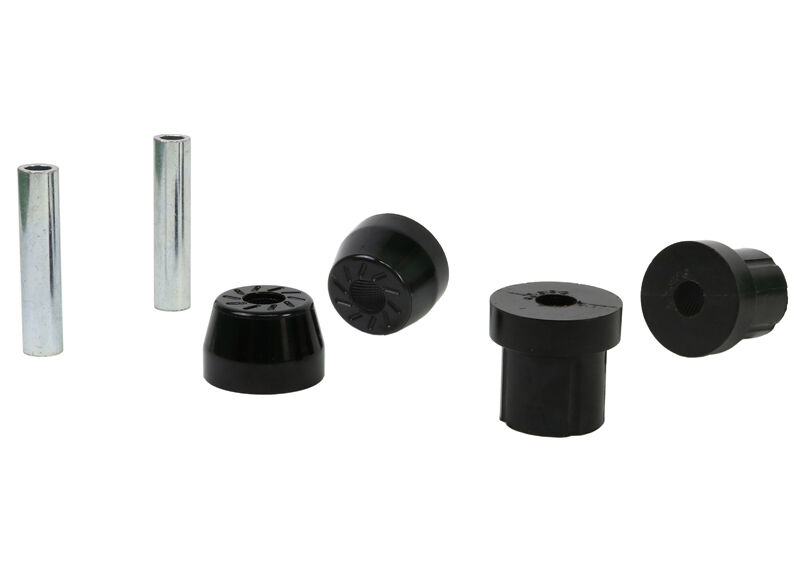

Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteCreates a consistent drive no matter the surface; the perfect, complete upgrade. Includes: 4 Bushings & 2 Tubes
EAN9319924383337
  • Lifetime Warranty
Brand Whiteline
SKU W63389
Unit Of Measure Kit
