Whiteline Rear Beam Axle - Bushing Kit to Suit Volkswagen Golf and Vento Mk3

SKU: W63391

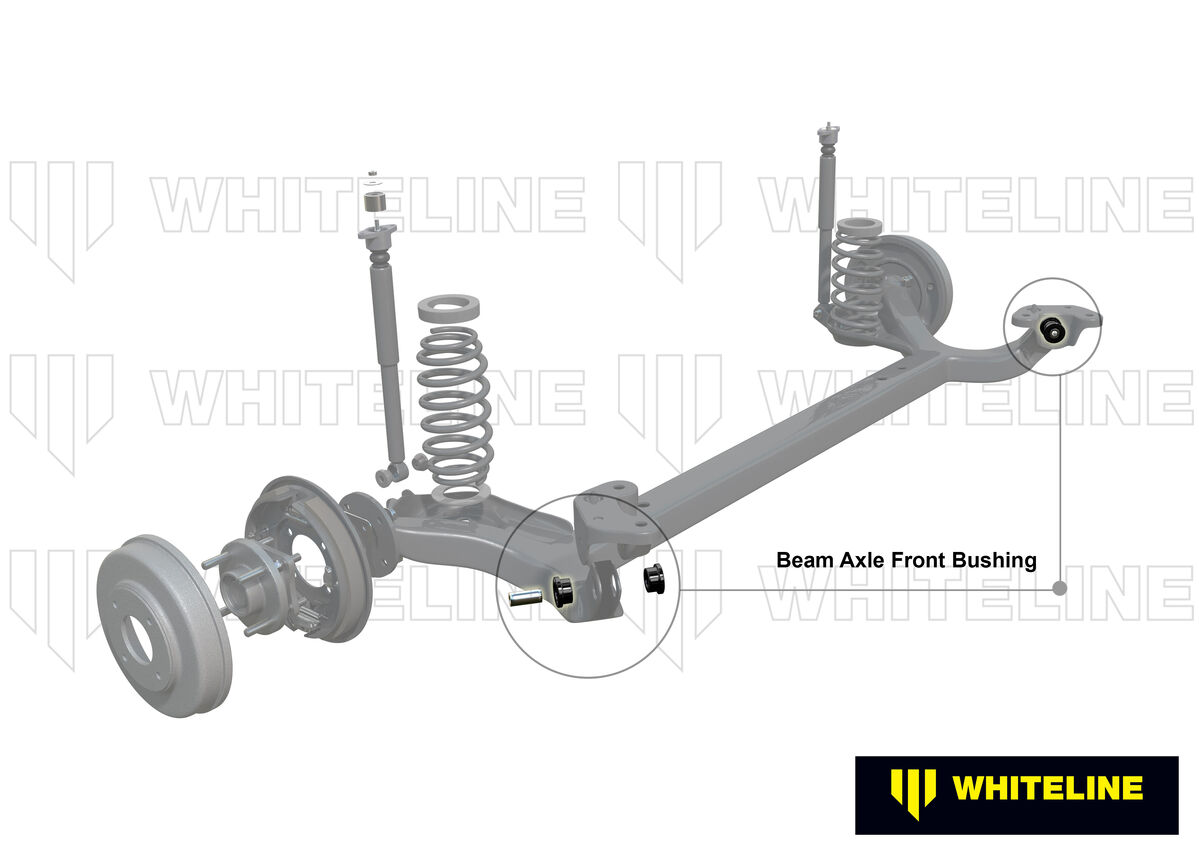

Benefit Note: A critical rear end bushing for any front wheel drive vehicle as it absorbs all the cornering and braking energy. Over compliance leads to early wear and tear, especially in performance applications. Reduce rear end cornering squirm and improve braking efficiencies with the Whiteline beam axle kit.

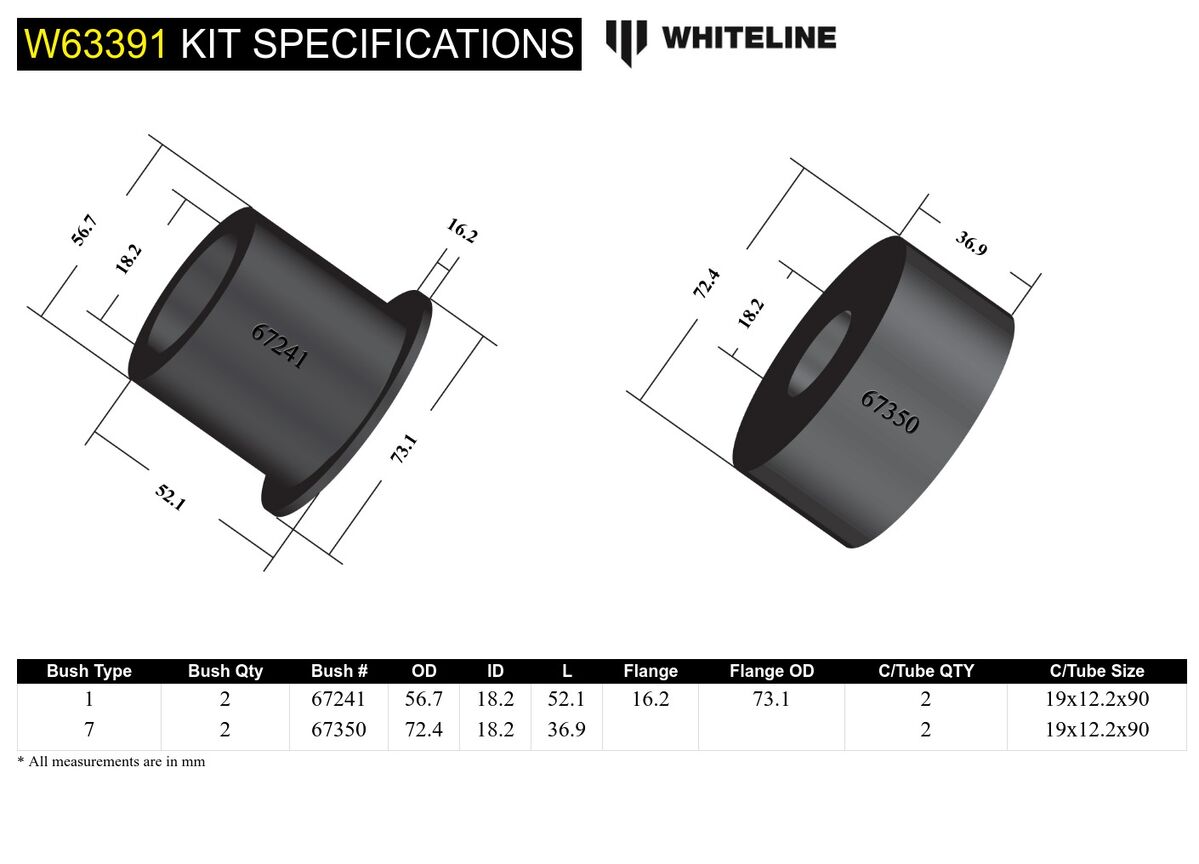

Kit Specifications

Bush Type 1 - Shackle Bushing 7 - Pin Bush With & Without Spigot
Bush Quantity 2 mm 2 mm
OD (A) 56.7 mm 72.4 mm
ID (B) 18.2 mm 18.2 mm
Length (C) 52.1 mm 36.9 mm
Flange Thickness (D) 16.2 mm
Flange OD (E) 73.1 mm
C/Tube Quantity 2 2
C/Tube ODxIDxL 19x12.2x90 mm 19x12.2x90 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 7 - Pin Bush With & Without Spigot

Bushing Design Dimensions (mm)

Bush Type 1 7
QTY 2 2
OD (A) 56.7 72.4
ID (B) 18.2 18.2
Length (C) 52.1 36.9
FL (D) 16.2
FLOD (E) 73.1
C/Tube Qty 2 2
C/Tube Size 19x12.2x90 19x12.2x90
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1
Bushing Type 7

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.88kg1.94lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW63391
Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteBalances comfort with performance while minimising noise and vibrations; the perfect, complete upgrade. Includes: 4 Bushings & 2 Tubes
EAN9319924383344
  • Lifetime Warranty
Brand Whiteline
SKU W63391
Unit Of Measure Kit
