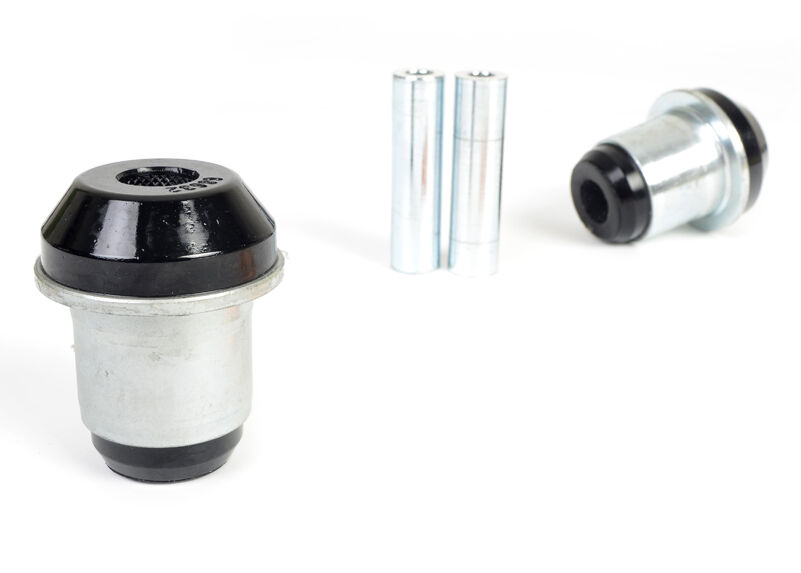

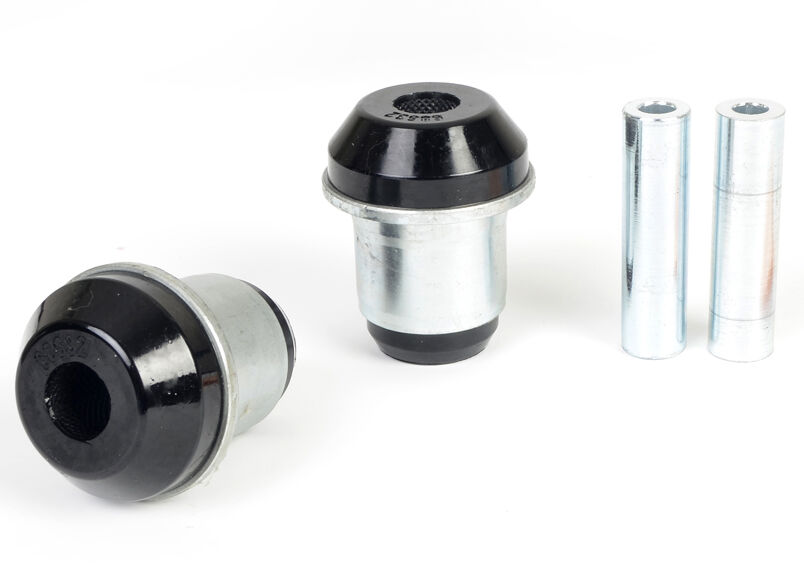

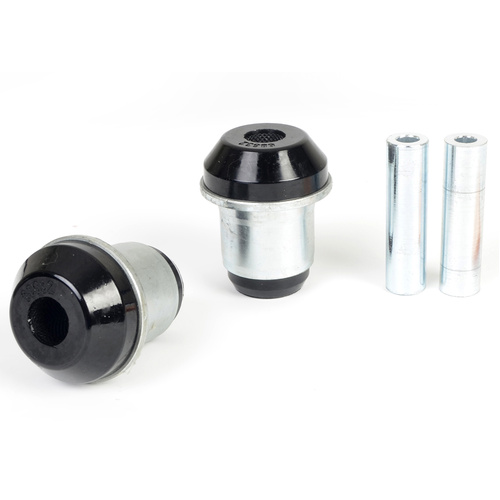

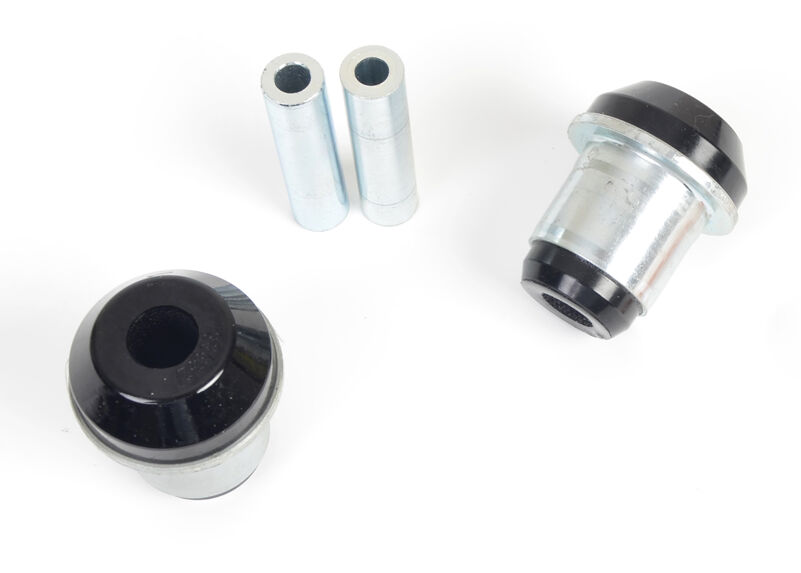

Whiteline Rear Beam Axle - Bushing Kit to Suit Renault Clio Series II

SKU: KDT947

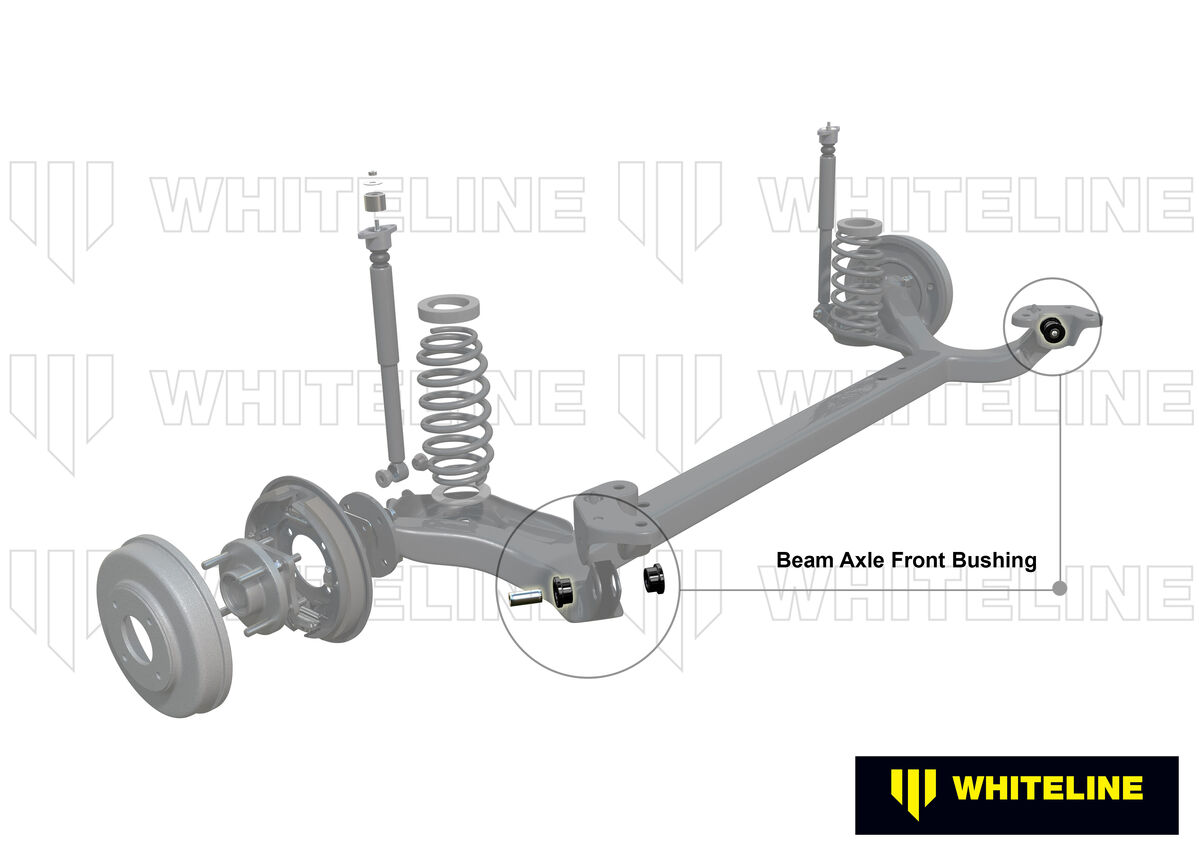

Benefit Note: A critical rear end bushing for any front wheel drive vehicle as it absorbs all the cornering and braking energy. Over compliance leads to early wear and tear, especially in performance applications. Reduce rear end cornering squirm and improve braking efficiencies with the Whiteline beam axle kit.


Kit Specifications

Bush Type 17 - Shell With Flange Bushing
Bush Quantity 2 mm
OD (A) AI=45 AII=43.8 mm
ID (B) 19 mm
Length (C) 73.3 mm
Flange Thickness (D) 22.4 mm
Flange OD (E)
C/Tube Quantity 2
C/Tube ODxIDxL 19x12.2x73 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 17 - Shell With Flange Bushing

Bushing Design Dimensions (mm)

Bush Type 17
QTY 2
OD (A) AI=45 AII=43.8
ID (B) 19
Length (C) 73.3
FL (D) 22.4
FLOD (E)
C/Tube Qty 2
C/Tube Size 19x12.2x73
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 17

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.03kg0.07lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUKDT947
Components Per2 Shell Bushings, 2 Tubes
Kits Required1
Sub brandPerformance
Product NoteBuilt tough for better durability and long-lasting performance; the perfect, complete upgrade. Includes: 2 Shell Bushings & 2 Tubes
EAN9319924406111
  • 3 years warranty or up to 60,000km
Brand Whiteline
SKU KDT947
Unit Of Measure Kit
