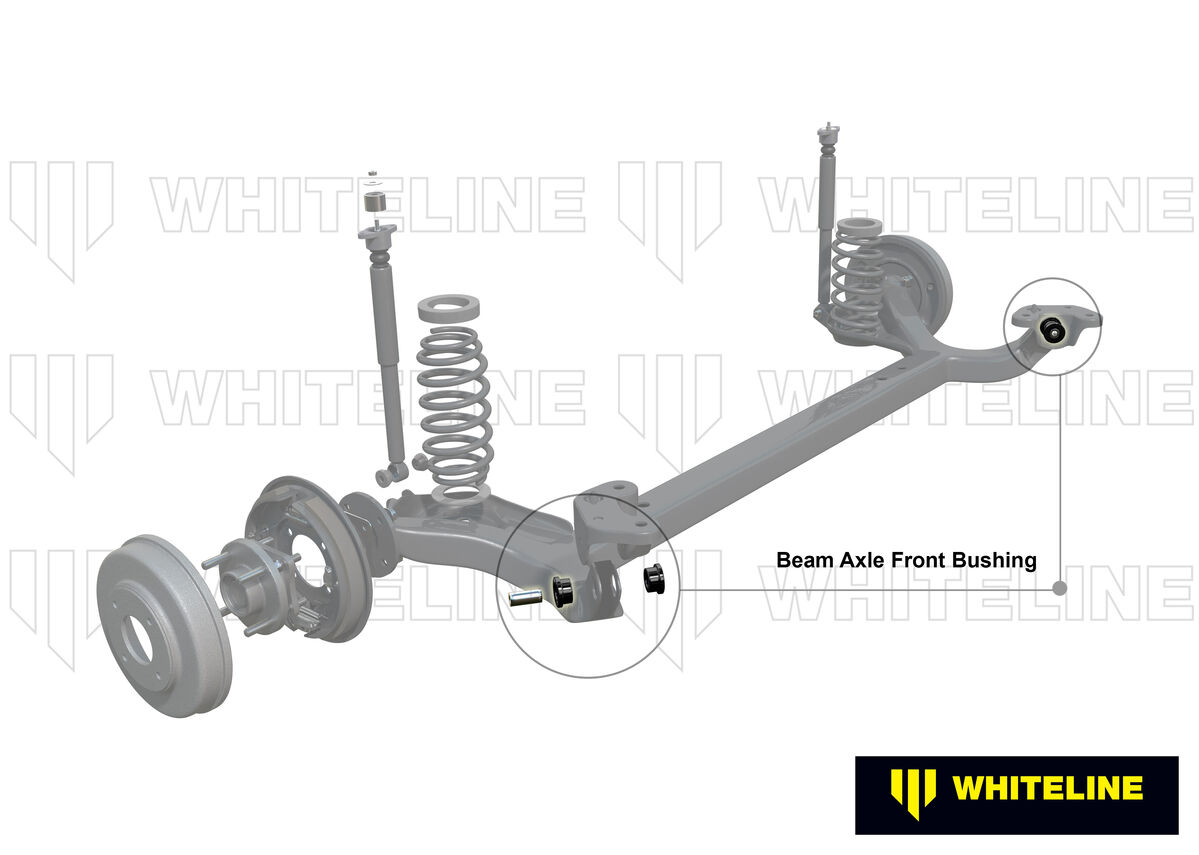

Whiteline Rear Beam Axle - Bushing Kit to Suit Nissan Micra, Tiida and Renault Clio

SKU: KDT948

Benefit Note: A critical rear end bushing for any front wheel drive vehicle as it absorbs all the cornering and braking energy. Over compliance leads to early wear and tear, especially in performance applications. Reduce rear end cornering squirm and improve braking efficiencies with the Whiteline beam axle kit.

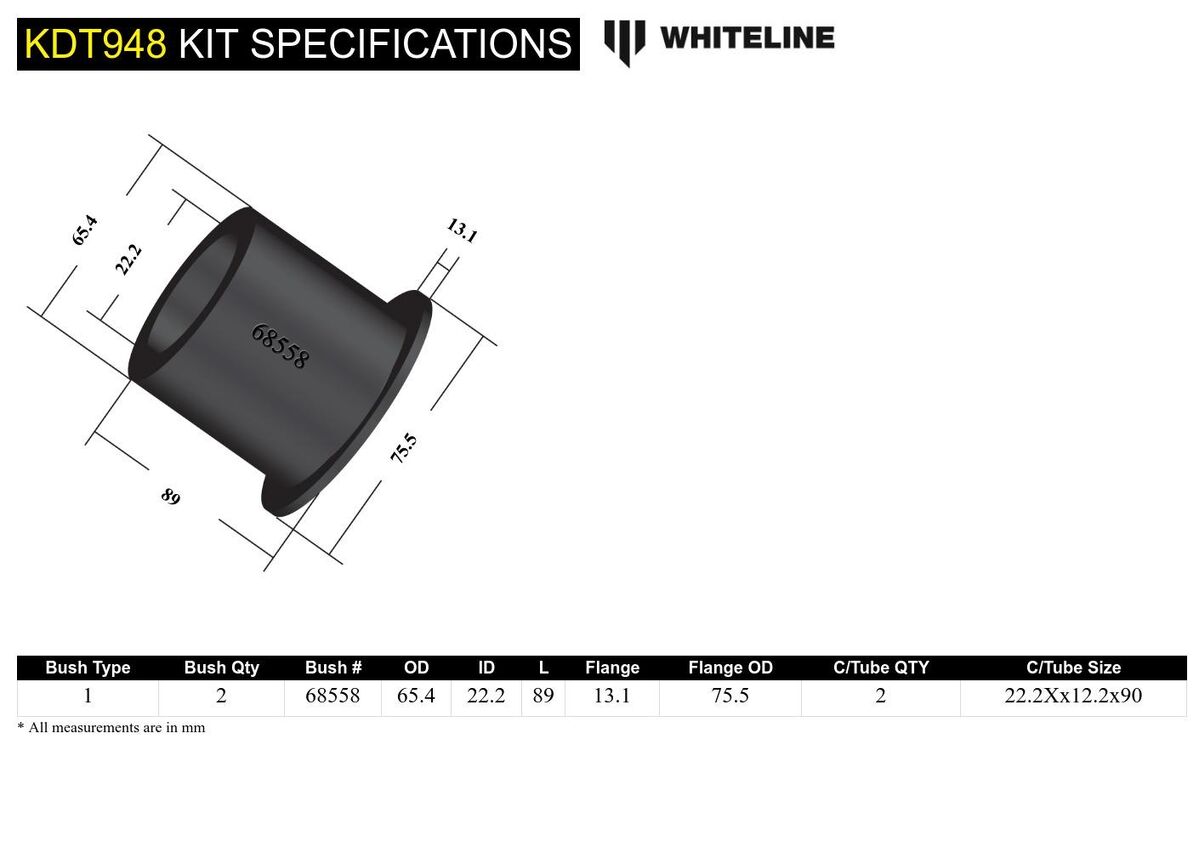

Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 2 mm
OD (A) 65.4 mm
ID (B) 22.2 mm
Length (C) 89 mm
Flange Thickness (D) 13.1 mm
Flange OD (E) 75.5 mm
C/Tube Quantity 2
C/Tube ODxIDxL 22.2xx12.2x90 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 2
OD (A) 65.4
ID (B) 22.2
Length (C) 89.0
FL (D) 13.1
FLOD (E) 75.5
C/Tube Qty 2
C/Tube Size 22.2xx12.2x90
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.46kg1.01lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUKDT948

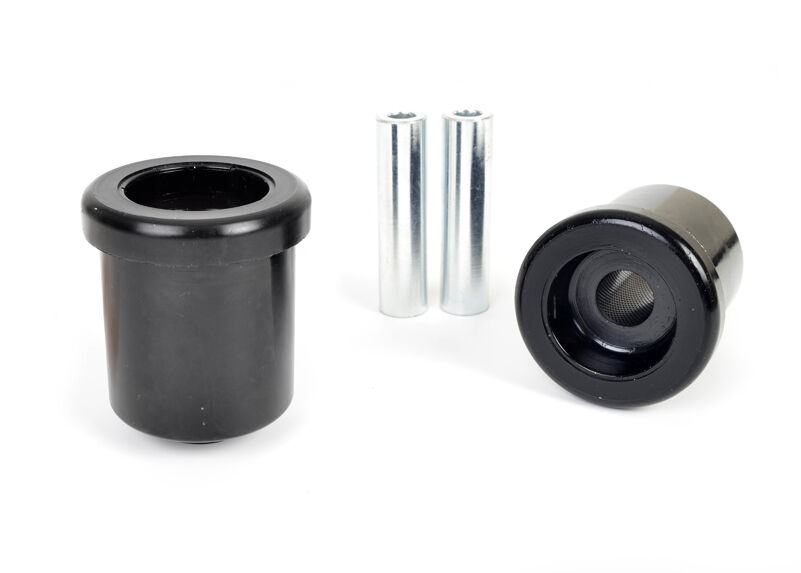

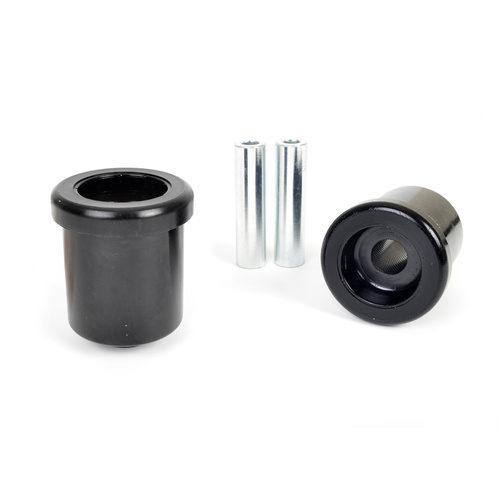

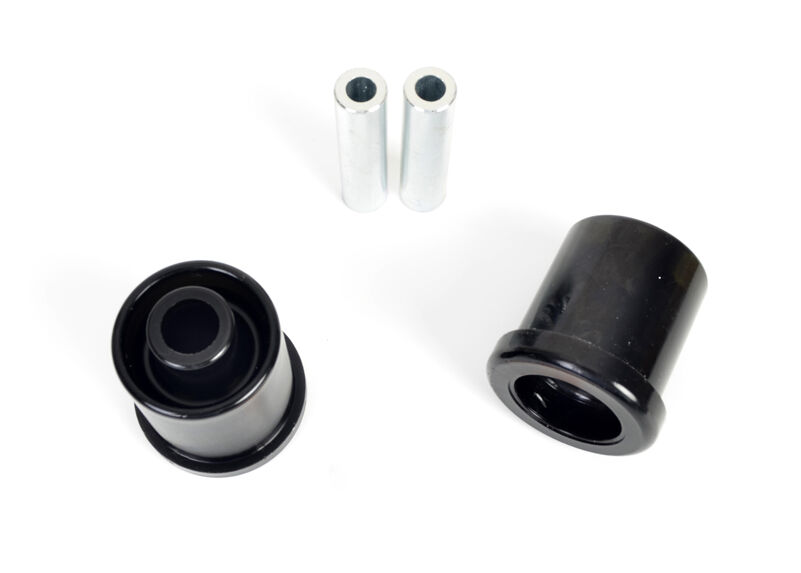

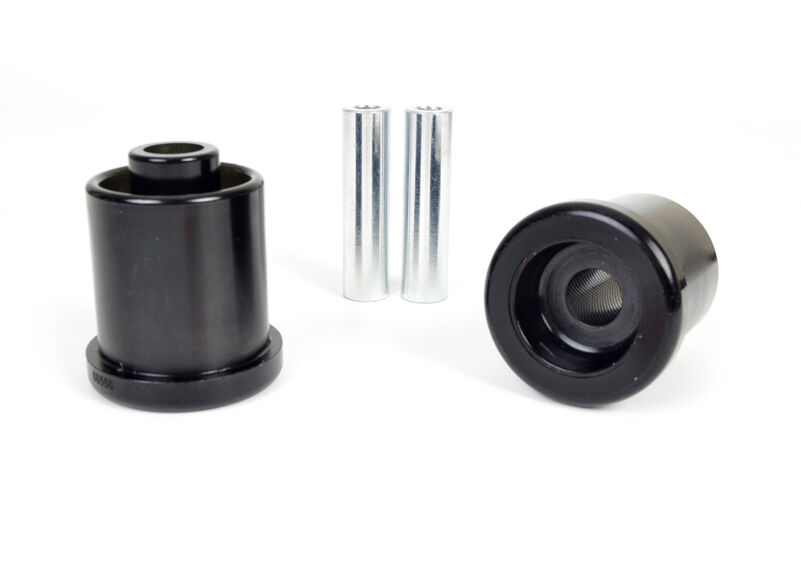

Components Per2 Bushings, 2 Tubes
Kits Required1
Sub brandPerformance
Product NoteCreates a consistent drive no matter the surface; the perfect, complete upgrade. Includes: 2 Bushings & 2 Tubes
EAN9319924406777
  • Lifetime Warranty
Brand Whiteline
SKU KDT948
Unit Of Measure Kit
