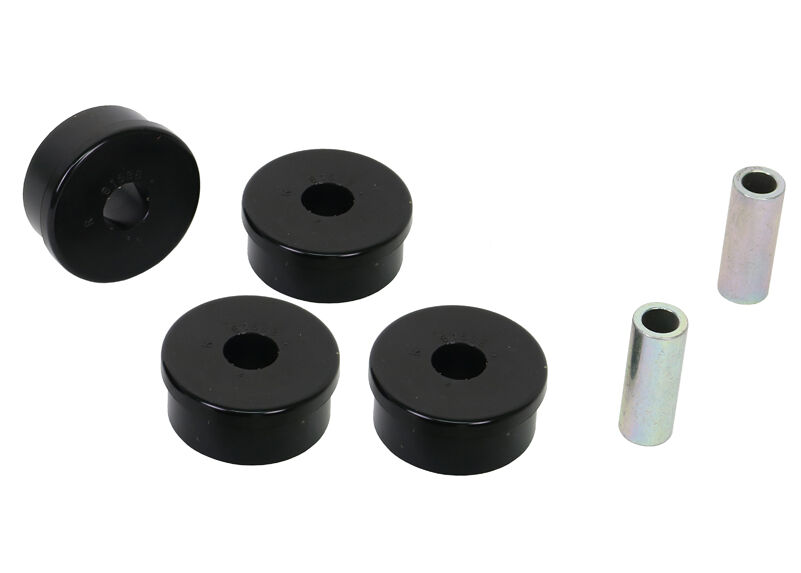

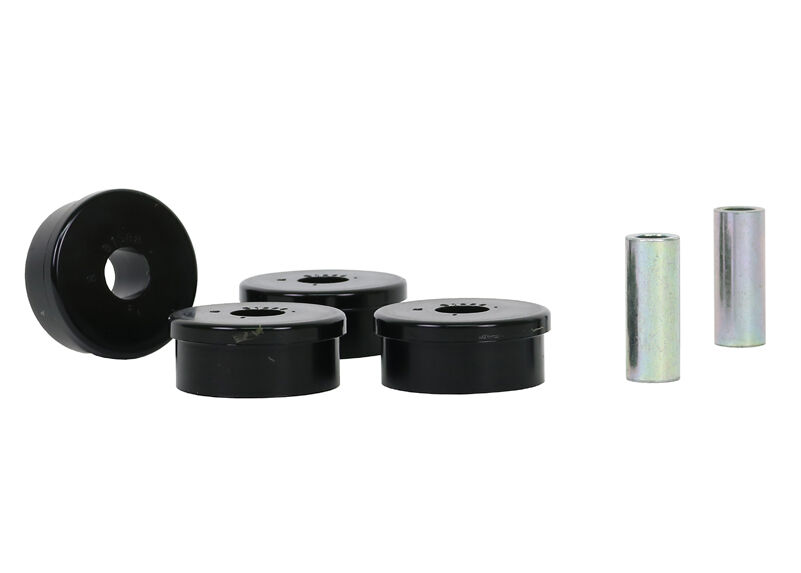

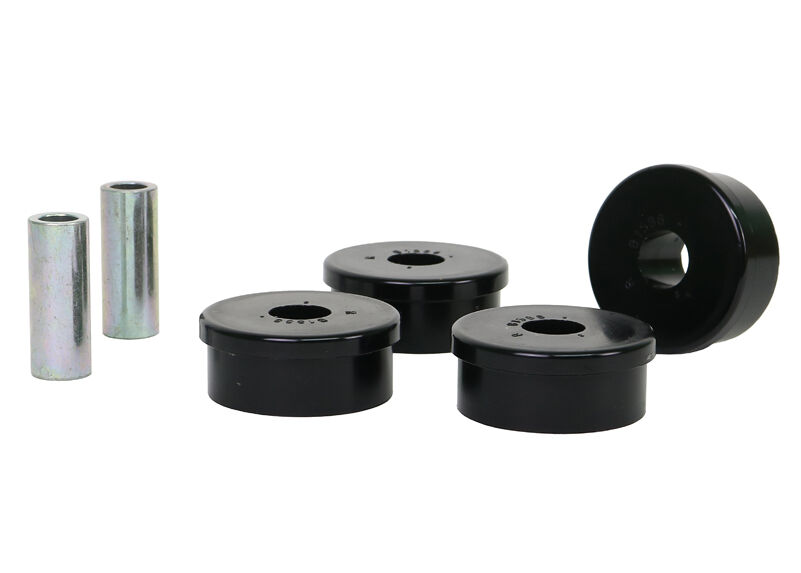

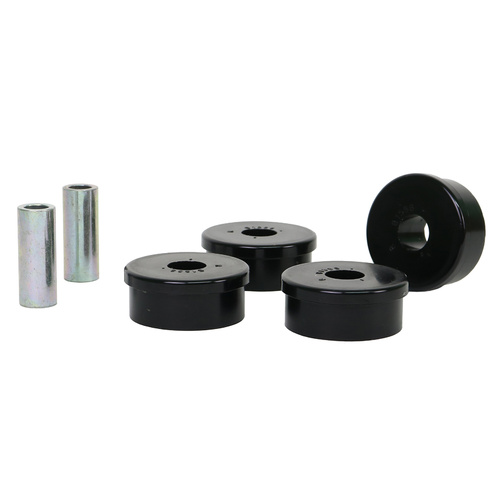

Whiteline Rear Beam Axle - Bushing Kit to Suit Mitsubishi Lancer CA-CE

SKU: W61588

Benefit Note: A critical rear end bushing for any front wheel drive vehicle as it absorbs all the cornering and braking energy. Over compliance leads to early wear and tear, especially in performance applications. Reduce rear end cornering squirm and improve braking efficiencies with the Whiteline beam axle kit.

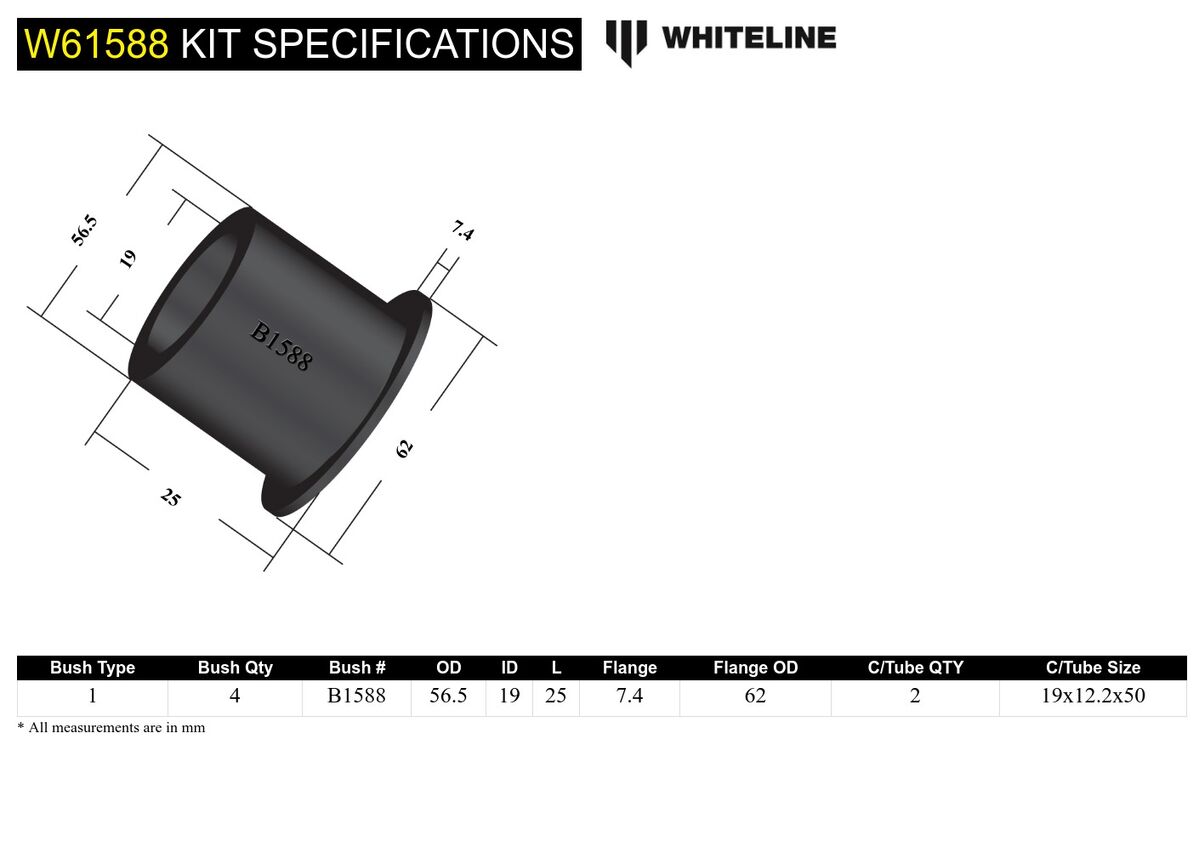

Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 56.5 mm
ID (B) 19 mm
Length (C) 25 mm
Flange Thickness (D) 7.4 mm
Flange OD (E) 62 mm
C/Tube Quantity 2
C/Tube ODxIDxL 19x12.2x50 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 56.5
ID (B) 19
Length (C) 25.0
FL (D) 7.4
FLOD (E) 62
C/Tube Qty 2
C/Tube Size 19x12.2x50
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.402kg0.89lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW61588
Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteBoosts handling and performance, while optimising suspension geometry; the perfect, complete upgrade. Includes: 4 Bushings & 2 Tubes
EAN9319924354047
  • Lifetime Warranty
Brand Whiteline
SKU W61588
Unit Of Measure Kit
