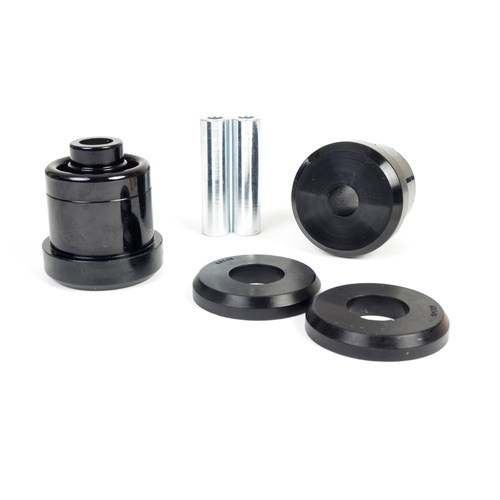

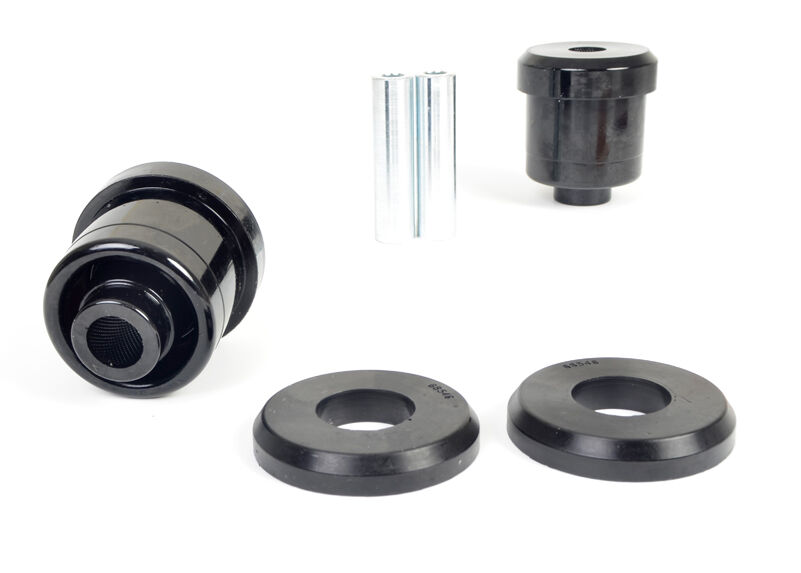

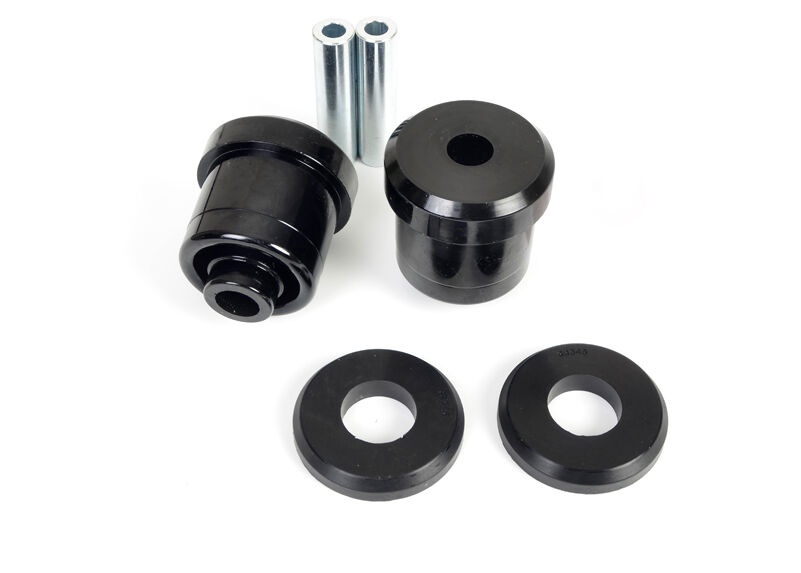

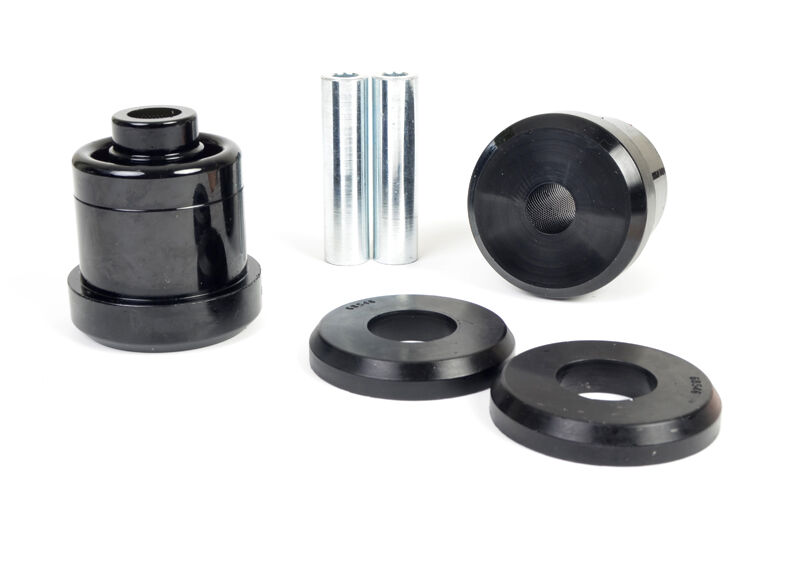

Whiteline Rear Beam Axle - Bushing Kit to Suit Holden Astra AH

SKU: KDT950

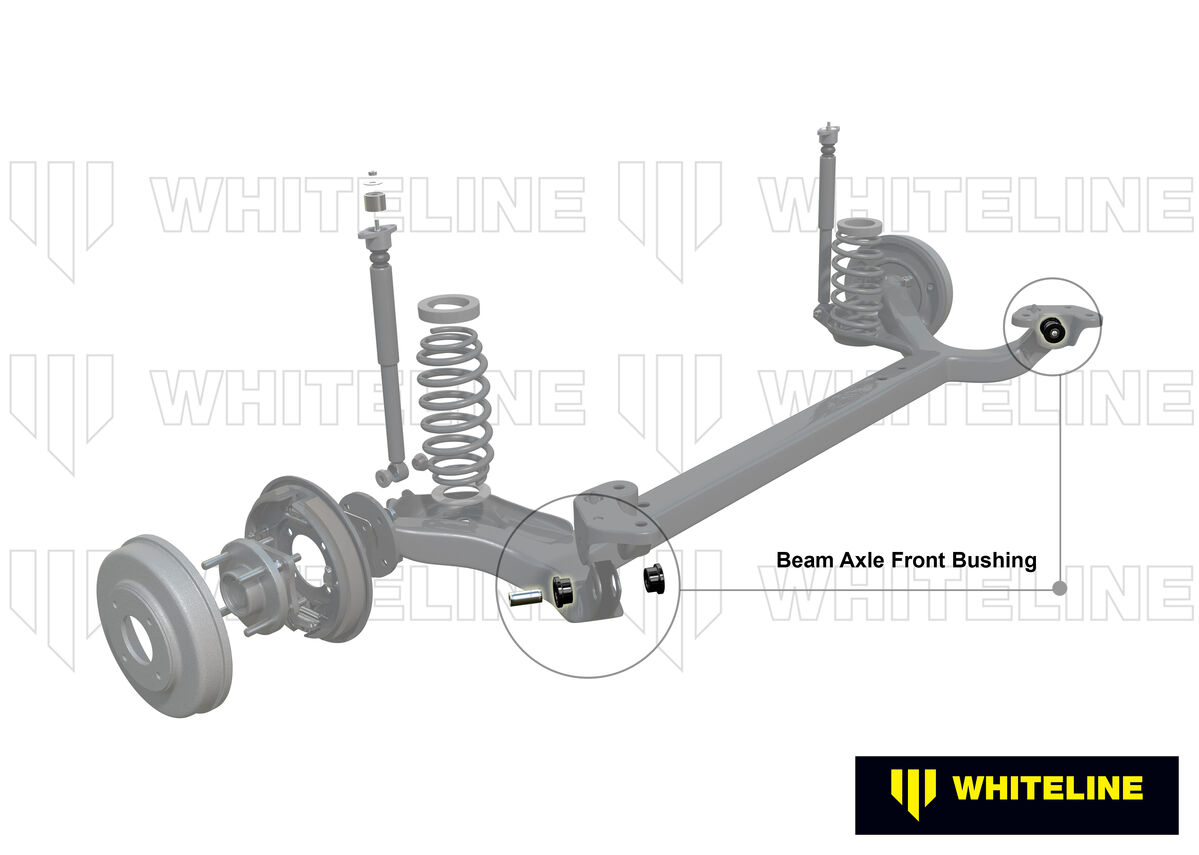

Benefit Note: A critical rear end bushing for any front wheel drive vehicle as it absorbs all the cornering and braking energy. Over compliance leads to early wear and tear, especially in performance applications. Reduce rear end cornering squirm and improve braking efficiencies with the Whiteline beam axle kit.

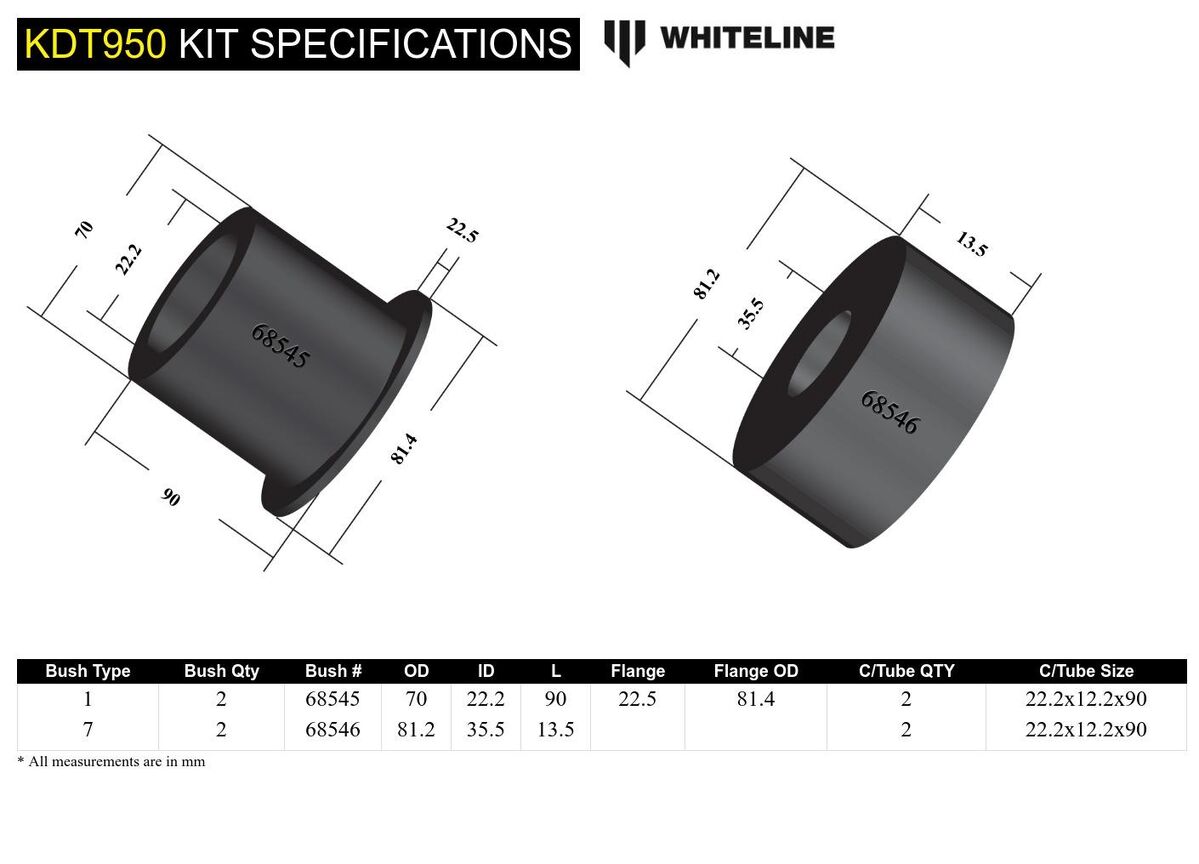

Kit Specifications

Bush Type 7 - Pin Bush With & Without Spigot 1 - Shackle Bushing
Bush Quantity 2 mm 2 mm
OD (A) 81.2 mm 70 mm
ID (B) 35.5 mm 22.2 mm
Length (C) 13.5 mm 90 mm
Flange Thickness (D) 22.5 mm
Flange OD (E) 81.4 mm
C/Tube Quantity 2 2
C/Tube ODxIDxL 22.2x12.2x90 mm 22.2x12.2x90 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 7 - Pin Bush With & Without Spigot
Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 7 1
QTY 2 2
OD (A) 81.2 70
ID (B) 35.5 22.2
Length (C) 13.5 90.0
FL (D) 22.5
FLOD (E) 81.4
C/Tube Qty 2 2
C/Tube Size 22.2x12.2x90 22.2x12.2x90
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1
Bushing Type 7

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.13kg2.49lbs
Length40cm15.75"
Width20cm7.87"
Height10cm3.94"

Misc. Product Information

More Information
SKUKDT950
Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandPerformance
Product NoteBoosts handling and performance, while optimising suspension geometry; the perfect, complete upgrade. Includes: 4 Bushings & 2 Tubes
EAN9319924406159
  • Lifetime Warranty
Brand Whiteline
SKU KDT950
Unit Of Measure Kit
