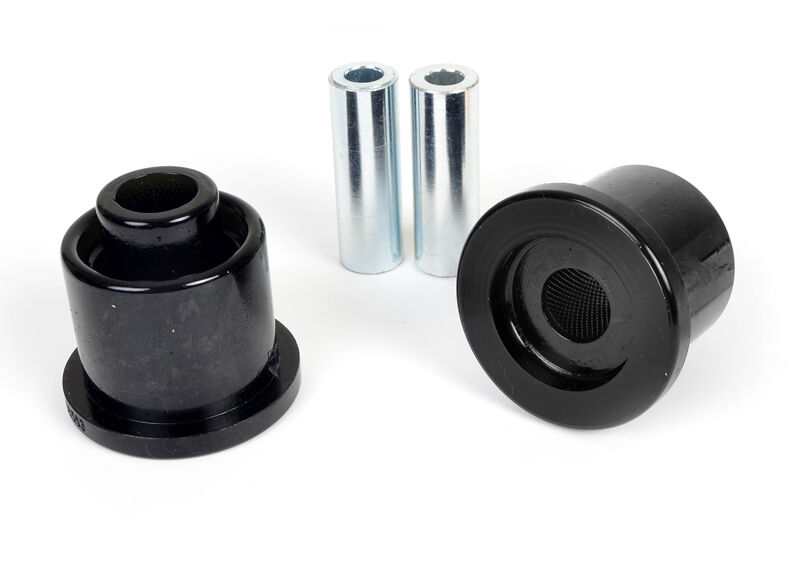

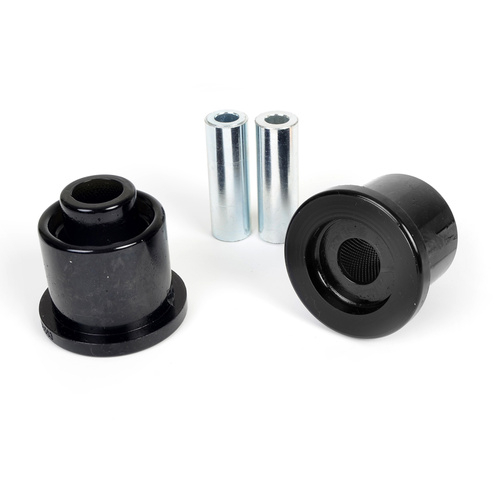

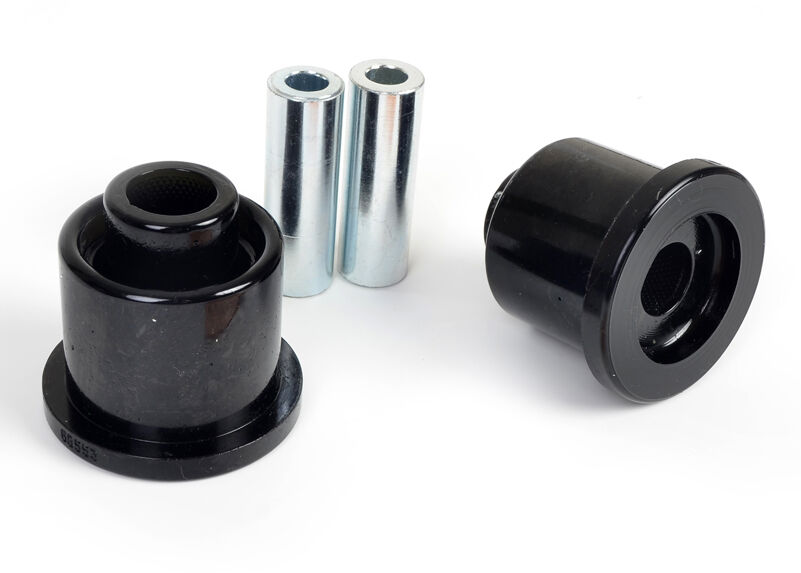

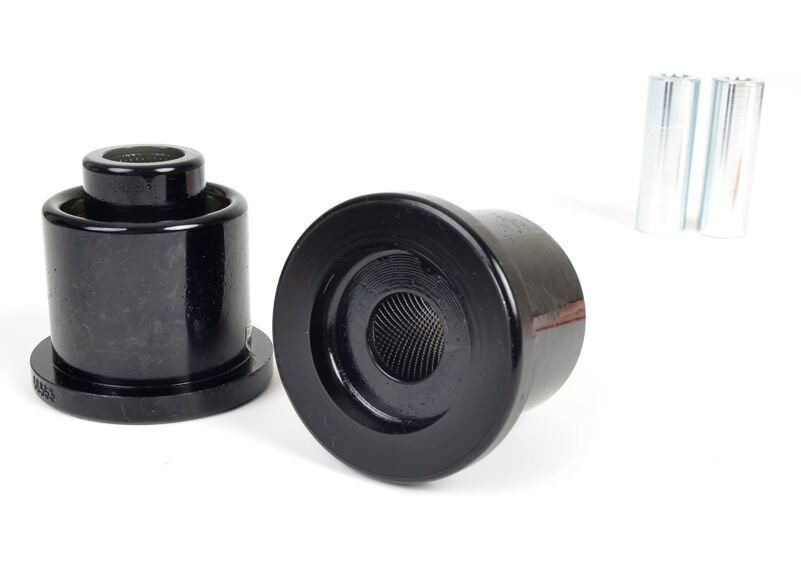

Whiteline Rear Beam Axle - Bushing Kit to Suit Citroen C2 JM and C3 FC

SKU: KDT944

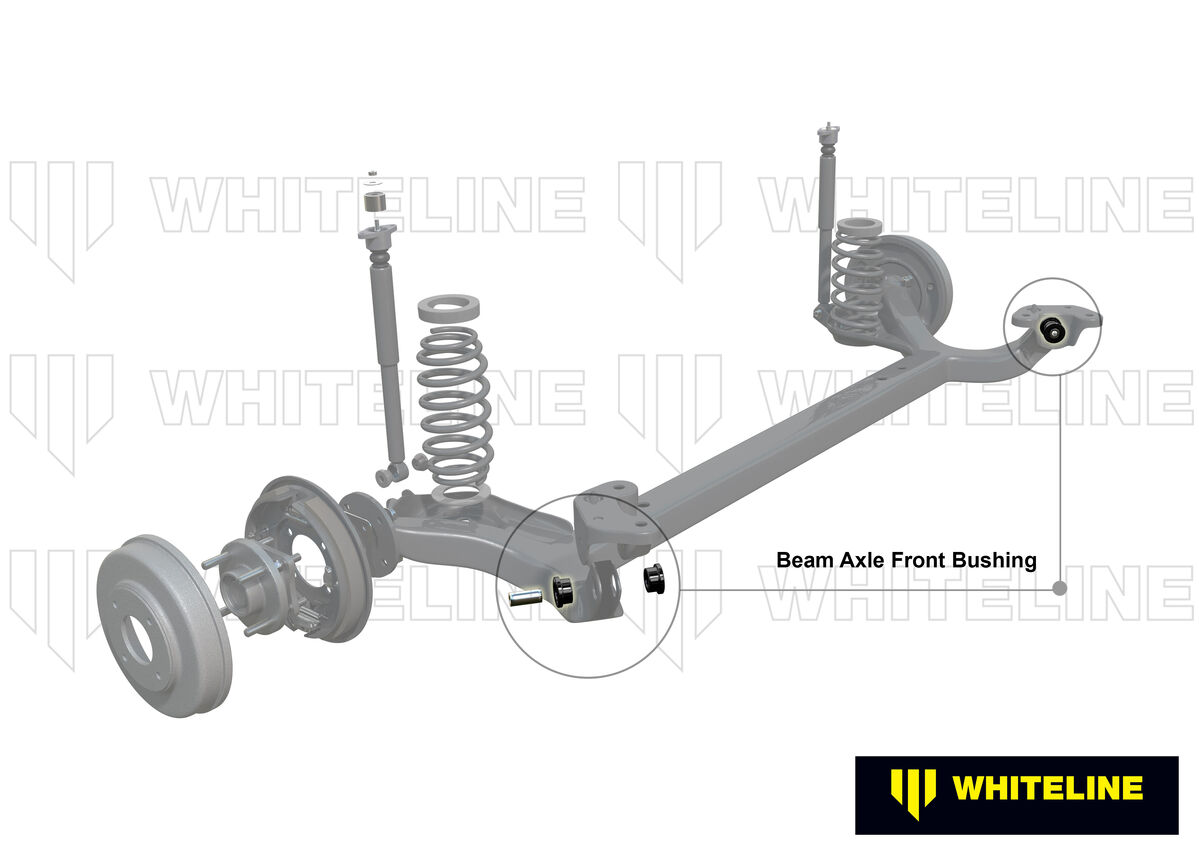

Benefit Note: A critical rear end bushing for any front wheel drive vehicle as it absorbs all the cornering and braking energy. Over compliance leads to early wear and tear, especially in performance applications. Reduce rear end cornering squirm and improve braking efficiencies with the Whiteline beam axle kit.

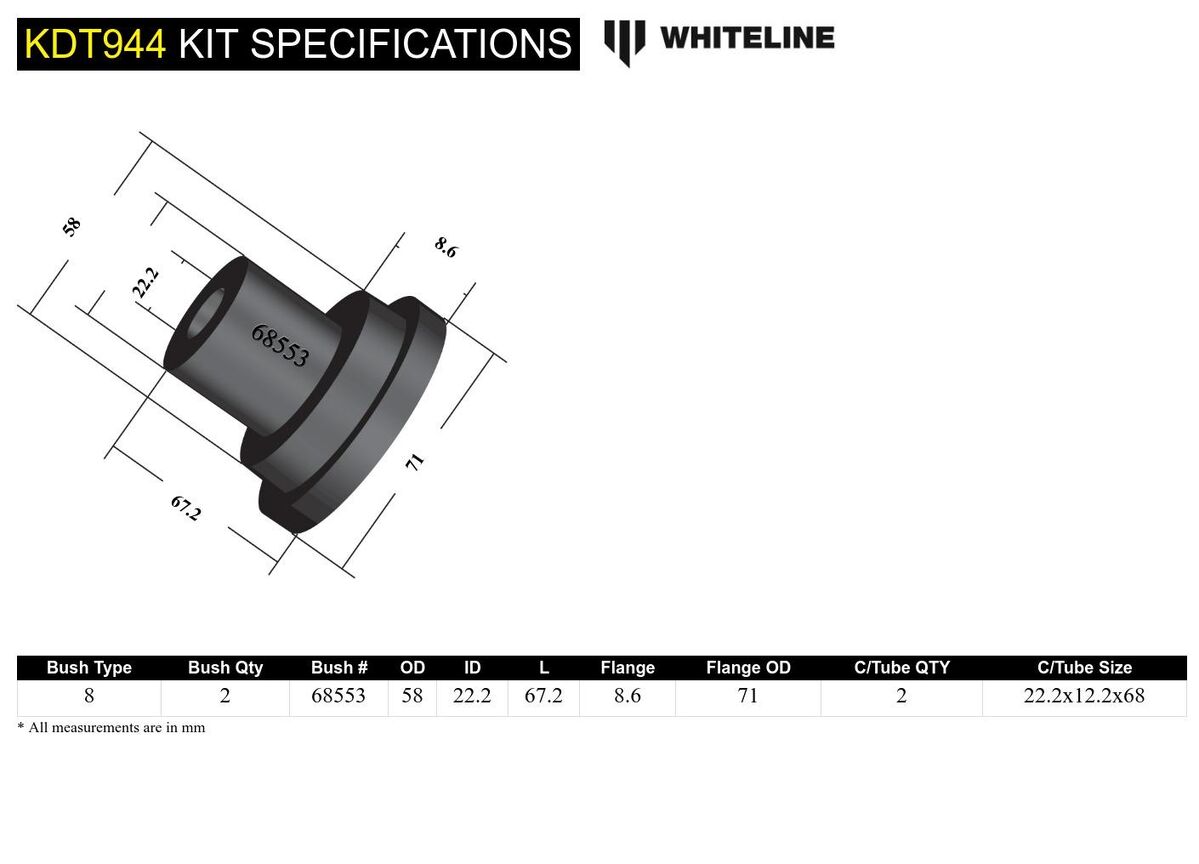

Kit Specifications

Bush Type 8 - Stepped OD Shackle Bushing
Bush Quantity 2 mm
OD (A) 58 mm
ID (B) 22.2 mm
Length (C) 67.2 mm
Flange Thickness (D) 8.6 mm
Flange OD (E) 71 mm
C/Tube Quantity 2
C/Tube ODxIDxL 22.2x12.2x68 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 8 - Stepped OD Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 8
QTY 2
OD (A) 58
ID (B) 22.2
Length (C) 67.2
FL (D) 8.6
FLOD (E) 71
C/Tube Qty 2
C/Tube Size 22.2x12.2x68
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 8

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.34kg0.75lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUKDT944
Components Per2 Bushings, 2 Tubes
Kits Required1
Sub brandPerformance
Product NoteMaximises grip and stability for better control; the perfect, complete upgrade. Includes: 2 Bushings & 2 Tubes
EAN9319924406142
  • 3 years warranty or up to 60,000km
Brand Whiteline
SKU KDT944
Unit Of Measure Kit
