Whiteline Performance Suspension Kit to Suit Volkswagen Golf R Mk7, 7.5
SKU: GS1-VWN006

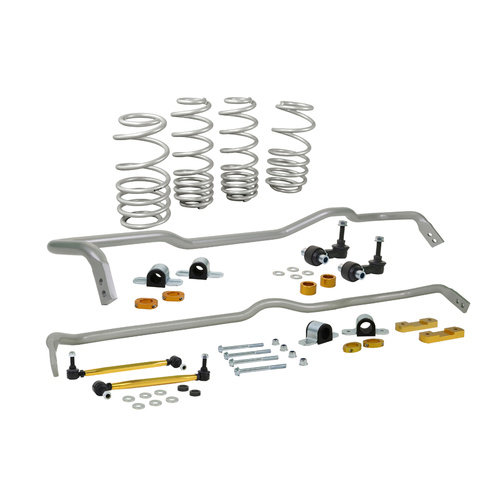

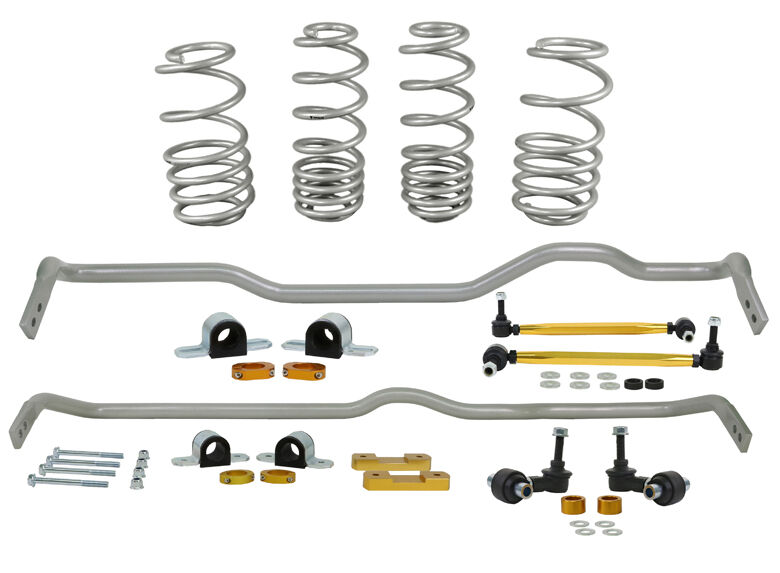

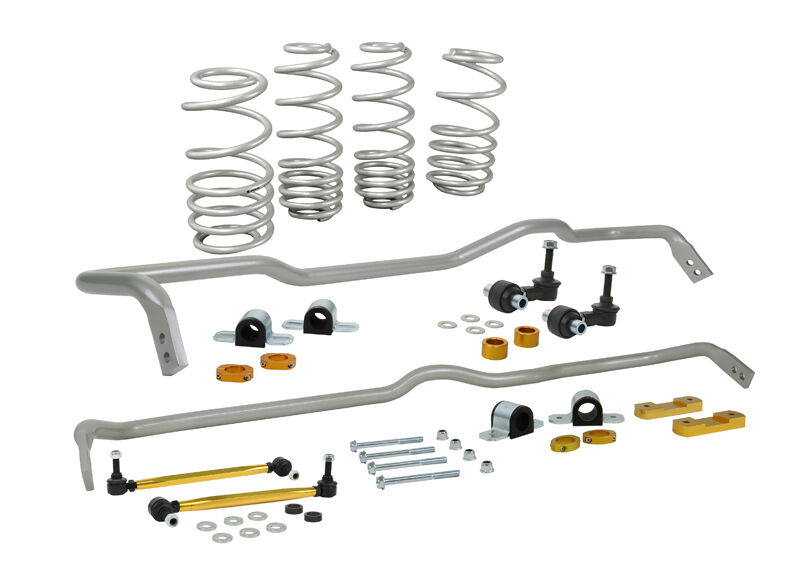

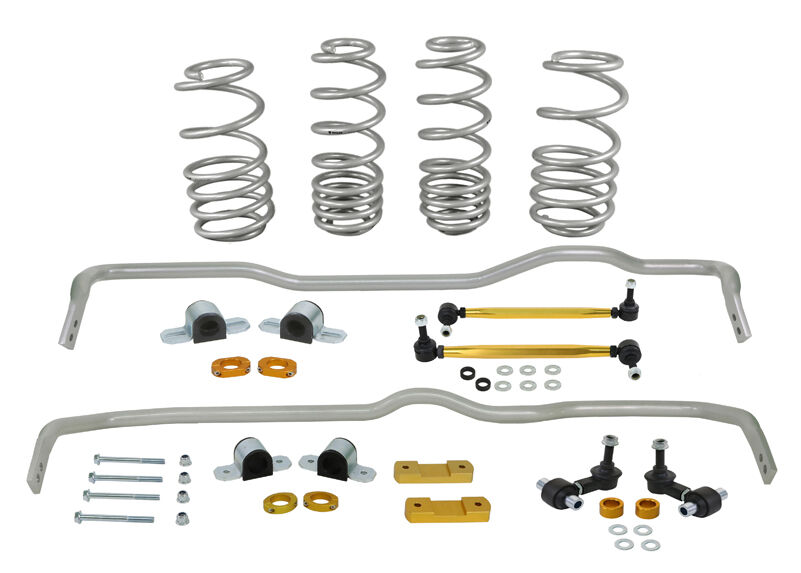

Kit Contains:
WSK-VWN006 and BWK019 - essential to 'Activate more grip'

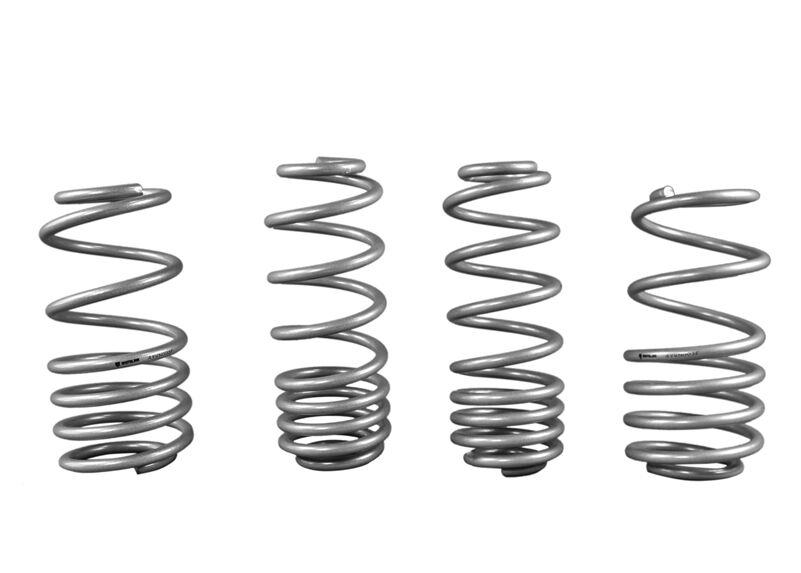

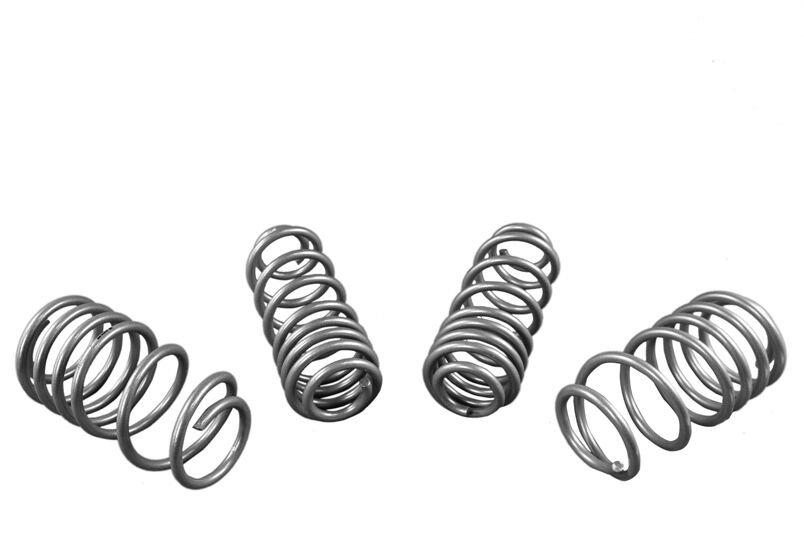

- Front and Rear Coil Springs - Lowered
- Front and Rear Sway Bar - Vehicle Kit
Whiteline Springs deliver improved vehicle performance whilst maintaining safety and ride quality characteristics. By lowering the vehicles centre of gravity, the unique and progressive rate coil design not only improve performance but enhance overall appearance.
Upgrading the sway bars on your vehicle will;
- Minimising excess body roll
- Dramatically improving handling performance
- Tyre life
- Steering response
- Braking stability and response
- No compromise to ride quality, NVH or comfort of the vehicle
We recommend fitting this kit for total grip activation and unrivalled handling and optimal vehicle performance.
Benefit Note: The ultimate entry level suspension upgrade! Performance, handling and comfort make up the Grip Series Stage 1 kit featuring Whiteline signature front and rear adjustable (where applicable) sway bars, drop links and performance lowering springs. Whiteline Springs deliver improved vehicle performance whilst maintaining safety and ride quality characteristics. This Kit Contains 4.1kg/mm (229lb/in) front rated springs that provide a 20mm drop while the 4.8kg/mm (269lb/in) rated rears deliver a desirable 20mm to the vehicle. Boasting a 26mm 2 point adjustable front sway bar and 24mm 2 point adjustable rear sway bar, the kit is completed with high quality sway bar links and mounting accessories that ensure optimum performance and ease of installation. Achieve perfect balance and precise tuning with this GS1 Kit.
Engineered to dominate corners, with less body roll, more grip, tuned comfort, and total transformation.
- All-in-one suspension upgrade
- Precision sway bars reduce body roll
- Lowering springs boost grip and stance
- Enhances cornering and braking stability
- Improves tyre wear and handling geometry
- Fine-tune for your driving style with adjustable components
Kit Specifications
| Sway Bar Kit | BWK019 | BWK019 |
|---|---|---|
| Location | Front | Rear |
| Sway Bar | BWF22Z | BWR25XZ |
| Diameter (mm) | 26 | 24 |
| Diameter (in) Fraction | 1 1/32" | 61/64" |
| Diameter (in) Decimal | 1.023 | 0.944 |
| Material | Solid Spring Steel | Solid Spring Steel |
| Sway Bar Adjustment Type | 2 Point Adjustable | 2 Point Adjustable |
| Sway Bar Link Included | Yes | Yes |
| Location | Front | Rear |
|---|---|---|
| Lowering (mm) | 20 | 20 |
| Lowering (in) | 0.787 | 0.787 |
| Spring Rate | 4.1kg/mm (230lb/in) | 4.8kg/mm (269lb/in) |
Packaged Weight and Dimensions
| Units | cm/kg | in/lbs |
|---|---|---|
| Weight | 24kg | 52.91lbs |
| Length | 120cm | 47.24" |
| Width | 25cm | 9.84" |
| Height | 20cm | 7.87" |
Misc. Product Information
| SKU | GS1-VWN006 |
| Components Per | 4 Springs, 2 Sway Bars, 4 Links, 4 Bushings, 4 Saddles, 2 Plates, 2 Spacers, 4 Lateral Locks, 4 Bolt |
| Kits Required | 1 |
| Sub brand | Performance |
| Product Note | Reduces body roll and lowers your centre of gravity for sharper grip and stability through corners; a complete, premium upgrade. Includes: 26mm 2-Point Front, 24mm 2-Point Rear Adjustable Sway Bars, Links and Front and Rear Coil Springs. |
| EAN | 9319924447183 |
- 3 years warranty or up to 60,000km
| Brand | Whiteline |
| SKU | GS1-VWN006 |
