Whiteline Performance Suspension Kit to Suit Mercedes-Benz A-Class W176

SKU: GS1-MB001

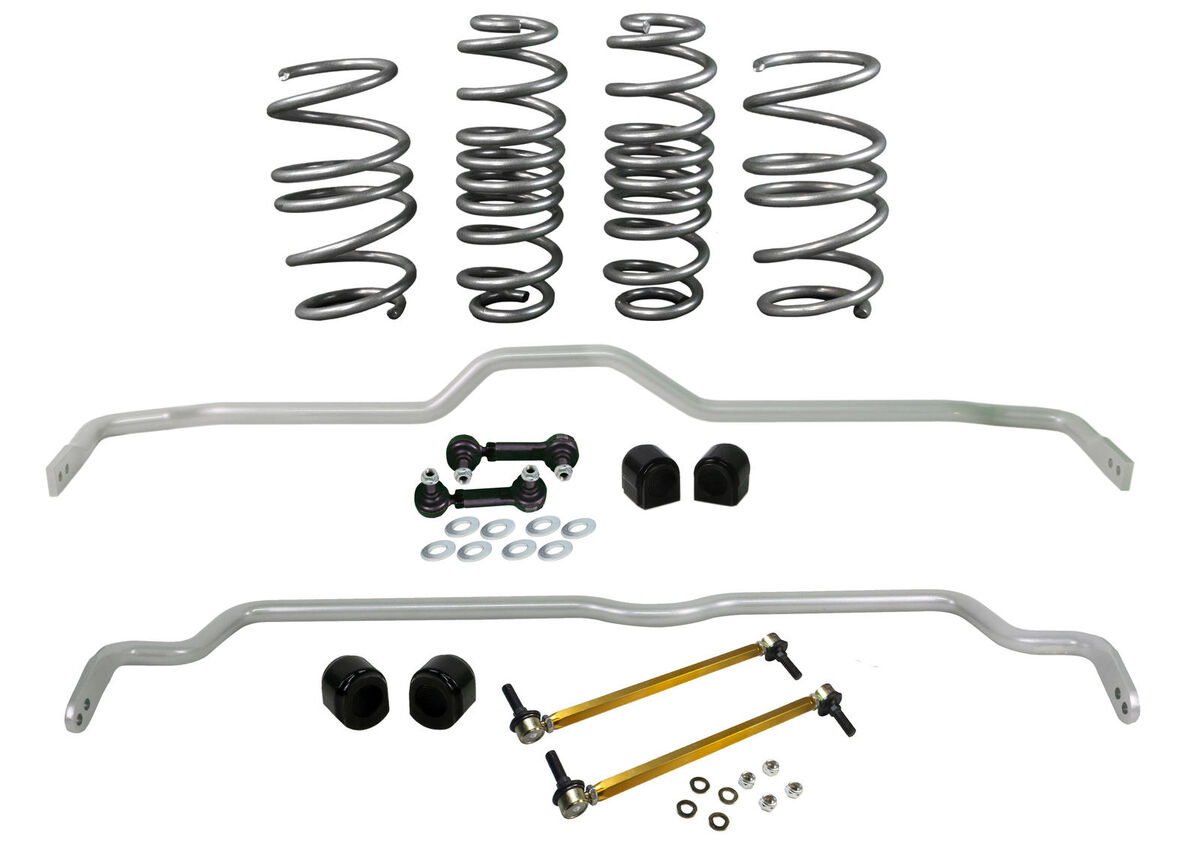

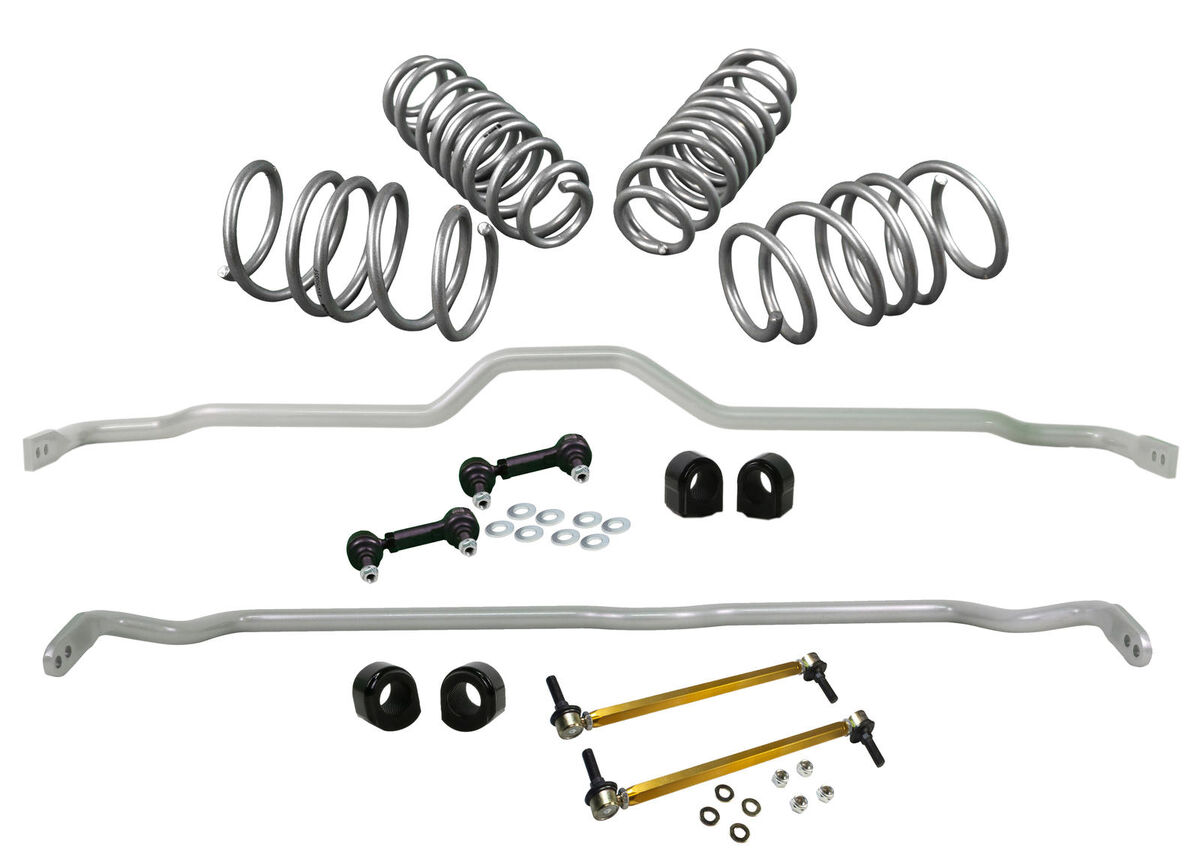

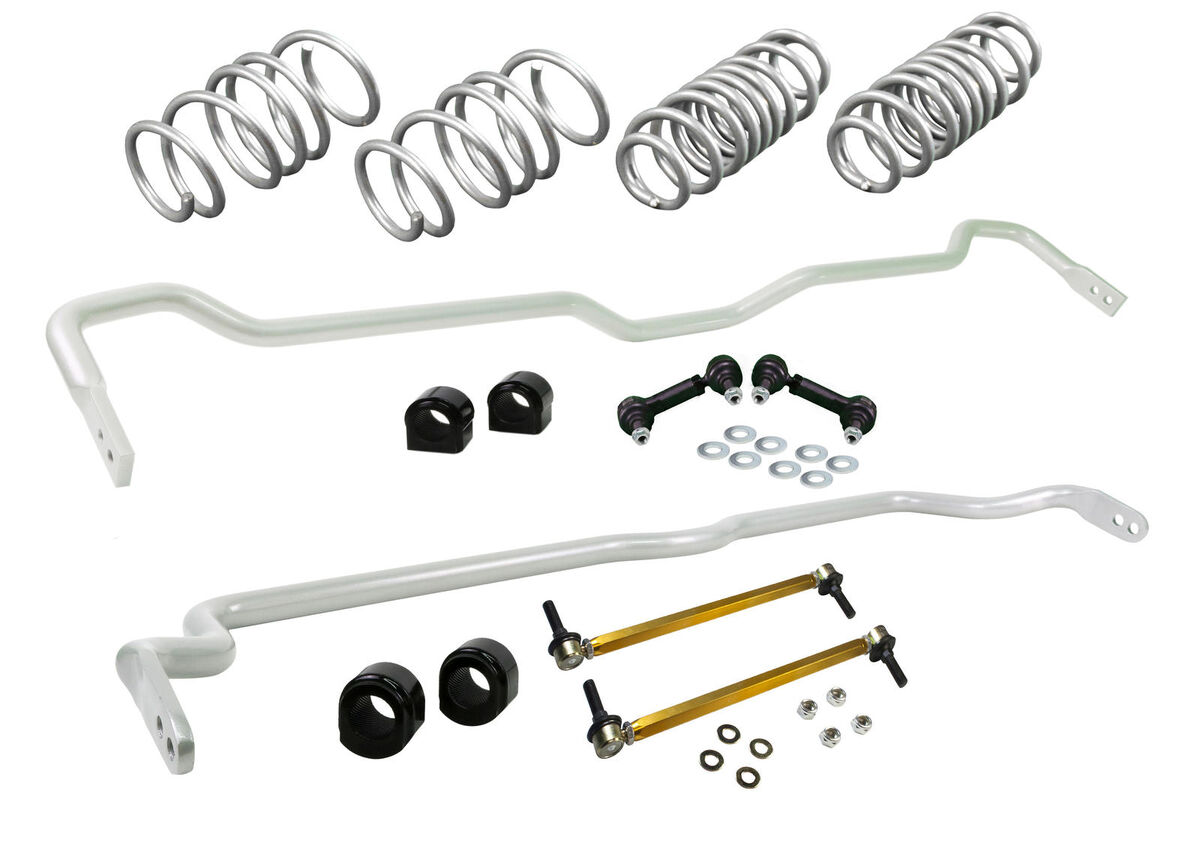

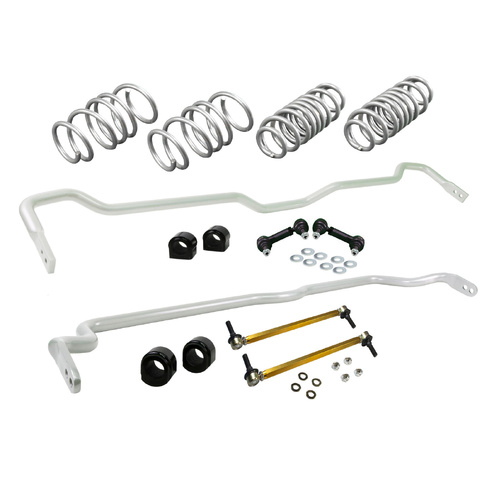

Kit Contains:

WSK-MB001 and BMK015 - essential to 'Activate more grip'

  • Front and Rear Coil Springs - Lowered
  • Front and Rear Sway Bar - Vehicle Kit

Whiteline Springs deliver improved vehicle performance whilst maintaining safety and ride quality characteristics. By lowering the vehicles centre of gravity, the unique and progressive rate coil design not only improve performance but enhance overall appearance.

Upgrading the sway bars on your vehicle will;

  • Minimising excess body roll
  • Dramatically improving handling performance
  • Tyre life
  • Steering response
  • Braking stability and response
  • No compromise to ride quality, NVH or comfort of the vehicle

We recommend fitting this kit for total grip activation and unrivalled handling and optimal vehicle performance.

Benefit Note: The ultimate entry level suspension upgrade! Performance, handling and comfort make up the Grip Series Stage 1 kit featuring Whiteline signature front and rear adjustable (where applicable) sway bars, drop links and performance lowering springs.

Engineered to dominate corners, with less body roll, more grip, tuned comfort, and total transformation.

  • All-in-one suspension upgrade
  • Precision sway bars reduce body roll
  • Lowering springs boost grip and stance
  • Enhances cornering and braking stability
  • Improves tyre wear and handling geometry
  • Fine-tune for your driving style with adjustable components

Kit Specifications

Sway Bar Kit BMK015 BMK015
Location Front Rear
Sway Bar BMF67Z BMR96Z
Diameter (mm) 27 24
Diameter (in) Fraction 1 1/16" 61/64"
Diameter (in) Decimal 1.062 0.944
Material Solid Spring Steel Solid Spring Steel
Sway Bar Adjustment Type 2 Point Adjustable 2 Point Adjustable
Sway Bar Link Included Yes Yes
Location Front Rear
Lowering (mm) 20 20
Lowering (in) 0.787 0.787
Spring Rate 3.5kg/mm (196lb/in) 7.5kg/mm (422lb/in)

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight24kg52.91lbs
Length120cm47.24"
Width25cm9.84"
Height20cm7.87"

Misc. Product Information

More Information
SKUGS1-MB001
Components Per4 Springs, 2 Sway Bars, 4 Bushings, 4 Links, 12 Washers
Kits Required1
Sub brandPerformance
Product NoteReduces body roll and lowers your centre of gravity for improved grip and stability through corners; a complete, premium upgrade. Includes: 27mm Front & 24mm Rear 2-Point adjustable Sway Bars, Links, and Front & Rear Coil Springs.
EAN9319924447145
  • 3 years warranty or up to 60,000km
Brand Whiteline
SKU GS1-MB001
