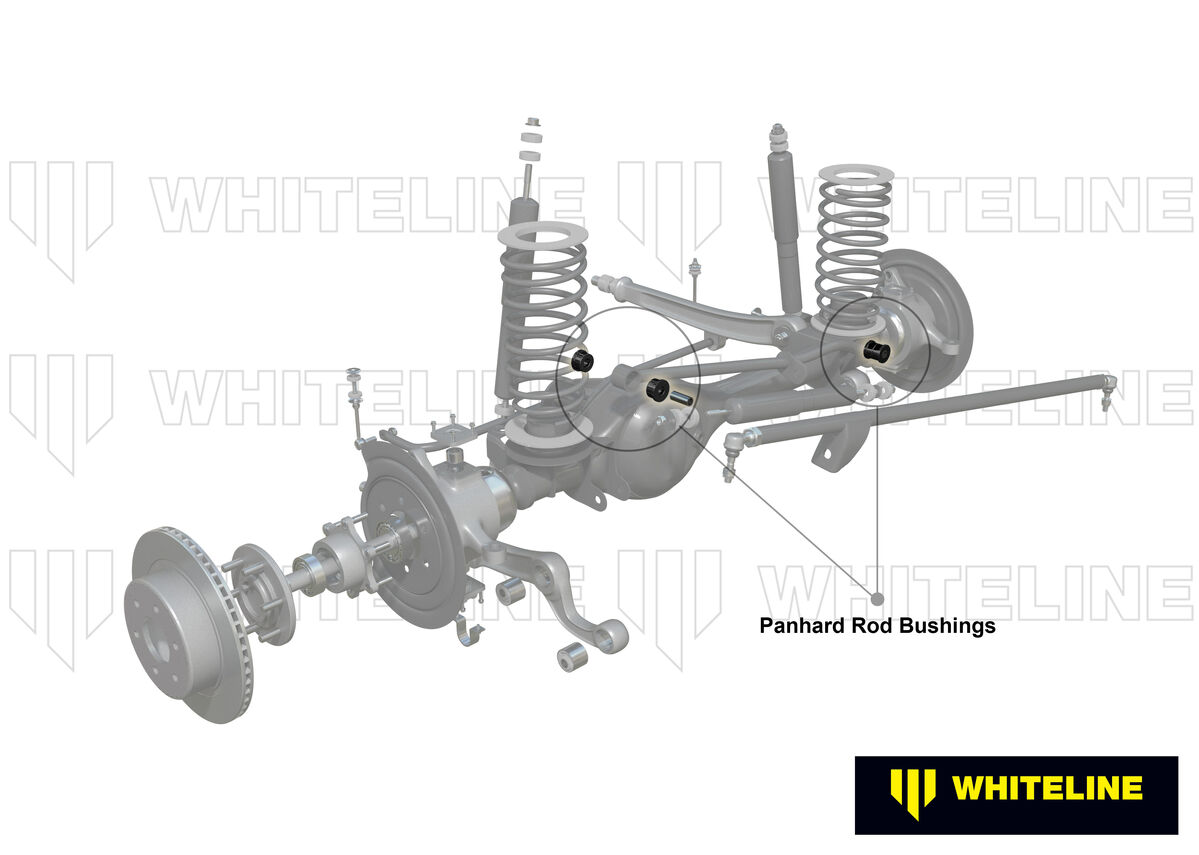

Whiteline Panhard Rod - Bushing Kit to Suit Toyota Land Cruiser Bundera and 70 Series

SKU: W83393

Benefit Note: Eliminate wheel shimmy and ensure accurate axle location with Whiteline synthetic elastomer with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.

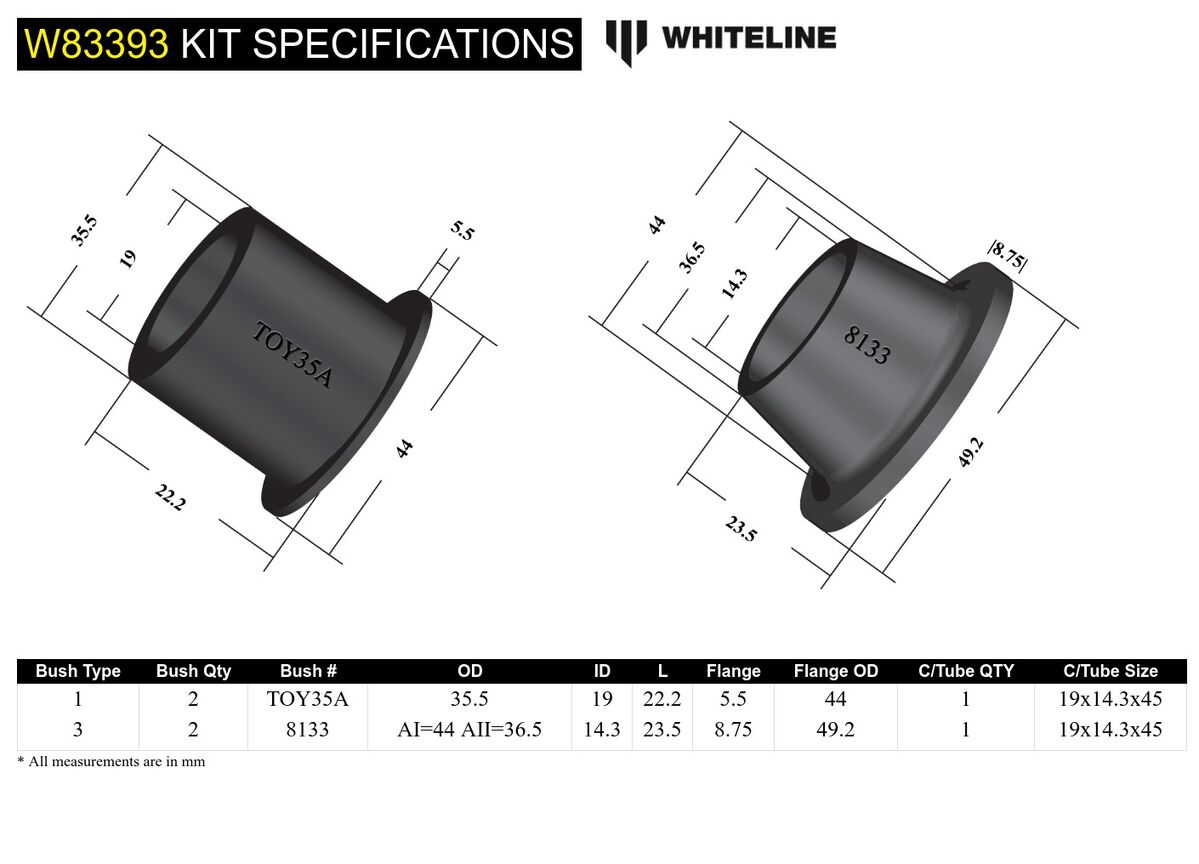

Kit Specifications

Bush Type 1 - Shackle Bushing 3 - Half Tapered Cotton Reel Bush
Bush Quantity 2 mm 2 mm
OD (A) 35.5 mm AI=44 AII=36.5 mm
ID (B) 19 mm 14.3 mm
Length (C) 22.2 mm 23.5 mm
Flange Thickness (D) 5.5 mm 8.75 mm
Flange OD (E) 44 mm 49.2 mm
C/Tube Quantity 1 1
C/Tube ODxIDxL 19x14.3x45 mm 19x14.3x45 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 3 - Half Tapered Cotton Reel Bush

Bushing Design Dimensions (mm)

Bush Type 1 3
QTY 2 2
OD (A) 35.5 AI=44 AII=36.5
ID (B) 19 14.3
Length (C) 22.2 23.5
FL (D) 5.5 8.75
FLOD (E) 44 49.2
C/Tube Qty 1 1
C/Tube Size 19x14.3x45 19x14.3x45
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1
Bushing Type 3

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.278kg0.61lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW83393
Components Per4 Bushings, 1 Tube
Kits Required1
Sub brandReplacement

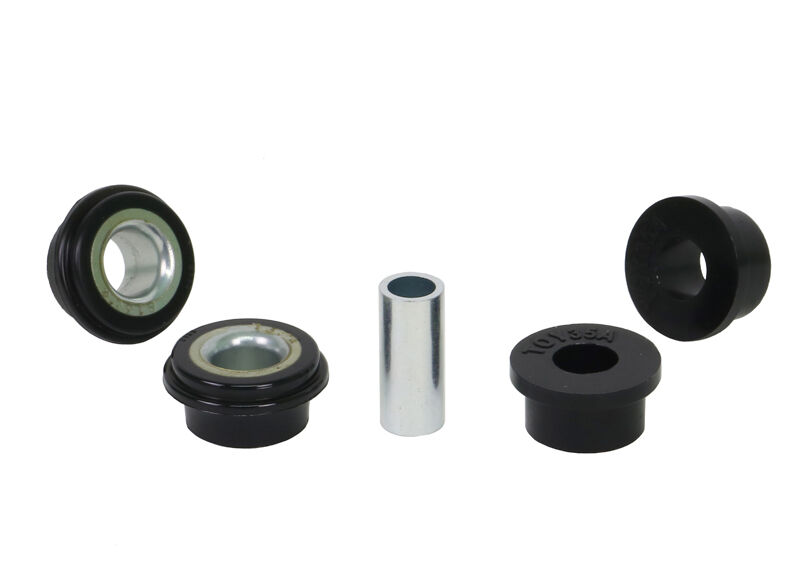

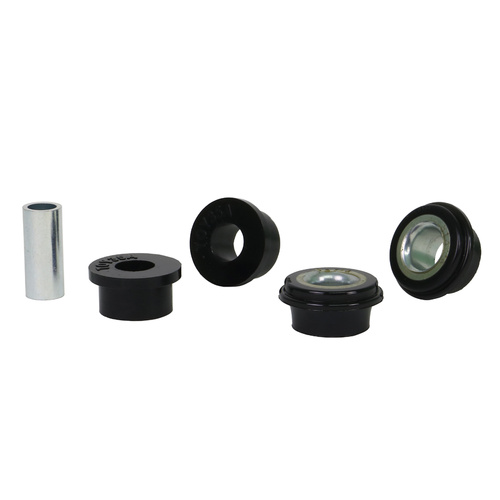

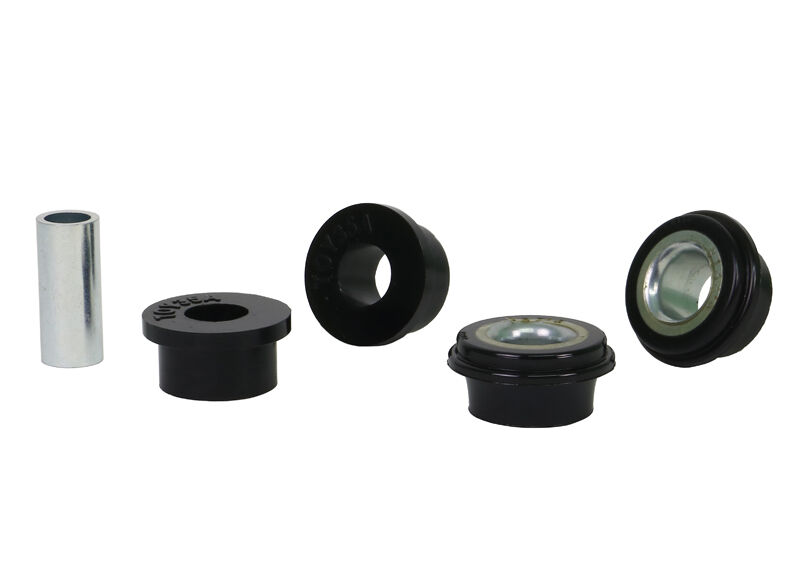

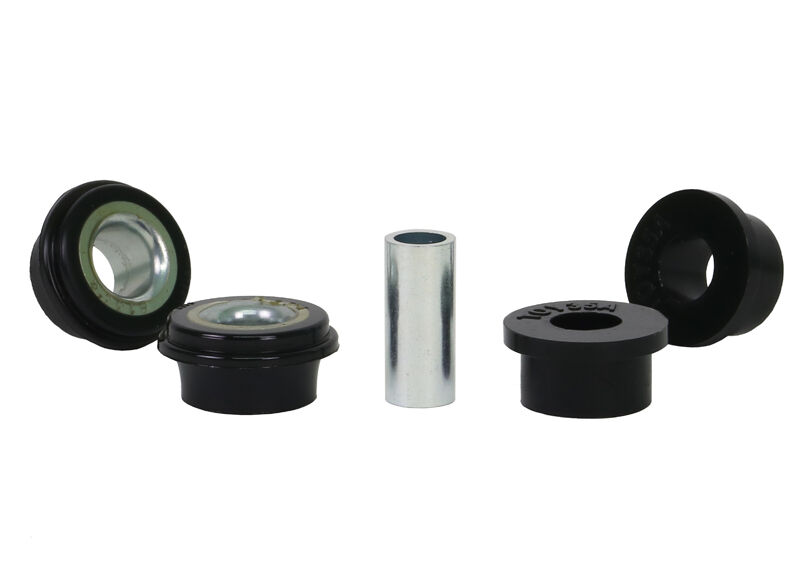

Product NoteCreates a consistent drive no matter the surface; the perfect, complete upgrade. Includes: 4 Bushings & 1 Tube
EAN9319924389704
  • Lifetime Warranty
Brand Whiteline
SKU W83393
Unit Of Measure Kit
