Whiteline Panhard Rod - Bushing Kit to Suit Nissan Navara D23, Patrol GQ, GU Y60, Y61

SKU: W81430

Benefit Note: Eliminate wheel shimmy and ensure accurate axle location with Whiteline synthetic elastomer with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.

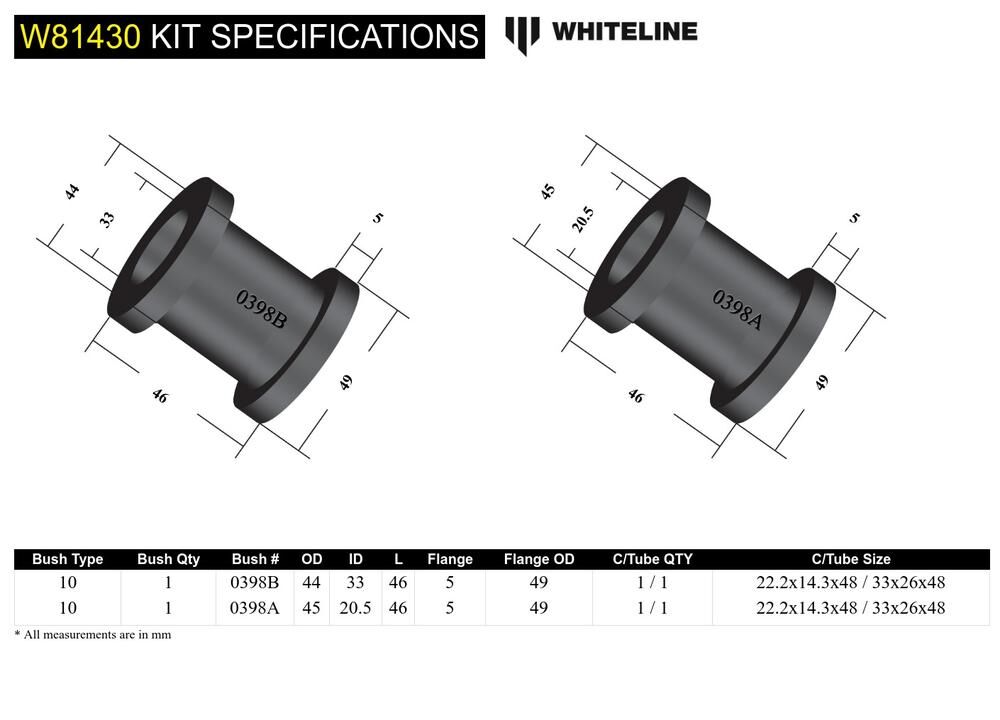

Kit Specifications

Bush Type 10 - Cotton Reel With & Without Tapper Bushing 10 - Cotton Reel With & Without Tapper Bushing
Bush Quantity 1 mm 1 mm
OD (A) 44 mm 45 mm
ID (B) 33 mm 20.5 mm
Length (C) 46 mm 46 mm
Flange Thickness (D) 5 mm 5 mm
Flange OD (E) 49 mm 49 mm
C/Tube Quantity 1 / 1 1 / 1
C/Tube ODxIDxL 22.2x14.3x48 / 33x26x48 mm 22.2x14.3x48 / 33x26x48 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10 - Cotton Reel With & Without Tapper Bushing
Bushing Type 10 - Cotton Reel With & Without Tapper Bushing

Bushing Design Dimensions (mm)

Bush Type 10 10
QTY 1 1
OD (A) 44 45
ID (B) 33 20.5
Length (C) 46.0 46.0
FL (D) 5 5
FLOD (E) 49 49
C/Tube Qty 1 / 1 1 / 1
C/Tube Size 22.2x14.3x48 / 33x26x48 22.2x14.3x48 / 33x26x48
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.32kg0.71lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW81430

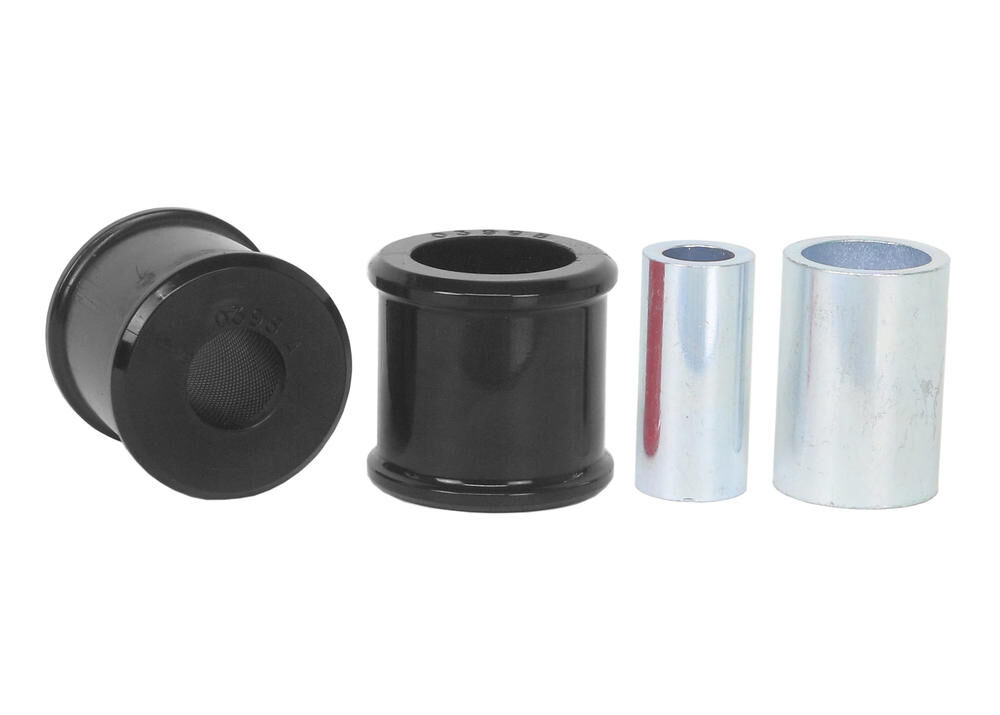

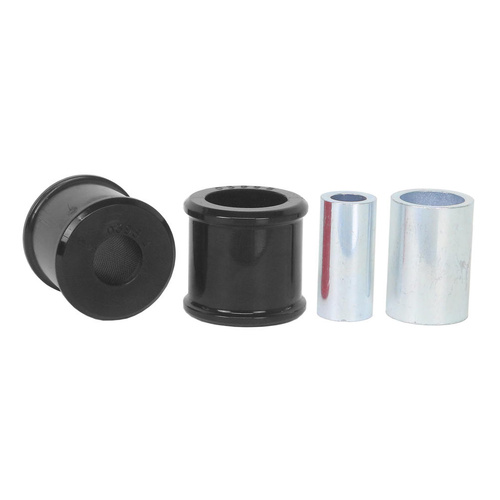

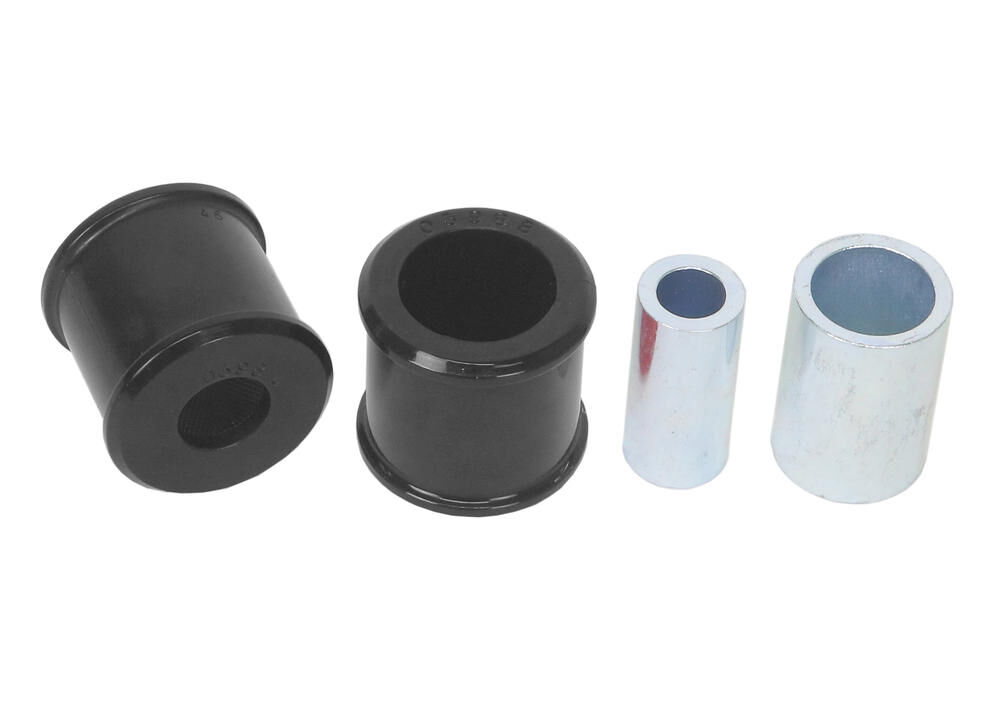

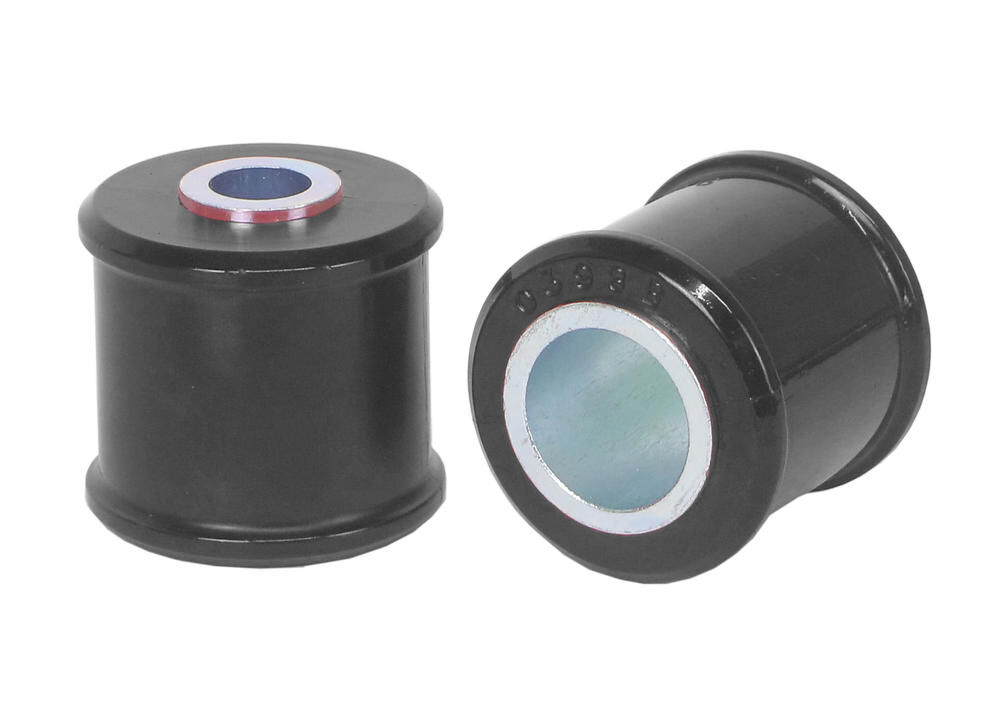

Components Per2 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteBoosts handling and performance, while optimising suspension geometry; the perfect, complete upgrade. Includes: 2 Bushings & 2 Tubes
EAN9319924357000
  • Lifetime Warranty
Brand Whiteline
SKU W81430
Unit Of Measure Kit
