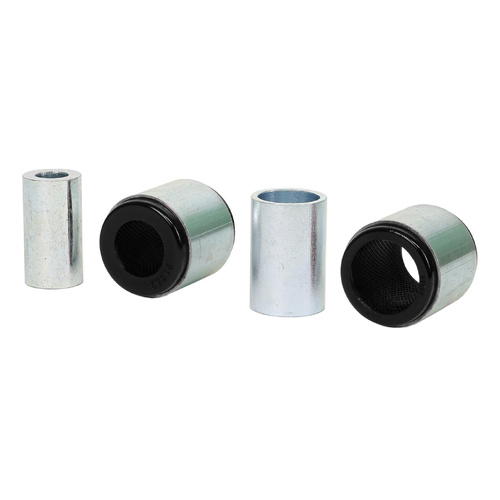

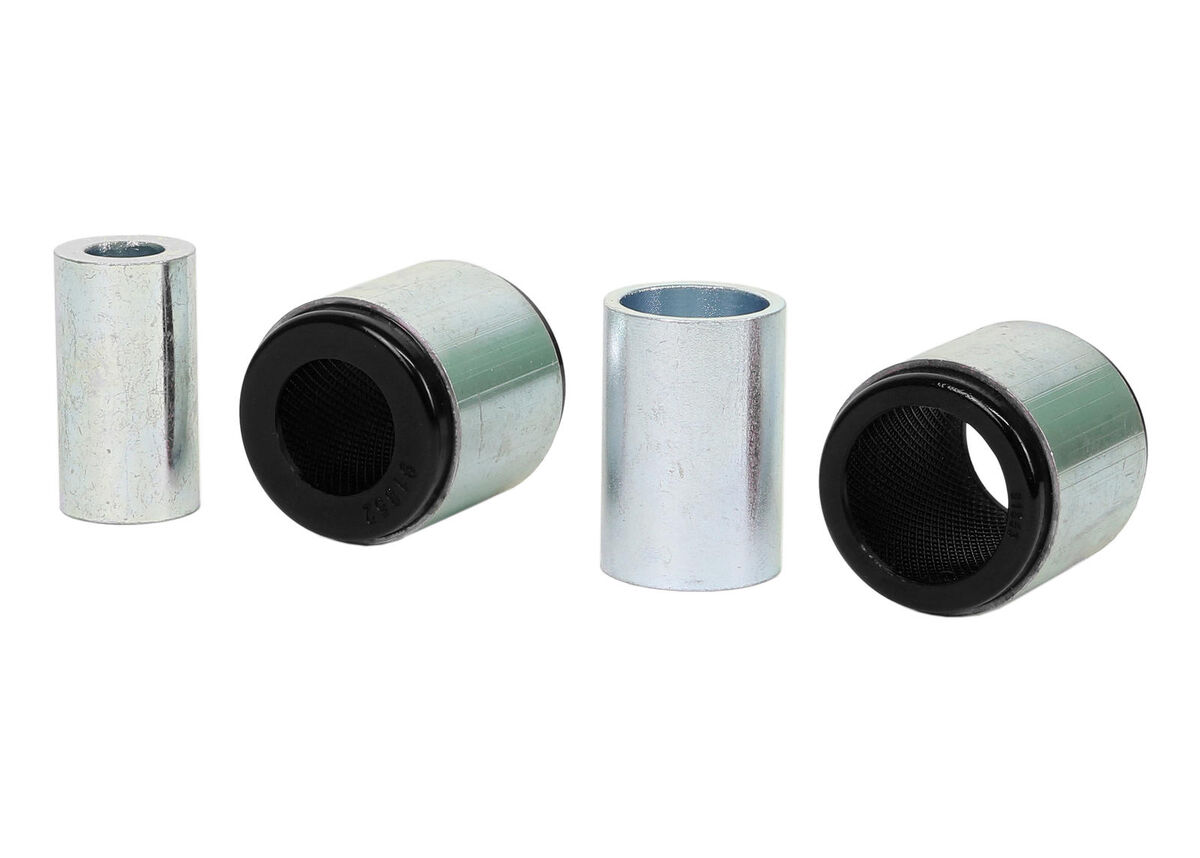

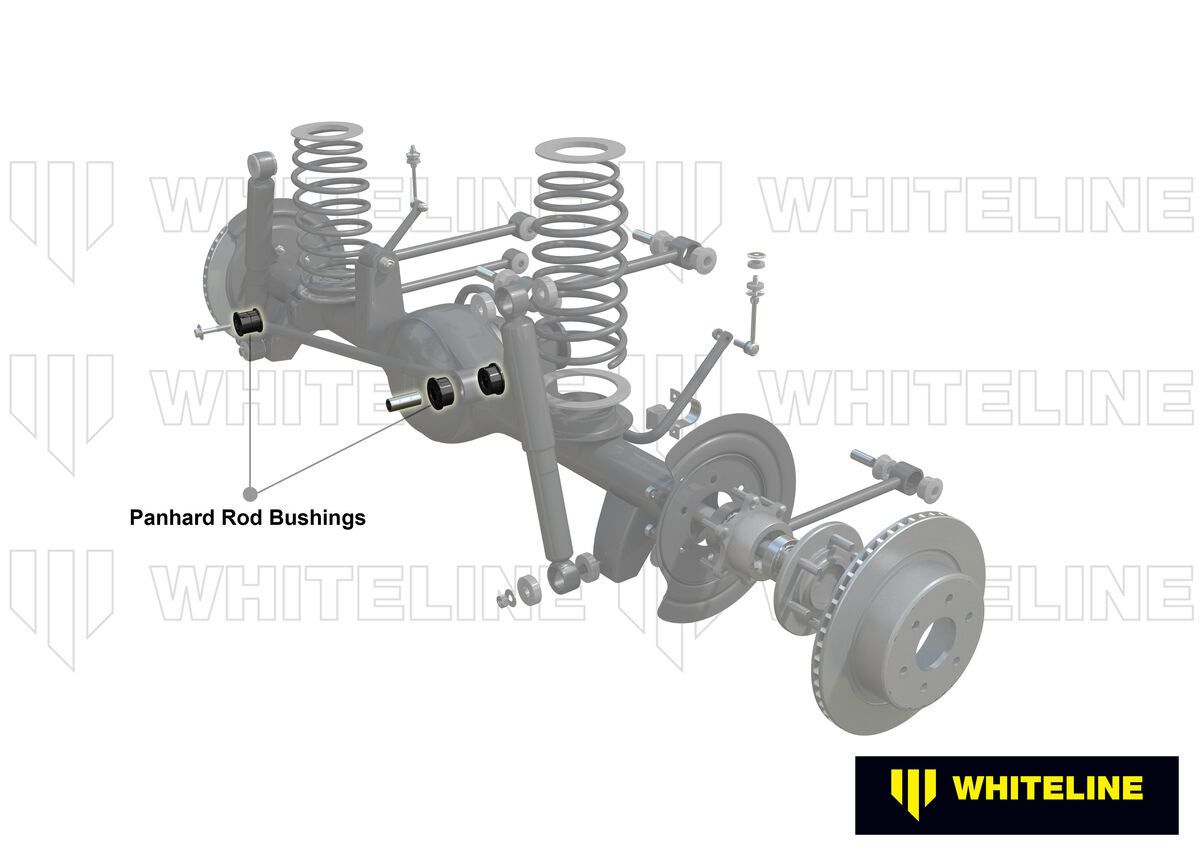

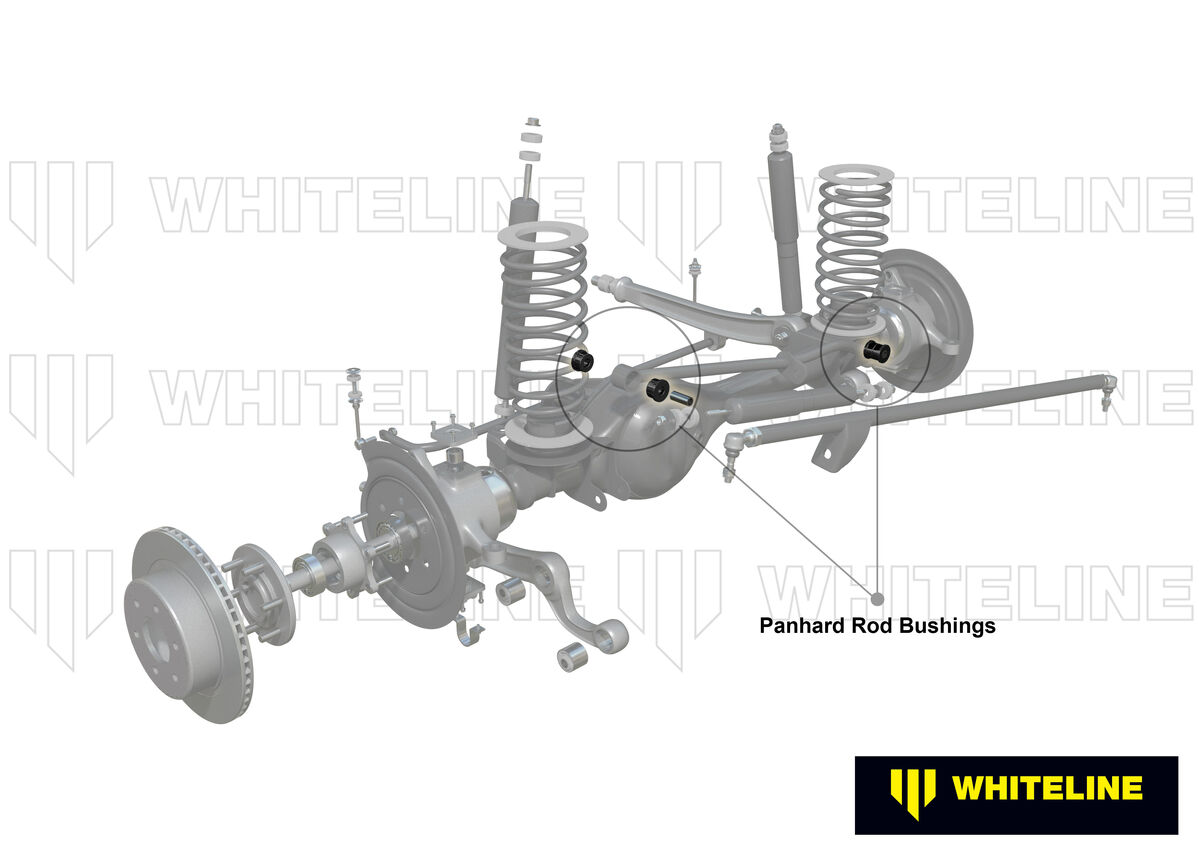

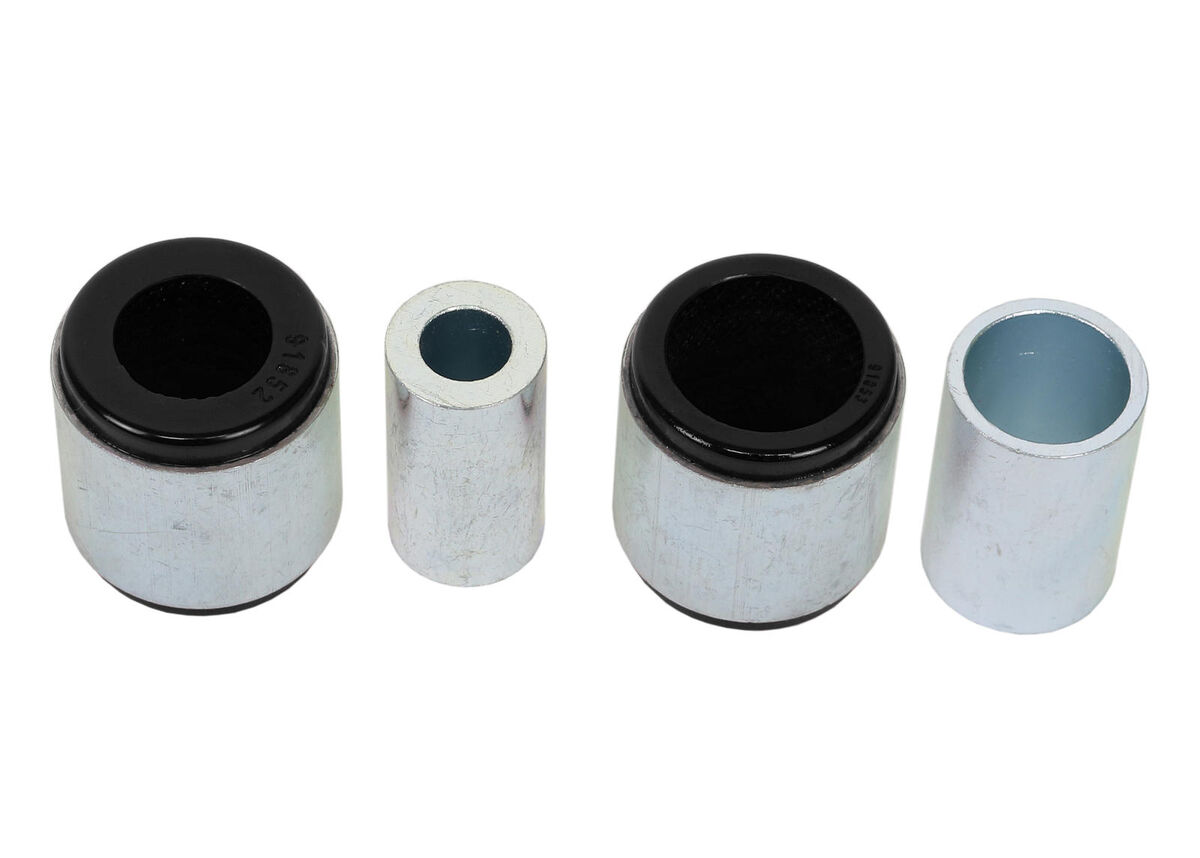

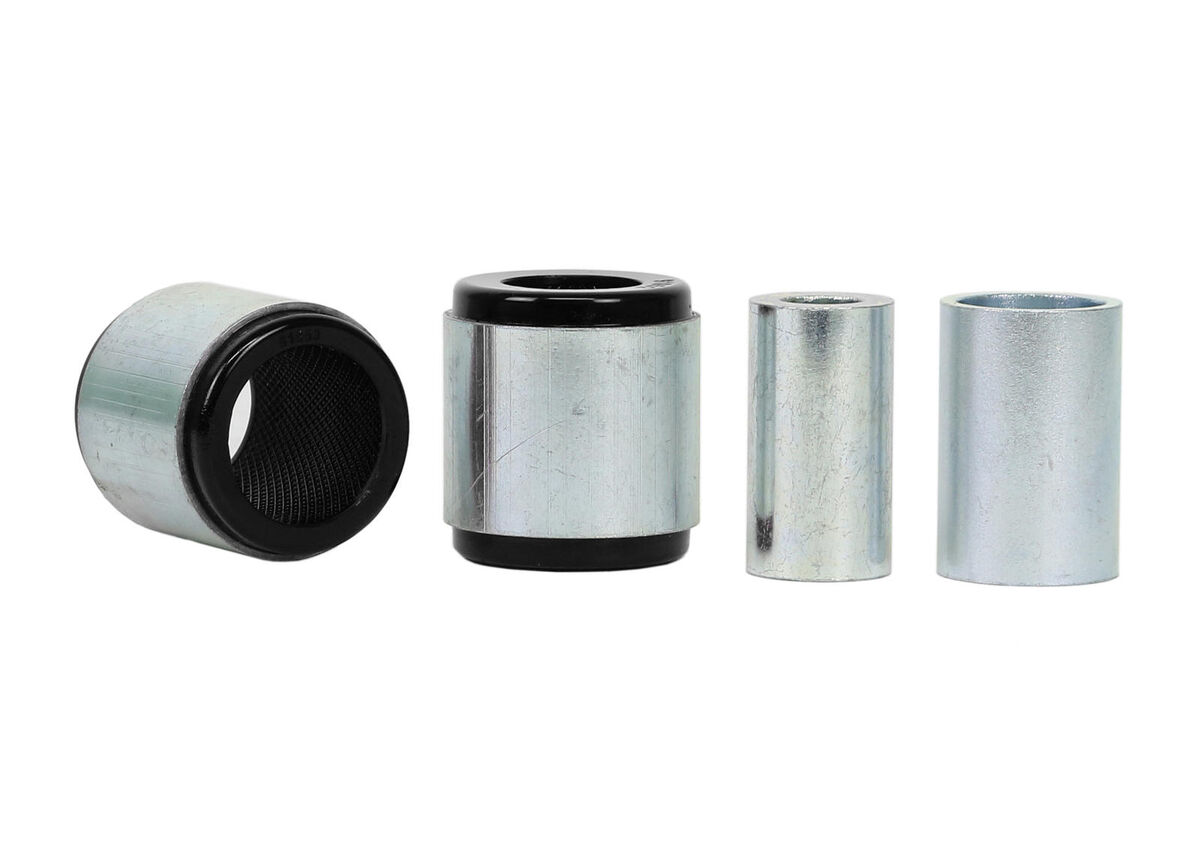

Whiteline Panhard Rod - Bushing Kit Heavy Duty to Suit Nissan Navara D23, Patrol GQ, GU Y60, Y61

SKU: W81430HD

Benefit Note: Eliminate wheel shimmy and ensure accurate axle location with Whiteline synthetic elastomer with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.

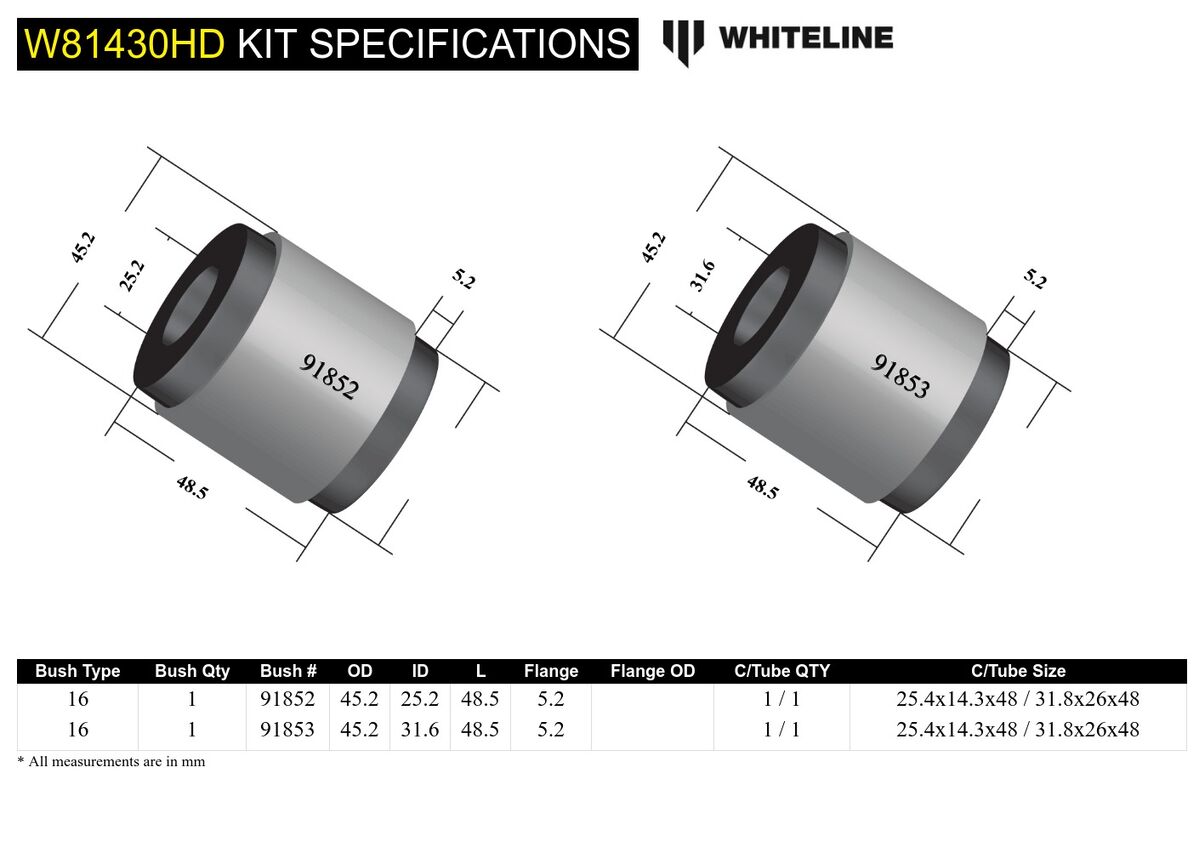

Kit Specifications

Bush Type 16 - Shell Without Flange Bushing 16 - Shell Without Flange Bushing
Bush Quantity 1 mm 1 mm
OD (A) 45.2 mm 45.2 mm
ID (B) 31.6 mm 25.2 mm
Length (C) 48.5 mm 48.5 mm
Flange Thickness (D) 5.2 mm 5.2 mm
Flange OD (E)
C/Tube Quantity 1 / 1 1 / 1
C/Tube ODxIDxL 25.4x14.3x48 / 31.8x26x48 mm 25.4x14.3x48 / 31.8x26x48 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing
Bushing Type 16 - Shell Without Flange Bushing

Bushing Design Dimensions (mm)

Bush Type 16 16
QTY 1 1
OD (A) 45.2 45.2
ID (B) 31.6 25.2
Length (C) 48.5 48.5
FL (D) 5.2 5.2
FLOD (E)
C/Tube Qty 1 / 1 1 / 1
C/Tube Size 25.4x14.3x48 / 31.8x26x48 25.4x14.3x48 / 31.8x26x48
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.4kg0.88lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW81430HD
Components Per2 Shell Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteBalances comfort with performance while minimising noise and vibrations; the perfect, complete upgrade. Includes: 2 Shell Bushings & 2 Tubes
EAN9319924463220
  • Lifetime Warranty
Brand Whiteline
SKU W81430HD
Unit Of Measure Kit
