Whiteline Leaf Spring - Front and Rear Eye Bushing Kit to Suit Land Rover Series 2A and 3

SKU: W71094

Benefit Note: A critical service item for any leaf sprung vehicle. High kilometres and heavy load carrying causes excessive wear on rubber bushings. Whiteline's signature black bushings are made tough and offer outstanding abrasion resistance, high load bearing capability (4WD's, utes and towing), flexibility, increased tensile strength and chemical resistance to oil, grease, ozone and weathering.


Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 30.2 mm
ID (B) 19.2 mm
Length (C) 32.5 mm
Flange Thickness (D) 3.5 mm
Flange OD (E) 39.5 mm
C/Tube Quantity 2
C/Tube ODxIDxL 19x14.3x70 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 30.2
ID (B) 19.2
Length (C) 32.5
FL (D) 3.5
FLOD (E) 39.5
C/Tube Qty 2
C/Tube Size 19x14.3x70
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.22kg0.49lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW71094

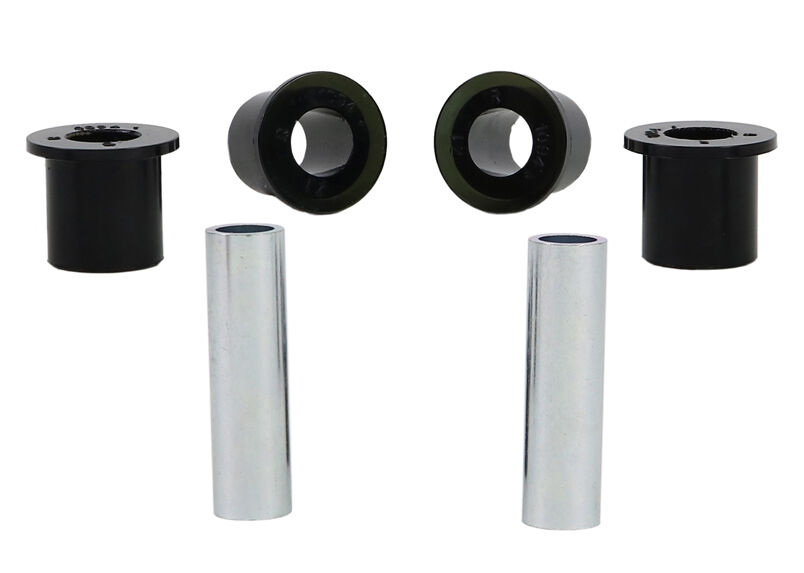

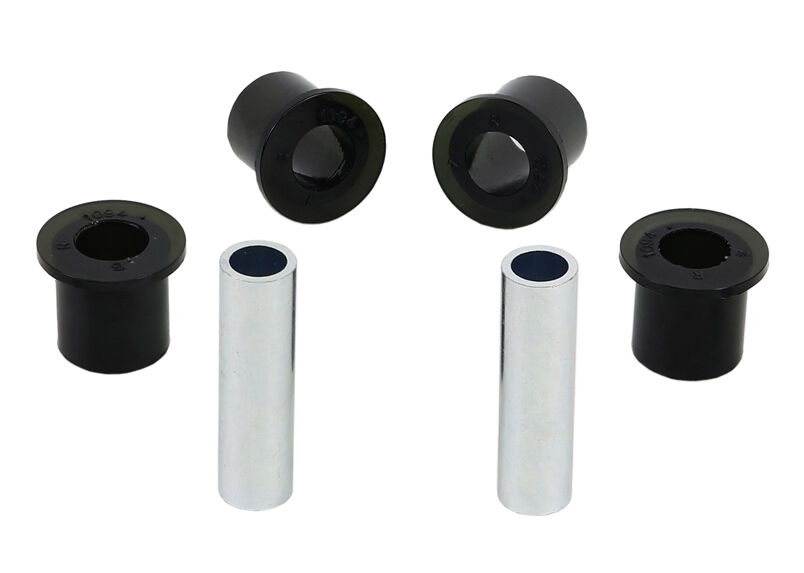

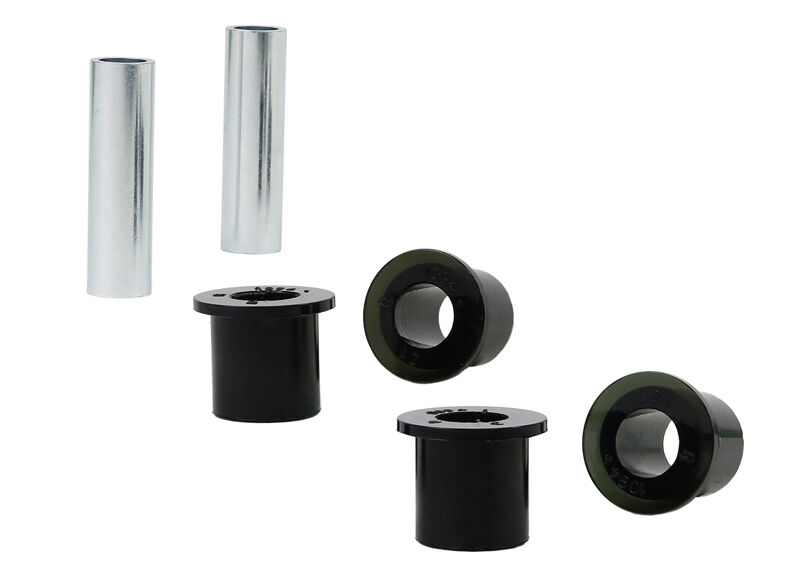

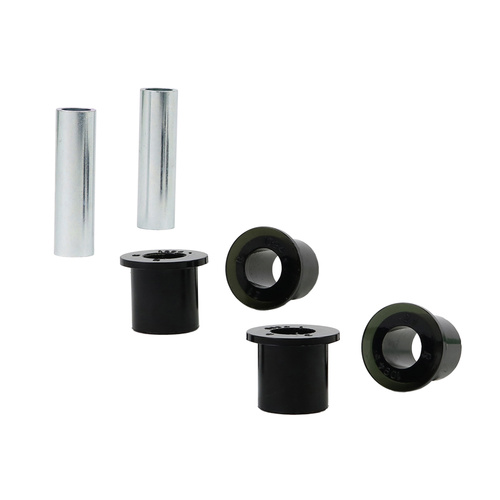

Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteBalances comfort with performance while minimising noise and vibrations; the perfect, complete upgrade. Includes: 4 Bushings & 2 Tubes
EAN9319924355303
  • Lifetime Warranty
Brand Whiteline
SKU W71094
Unit Of Measure Kit
