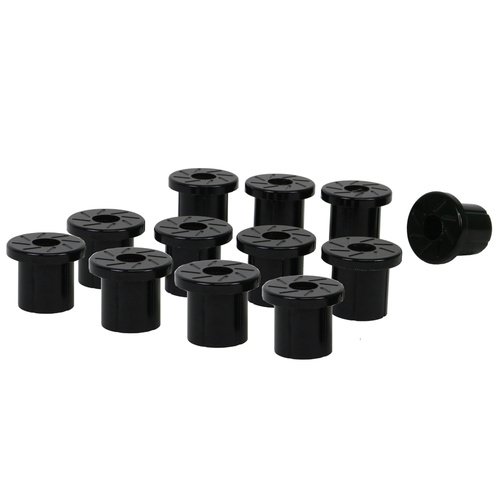

Whiteline Leaf Spring - Bushing Kit to Suit Nissan Patrol and Toyota Land Cruiser

SKU: W71042

Benefit Note: A critical service item for any leaf sprung vehicle. High kilometres and heavy load carrying causes excessive wear on rubber bushings. Whiteline's signature black bushings are made tough and offer outstanding abrasion resistance, high load bearing capability (4WD's, utes and towing), flexibility, increased tensile strength and chemical resistance to oil, grease, ozone and weathering.


Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 12 mm
OD (A) 35 mm
ID (B) 18.2 mm
Length (C) 41 mm
Flange Thickness (D) 7.2 mm
Flange OD (E) 49 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 12
OD (A) 35
ID (B) 18.2
Length (C) 41.0
FL (D) 7.2
FLOD (E) 49
C/Tube Qty
C/Tube Size
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.47kg1.04lbs
Length40cm15.75"
Width10cm3.94"
Height20cm7.87"

Misc. Product Information

More Information
SKUW71042
Components Per12 Bushings
Kits Required1
Sub brandReplacement
Product NoteBuilt tough for better durability and long-lasting performance; the perfect, complete upgrade. Includes: 12 Bushings
EAN9319924355174
  • Lifetime Warranty
Brand Whiteline
SKU W71042
Unit Of Measure Kit
