Whiteline Leaf Spring - Bushing Kit to Suit Mazda T Series 1st and 2nd Gen

SKU: W71439

Benefit Note: A critical service item for any leaf sprung vehicle. High kilometres and heavy load carrying causes excessive wear on rubber bushings. Whiteline's signature black bushings are made tough and offer outstanding abrasion resistance, high load bearing capability (4WD's, utes and towing), flexibility, increased tensile strength and chemical resistance to oil, grease, ozone and weathering.

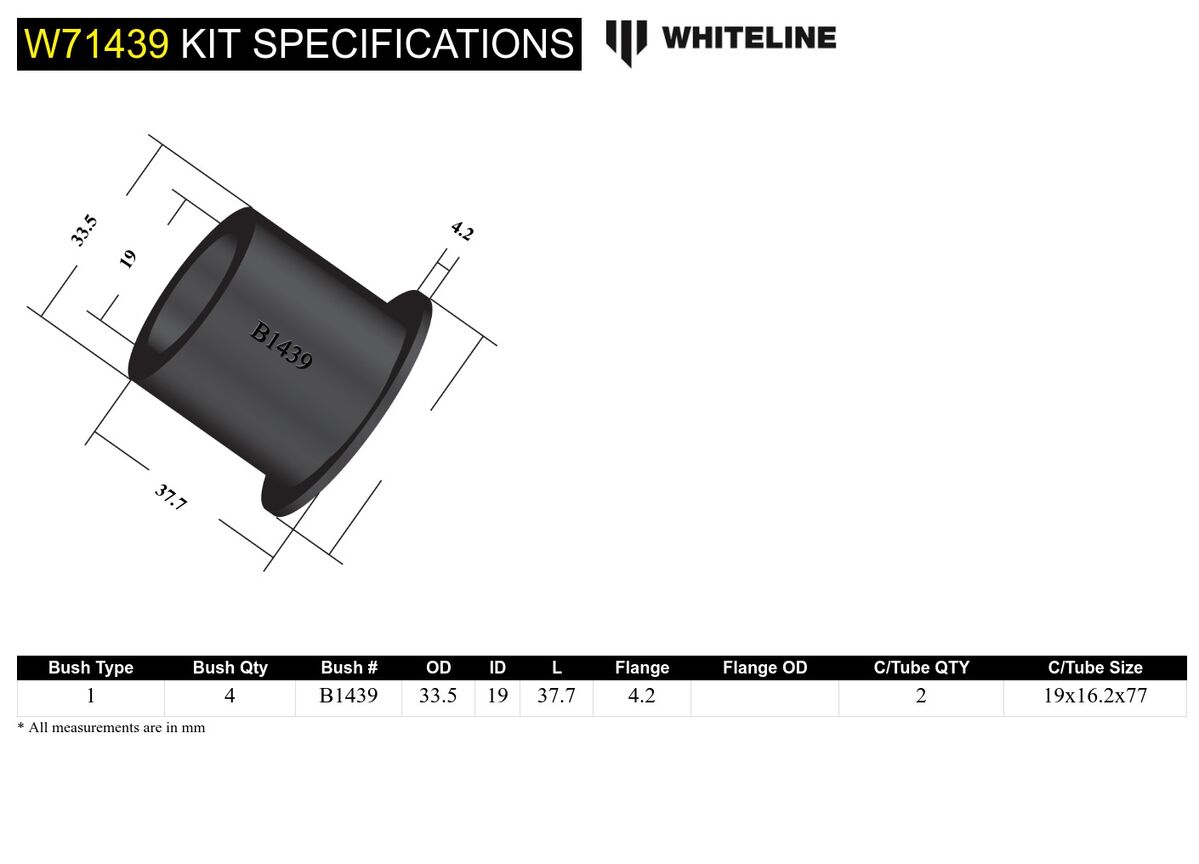

Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 33.5 mm
ID (B) 19 mm
Length (C) 37.7 mm
Flange Thickness (D) 4.2 mm
Flange OD (E)
C/Tube Quantity 2
C/Tube ODxIDxL 19x16.2x77 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 33.5
ID (B) 19
Length (C) 37.7
FL (D) 4.2
FLOD (E)
C/Tube Qty 2
C/Tube Size 19x16.2x77
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.25kg0.55lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW71439
Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement

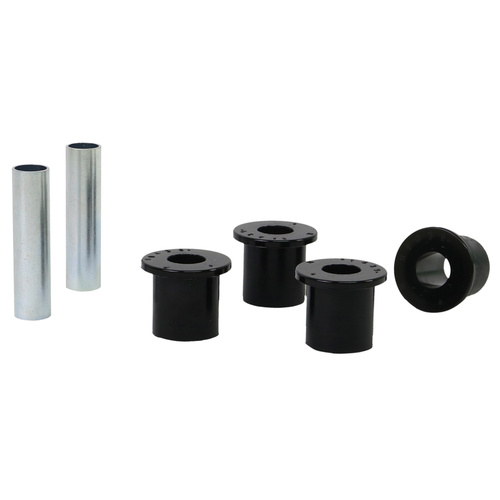

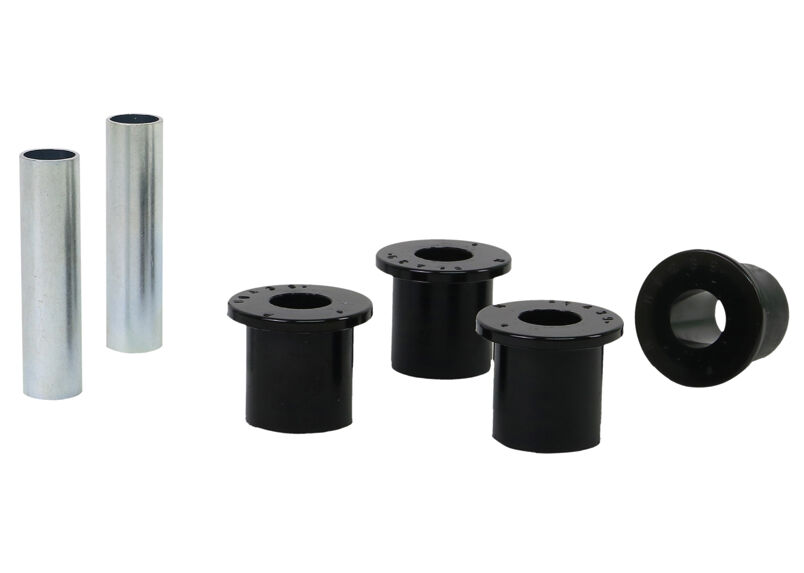

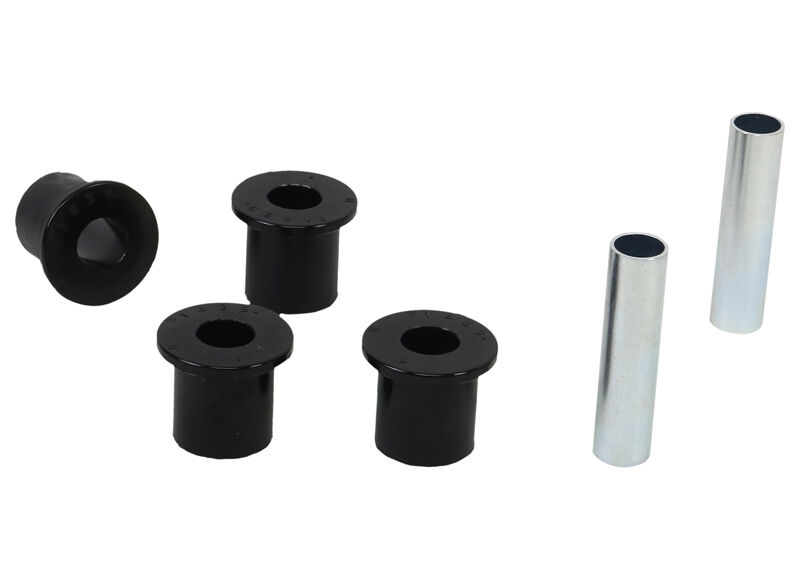

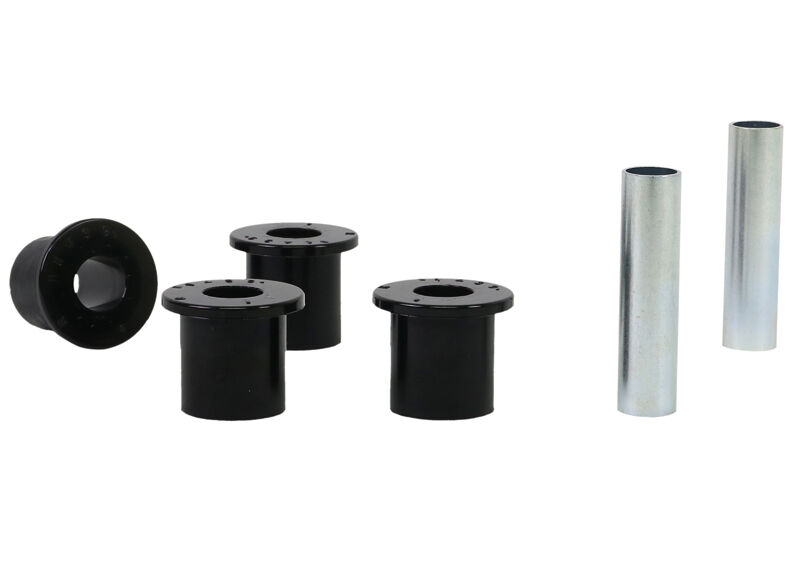

Product NoteBoosts handling and performance, while optimising suspension geometry; the perfect, complete upgrade. Includes: 4 Bushings & 2 Tubes
EAN9319924355655
  • Lifetime Warranty
Brand Whiteline
SKU W71439
Unit Of Measure Kit
