Whiteline Heavy Duty Rear Sway Bar Mount Kit - 24mm to Suit Mitsubishi Lancer Evo 4 5 6 7 8 9

SKU: KBR22-24

Benefit Note: Whiteline heavy duty rear sway bar mounting saddle kits are designed to replace the original equipment mounts with a stronger more rigid version. This Whiteline kit improves sway bar response and should be used for large diameter or adjustable sway bars especially when running the stiffer sway bar settings as factory mounts will twist/ flex and potentially fail prematurely.


Kit Specifications

Bush Type 20 - Misc
Bush Quantity 2 mm
OD (A) 34 mm
ID (B) 24 mm
Length (C) 40 mm
Flange Thickness (D) 4.5 mm
Flange OD (E)
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 20 - Misc

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.51kg1.12lbs
Length25cm9.84"
Width10cm3.94"
Height20cm7.87"

Misc. Product Information

More Information
SKUKBR22-24

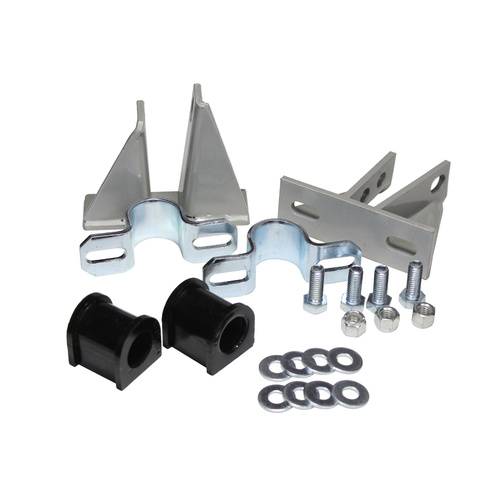

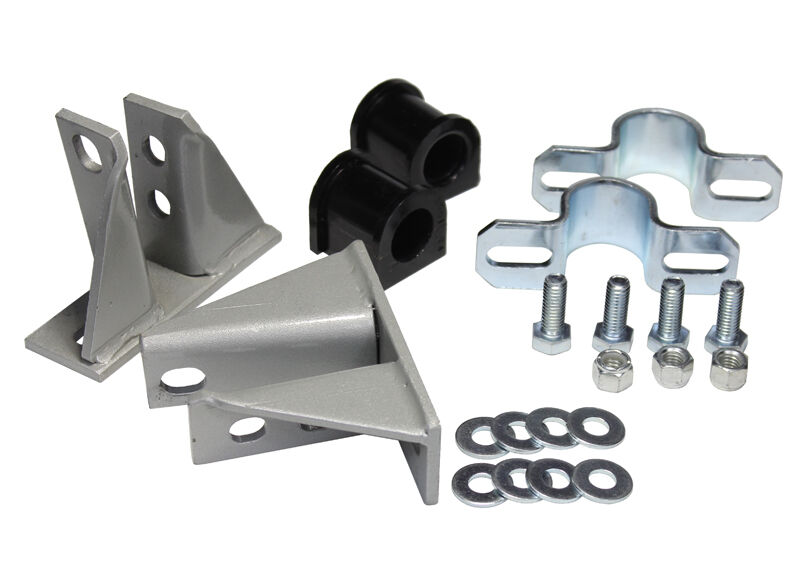

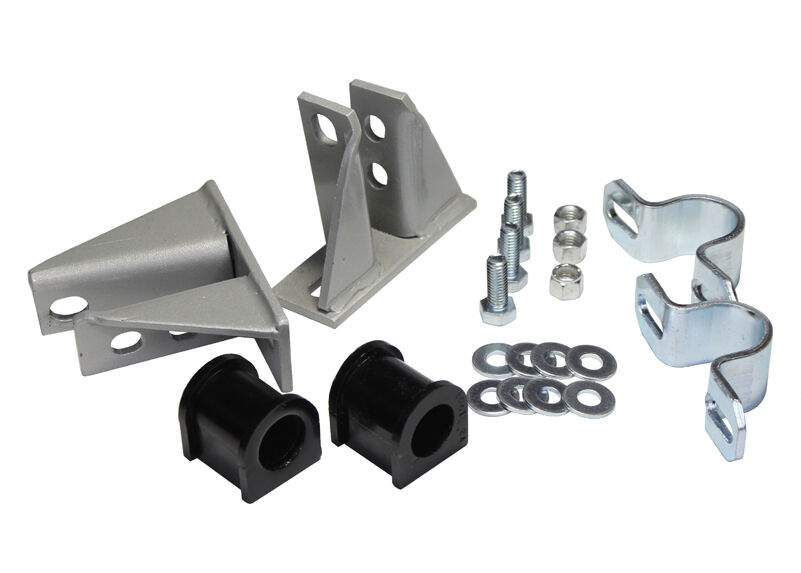

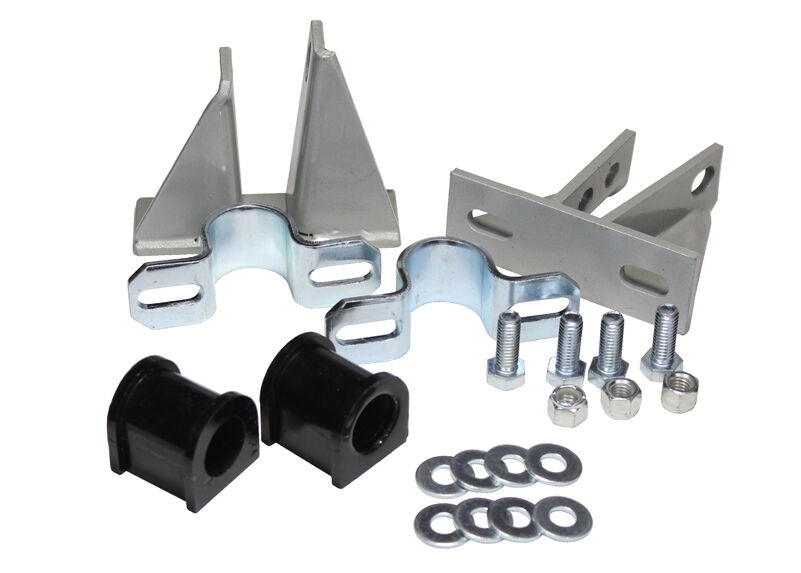

Components Per2 Bushings, 2 Mounts, 2 Saddles, 4 Bolts, 8 Washers, 4 Nuts
Kits Required1
Sub brandPerformance
Product NoteReduces body roll, keeping your vehicle flatter through corners; the perfect, complete upgrade. Includes: 2 Bushings, 2 Mounts, 2 Saddles, 4 Bolts, 8 Washers, 4 Nuts
EAN9319924387267
  • 3 years warranty or up to 60,000km
Brand Whiteline
SKU KBR22-24
Unit Of Measure Kit
