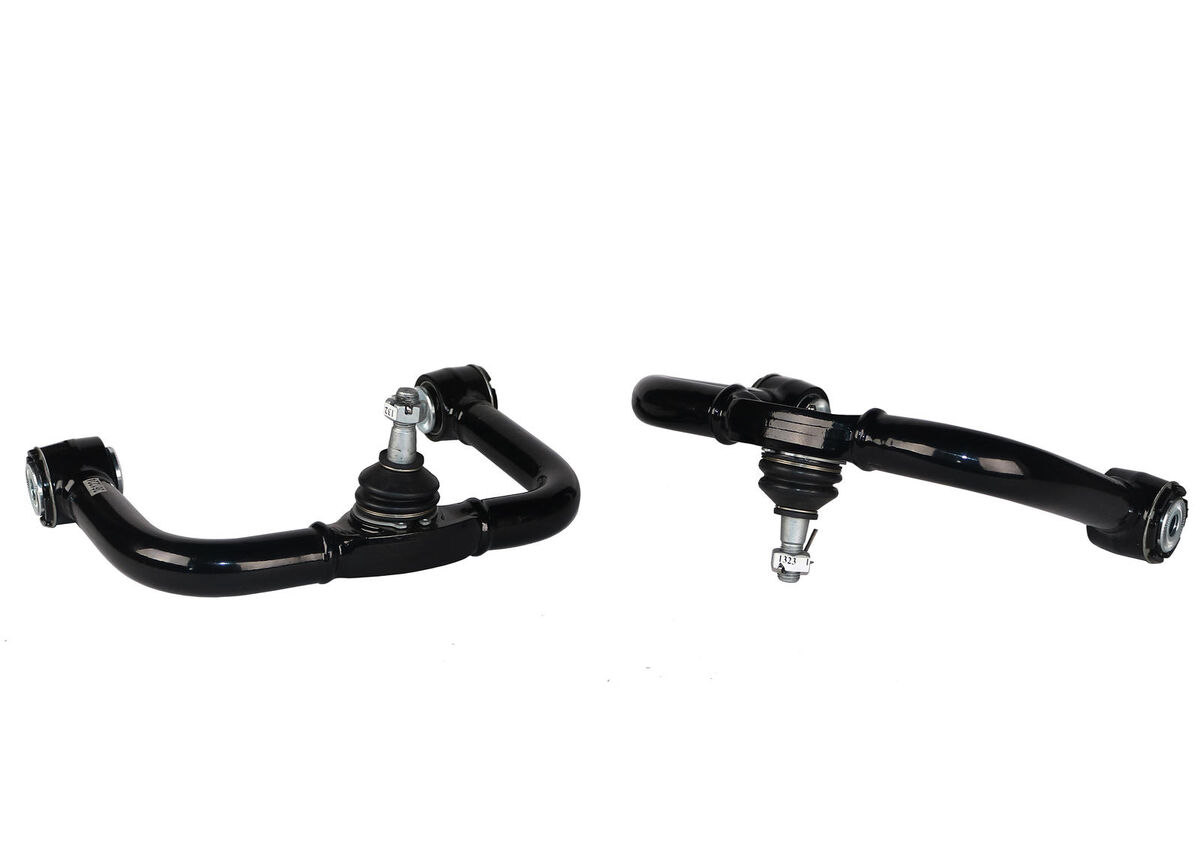

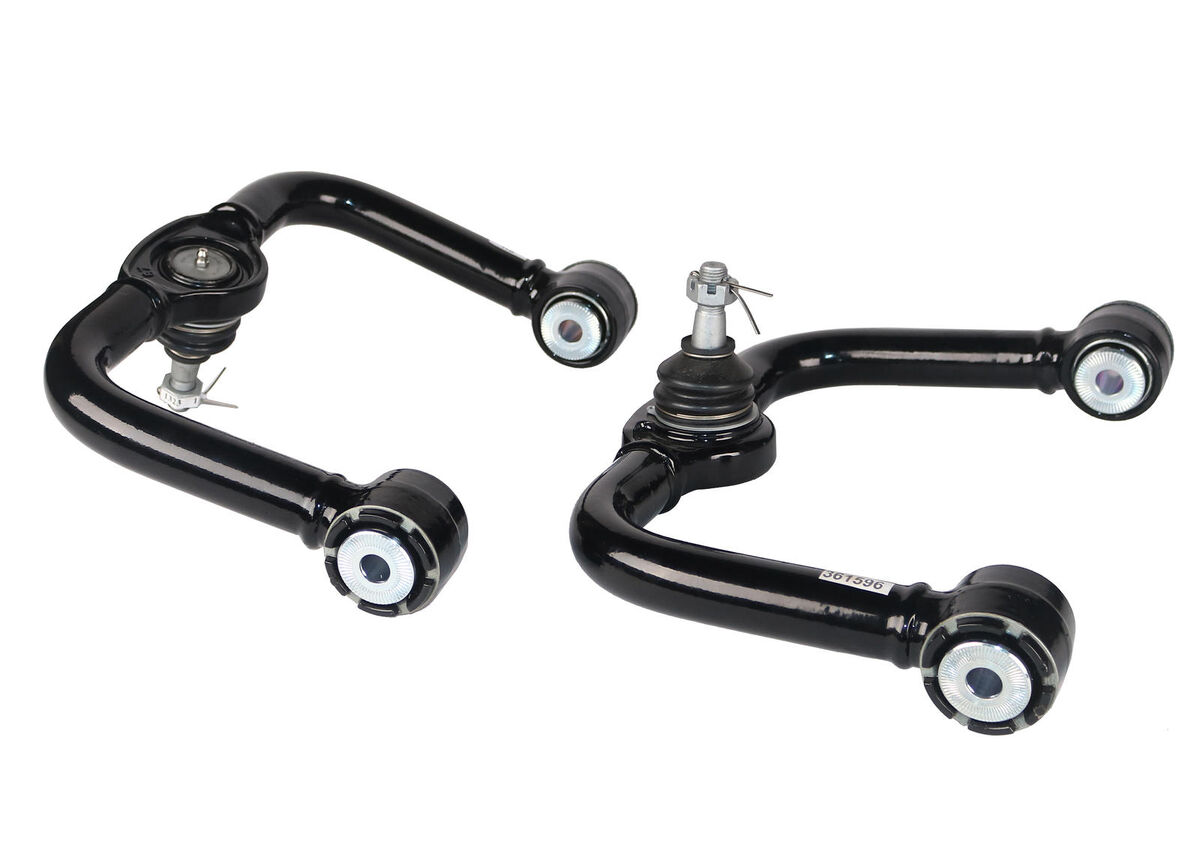

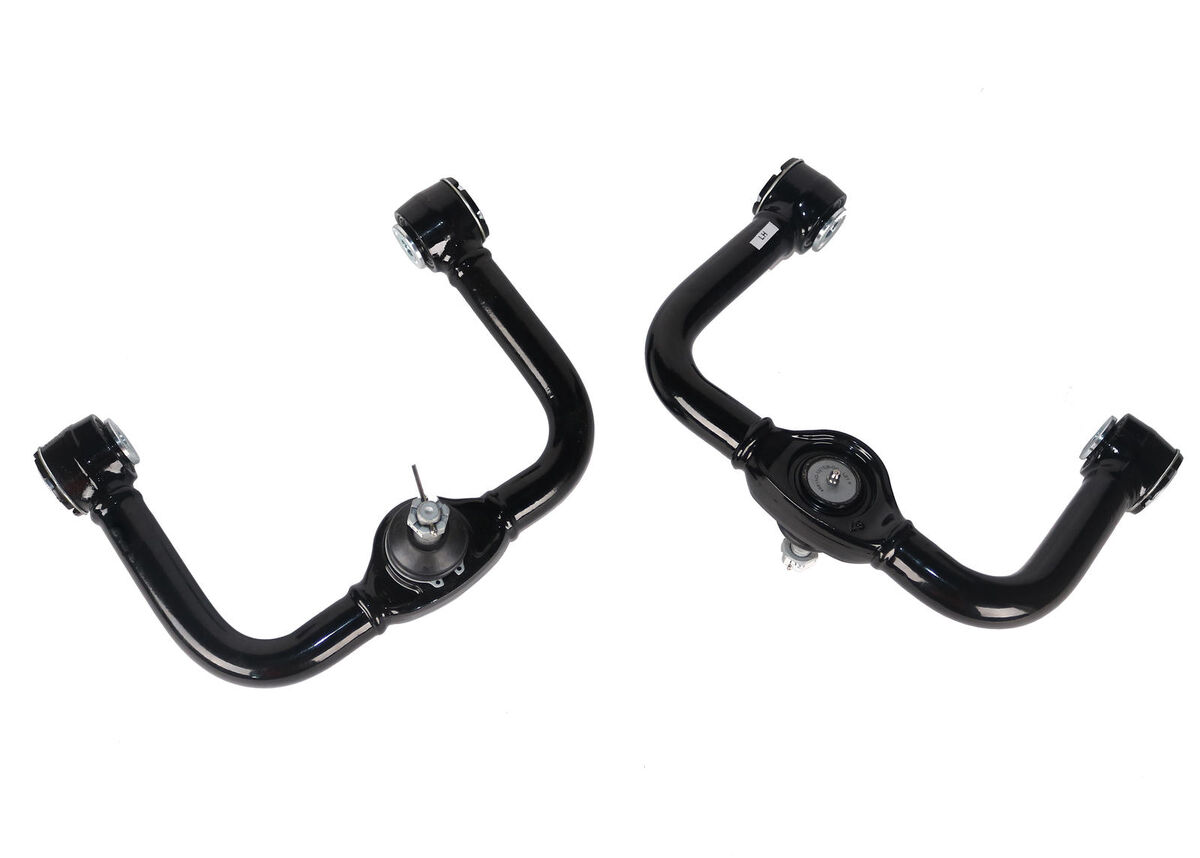

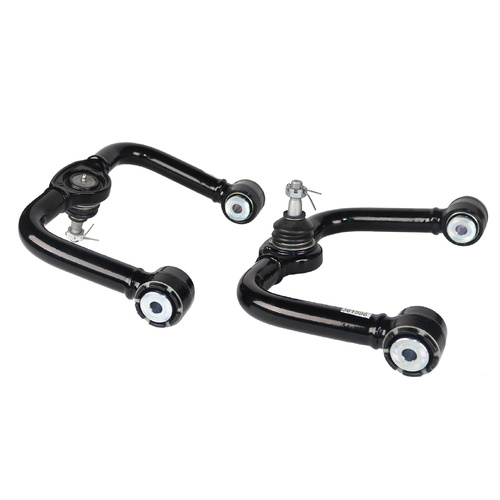

Whiteline Front Upper Control Arms Fixed Offset to Suit Nissan Navara D40, D23 and Pathfinder R51

SKU: KTA301

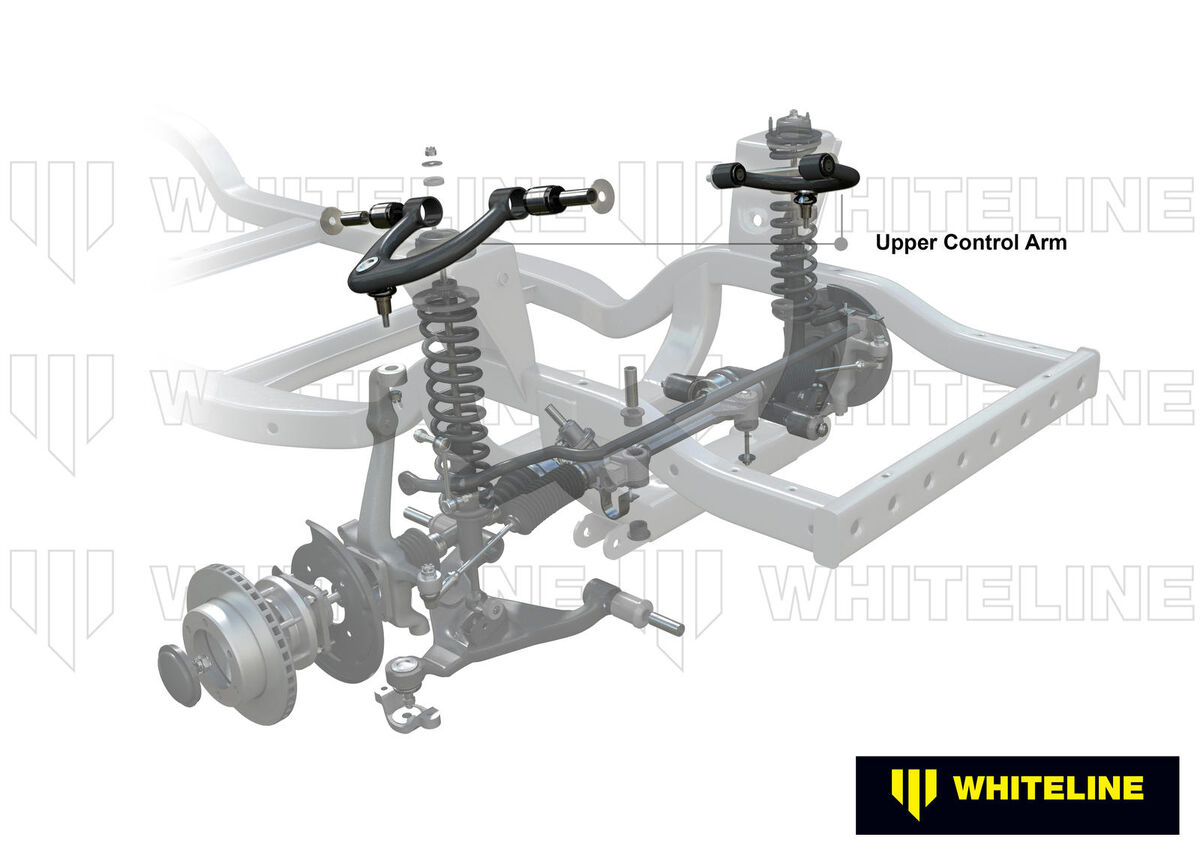

Benefit Note: A short fall of the modern day IFS 4wd is the adjustment range provided for successful wheel alignments, this becomes even more of an issue when the vehicle is lifted by more than 1 inch. Not only does the vehicle run into camber and caster issues, but ball joint articulation and clearance issues to the coil over strut at ride and droop height. The new Whiteline offset UCA (Upper Control Arm) is an all-in-one solution for any vehicle that has been lifted between 30mm and 70mm. Providing an increase between +2.5 and +3.5 degrees of caster and up to 1.5 degrees of negative camber increase (figures quoted are based off an approximate 50mm/ 2 inch) along with greater clearance to the coil over strut and more articulation of the arm by virtue of new maintenance free GIIRO bushing technology.


Kit Specifications

Arm Type Alignment
Units Pair
Ball Joint Included Yes
Adjustable (Arms) No
Alignment Type Caster
Adjustment Type Fixed
On Car Adjustable No

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight9.2kg20.28lbs
Length17cm6.69"
Width34cm13.39"
Height42.5cm16.73"

Misc. Product Information

More Information
SKUKTA301
Components Per2 Arms
Kits Required1
Sub brandPerformance
Product NoteDelivers a balanced mix of comfort, precision, and durability; the perfect, complete upgrade. Includes: 2 Arms
EAN9319924469512
  • Lifetime Warranty
Brand Whiteline
SKU KTA301
Unit Of Measure Each
