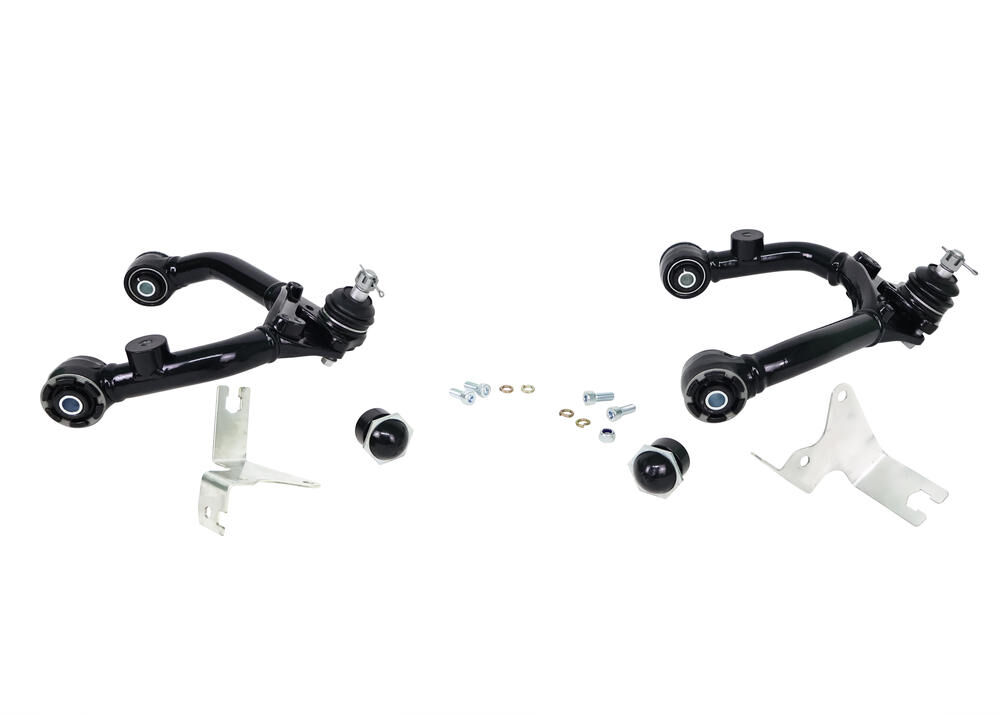

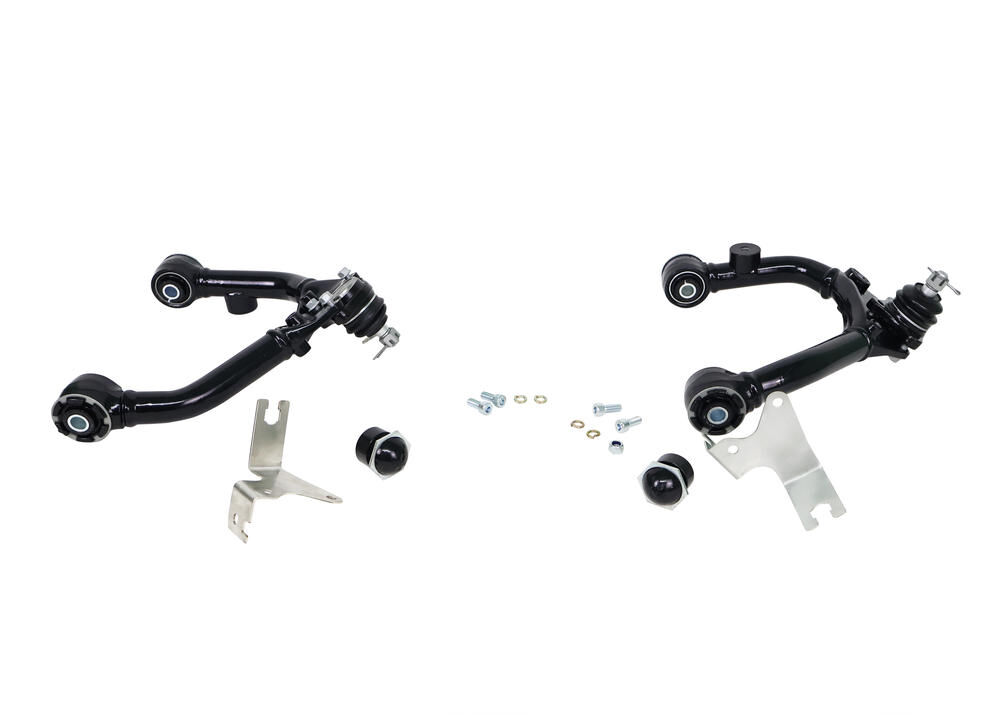

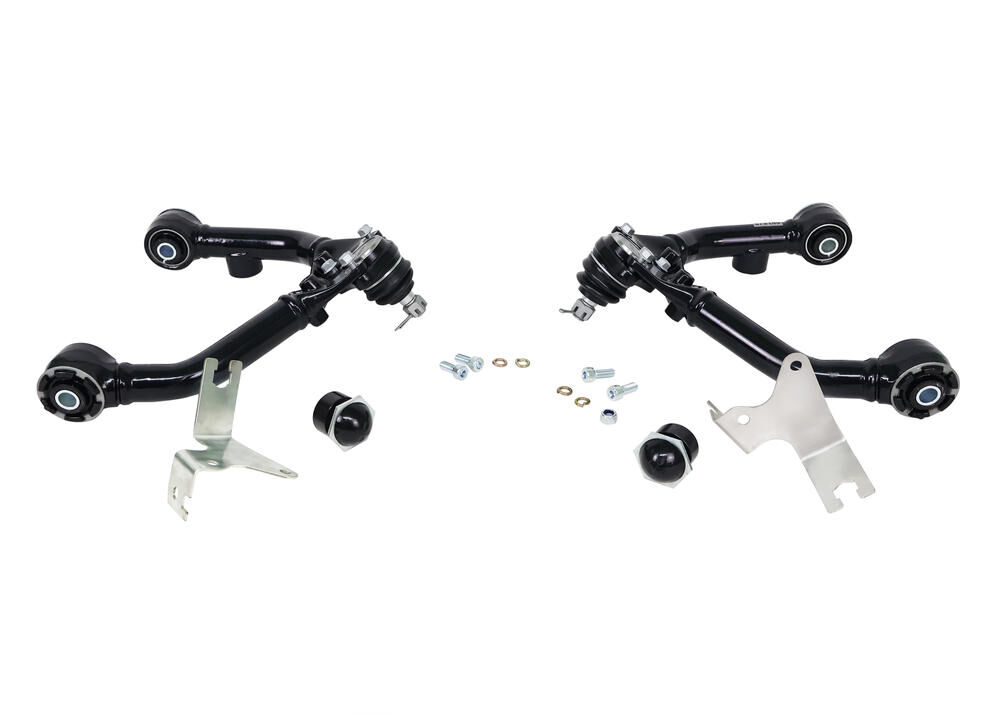

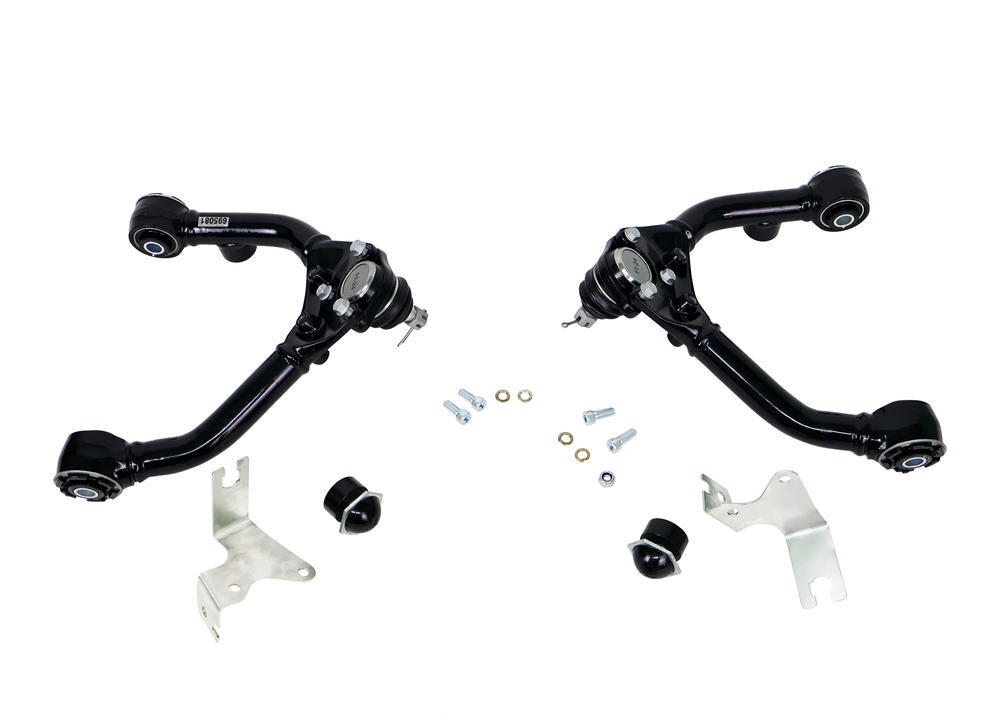

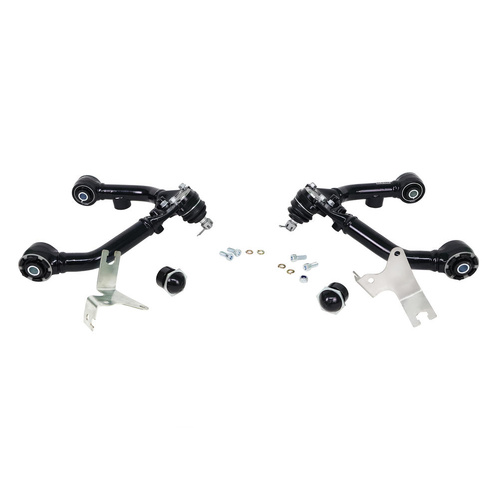

Whiteline Front Upper Control Arms Fixed Offset to Suit Mitsubishi Challenger, Pajero Sport and Triton 4wd

SKU: KTA254

Benefit Note: A short fall of the modern day IFS 4wd is the adjustment range provided for successful wheel alignments, this becomes even more of an issue when the vehicle is lifted by more than 1 inch. Not only does the vehicle run into camber and caster issues, but ball joint articulation and clearance issues to the coil over strut at ride and droop height. The new Whiteline offset UCA (Upper Control Arm) is an all-in-one solution for any vehicle that has been lifted between 30mm and 70mm. Providing an increase between +2.5 and +3.5 degrees of caster and up to 1.5 degrees of negative camber increase (figures quoted are based off an approximate 50mm/ 2 inch) along with greater clearance to the coil over strut and more articulation of the arm by virtue of new maintenance free GIIRO bushing technology.


Kit Specifications

Arm Type Alignment
Units Pair
Ball Joint Included Yes
Adjustable (Arms) No
Alignment Type Camber / Caster
Adjustment Type Fixed
On Car Adjustable No

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight9.7kg21.38lbs
Length17cm6.69"
Width34cm13.39"
Height42.5cm16.73"

Misc. Product Information

More Information
SKUKTA254
Components Per2 Arms
Kits Required1
Sub brandPerformance
Product NoteMaximises tyre contact with the road, improving cornering and grip; the perfect, complete upgrade. Includes: 2 Arms
EAN9319924469017
  • Lifetime Warranty
Brand Whiteline
SKU KTA254
Unit Of Measure Each
