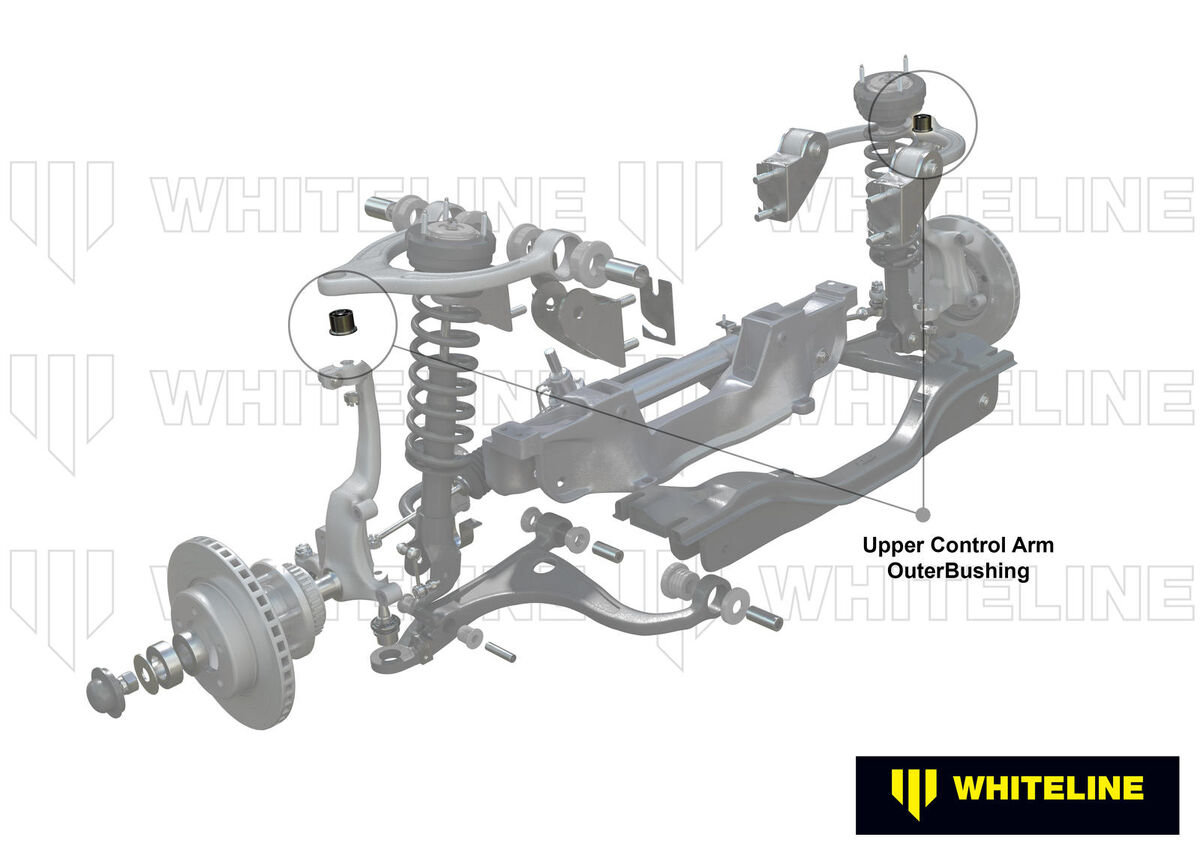

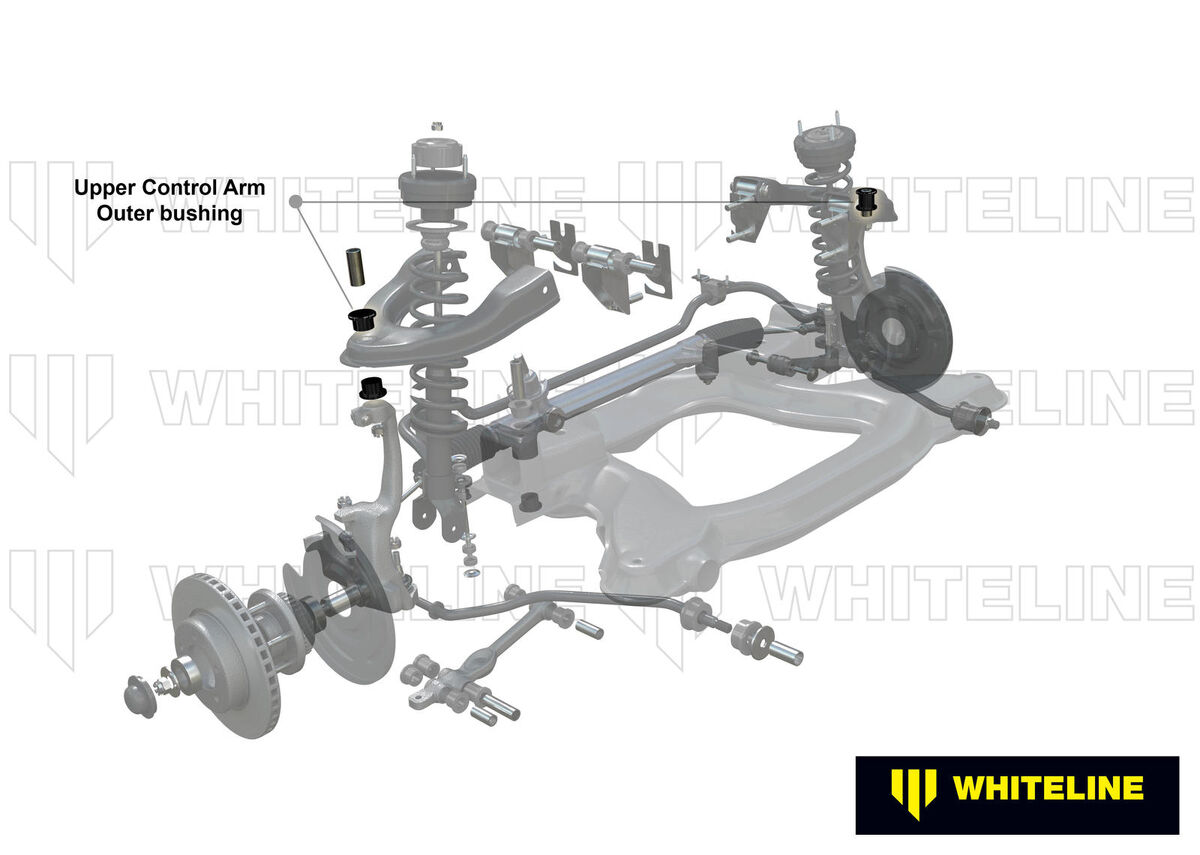

Whiteline Front Upper Control Arm - Outer Bushing Camber Kit Double Offset to Suit Nissan Skyline R33, R34 Rwd/Awd

SKU: KCA348

Benefit Note: Whiteline camber kits provide the ability to fine tune camber settings for optimum tyre contact resulting in improved vehicle handling and increased tyre life. This kit is supplied with dual offset Whiteline synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability which help maintain preferred alignment settings as well as providing enhanced steering response.


Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 34.3 mm
ID (B) 26.9 mm
Length (C) 48.6 mm
Flange Thickness (D) 20.4 mm
Flange OD (E) 45.2 mm
C/Tube Quantity 2
C/Tube ODxIDxL 27x12.2x103.5 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Camber Eccentric Yes

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 34.3
ID (B) 26.9
Length (C) 48.6
FL (D) 20.4
FLOD (E) 45.2
C/Tube Qty 2
C/Tube Size 27x12.2x103.5
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.198kg2.64lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUKCA348

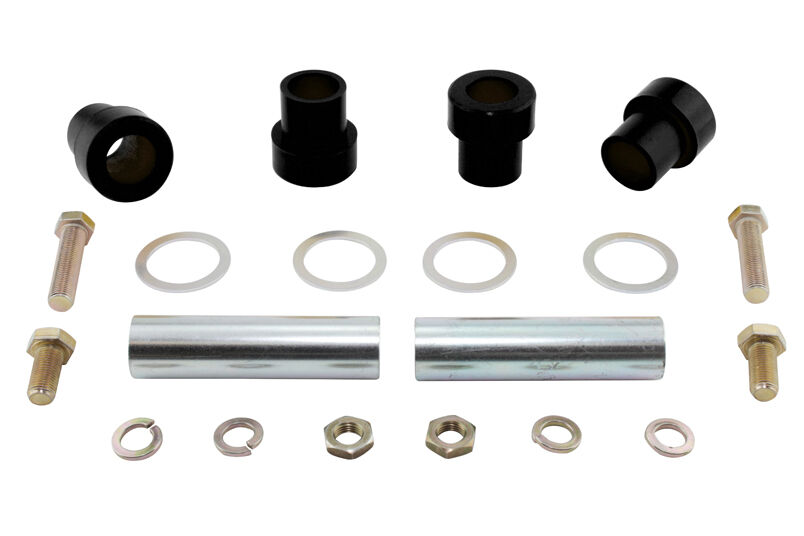

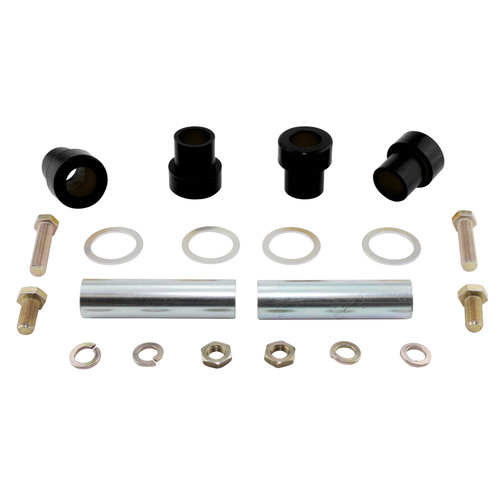

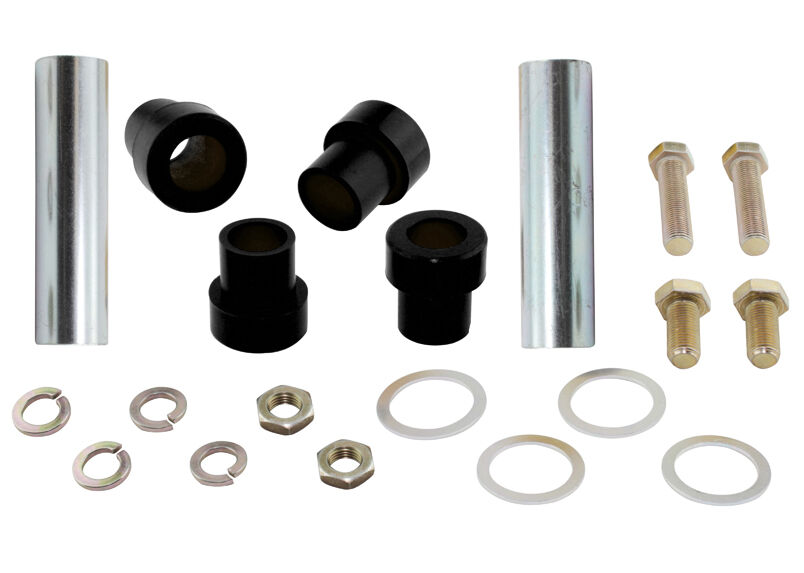

Components Per4 Bushings, 2 Tubes, 4 Bolts, 8 Washers, 2 Nuts
Kits Required1
Sub brandPerformance
Product NoteEnhances steering response, delivering sharper handling and more predictable vehicle dynamics; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes, 4 Bolts, 8 Washers, 2 Nuts
EAN9319924342532
  • Lifetime Warranty
Brand Whiteline
SKU KCA348
Unit Of Measure Kit
