Benefit Note: Whiteline camber kits provide the ability to fine tune camber settings for optimum tyre contact resulting in improved vehicle handling and increased tyre life. This kit is supplied with dual offset Whiteline synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability which help maintain preferred alignment settings as well as providing enhanced steering response.

Kit Specifications

Bush Type	16 - Shell Without Flange Bushing
Bush Quantity	2 mm
OD (A)	42.3 mm
ID (B)	21.6 mm
Length (C)	50.8 mm
Flange Thickness (D)	10 mm
Flange OD (E)	40 mm
C/Tube Quantity	2
C/Tube ODxIDxL	22.2x10.2x49.5 mm
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Alignment	Alignment Adjustment Type	Alignment On Car Adjustable
Camber / Caster	Eccentric	Yes

Bushing Design Dimensions (mm)

Bush Type	16
QTY	2
OD (A)	42.3
ID (B)	21.6
Length (C)	50.8
FL (D)	10
FLOD (E)	40
C/Tube Qty	2
C/Tube Size	22.2x10.2x49.5
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

Units	cm/kg	in/lbs
Weight	2.342kg	5.16lbs
Length	40cm	15.75"
Width	10cm	3.94"
Height	20cm	7.87"

Misc. Product Information

More Information

SKU	W53419

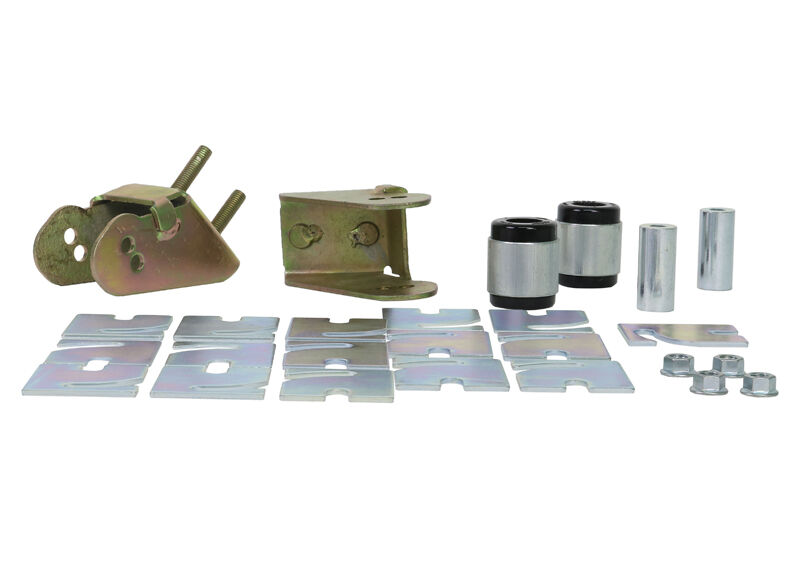

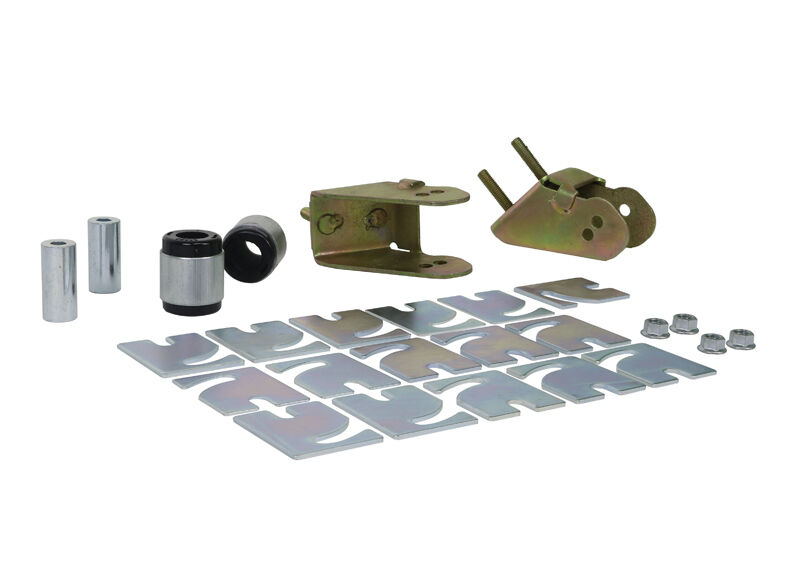

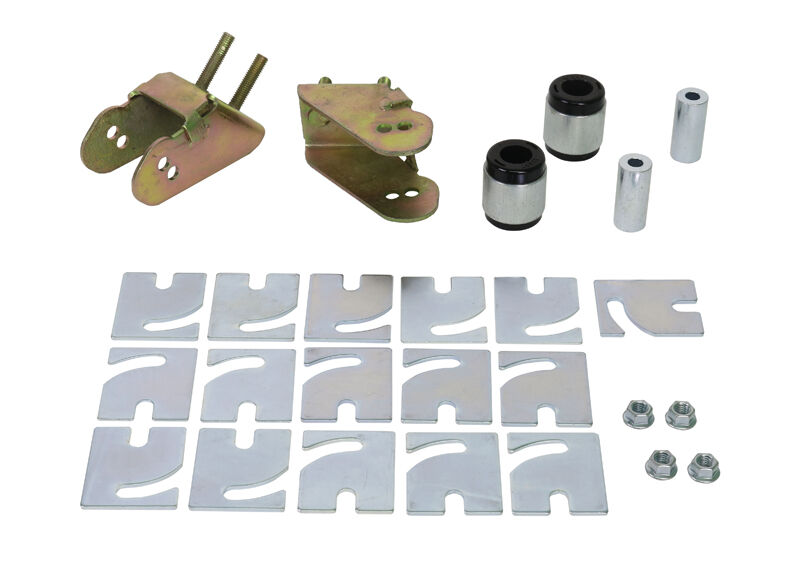

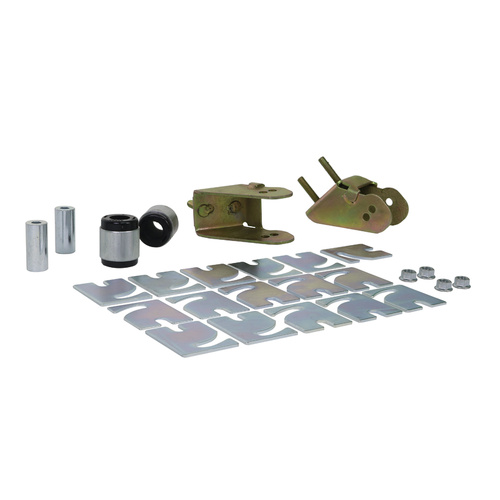

Components Per	2 Bushings, 2 Housings, 2 Tubes, 16 Shims, 4 Nuts
Kits Required	2
Sub brand	Replacement
Product Note	Greatly increases control and confidence; the perfect, complete upgrade. Includes: 2 Bushings, 2 Housings, 2 Tubes, 16 Shims, 4 Nuts
EAN	9319924383221
