Whiteline Front Upper Control Arm - Bushing Kit to Suit Ford Ranger PJ, PK and Mazda BT-50 UN 2wd/4wd

SKU: W53652

Benefit Note: Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.

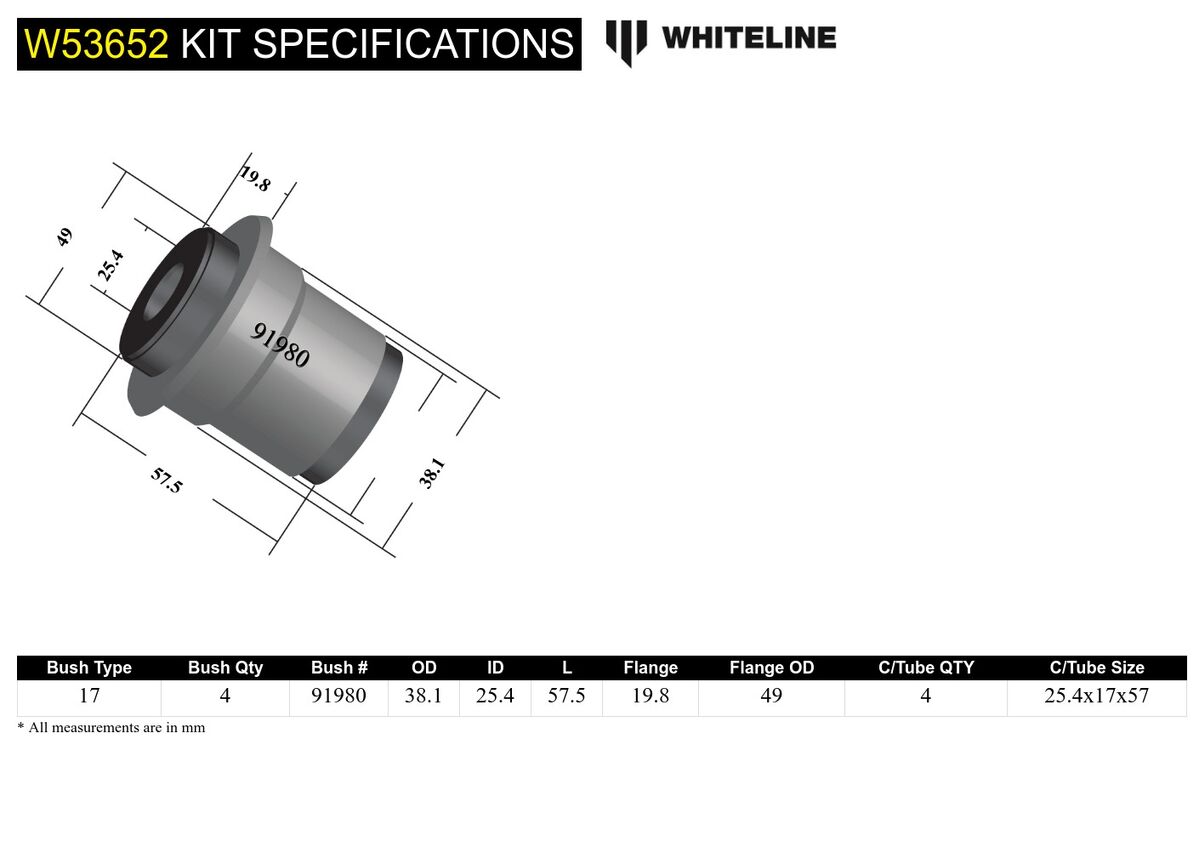

Kit Specifications

Bush Type 17 - Shell With Flange Bushing
Bush Quantity 4 mm
OD (A) 38.1 mm
ID (B) 25.4 mm
Length (C) 57.5 mm
Flange Thickness (D) 19.8 mm
Flange OD (E) 49 mm
C/Tube Quantity 4
C/Tube ODxIDxL 25.4x17x57 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 17 - Shell With Flange Bushing

Bushing Design Dimensions (mm)

Bush Type 17
QTY 4
OD (A) 38.1
ID (B) 25.4
Length (C) 57.5
FL (D) 19.8
FLOD (E) 49
C/Tube Qty 4
C/Tube Size 25.4x17x57
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 17

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.05kg2.31lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW53652

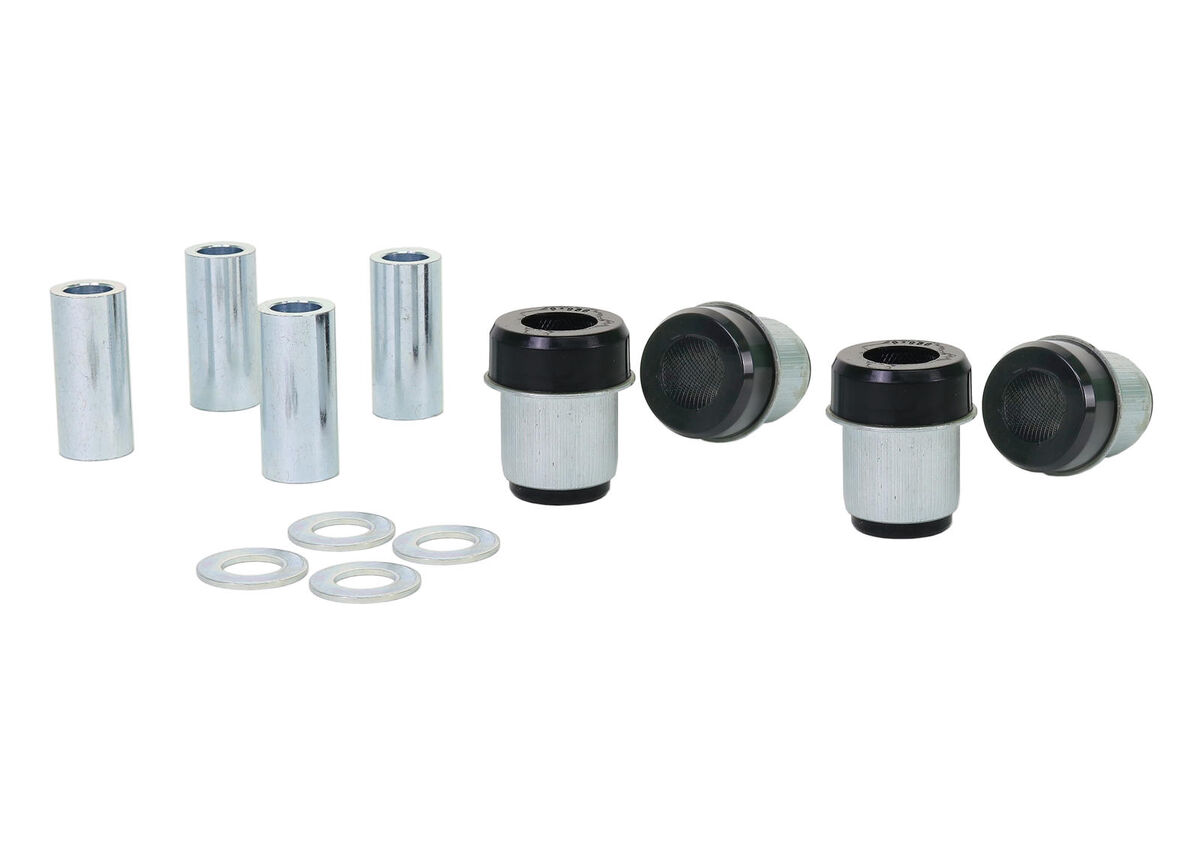

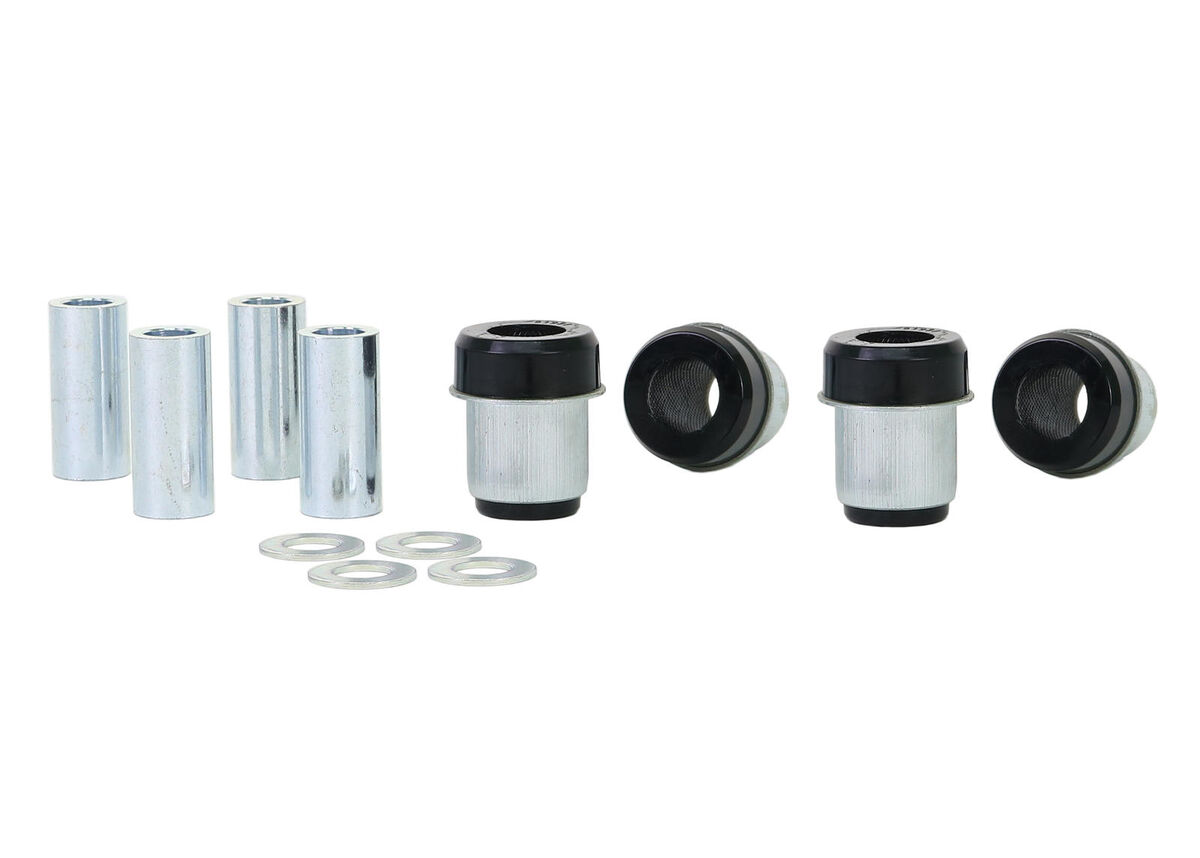

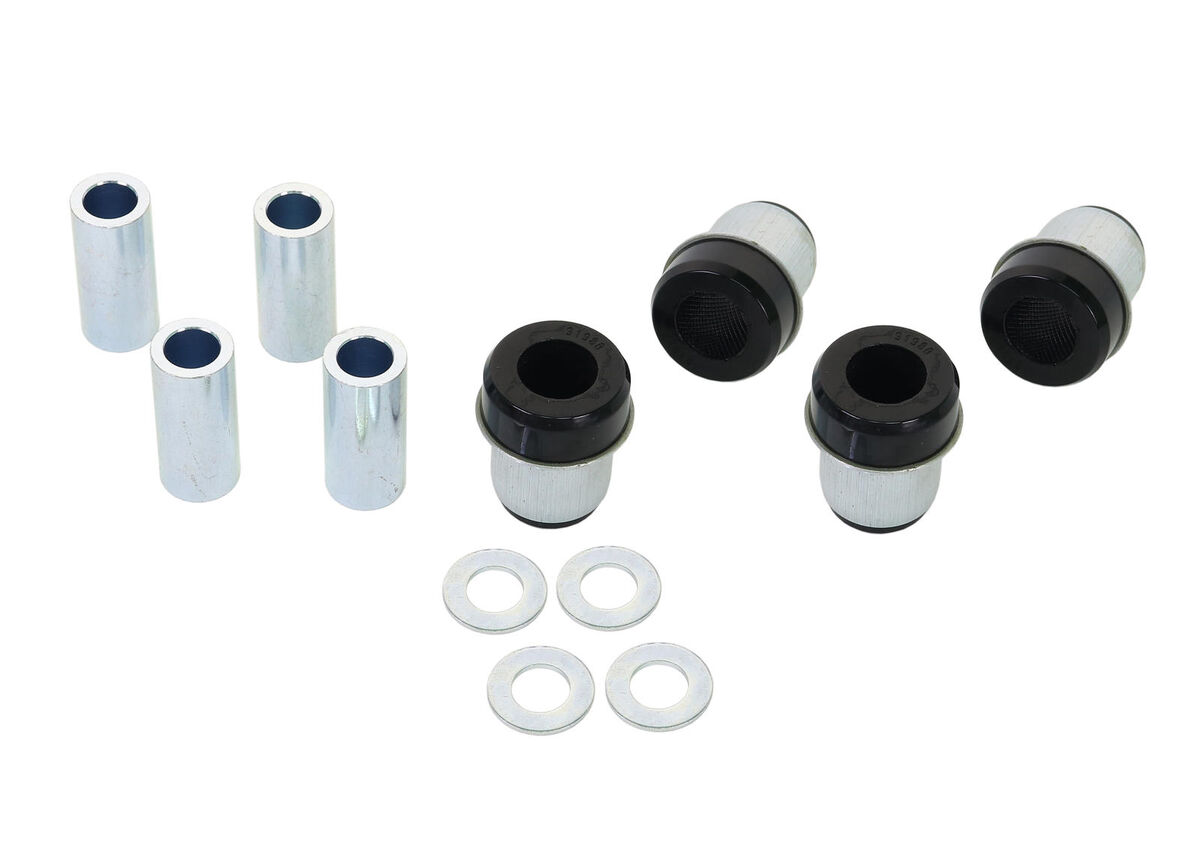

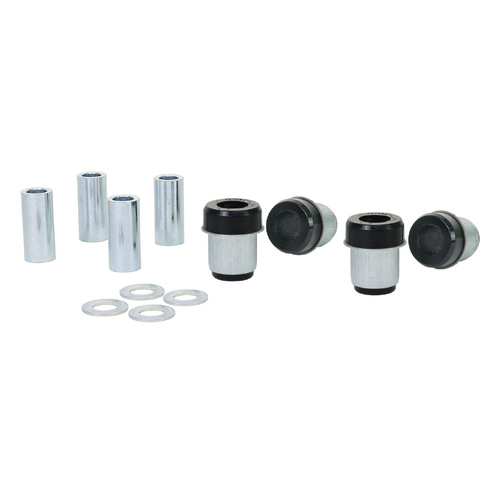

Components Per4 Shell Bushings, 4 Tubes, 4 Washers
Kits Required1
Sub brandReplacement
Product NoteGreatly increases control and confidence; the perfect, complete upgrade. Includes: 4 Shell Bushings, 4 Tubes, 4 Washers
EAN9319924464647
  • Lifetime Warranty
Brand Whiteline
SKU W53652
Unit Of Measure Kit
