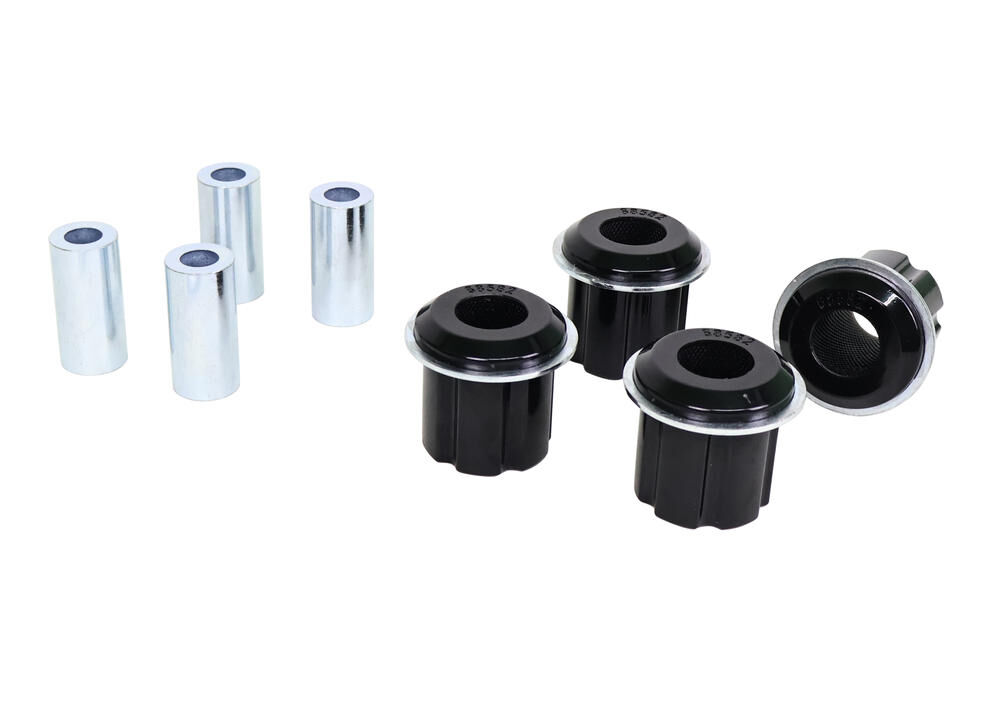

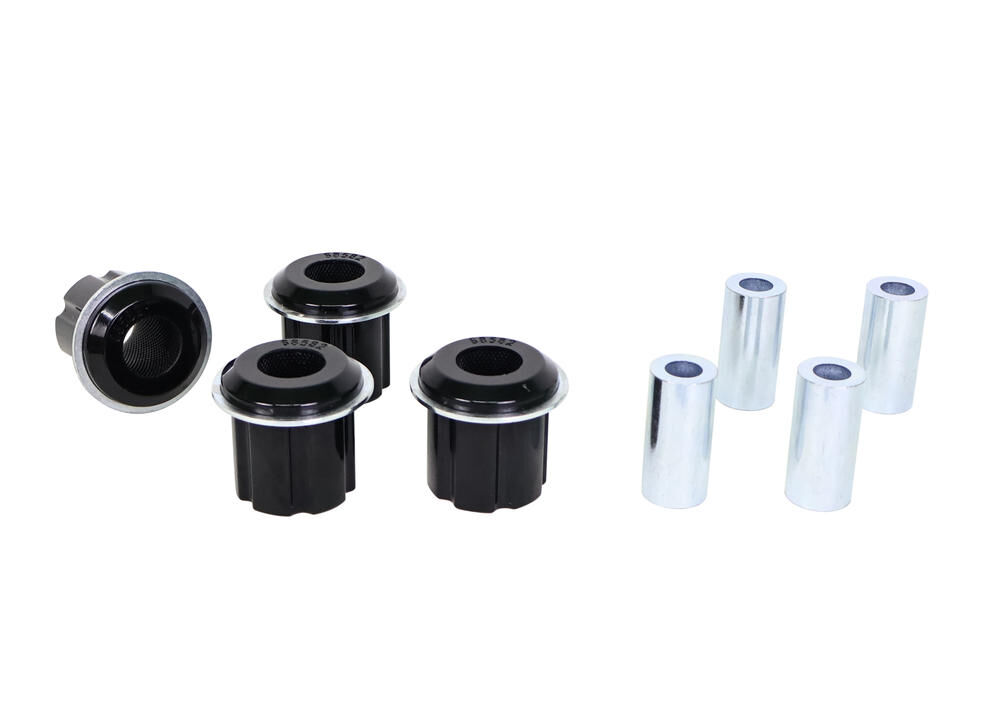

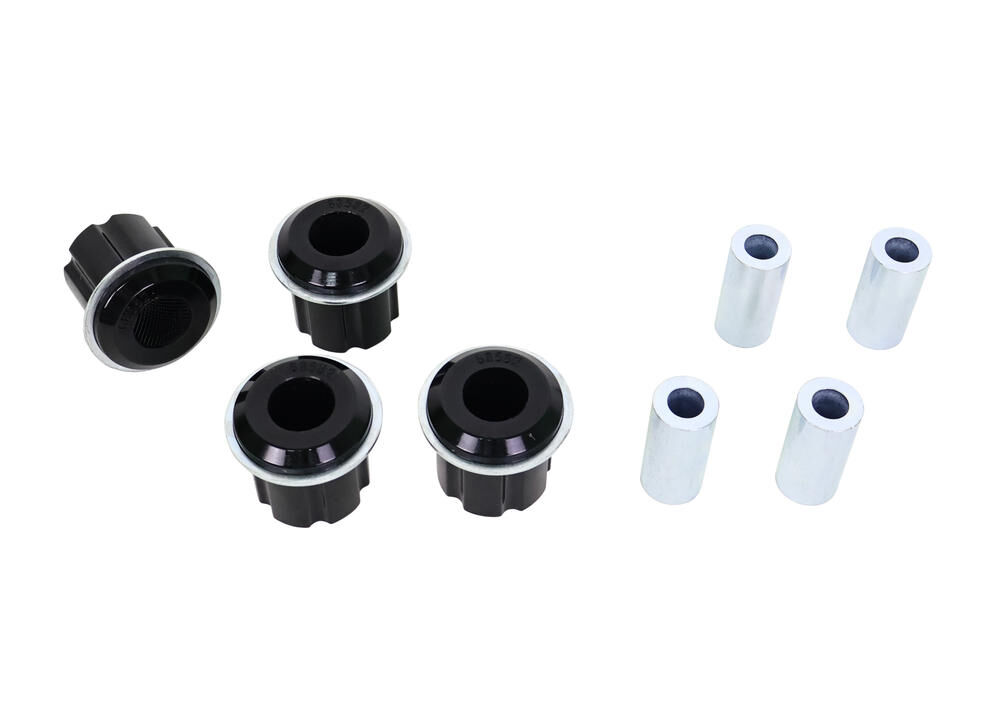

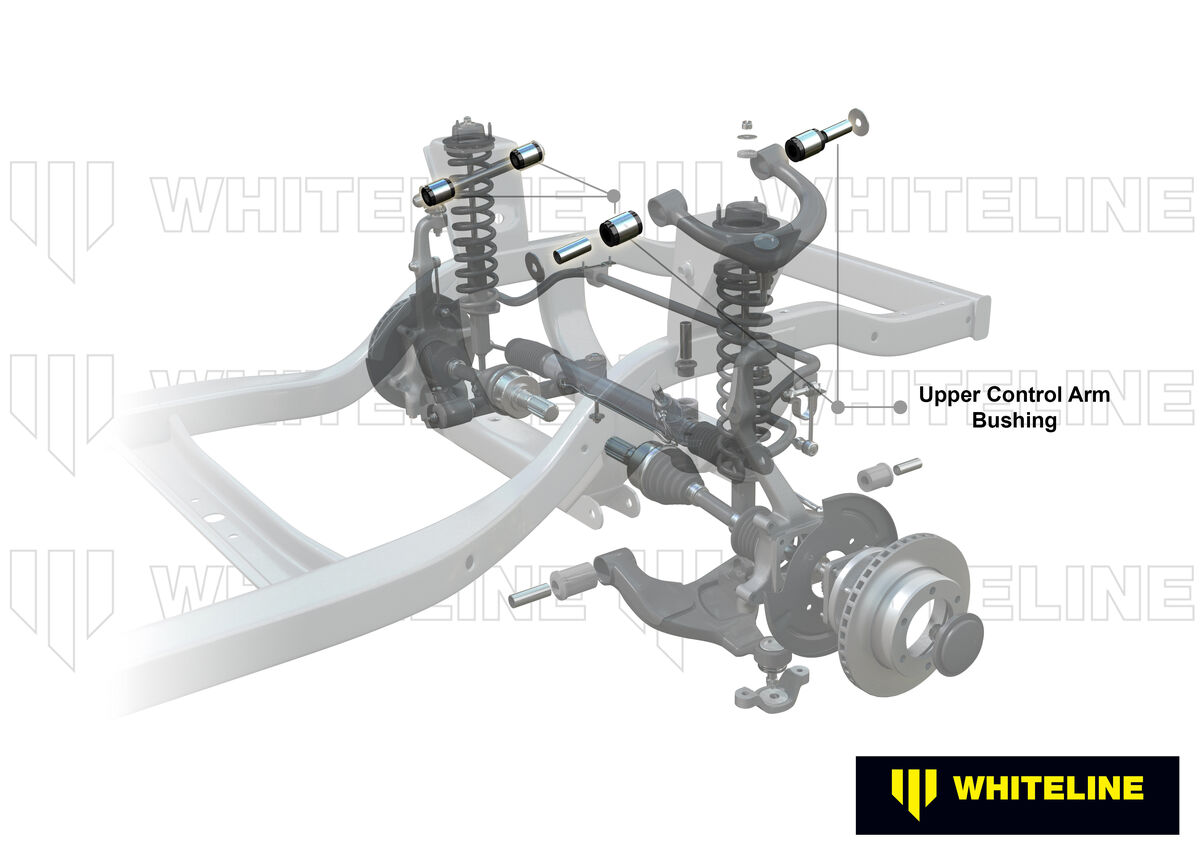

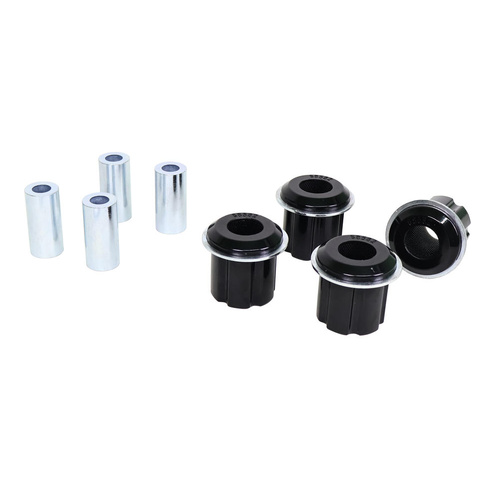

Whiteline Front Upper Control Arm - Bushing Kit to Suit Ford Everest, Ranger and Mazda BT-50

SKU: W53584

Benefit Note: Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.


Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 46.3 mm
ID (B) 25.2 mm
Length (C) 52.9 mm
Flange Thickness (D) 11.5 mm
Flange OD (E) 52 mm
C/Tube Quantity 4
C/Tube ODxIDxL 25.4x14.3x52.8 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 46.3
ID (B) 25.2
Length (C) 52.9
FL (D) 11.5
FLOD (E) 52
C/Tube Qty 4
C/Tube Size 25.4x14.3x52.8
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.95kg2.09lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW53584
Components Per4 Bushings, 4 Tubes
Kits Required1
Sub brandReplacement
Product NoteDelivers a balanced mix of comfort, precision, and durability; the perfect, complete upgrade. Includes: 4 Bushings, 4 Tubes
EAN9319924402830
  • Lifetime Warranty
Brand Whiteline
SKU W53584
Unit Of Measure Kit
