Whiteline Front Upper Control Arm - Bushing Kit to Suit Mitsubishi L400 WA

SKU: W53491

Benefit Note: Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.

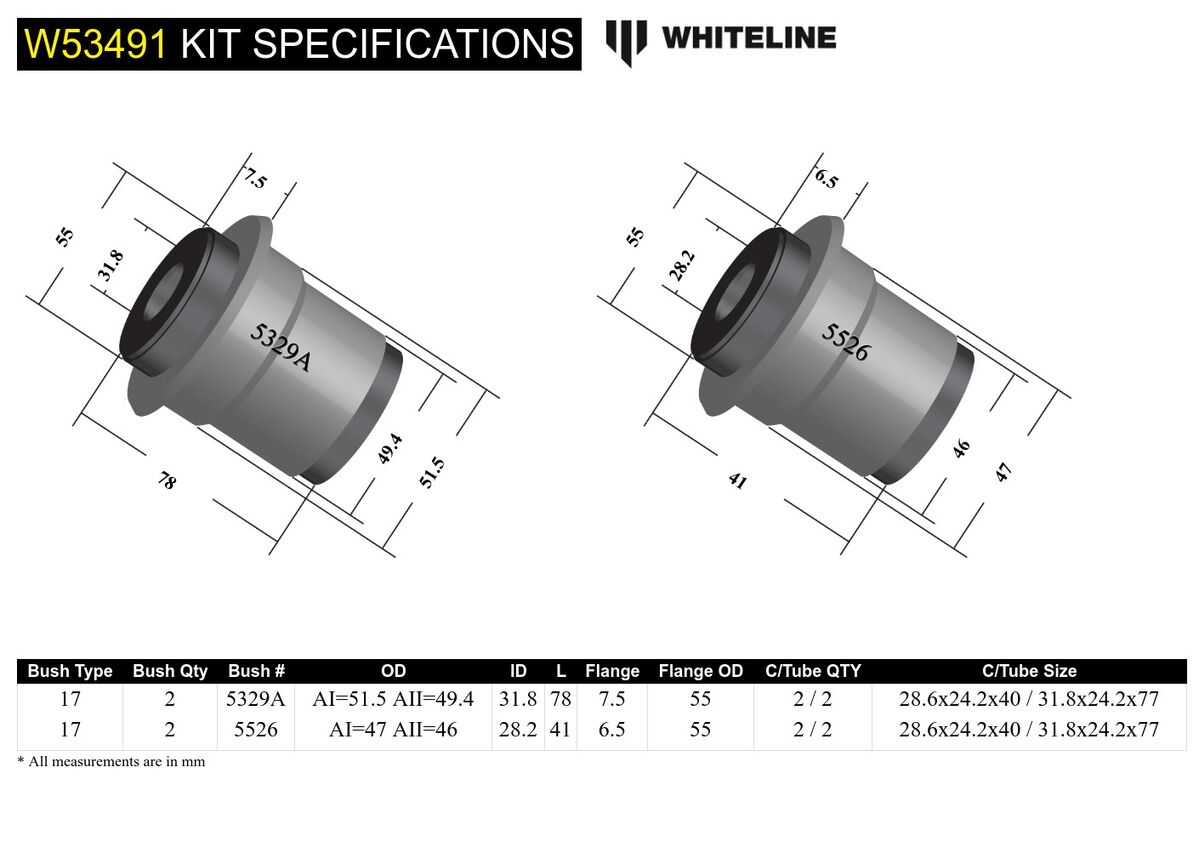

Kit Specifications

Bush Type 17 - Shell With Flange Bushing 17 - Shell With Flange Bushing
Bush Quantity 2 mm 2 mm
OD (A) AI=47 AII=46 mm AI=51.5 AII=49.4 mm
ID (B) 28.2 mm 31.8 mm
Length (C) 41 mm 78 mm
Flange Thickness (D) 6.5 mm 7.5 mm
Flange OD (E) 55 mm 55 mm
C/Tube Quantity 2 / 2 2 / 2
C/Tube ODxIDxL 28.6x24.2x40 / 31.8x24.2x77 mm 28.6x24.2x40 / 31.8x24.2x77 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 17 - Shell With Flange Bushing
Bushing Type 17 - Shell With Flange Bushing

Bushing Design Dimensions (mm)

Bush Type 17 17
QTY 2 2
OD (A) AI=47 AII=46 AI=51.5 AII=49.4
ID (B) 28.2 31.8
Length (C) 41.0 78.0
FL (D) 6.5 7.5
FLOD (E) 55 55
C/Tube Qty 2 / 2 2 / 2
C/Tube Size 28.6x24.2x40 / 31.8x24.2x77 28.6x24.2x40 / 31.8x24.2x77
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 17

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.464kg3.23lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW53491

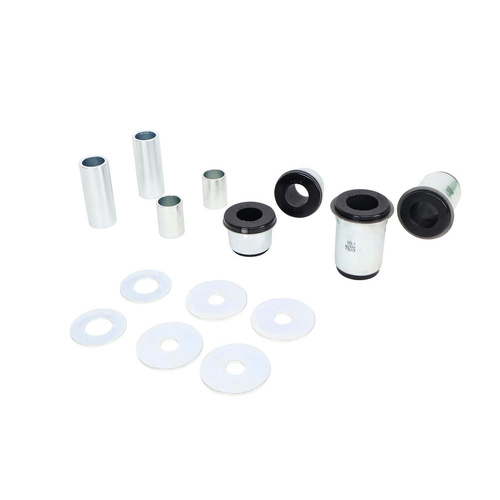

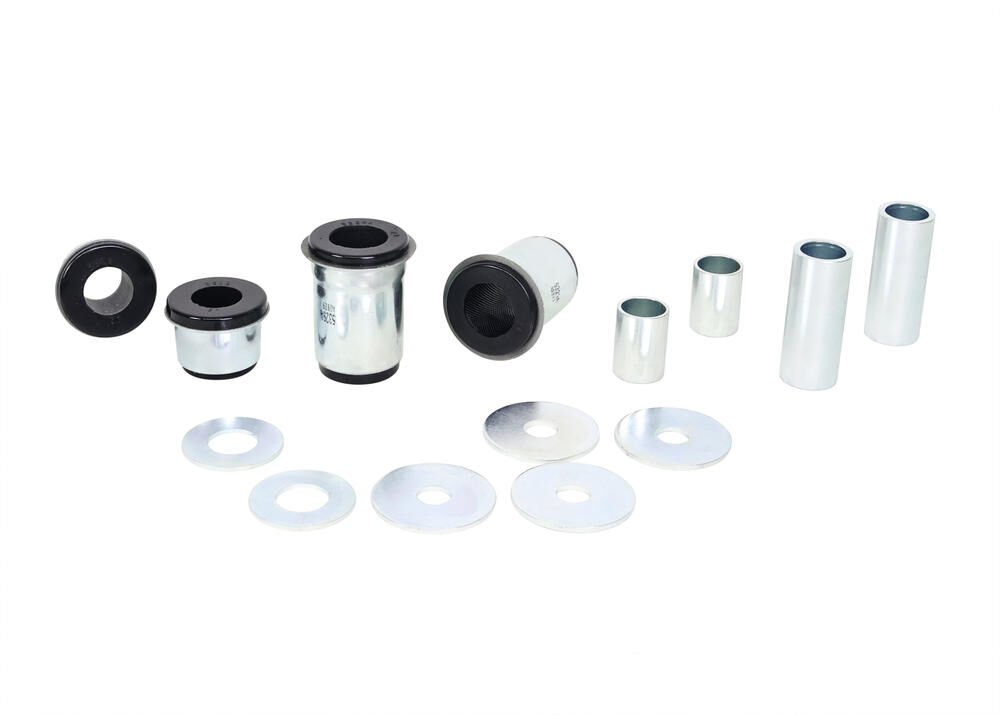

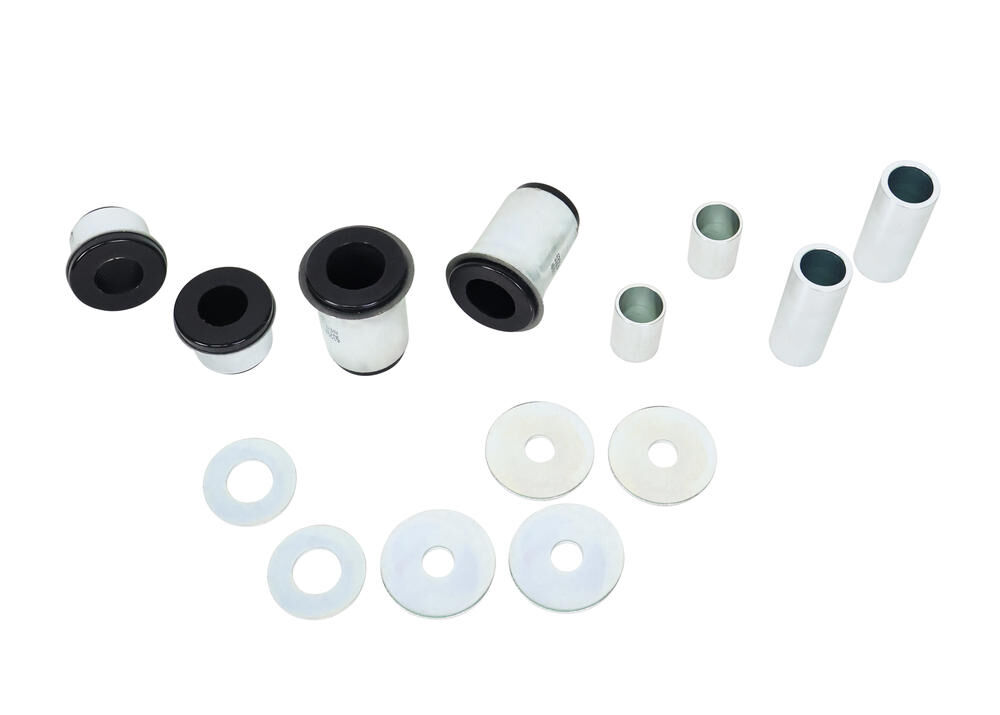

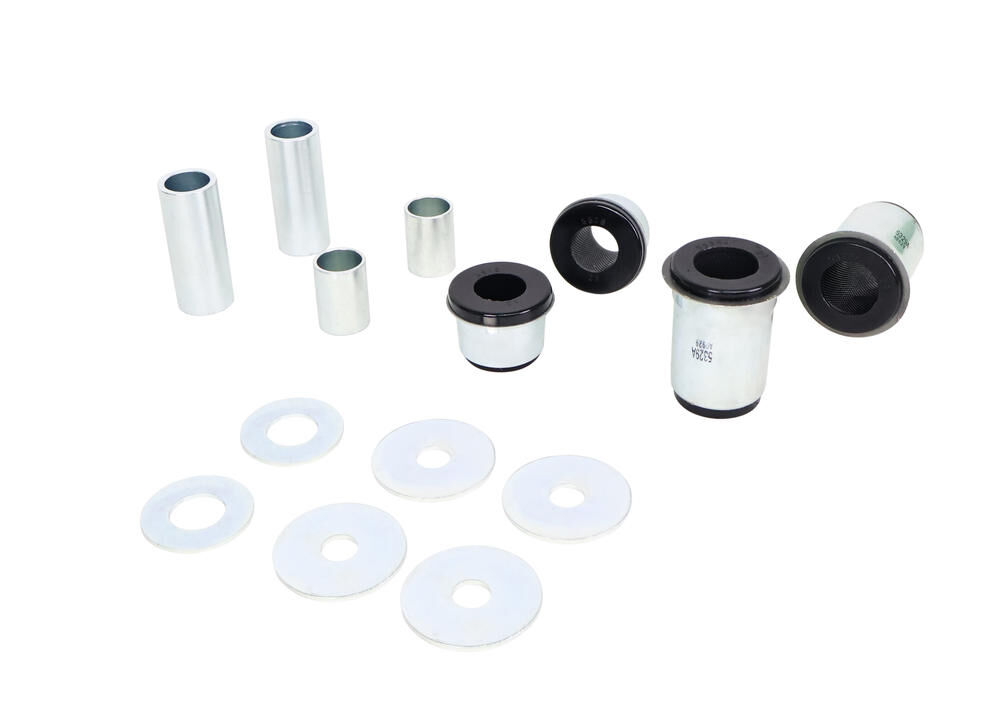

Components Per4 Shell Bushings, 4 Tubes, 6 Washers
Kits Required1
Sub brandReplacement
Product NoteEnsures long-lasting durability, matter matter the purpose; the perfect, complete upgrade. Includes: 4 Shell Bushings, 4 Tubes, 6 Washers
EAN9330074011161
  • Lifetime Warranty
Brand Whiteline
SKU W53491
Unit Of Measure Kit
