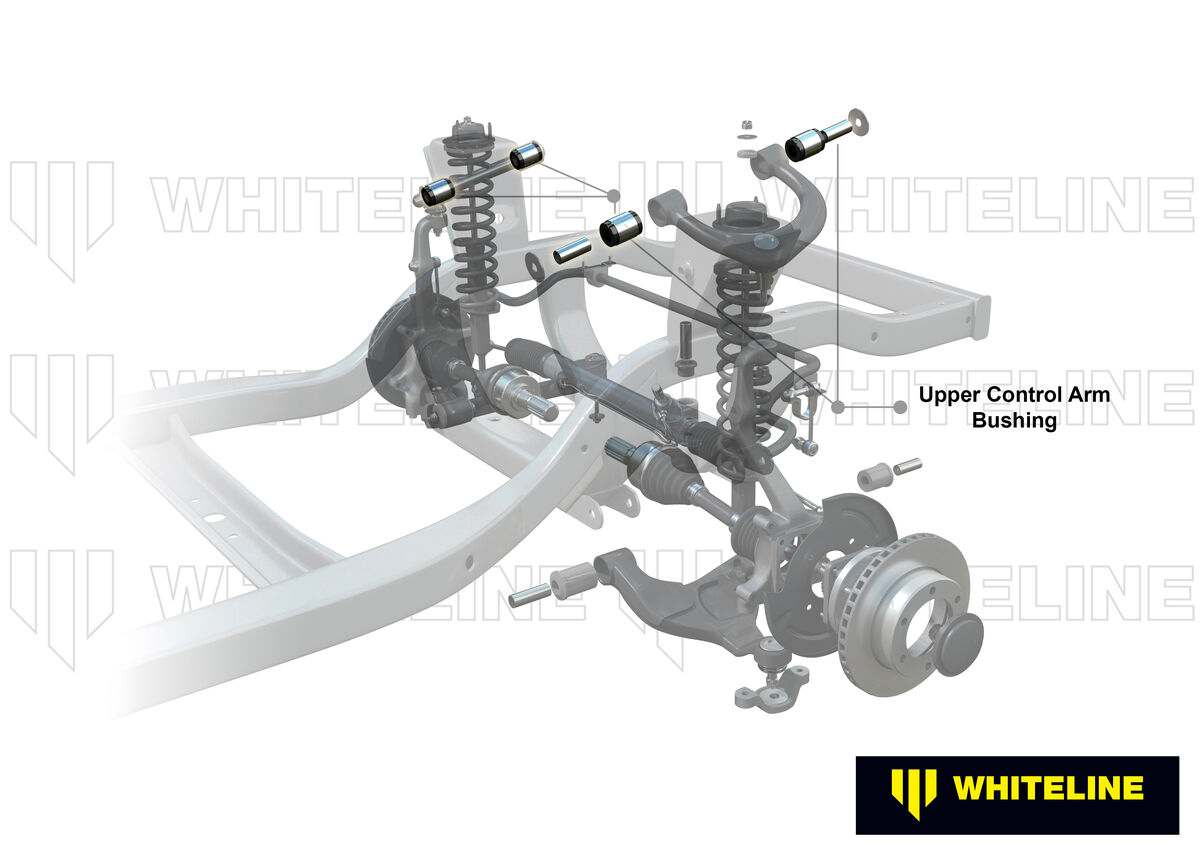

Whiteline Front Upper Control Arm - Bushing Kit to Suit Toyota HiLux, Prado, 4Runner and Foton Tunland

SKU: W53313

Benefit Note: Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.


Kit Specifications

Bush Type 16 - Shell Without Flange Bushing
Bush Quantity 4 mm
OD (A) 46.5 mm
ID (B) 21.5 mm
Length (C) 60.6 mm
Flange Thickness (D) 9 mm
Flange OD (E) 39.5 mm
C/Tube Quantity 4
C/Tube ODxIDxL 22.2x14.3x59.5 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing

Bushing Design Dimensions (mm)

Bush Type 16
QTY 4
OD (A) 46.5
ID (B) 21.5
Length (C) 60.6
FL (D) 9
FLOD (E) 39.5
C/Tube Qty 4
C/Tube Size 22.2x14.3x59.5
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.134kg2.5lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW53313

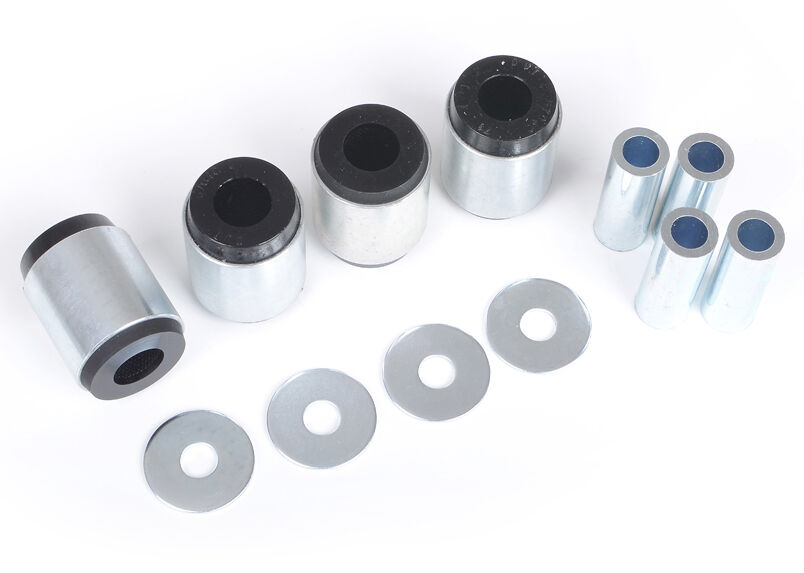

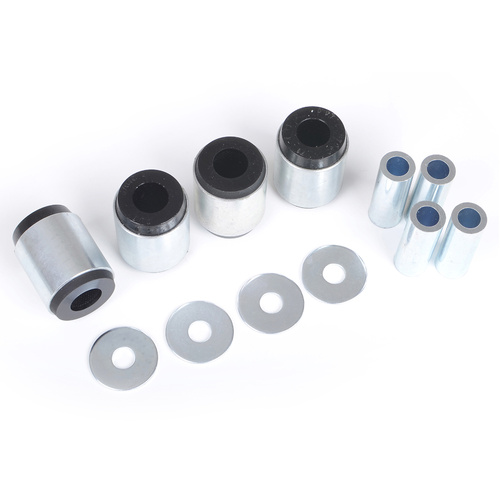

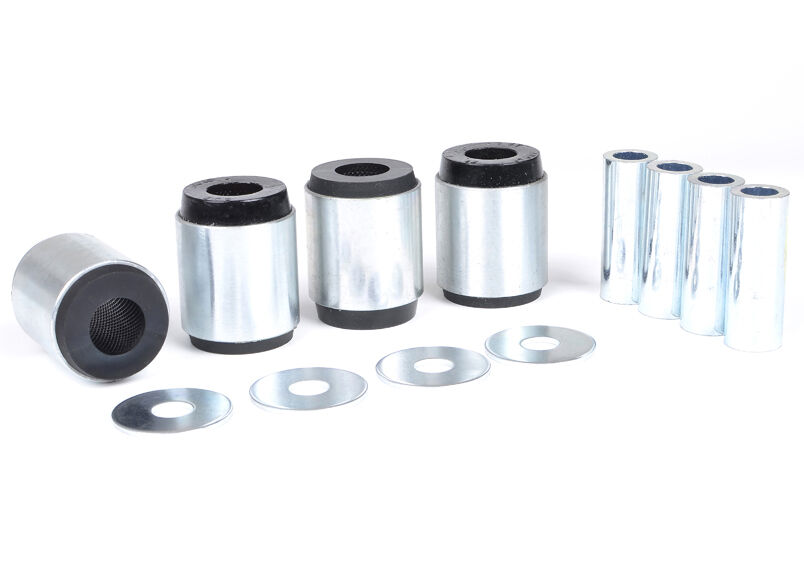

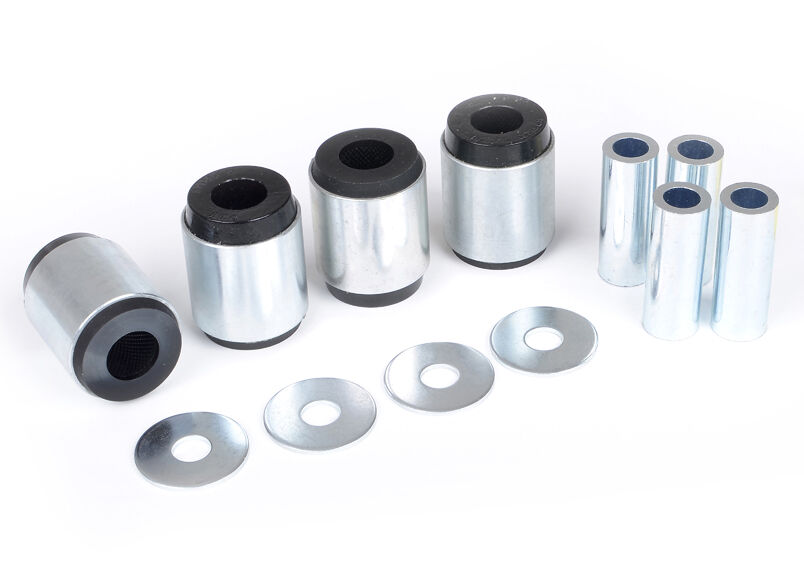

Components Per4 Shell Bushings, 4 Tubes, 4 Washers
Kits Required1
Sub brandReplacement
Product NoteGreatly increases control and confidence; the perfect, complete upgrade. Includes: 4 Shell Bushings, 4 Tubes, 4 Washers
EAN9319924375721
  • Lifetime Warranty
Brand Whiteline
SKU W53313
Unit Of Measure Kit
