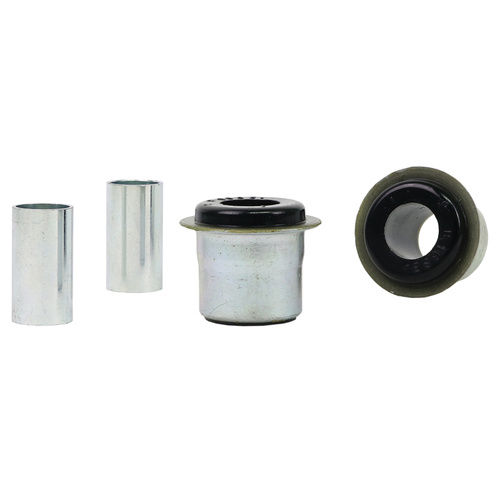

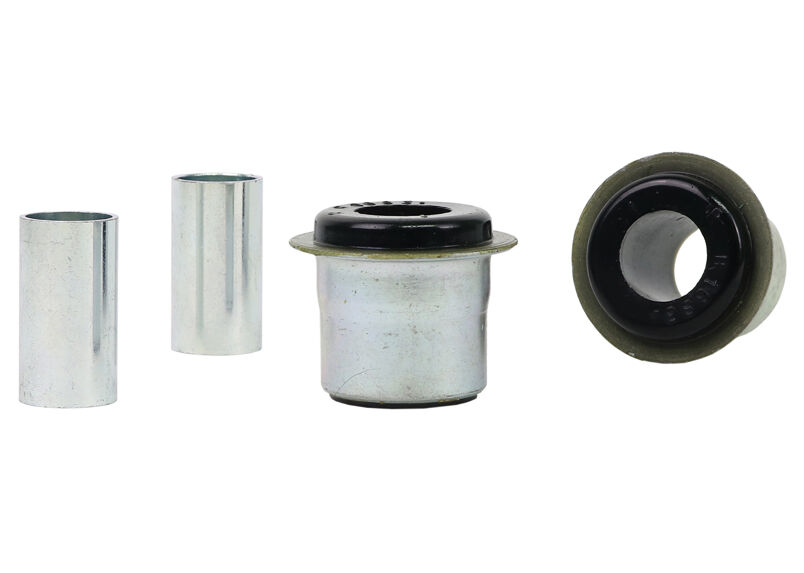

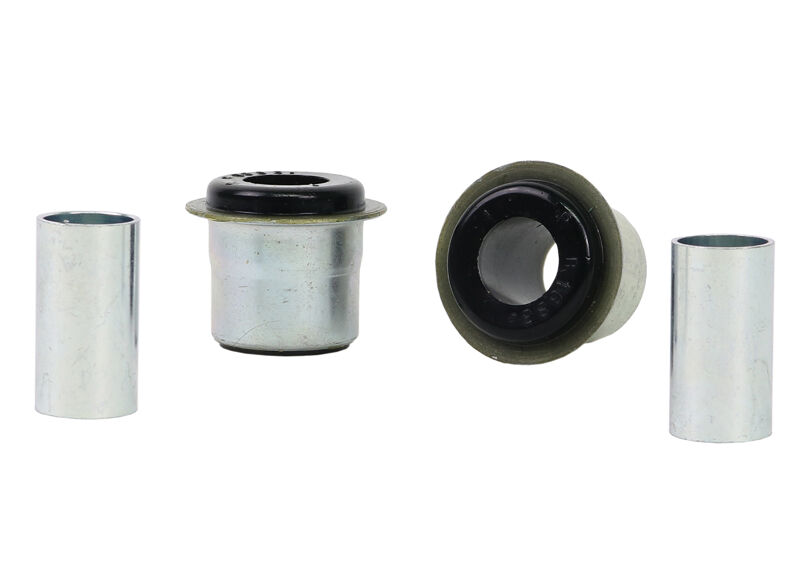

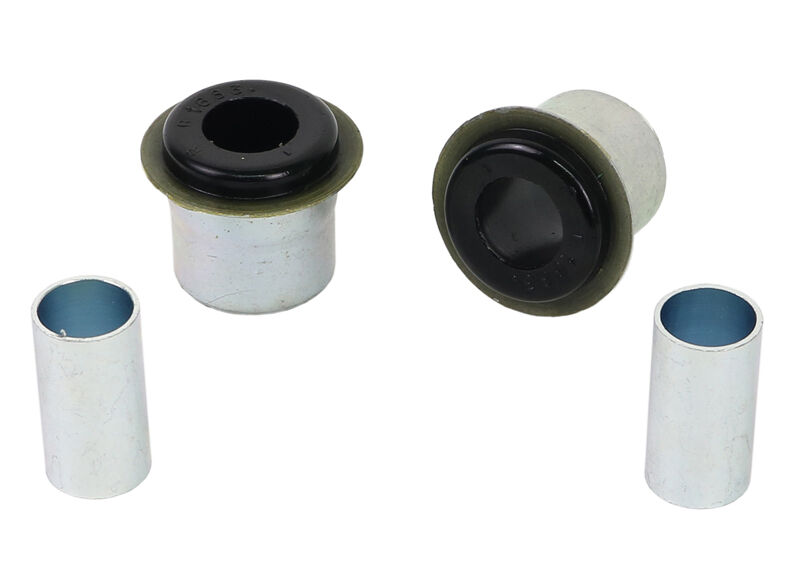

Whiteline Front Upper Control Arm - Bushing Kit to Suit Toyota Crown, HiLux, LiteAce and Tarago

SKU: W51683

Benefit Note: Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.

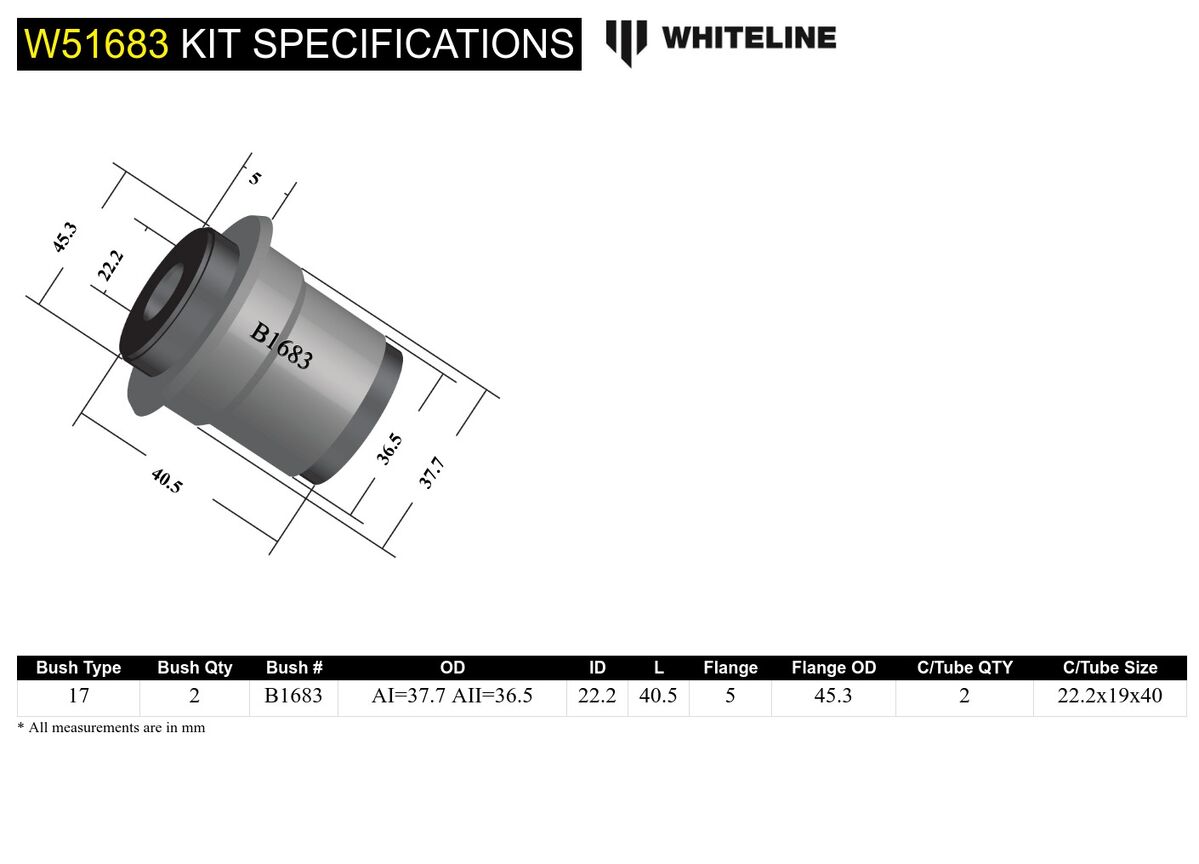

Kit Specifications

Bush Type 17 - Shell With Flange Bushing
Bush Quantity 2 mm
OD (A) AI=37.7 AII=36.5 mm
ID (B) 22.2 mm
Length (C) 40.5 mm
Flange Thickness (D) 5 mm
Flange OD (E) 45.3 mm
C/Tube Quantity 2
C/Tube ODxIDxL 22.2x19x40 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 17 - Shell With Flange Bushing

Bushing Design Dimensions (mm)

Bush Type 17
QTY 2
OD (A) AI=37.7 AII=36.5
ID (B) 22.2
Length (C) 40.5
FL (D) 5
FLOD (E) 45.3
C/Tube Qty 2
C/Tube Size 22.2x19x40
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 17

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.254kg0.56lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW51683
Components Per2 Shell Bushings, 2 Tubes
Kits Required2
Sub brandReplacement
Product NoteMaximises tyre contact with the road, improving cornering and grip; the perfect, complete upgrade. Includes: 2 Shell Bushings, 2 Tubes
EAN9319924352357
  • Lifetime Warranty
Brand Whiteline
SKU W51683
Unit Of Measure Kit
