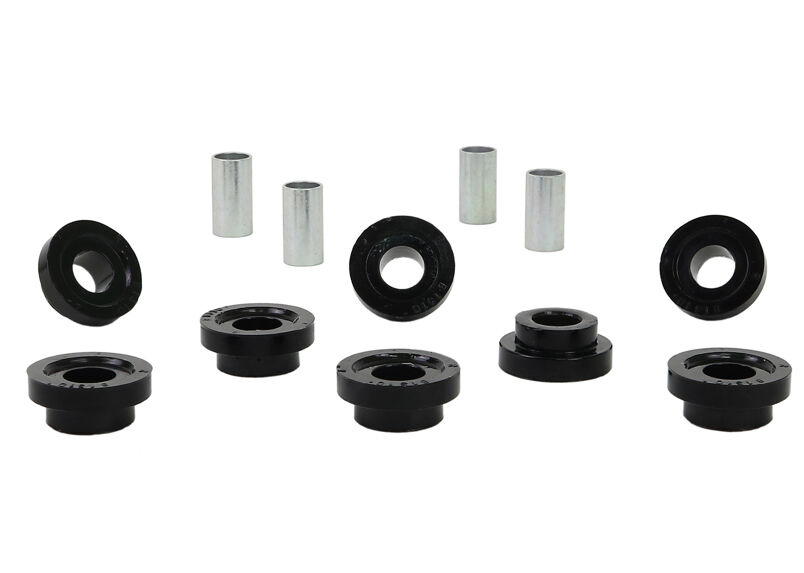

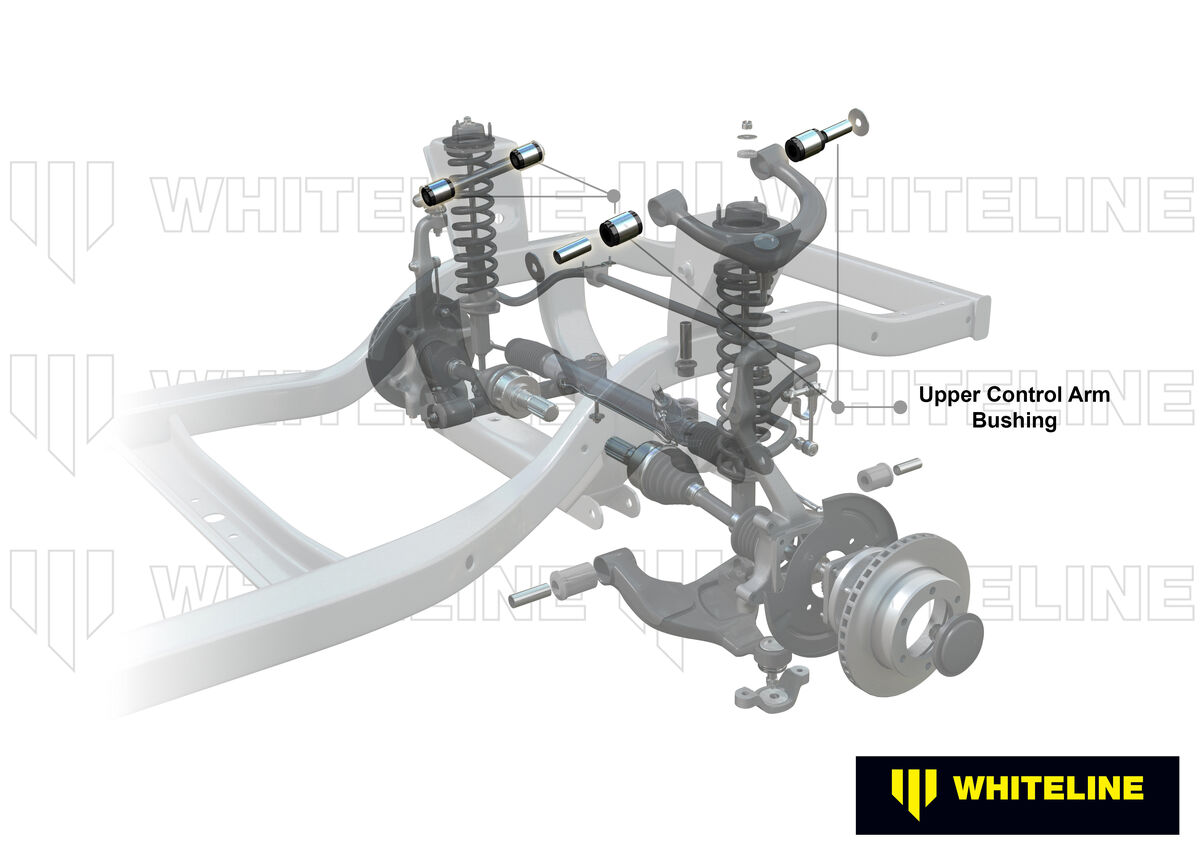

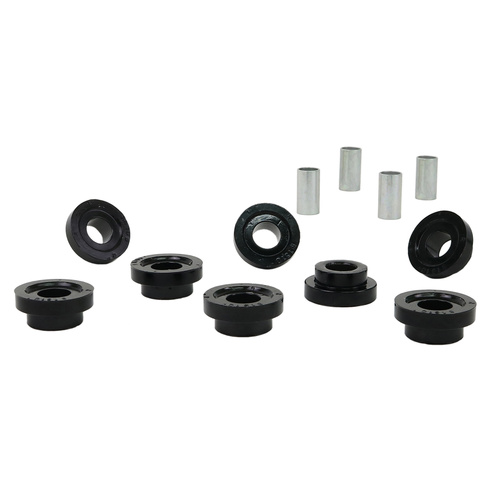

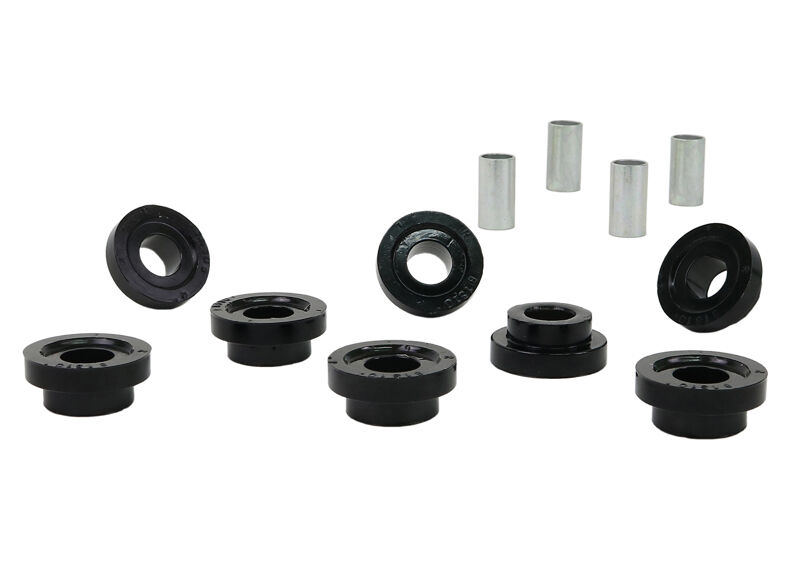

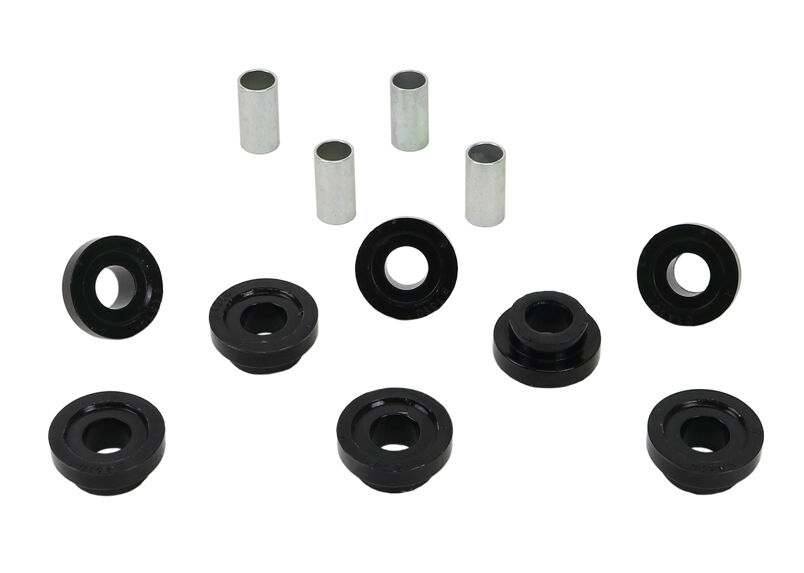

Whiteline Front Upper Control Arm - Bushing Kit to Suit Jaguar E Type, XJ and XJS

SKU: W51310

Benefit Note: Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.

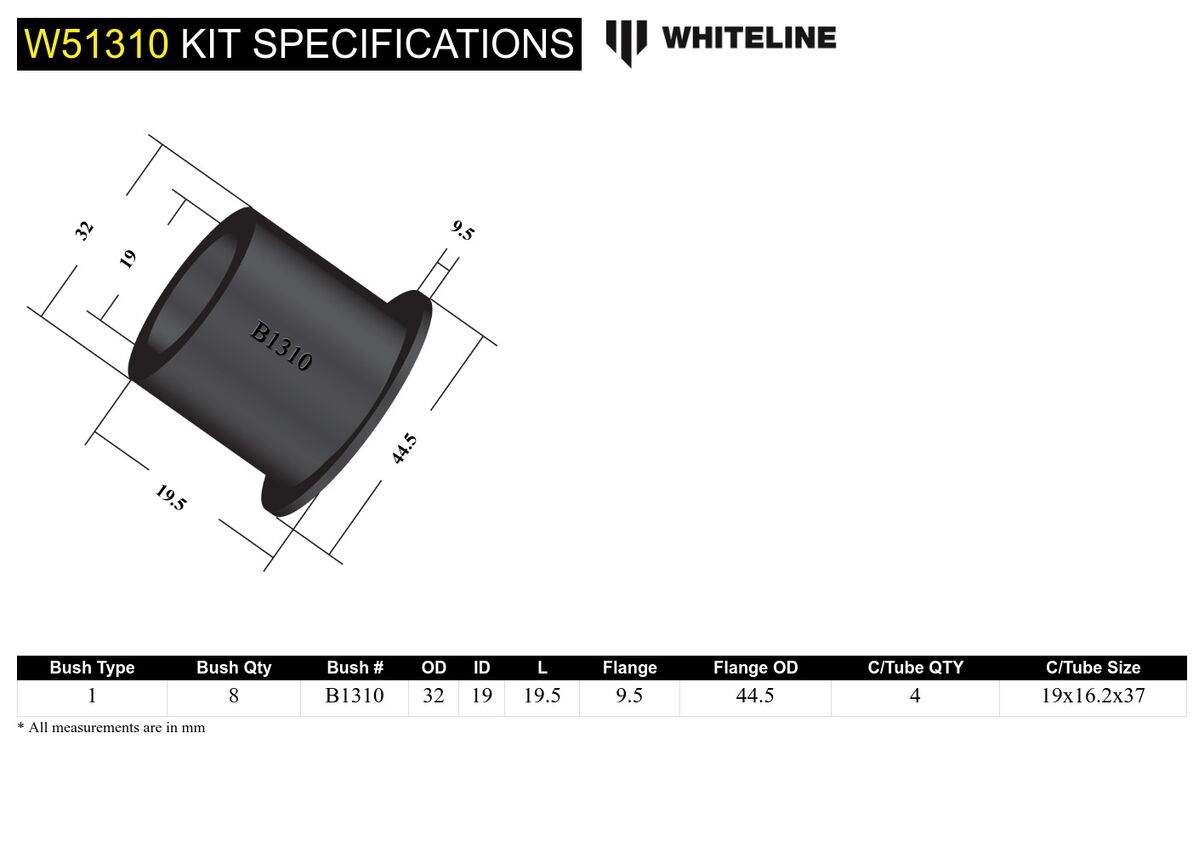

Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 8 mm
OD (A) 32 mm
ID (B) 19 mm
Length (C) 19.5 mm
Flange Thickness (D) 9.5 mm
Flange OD (E) 44.5 mm
C/Tube Quantity 4
C/Tube ODxIDxL 19x16.2x37 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 8
OD (A) 32
ID (B) 19
Length (C) 19.5
FL (D) 9.5
FLOD (E) 44.5
C/Tube Qty 4
C/Tube Size 19x16.2x37
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.27kg0.6lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW51310
Components Per8 Bushings, 4 Tubes
Kits Required1
Sub brandReplacement
Product NoteEnhances steering response, delivering sharper handling and more predictable vehicle dynamics; the perfect, complete upgrade. Includes: 8 Bushings, 4 Tubes
EAN9319924351930
  • Lifetime Warranty
Brand Whiteline
SKU W51310
Unit Of Measure Kit
