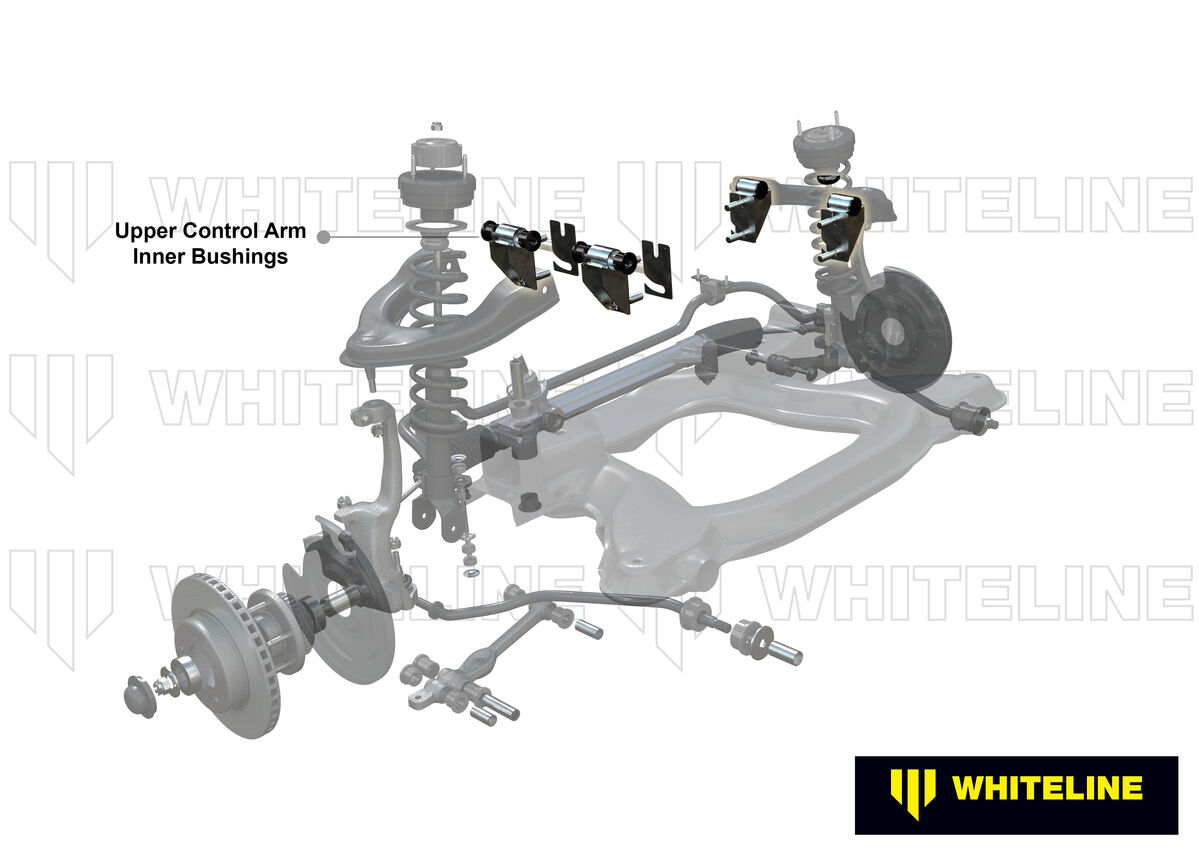

Whiteline Front Upper Control Arm - Bushing Kit to Suit Nissan 300ZX Z32 and Skyline R32

SKU: W51219A

Benefit Note: Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.


Kit Specifications

Bush Type 1 - Shackle Bushing 1 - Shackle Bushing
Bush Quantity 4 mm 4 mm
OD (A) 30 mm 33.8 mm
ID (B) 22.3 mm 26.2 mm
Length (C) 46 mm 50.5 mm
Flange Thickness (D) 6 mm 19.6 mm
Flange OD (E) 44 mm 41 mm
C/Tube Quantity 2 / 2 2 / 2
C/Tube ODxIDxL 27x12.2x110 / 22.2x12.2x112 mm 27x12.2x110 / 22.2x12.2x112 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1 1
QTY 4 4
OD (A) 30 33.8
ID (B) 22.3 26.2
Length (C) 46.0 50.5
FL (D) 6 19.6
FLOD (E) 44 41
C/Tube Qty 2 / 2 2 / 2
C/Tube Size 27x12.2x110 / 22.2x12.2x112 27x12.2x110 / 22.2x12.2x112
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.969kg4.34lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW51219A

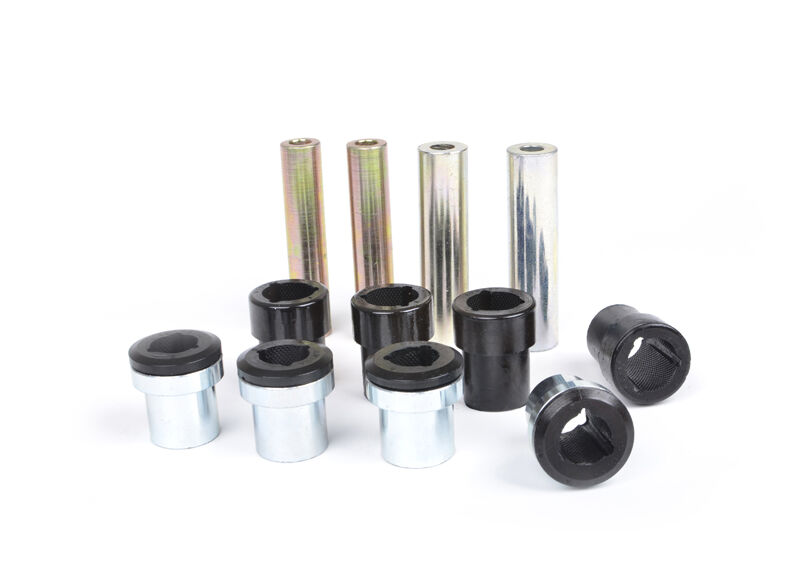

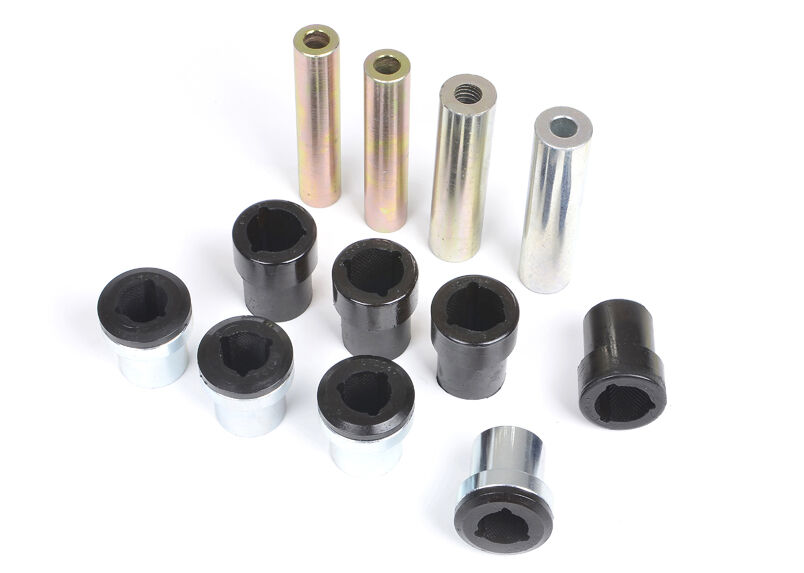

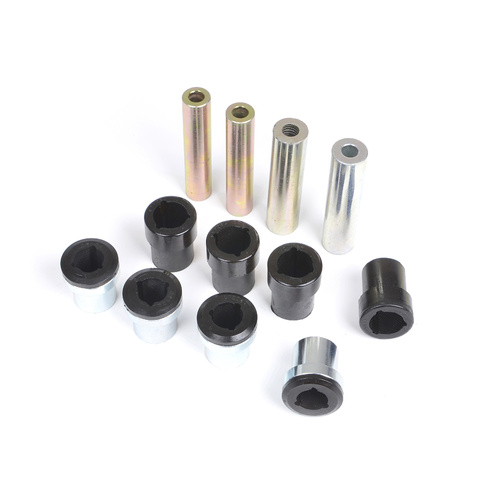

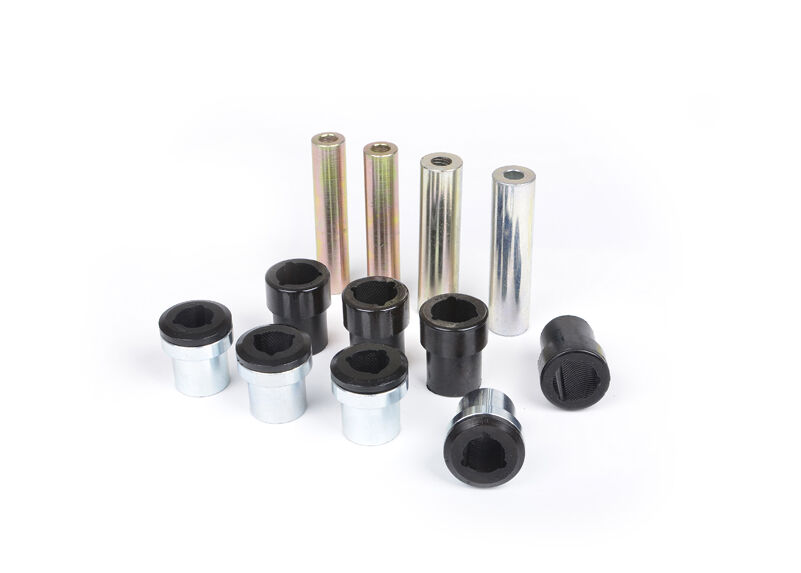

Components Per8 Bushings, 4 Shells, 4 Tubes
Kits Required1
Sub brandReplacement
Product NoteMaximises tyre contact with the road, improving cornering and grip; the perfect, complete upgrade. Includes: 8 Bushings, 4 Shells, 4 Tubes
EAN9319924402922
  • Lifetime Warranty
Brand Whiteline
SKU W51219A
Unit Of Measure Kit
