Benefit Note: Whiteline camber kits provide the ability to fine tune camber settings for optimum tyre contact resulting in improved vehicle handling and increased tyre life. Whilst the caster kits are designed to improve cornering grip and vehicle straight line stability, greater steering feel, more steering weight, greater precision all through increased static caster and dynamic negative camber gain. In addition, this kit is supplied with dual offset Whiteline synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability which help provide enhanced steering response, improved braking performance and less under load alignment change.

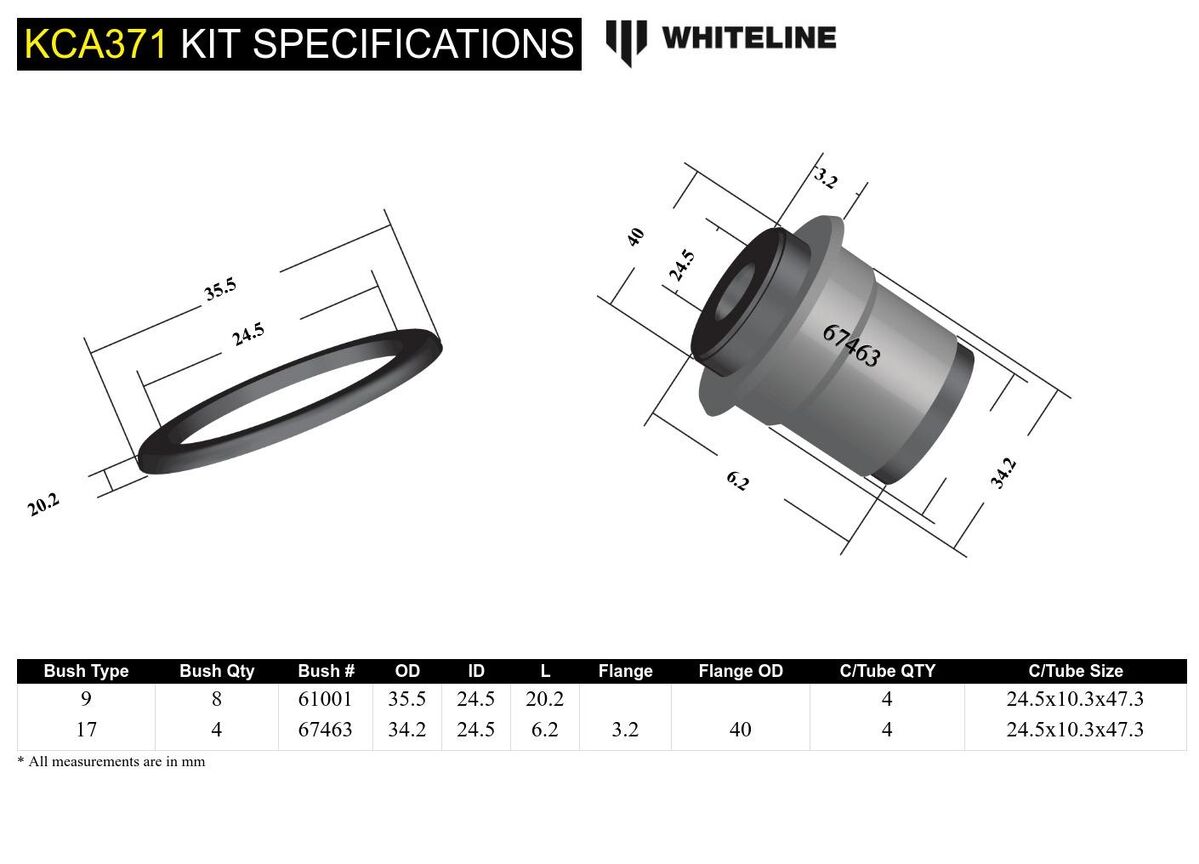

Kit Specifications

Bush Type	7 - Pin Bush With & Without Spigot	17 - Shell With Flange Bushing
Bush Quantity	8 mm	4 mm
OD (A)	35.5 mm	34.2 mm
ID (B)	24.5 mm	24.5 mm
Length (C)	20.2 mm	6.2 mm
Flange Thickness (D)		3.2 mm
Flange OD (E)		40 mm
C/Tube Quantity	4	4
C/Tube ODxIDxL	24.5x10.3x47.3 mm	24.5x10.3x47.3 mm
Similar Bushing Size	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Alignment	Alignment Adjustment Type	Alignment On Car Adjustable
Camber / Caster	Eccentric	Yes
Camber / Caster	Eccentric	Yes

Bushing Design Dimensions (mm)

Bush Type	7	17
QTY	8	4
OD (A)	35.5	34.2
ID (B)	24.5	24.5
Length (C)	20.2	6.2
FL (D)		3.2
FLOD (E)		40
C/Tube Qty	4	4
C/Tube Size	24.5x10.3x47.3	24.5x10.3x47.3
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

Units	cm/kg	in/lbs
Weight	1.011kg	2.23lbs
Length	7cm	2.76"
Width	20cm	7.87"
Height	14cm	5.51"

Misc. Product Information

More Information

SKU	KCA371

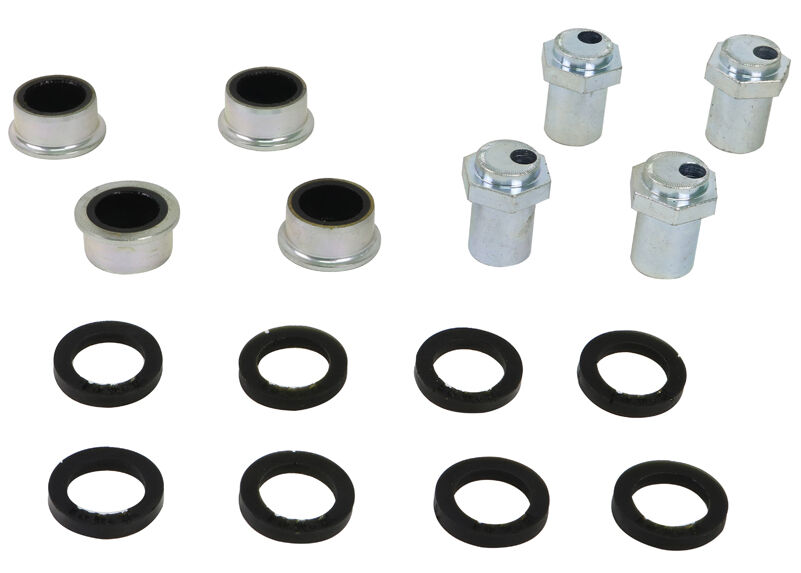

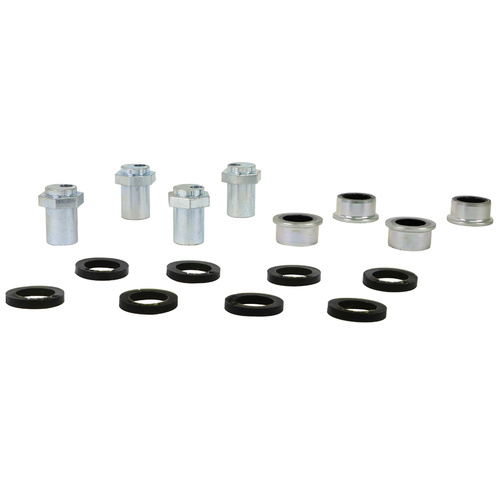

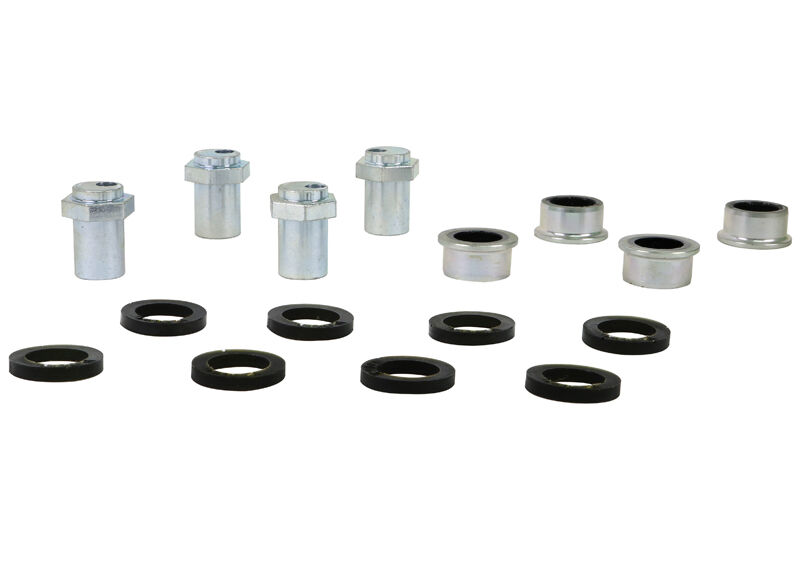

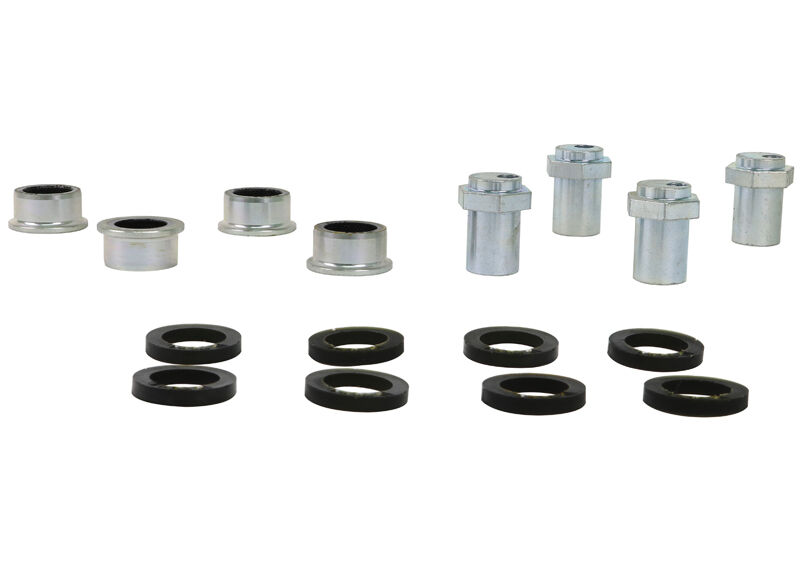

Components Per	4 Shell Bushings, 8 Bushings, 4 Tubes
Kits Required	1
Sub brand	Performance
Product Note	Greatly increases control and confidence; the perfect, complete upgrade. Includes: 4 Shell Bushings, 8 Bushings, 4 Tubes
EAN	9319924342730
