Whiteline Front Upper Control Arm - Bushing Double Offset Camber Kit to Suit Honda Civic, CR-X and Integra

SKU: KCA378

Benefit Note: Whiteline camber kits provide the ability to fine tune camber settings for optimum tyre contact resulting in improved vehicle handling and increased tyre life. This kit is supplied with dual offset Whiteline synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability which help maintain preferred alignment settings as well as providing enhanced steering response.

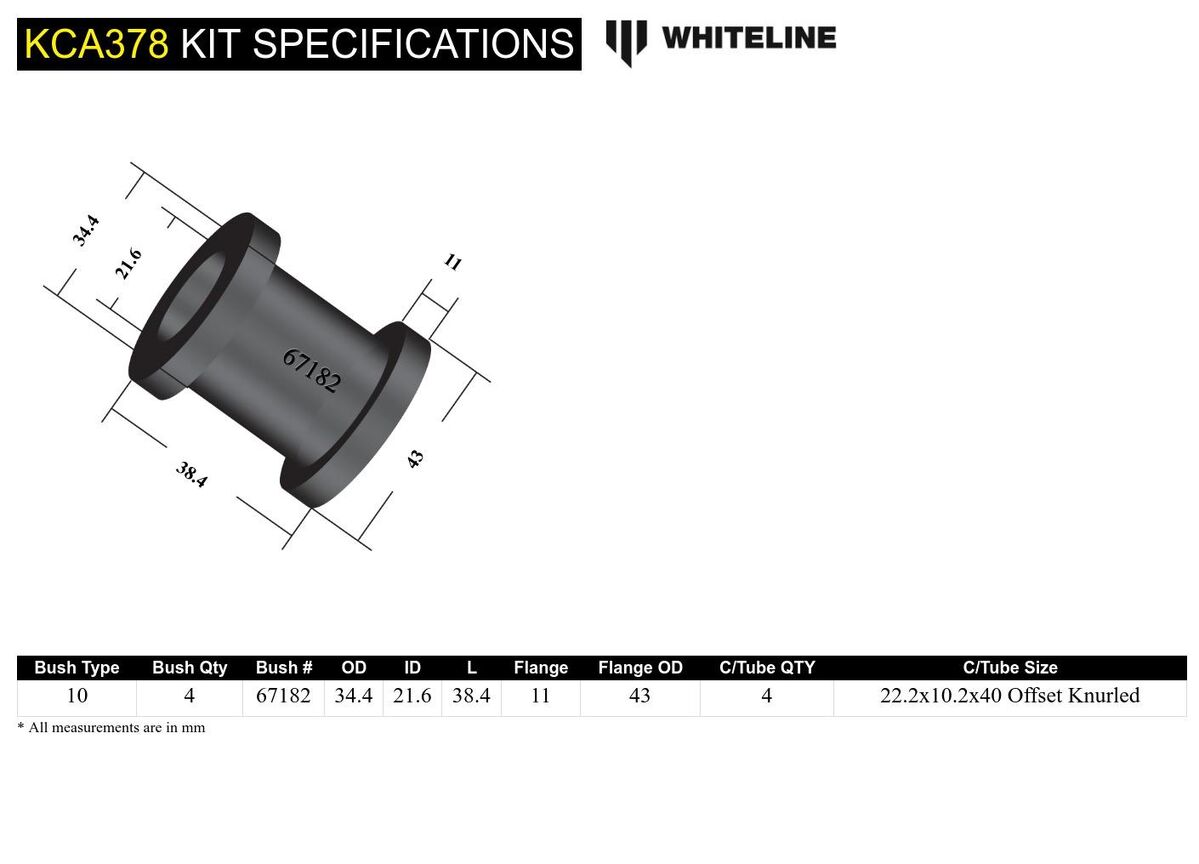

Kit Specifications

Bush Type 10 - Cotton Reel With & Without Tapper Bushing
Bush Quantity 4 mm
OD (A) 34.4 mm
ID (B) 21.6 mm
Length (C) 38.4 mm
Flange Thickness (D) 11 mm
Flange OD (E) 43 mm
C/Tube Quantity 4
C/Tube ODxIDxL 22.2x10.2x40 Offset Knurled mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10 - Cotton Reel With & Without Tapper Bushing
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Camber Eccentric Yes

Bushing Design Dimensions (mm)

Bush Type 10
QTY 4
OD (A) 34.4
ID (B) 21.6
Length (C) 38.4
FL (D) 11
FLOD (E) 43
C/Tube Qty 4
C/Tube Size 22.2x10.2x40 Offset Knurled
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.5kg1.1lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUKCA378

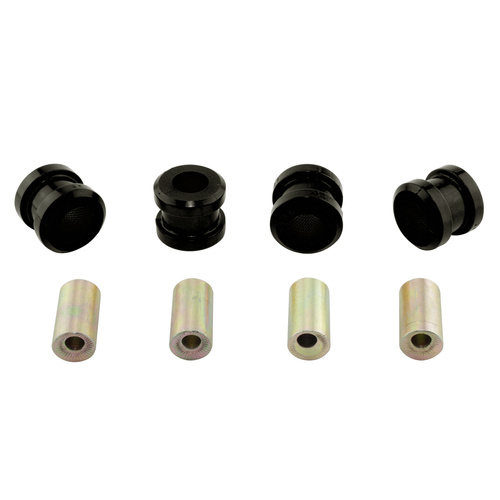

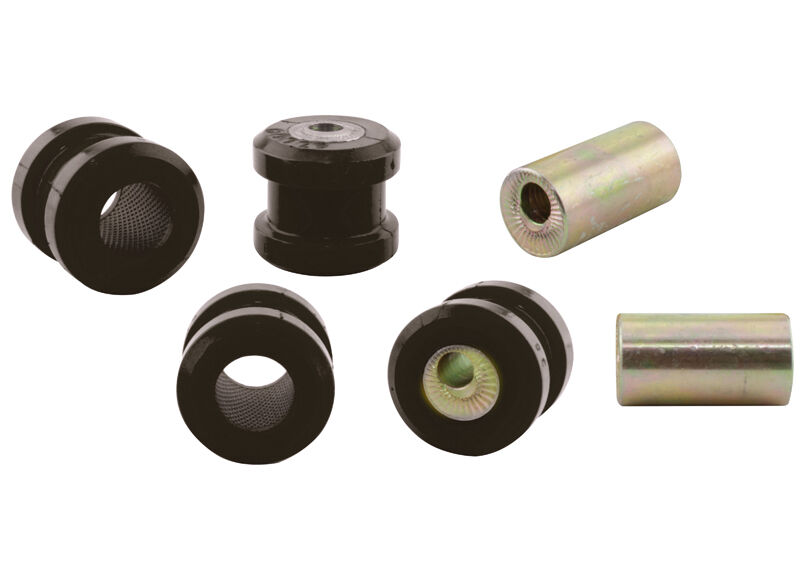

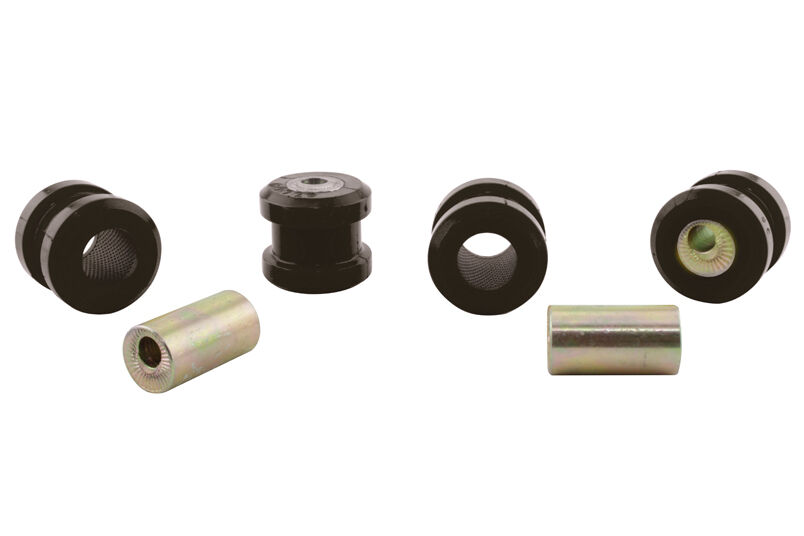

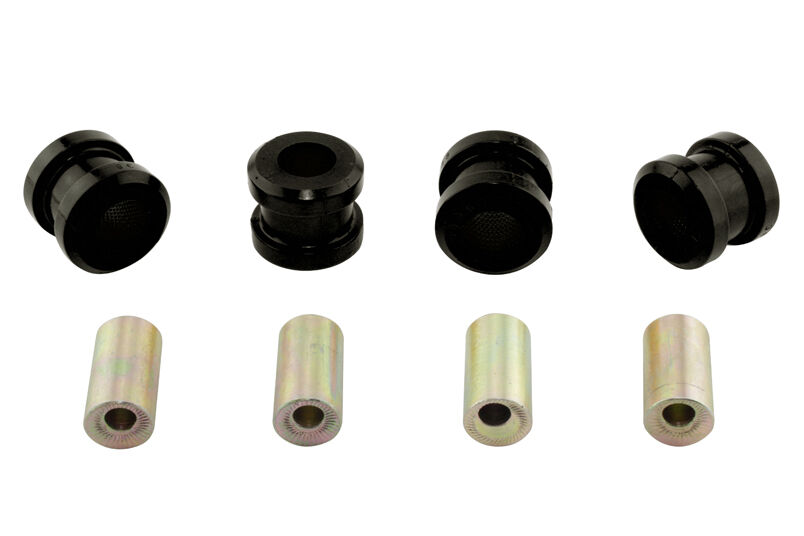

Components Per4 Bushings, 4 Tubes
Kits Required1
Sub brandPerformance
Product NoteEnhances steering response, delivering sharper handling and more predictable vehicle dynamics; the perfect, complete upgrade. Includes: 4 Bushings, 4 Tubes
EAN9319924342822
  • 3 years warranty or up to 60,000km
Brand Whiteline
SKU KCA378
Unit Of Measure Kit
