Benefit Note: Whiteline camber kits provide the ability to fine tune camber settings for optimum tyre contact resulting in improved vehicle handling and increased tyre life. This kit is supplied with dual offset Whiteline synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability which help maintain preferred alignment settings as well as providing enhanced steering response.

Kit Specifications

Bush Type	1 - Shackle Bushing	1 - Shackle Bushing
Bush Quantity	4 mm	4 mm
OD (A)	30 mm	33.8 mm
ID (B)	22.3 mm	26.2 mm
Length (C)	46 mm	50.5 mm
Flange Thickness (D)	6 mm	19.6 mm
Flange OD (E)	44 mm	41 mm
C/Tube Quantity	2 / 2	2 / 2
C/Tube ODxIDxL	22.3x12.6x112 / 27x10x110.2 mm	22.3x12.6x112 / 27x10x110.2 mm
Similar Bushing Size	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Alignment	Alignment Adjustment Type	Alignment On Car Adjustable
Camber	Eccentric	Yes
Camber	Eccentric	Yes

Bushing Design Dimensions (mm)

Bush Type	1	1
QTY	4	4
OD (A)	30	33.8
ID (B)	22.3	26.2
Length (C)	46.0	50.5
FL (D)	6	19.6
FLOD (E)	44	41
C/Tube Qty	2 / 2	2 / 2
C/Tube Size	22.3x12.6x112 / 27x10x110.2	22.3x12.6x112 / 27x10x110.2
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

Units	cm/kg	in/lbs
Weight	2.154kg	4.75lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information

SKU	KCA336

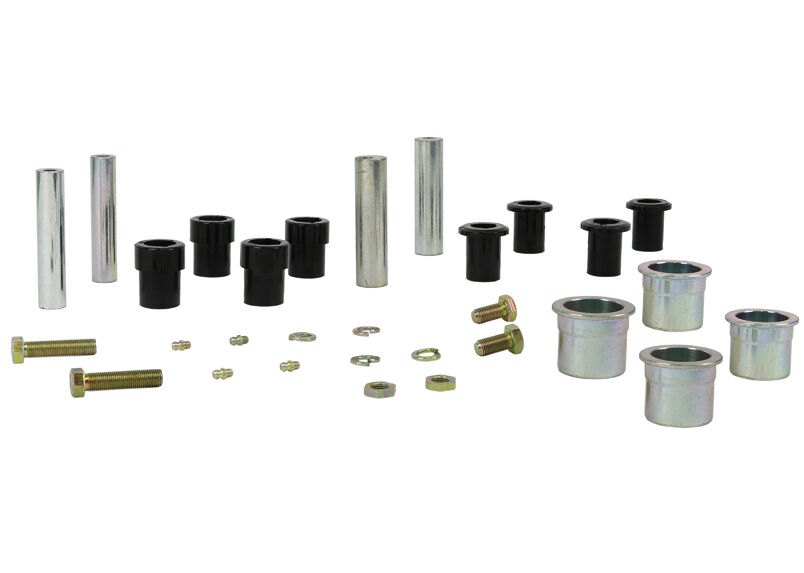

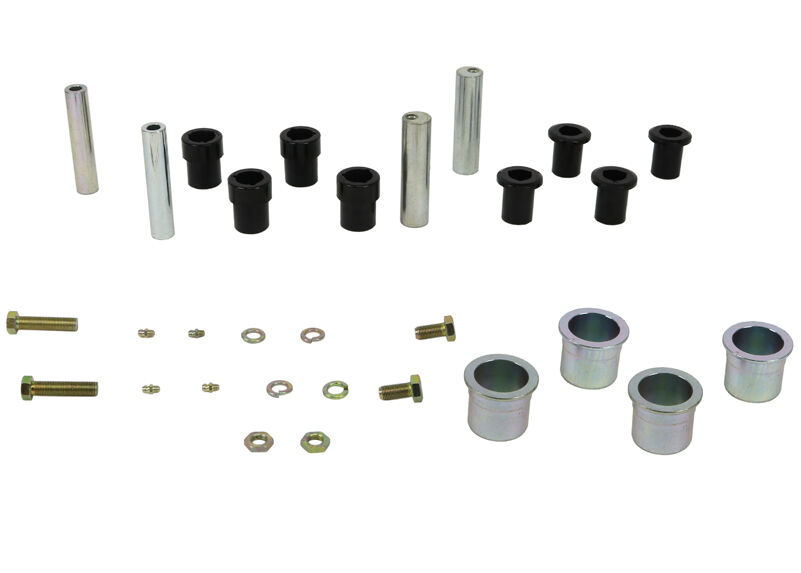

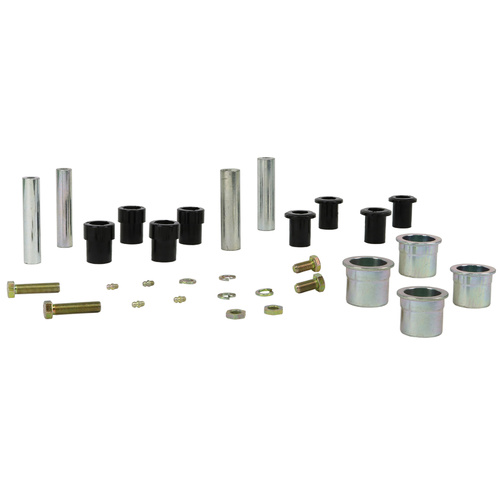

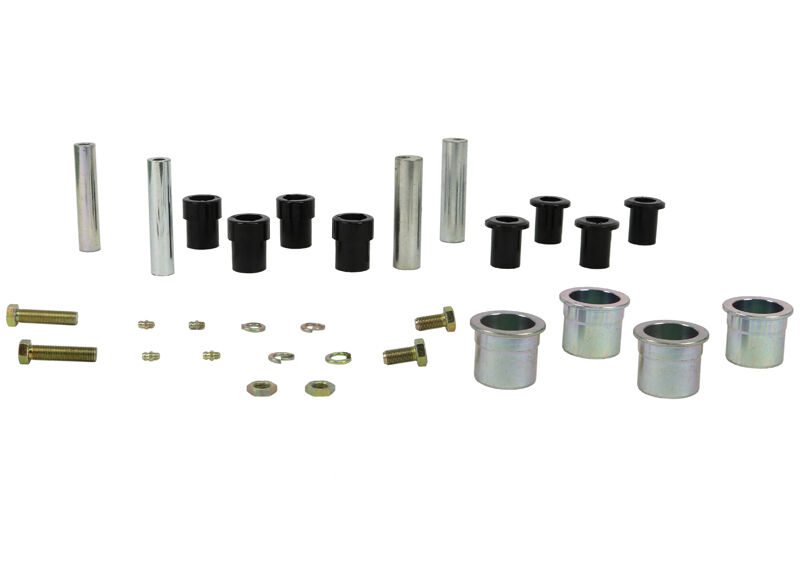

Components Per	8 Bushings, 4 Shells, 4 Tubes
Kits Required	1
Sub brand	Performance
Product Note	Greatly increases control and confidence; the perfect, complete upgrade. Includes: 8 Bushings, 4 Shells, 4 Tubes
EAN	9319924325566
