Whiteline Front Upper Control Arm and Lower - Bushing Kit to Suit Honda Integra DA, DB

SKU: W53631

Benefit Note: Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.


Kit Specifications

Bush Type 10 - Cotton Reel With & Without Tapper Bushing 1 - Shackle Bushing
Bush Quantity 4 mm 4 mm
OD (A) 34.5 mm 32 mm
ID (B) 19 mm 16.1 mm
Length (C) 37 mm 26.5 mm
Flange Thickness (D) 9.7 mm 5 mm
Flange OD (E) 40.5 mm 37.7 mm
C/Tube Quantity 2 / 2 2 / 2
C/Tube ODxIDxL 16x10.2x52 / 19x10.2x38 mm 16x10.2x52 / 19x10.2x38 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10 - Cotton Reel With & Without Tapper Bushing
Bushing Type 1 - Shackle Bushing

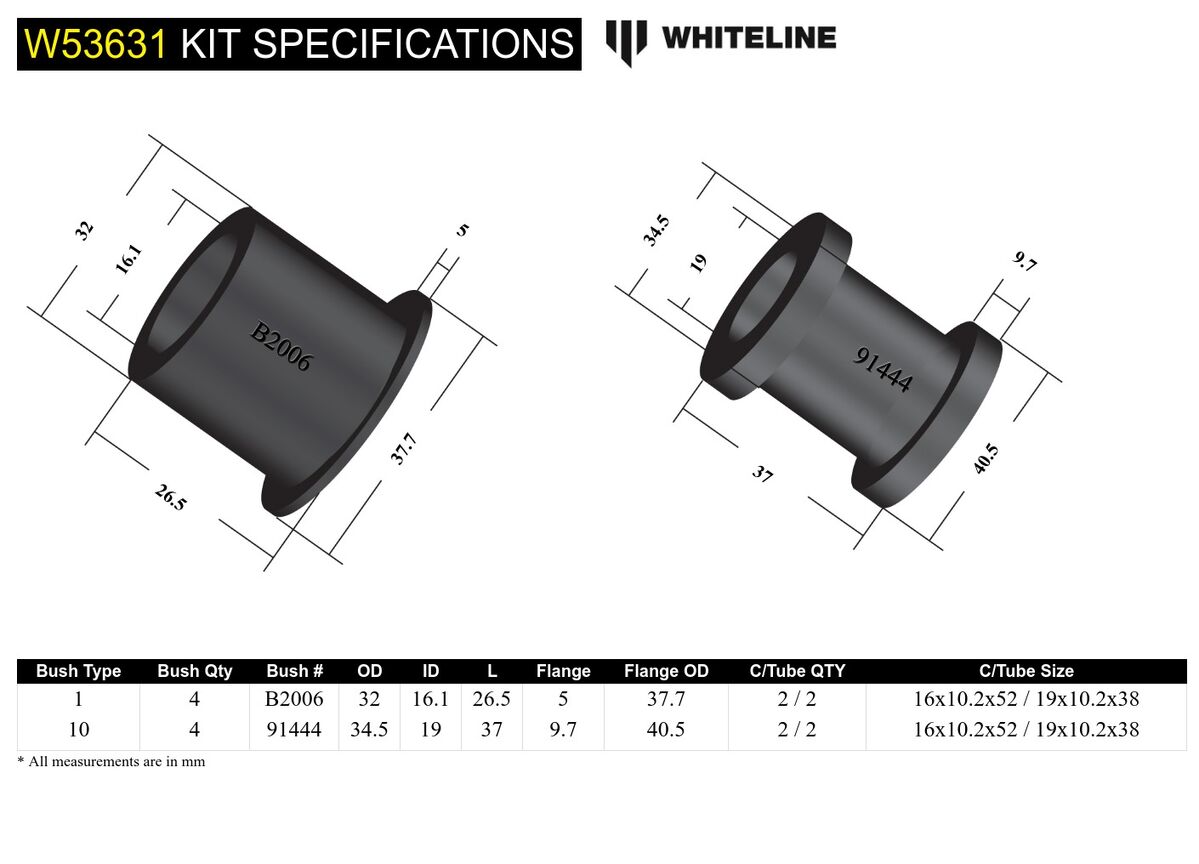

Bushing Design Dimensions (mm)

Bush Type 10 1
QTY 4 4
OD (A) 34.5 32
ID (B) 19 16.1
Length (C) 37.0 26.5
FL (D) 9.7 5
FLOD (E) 40.5 37.7
C/Tube Qty 2 / 2 2 / 2
C/Tube Size 16x10.2x52 / 19x10.2x38 16x10.2x52 / 19x10.2x38
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1
Bushing Type 10

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.535kg1.18lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW53631

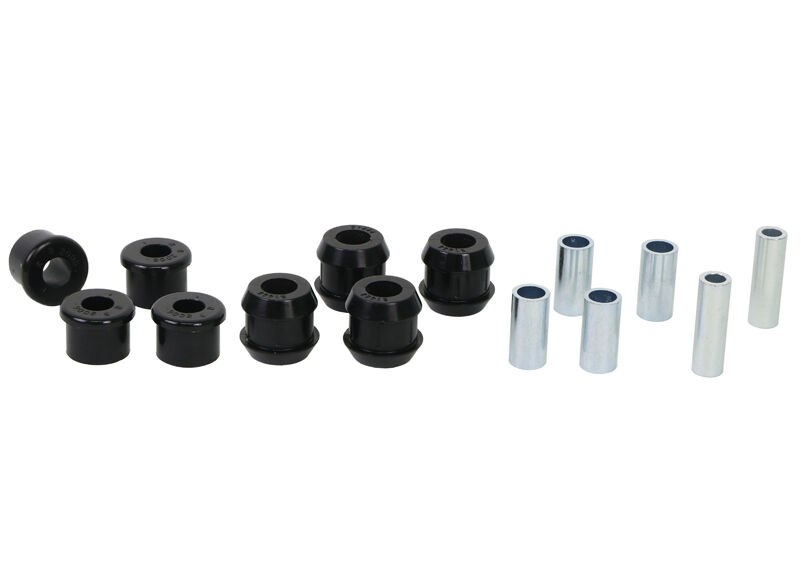

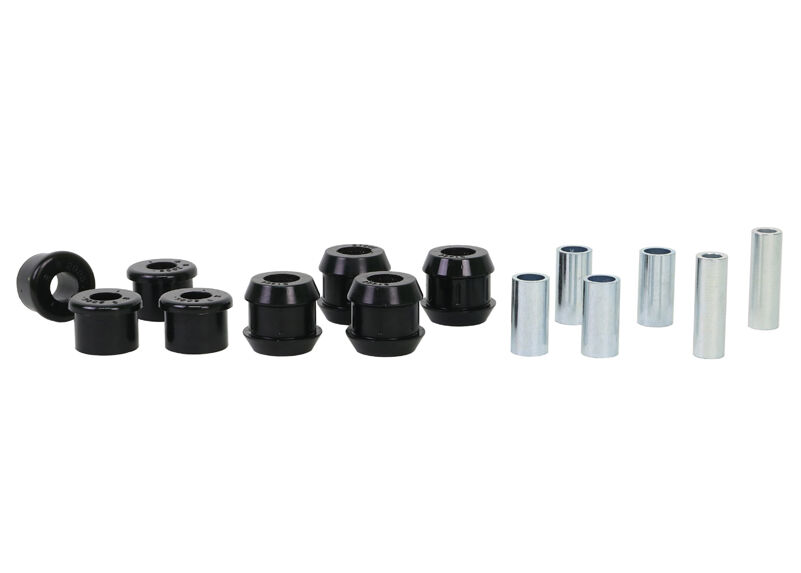

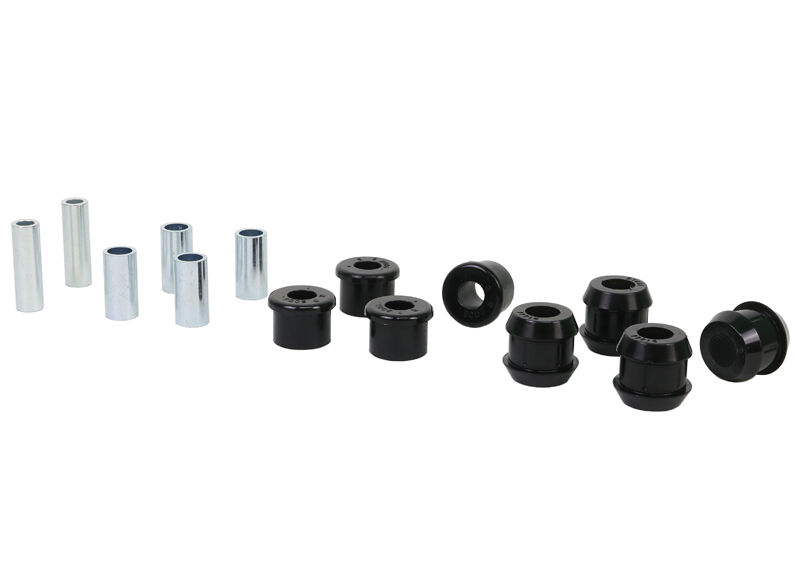

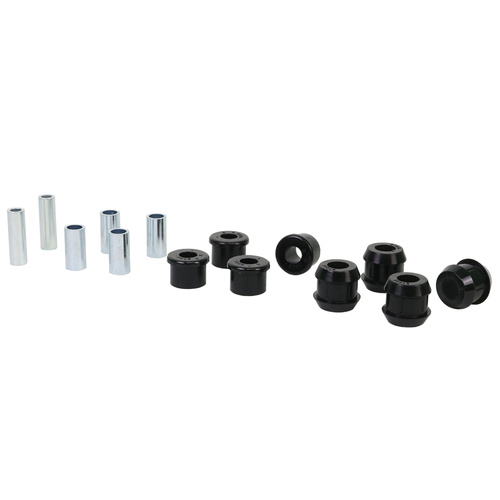

Components Per8 Bushings, 6 Tubes
Kits Required1
Sub brandReplacement
Product NoteDelivers a balanced mix of comfort, precision, and durability; the perfect, complete upgrade. Includes: 8 Bushings, 6 Tubes
EAN9319924456079
  • Lifetime Warranty
Brand Whiteline
SKU W53631
Unit Of Measure Kit
