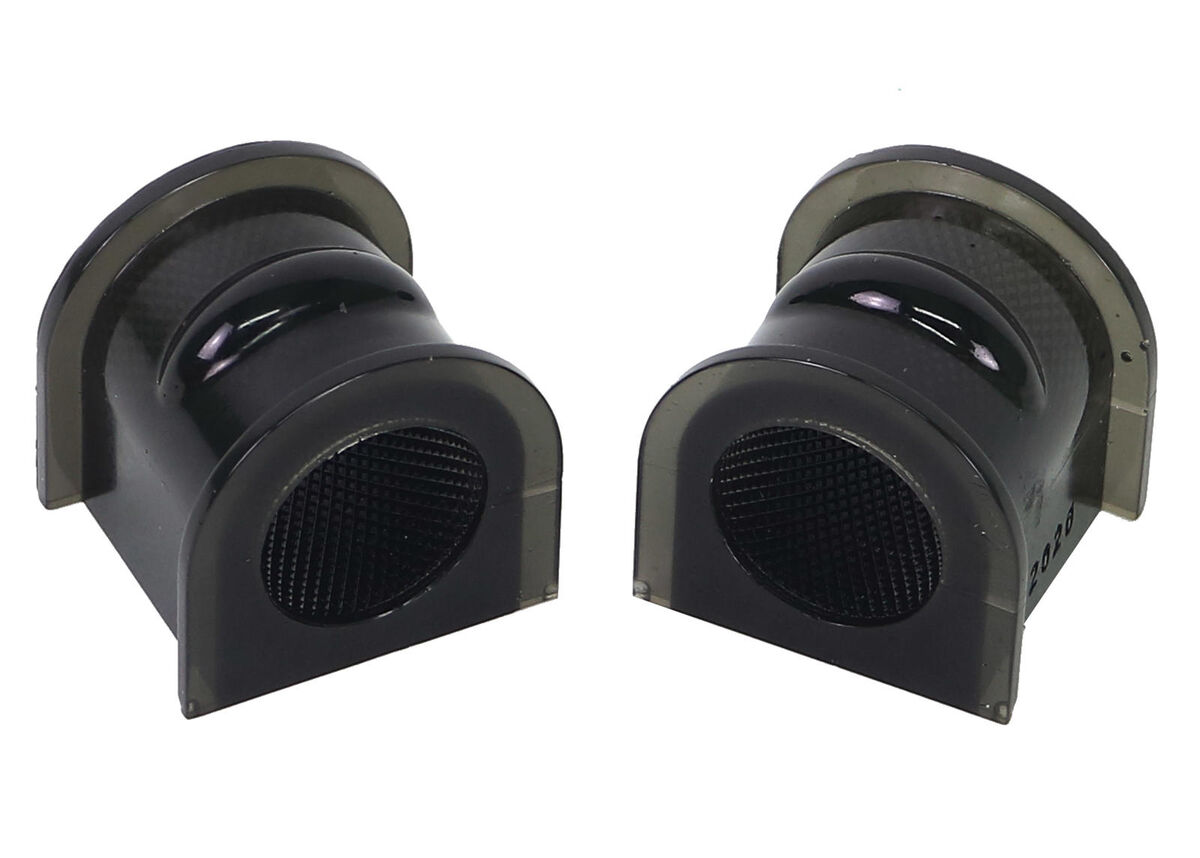

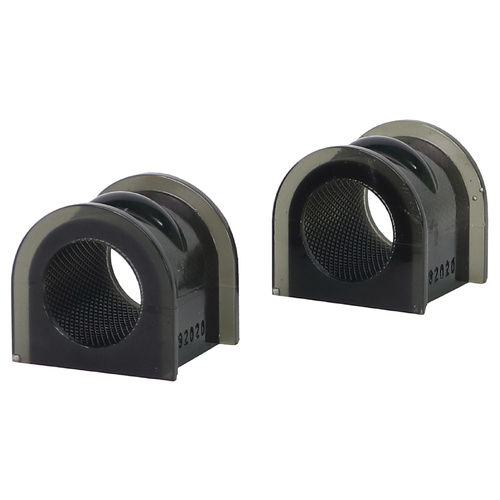

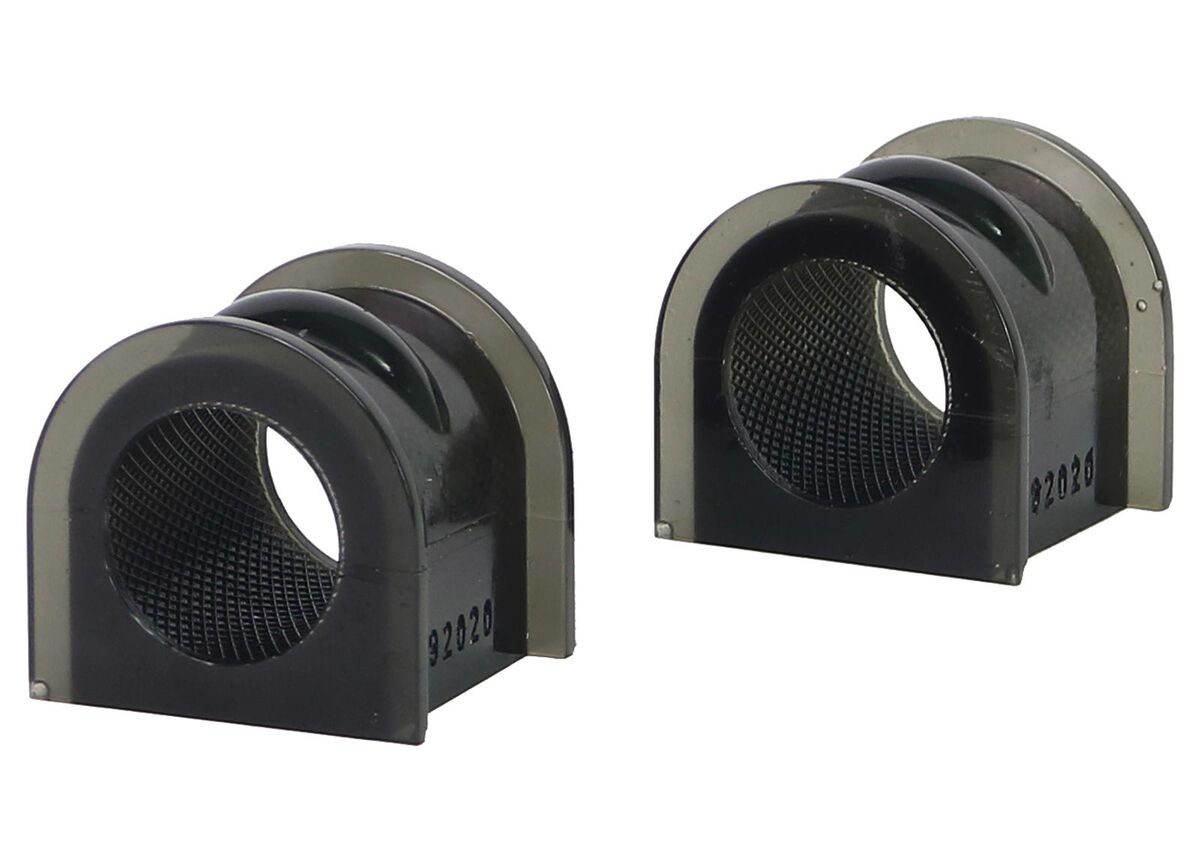

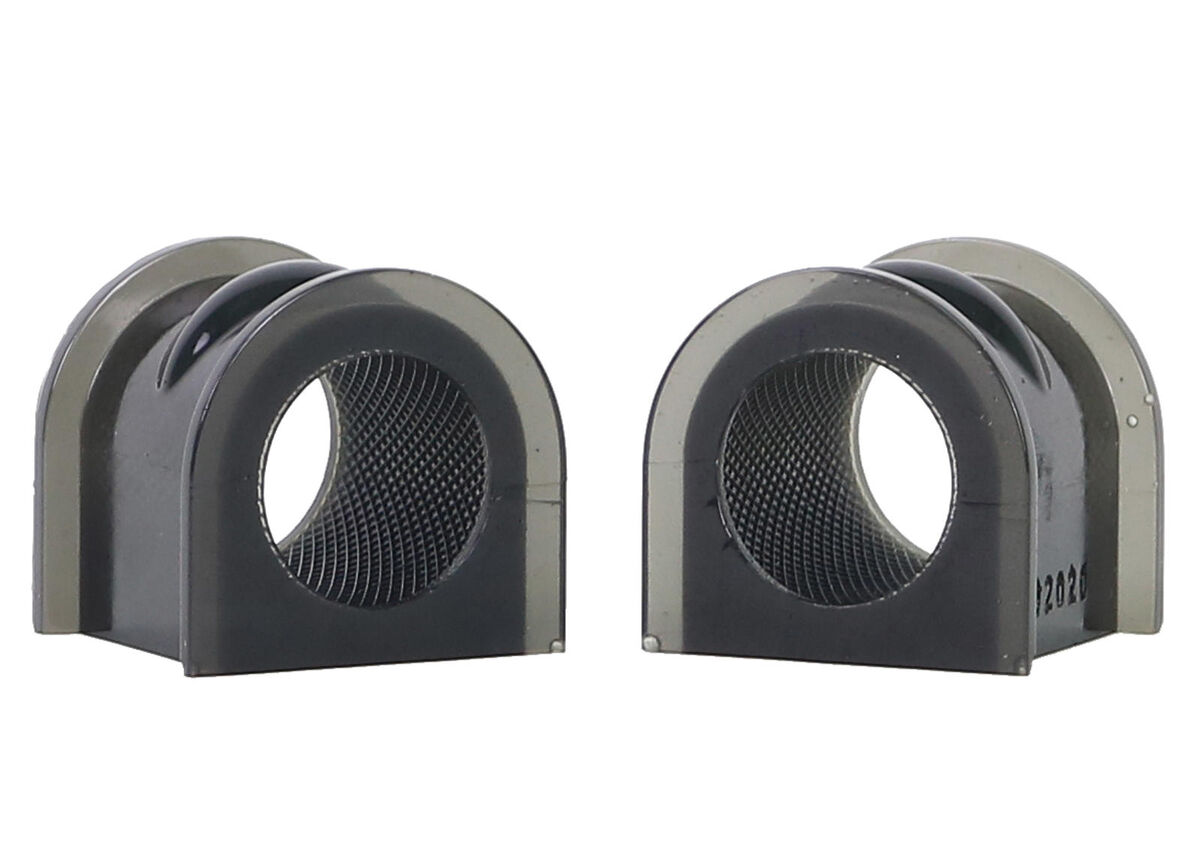

Whiteline Front Sway Bar Mount - Bushing Kit 29mm to Suit Holden Colorado, Trailblazer and Isuzu MU-X

SKU: W23754

Benefit Note: Designed to fit a 29mm sway bar. Whiteline's sway bar mount bushings not only boasts the latest in bushing material technology but feature a knurled ID specifically designed to retain grease. Backed up by a Limited Lifetime Warranty. Whiteline bushings are made from the latest highest quality synthetic elastomer and designed to synchronize your suspension system for optimal safety, handling, performance, ride quality, longevity and reduced maintenance. They are the most positive link between your vehicles body, springs, struts, arms, bars and shocks.

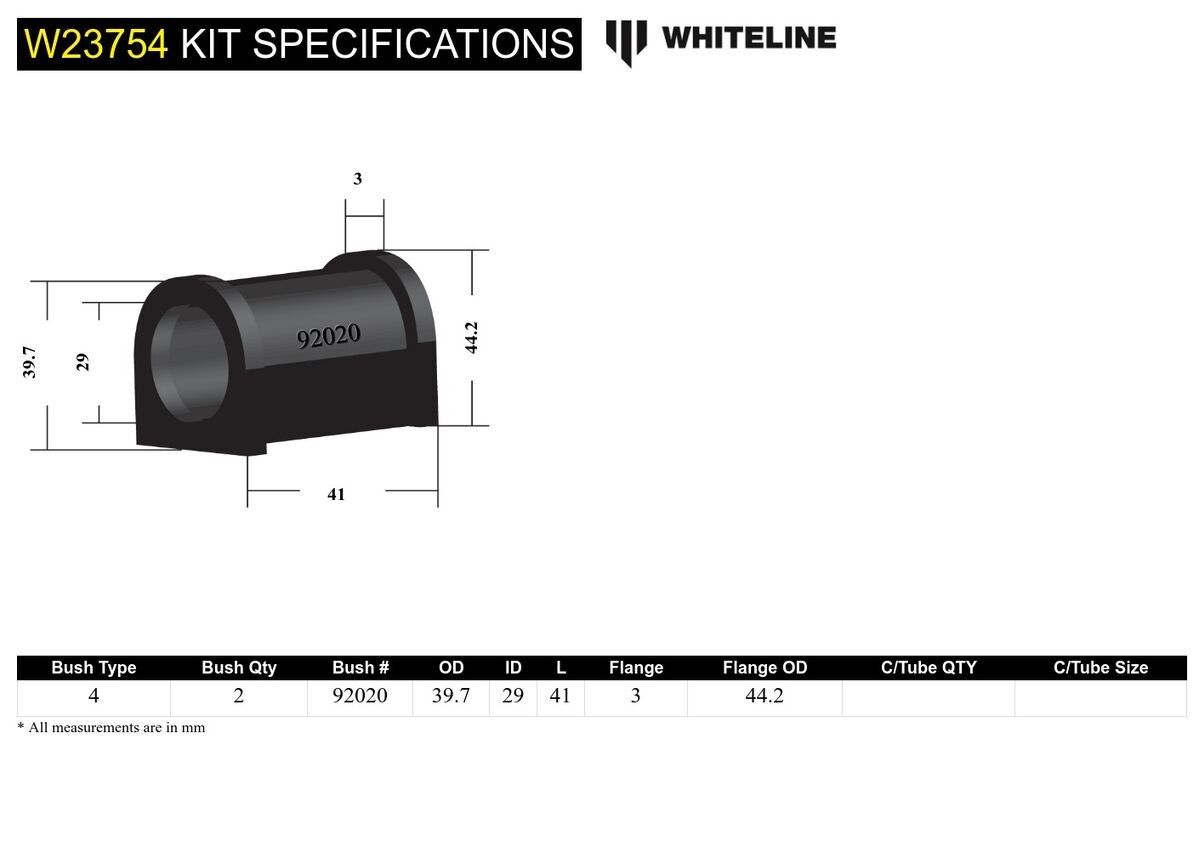

Kit Specifications

Bush Type 4 - D-bushing With Flange
Bush Quantity 2 mm
OD (A) 39.7 mm
ID (B) 29 mm
Length (C) 41 mm
Flange Thickness (D) 3 mm
Flange OD (E) 44.2 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 4 - D-bushing With Flange

Bushing Design Dimensions (mm)

Bush Type 4
QTY 2
OD (A) 39.7
ID (B) 29
Length (C) 41.0
FL (D) 3
FLOD (E) 44.2
C/Tube Qty
C/Tube Size
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 4

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.05kg0.11lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW23754
Components Per2 Bushings
Kits Required1
Sub brandReplacement
Product NoteImproves stability and control, transforming vehicle performance the perfect, complete upgrade. Includes: 2 Bushings
EAN9319924467761
  • Lifetime Warranty
Brand Whiteline
SKU W23754
Unit Of Measure Kit
