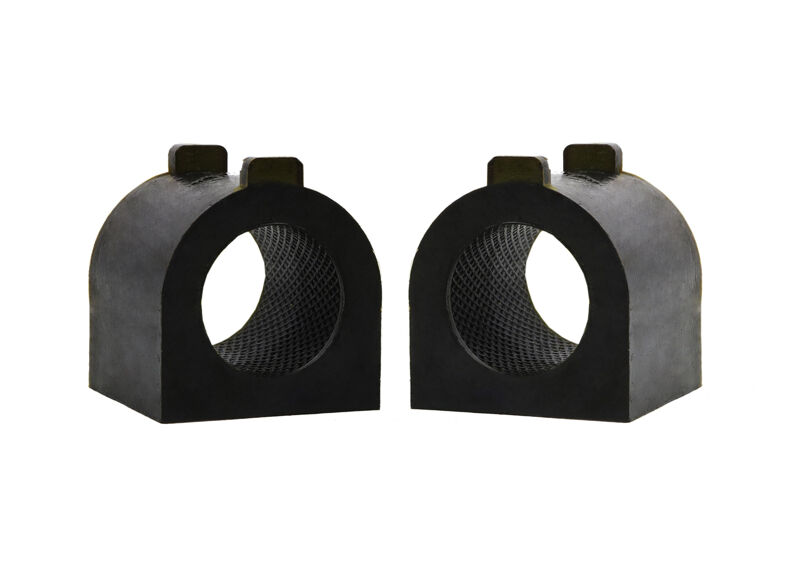

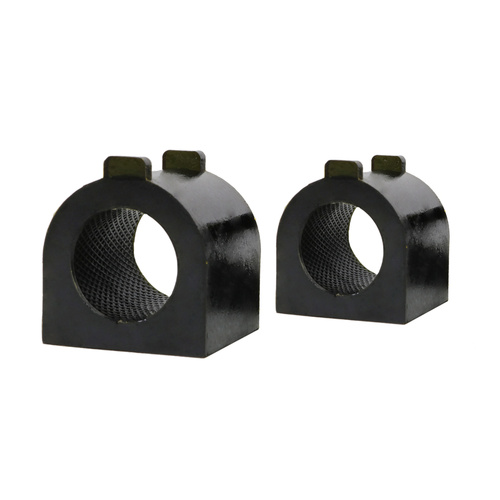

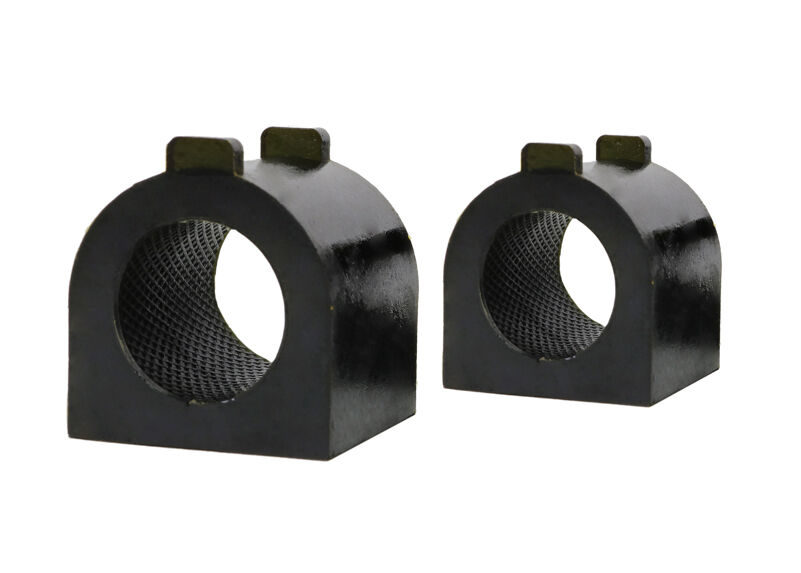

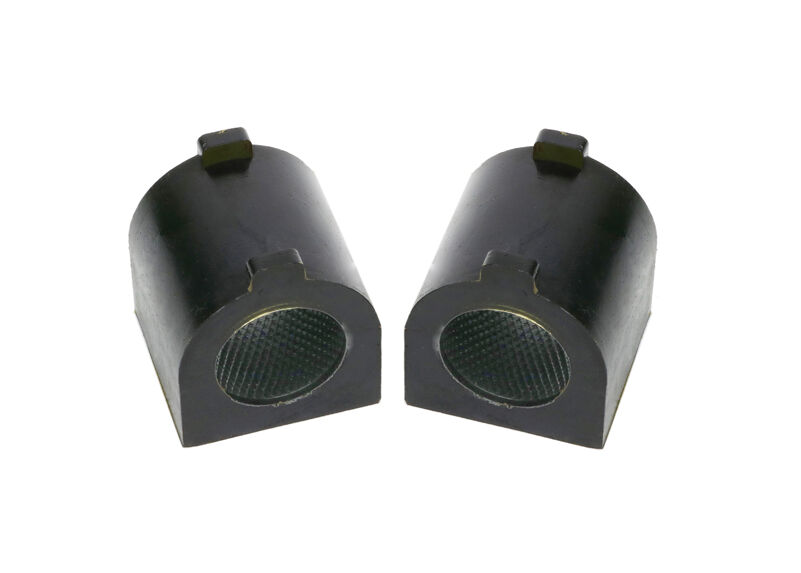

Whiteline Front Sway Bar Mount - Bushing Kit 26mm to Suit Hyundai I30 FD and Elantra HD

SKU: W0402-26

Benefit Note: Designed to fit a Whiteline performance 26mm sway bar. Whiteline's sway bar mount bushings not only boasts the latest in bushing material technology but feature a knurled ID specifically designed to retain grease. Whiteline bushings are made from the latest highest quality synthetic elastomer and designed to synchronize your suspension system for optimal safety, handling, performance, ride quality, longevity and reduced maintenance.

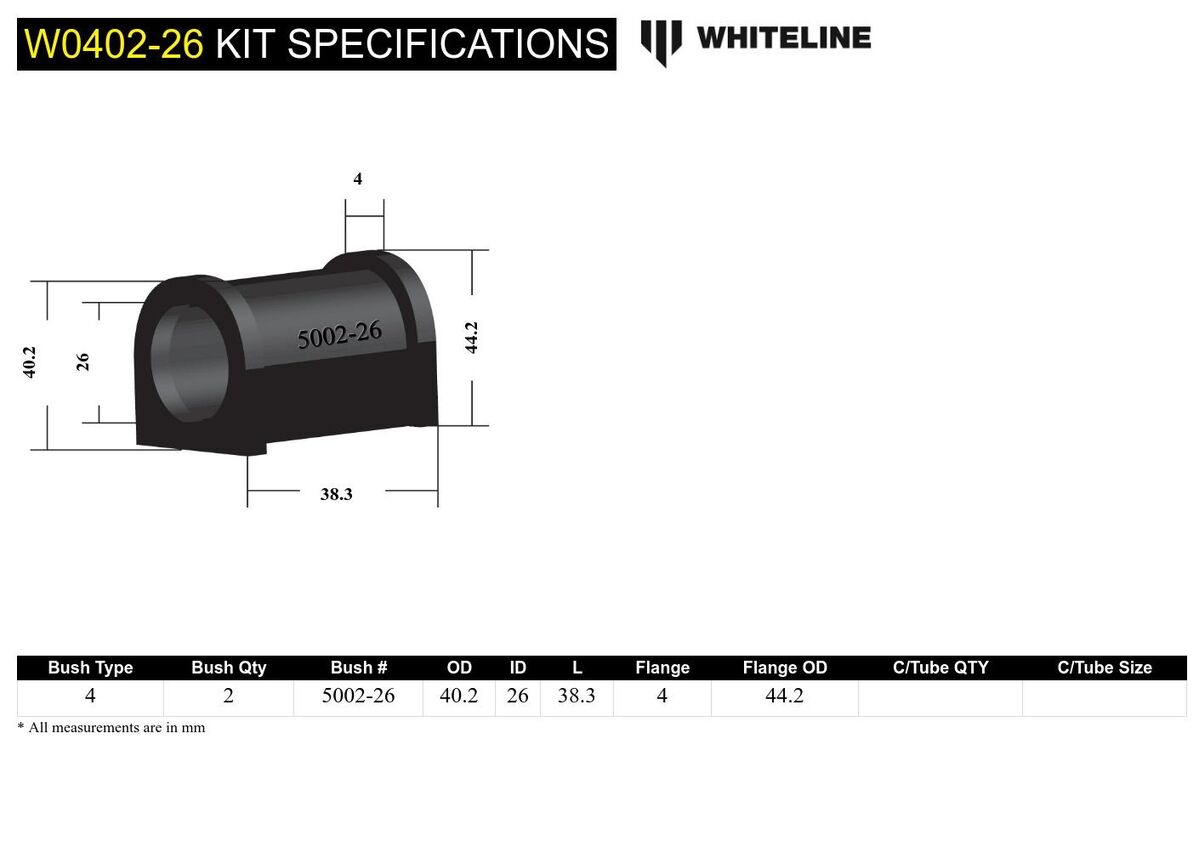

Kit Specifications

Bush Type 4 - D-bushing With Flange
Bush Quantity 2 mm
OD (A) 40.2 mm
ID (B) 26 mm
Length (C) 38.3 mm
Flange Thickness (D) 4 mm
Flange OD (E) 44.2 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 4 - D-bushing With Flange

Bushing Design Dimensions (mm)

Bush Type 4
QTY 2
OD (A) 40.2
ID (B) 26
Length (C) 38.3
FL (D) 4
FLOD (E) 44.2
C/Tube Qty
C/Tube Size
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 4

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.09kg0.2lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW0402-26
Components Per2 Bushings
Kits Required1
Sub brandPerformance
Product NoteEngineered for precision and balance and maintains optimal suspension geometry under load; the perfect, complete upgrade. Includes: 2 Bushings
EAN9319924383498
  • Lifetime Warranty
Brand Whiteline
SKU W0402-26
Unit Of Measure Kit
