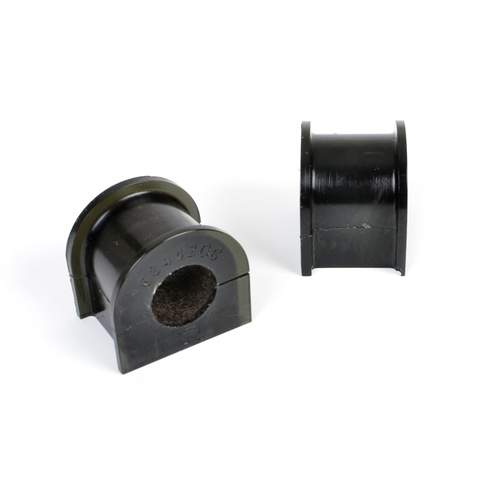

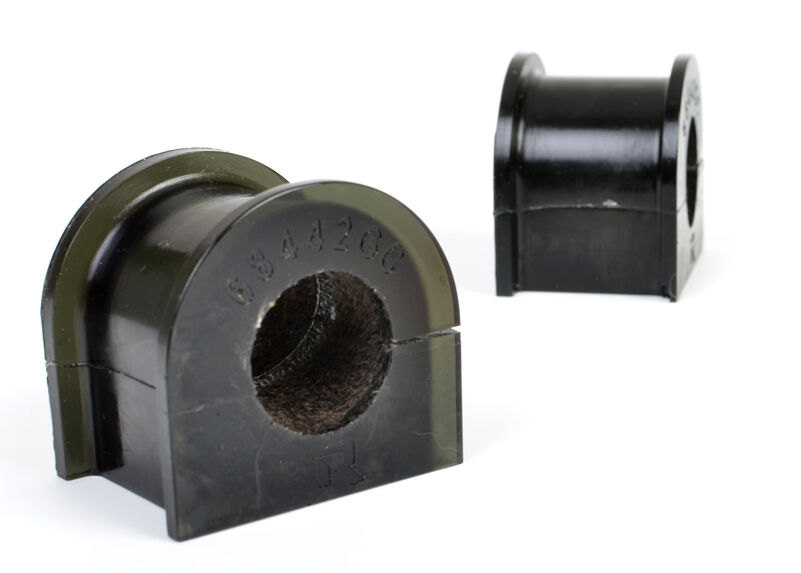

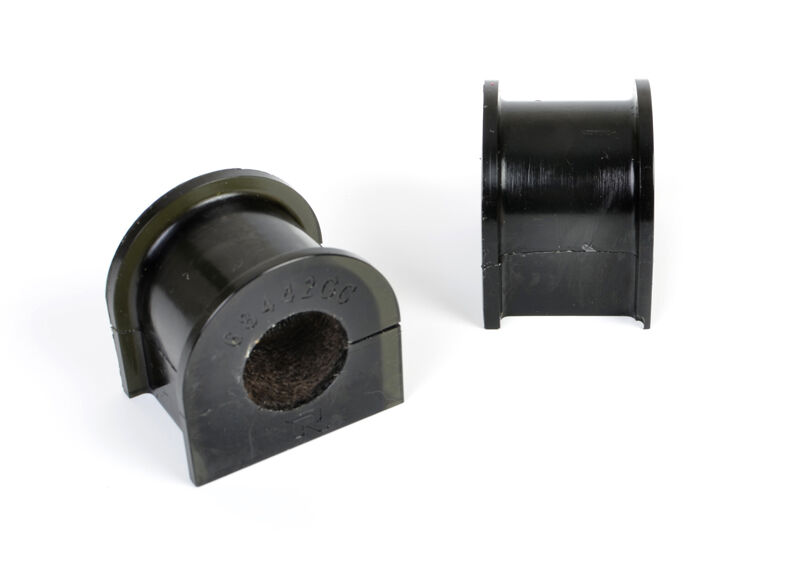

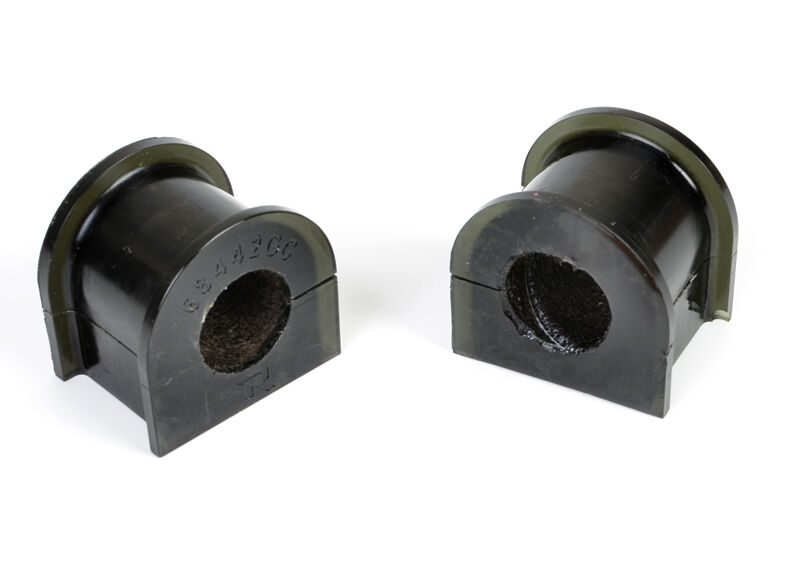

Whiteline Front Sway Bar Mount - Bushing Kit 25mm 'Grease Free' to Suit Toyota Hiace SBV RCH12, RCH22, RZH10

SKU: W23666G

Benefit Note: Designed to fit a 25mm sway bar. Whiteline's sway bar mount bushings not only boasts the latest in bushing material technology but a high performing PTFE inner lining boasting an extraordinary low coefficient of friction. This inner lining eliminates the need to lubricate the bushing on installation and therefore makes these bushing 'grease free'! Backed up by a Limited Lifetime Warranty. Whiteline bushings are made from the latest highest quality synthetic elastomer and designed to synchronize your suspension system for optimal safety, handling, performance, ride quality, longevity and reduced maintenance. They are the most positive link between your vehicles body, springs, struts, arms, bars and shocks.

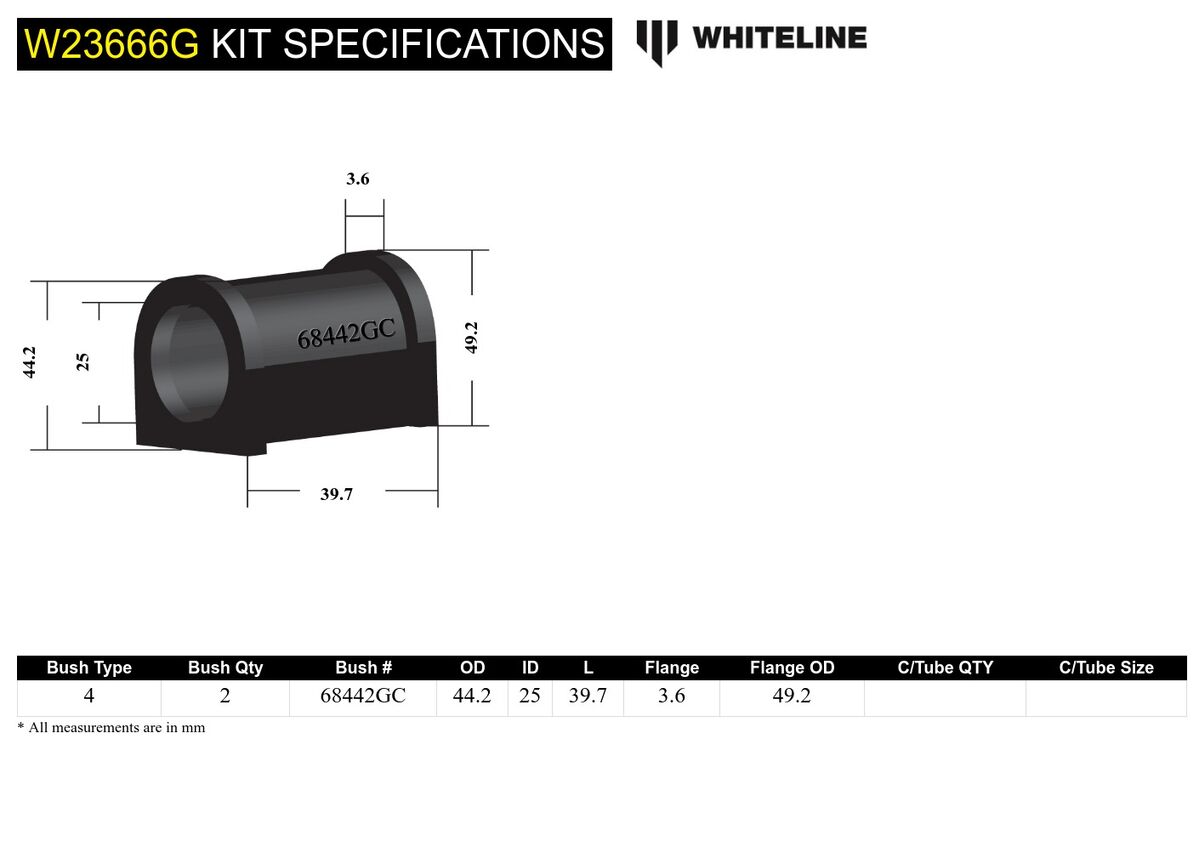

Kit Specifications

Bush Type 4 - D-bushing With Flange
Bush Quantity 2 mm
OD (A) 44.2 mm
ID (B) 25 mm
Length (C) 39.7 mm
Flange Thickness (D) 3.6 mm
Flange OD (E) 49.2 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 4 - D-bushing With Flange

Bushing Design Dimensions (mm)

Bush Type 4
QTY 2
OD (A) 44.2
ID (B) 25
Length (C) 39.7
FL (D) 3.6
FLOD (E) 49.2
C/Tube Qty
C/Tube Size
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 4

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.12kg0.26lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW23666G
Components Per2 Bushings
Kits Required1
Sub brandReplacement
Product NoteReduces body roll, keeping your vehicle flatter through corners; the perfect, complete upgrade. Includes: 2 Bushings
EAN9319924405336
  • Lifetime Warranty
Brand Whiteline
SKU W23666G
Unit Of Measure Kit
