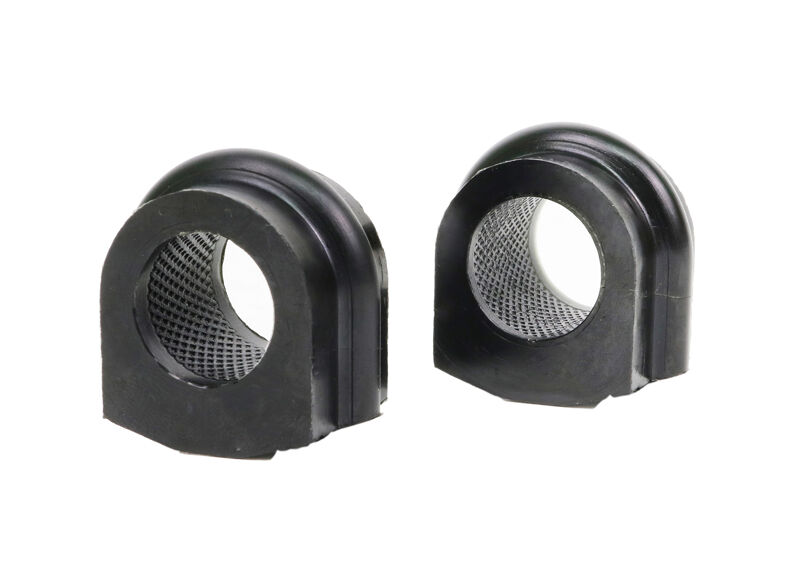

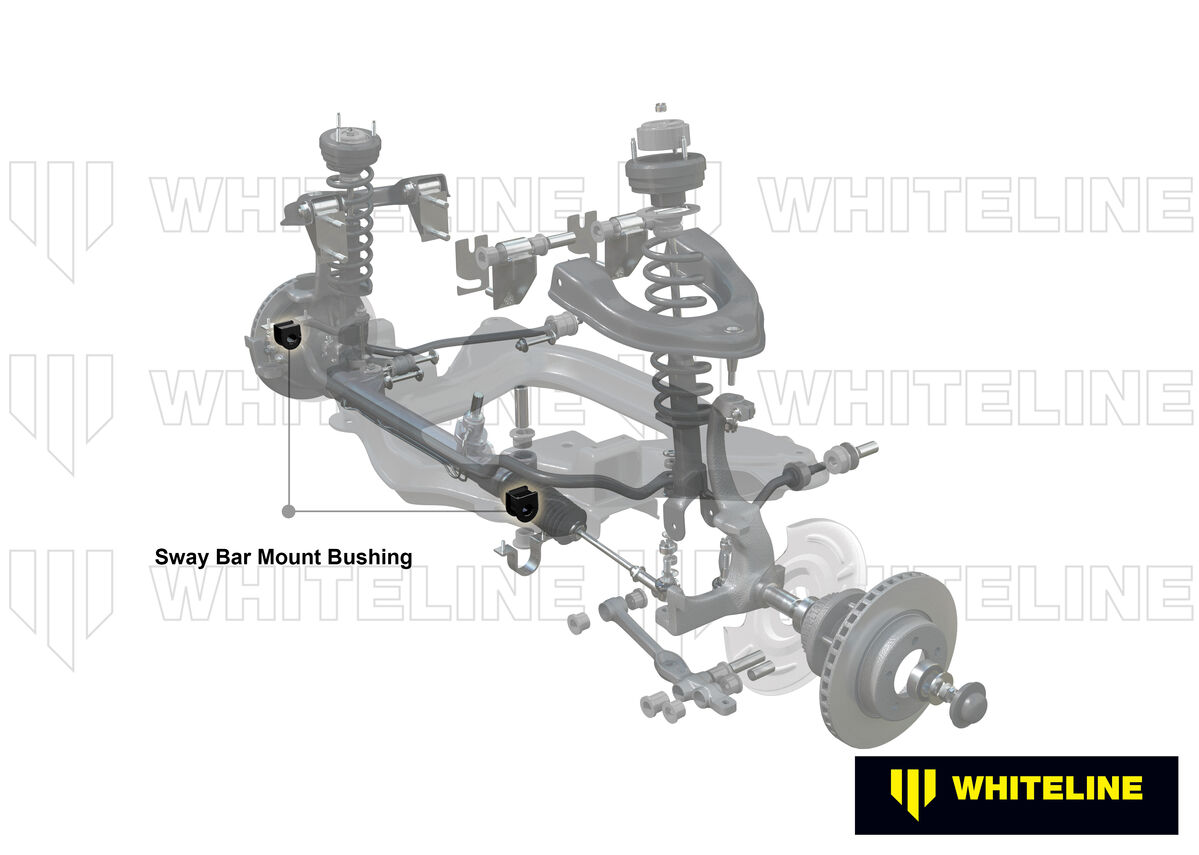

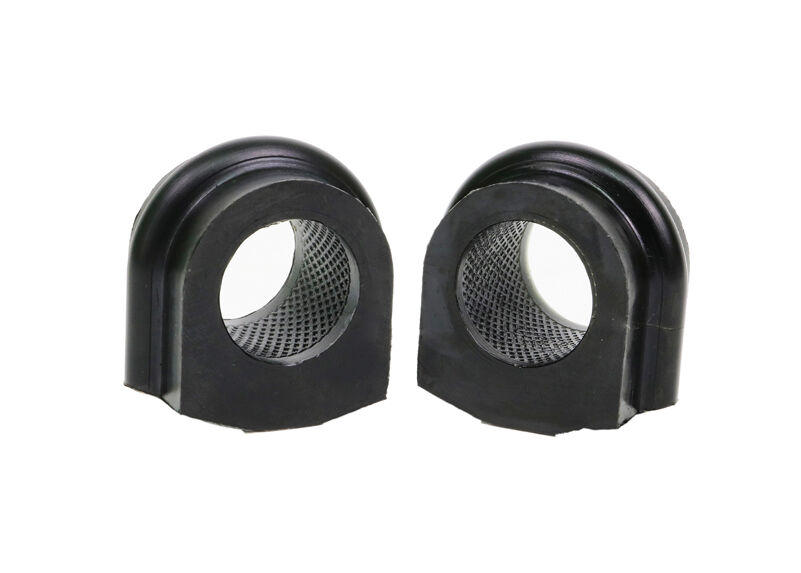

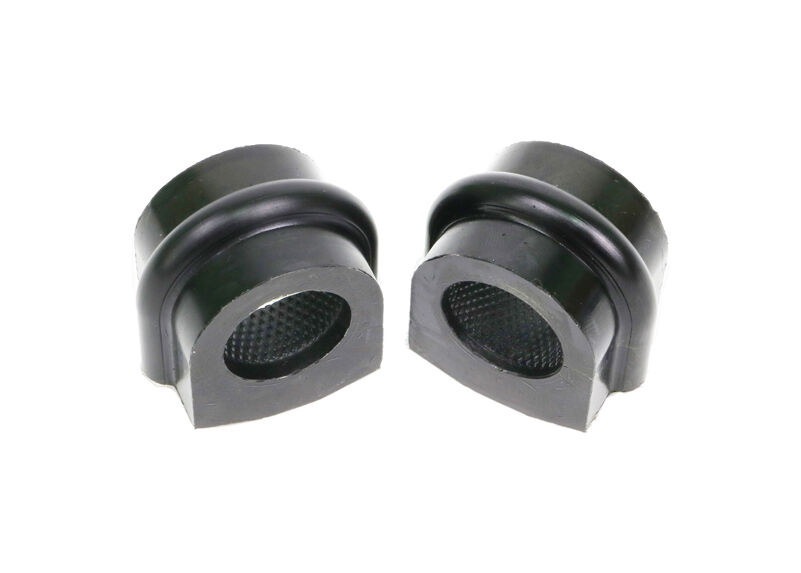

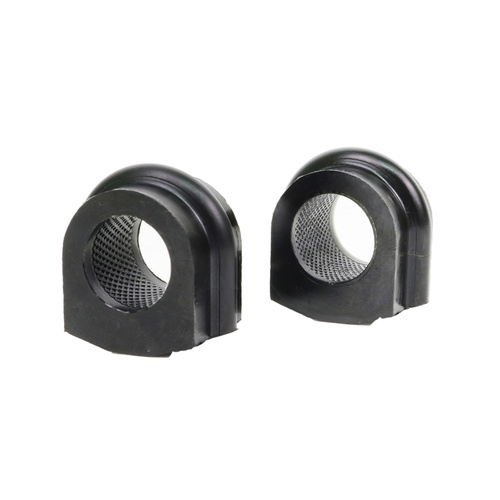

Whiteline Front Sway Bar Mount - Bushing Kit 24mm to Suit Whiteline Sway Bars

SKU: KSK045-24

Benefit Note: Designed to fit a Whiteline performance 24mm sway bar. Whiteline's sway bar mount bushings not only boasts the latest in bushing material technology but feature a knurled ID specifically designed to retain grease. Whiteline bushings are made from the latest highest quality synthetic elastomer and designed to synchronize your suspension system for optimal safety, handling, performance, ride quality, longevity and reduced maintenance.

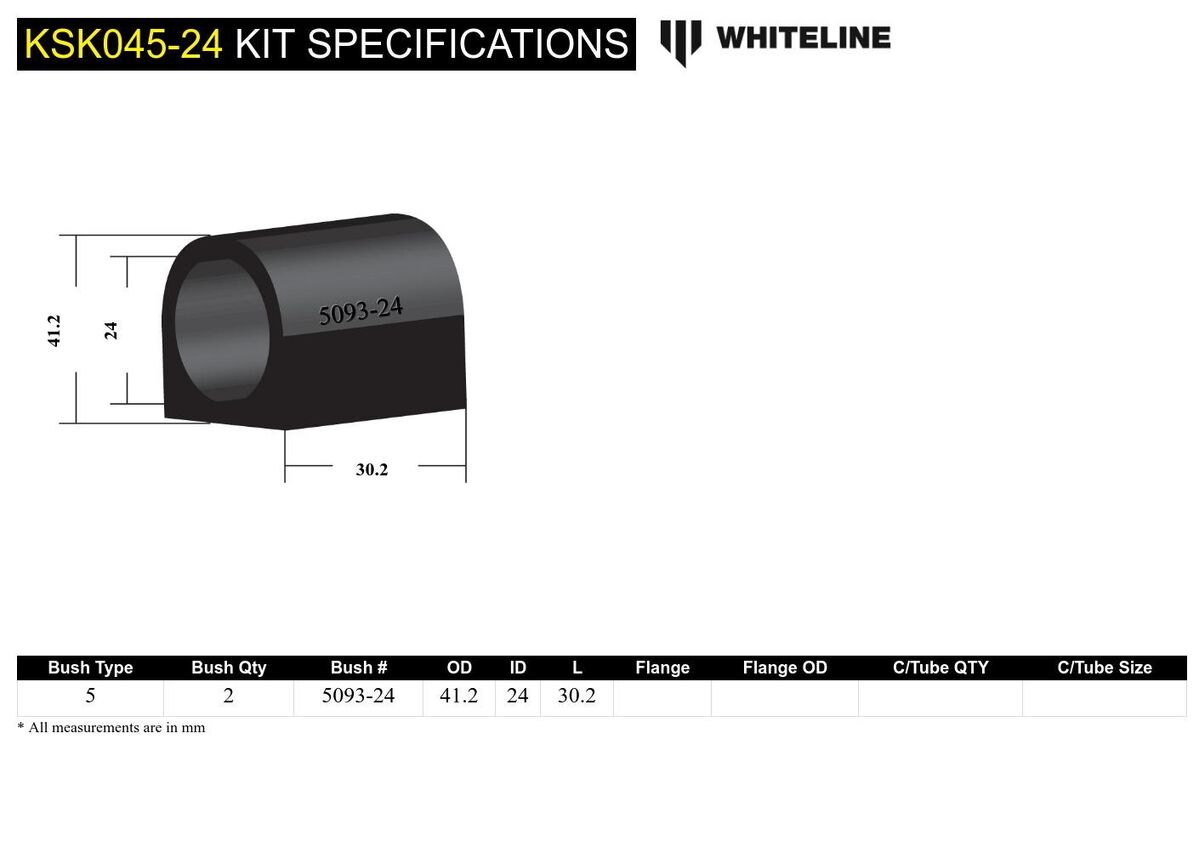

Kit Specifications

Bush Type 5 - D-bushing Without Flange
Bush Quantity 2 mm
OD (A) 41.2 mm
ID (B) 24 mm
Length (C) 30.2 mm
Flange Thickness (D)
Flange OD (E)
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 5 - D-bushing Without Flange

Bushing Design Dimensions (mm)

Bush Type 5
QTY 2
OD (A) 41.2
ID (B) 24
Length (C) 30.2
FL (D)
FLOD (E)
C/Tube Qty
C/Tube Size
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 5

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.1kg0.22lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUKSK045-24
Components Per2 Bushings
Kits Required1
Sub brandPerformance
Product NoteReduces body roll, keeping your vehicle flatter through corners; the perfect, complete upgrade. Includes: 2 Bushings
EAN9319924385805
  • Lifetime Warranty
Brand Whiteline
SKU KSK045-24
Unit Of Measure Kit
