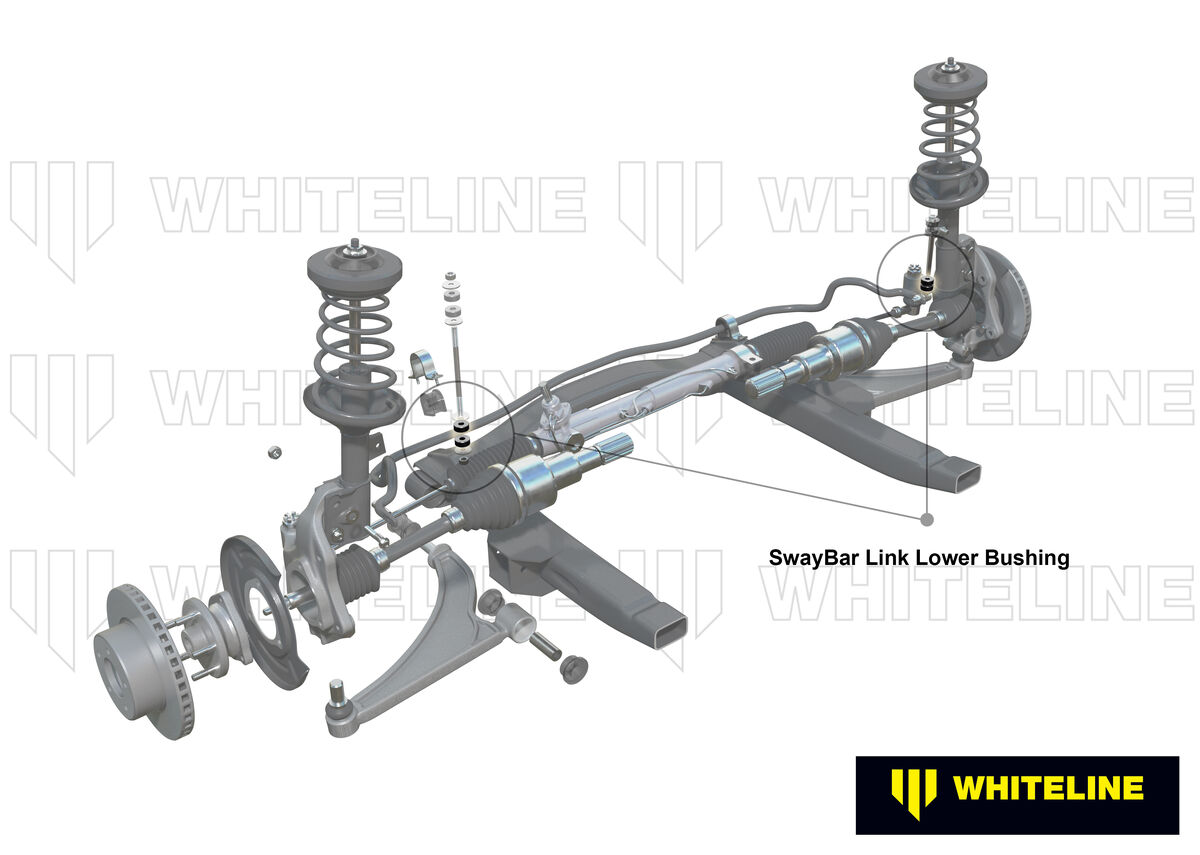

Whiteline Front Sway Bar Link - Lower Bushing Kit to Suit Nissan Pulsar N14, N15 and N16

SKU: W22110

Benefit Note: Worn or deteriorated link bushings although small can have considerable influence over sway bar performance and more notably vehicle handling behaviour. Whiteline bushings are engineered to last and deliver improved driving performance.


Kit Specifications

Bush Type 7 - Pin Bush With & Without Spigot
Bush Quantity 4 mm
OD (A) 28 mm
ID (B) 10 mm
Length (C) 16 mm
Flange Thickness (D) 2.5 mm
Flange OD (E) 14 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 7 - Pin Bush With & Without Spigot

Bushing Design Dimensions (mm)

Bush Type 7
QTY 4
OD (A) 28
ID (B) 10
Length (C) 16.0
FL (D) 2.5
FLOD (E) 14
C/Tube Qty
C/Tube Size
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 7

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.044kg0.1lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW22110
Components Per4 Bushings
Kits Required1
Sub brandReplacement
Product NoteEngineered for precision and balance and maintains optimal suspension geometry under load; the perfect, complete upgrade. Includes: 4 Bushings
EAN9319924350483
  • Lifetime Warranty
Brand Whiteline
SKU W22110
Unit Of Measure Kit
