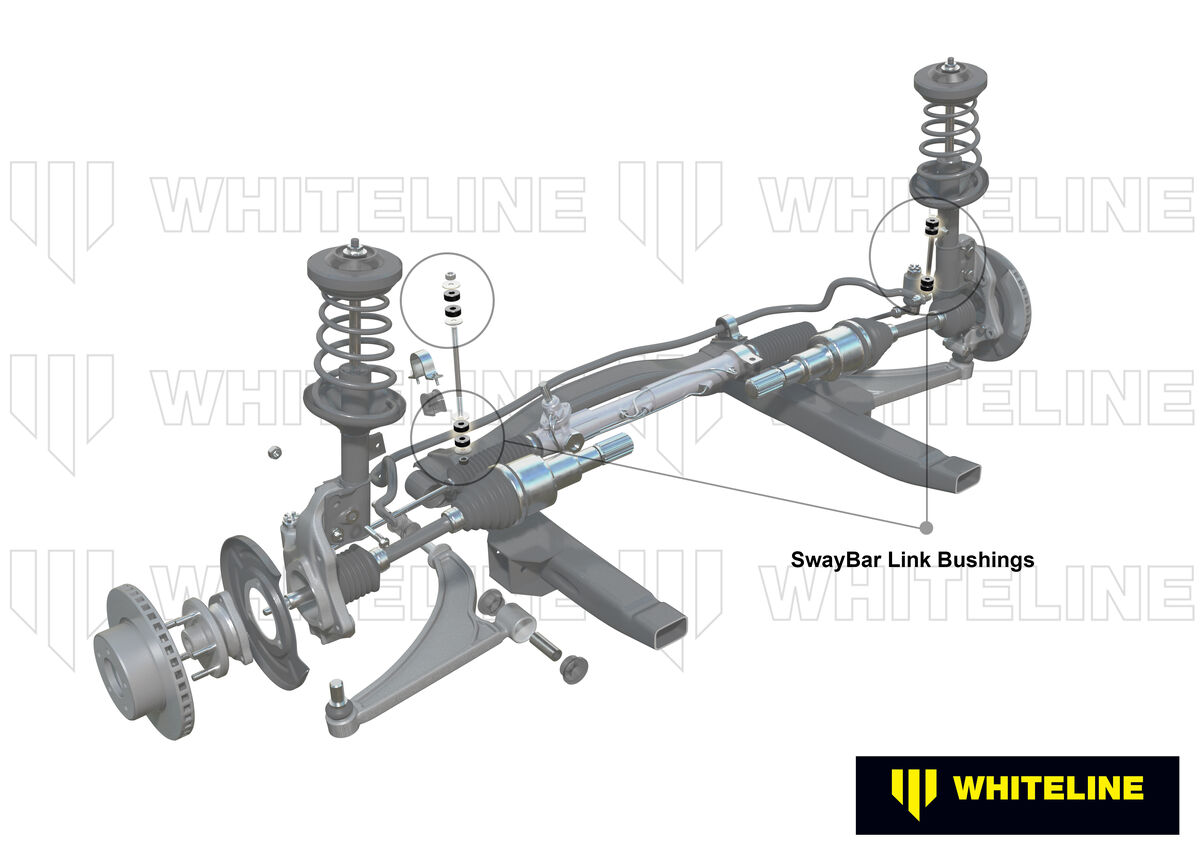

Whiteline Front Sway Bar Link - Bushing Service Kit to Suit Whiteline KLC30 and W23479

SKU: W0009

Benefit Note: Worn or deteriorated link bushings although small can have considerable influence over sway bar performance and more notably vehicle handling behaviour. Whiteline bushings are engineered to last and deliver improved driving performance.


Kit Specifications

Bush Type 15 - Tapered Cotton Real Bushing 15 - Tapered Cotton Real Bushing
Bush Quantity 2 mm 2 mm
OD (A) AI=29.5 AII=25.5 mm AI=28.8 AII=25.5 mm
ID (B) 14.5 mm 15 mm
Length (C) 35 mm 31 mm
Flange Thickness (D) 8.5 mm 5.5 mm
Flange OD (E)
C/Tube Quantity 2 / 2 2 / 2
C/Tube ODxIDxL 16x10.5x34 / 16x8.2x30 mm 16x10.5x34 / 16x8.2x30 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 15 - Tapered Cotton Real Bushing
Bushing Type 15 - Tapered Cotton Real Bushing

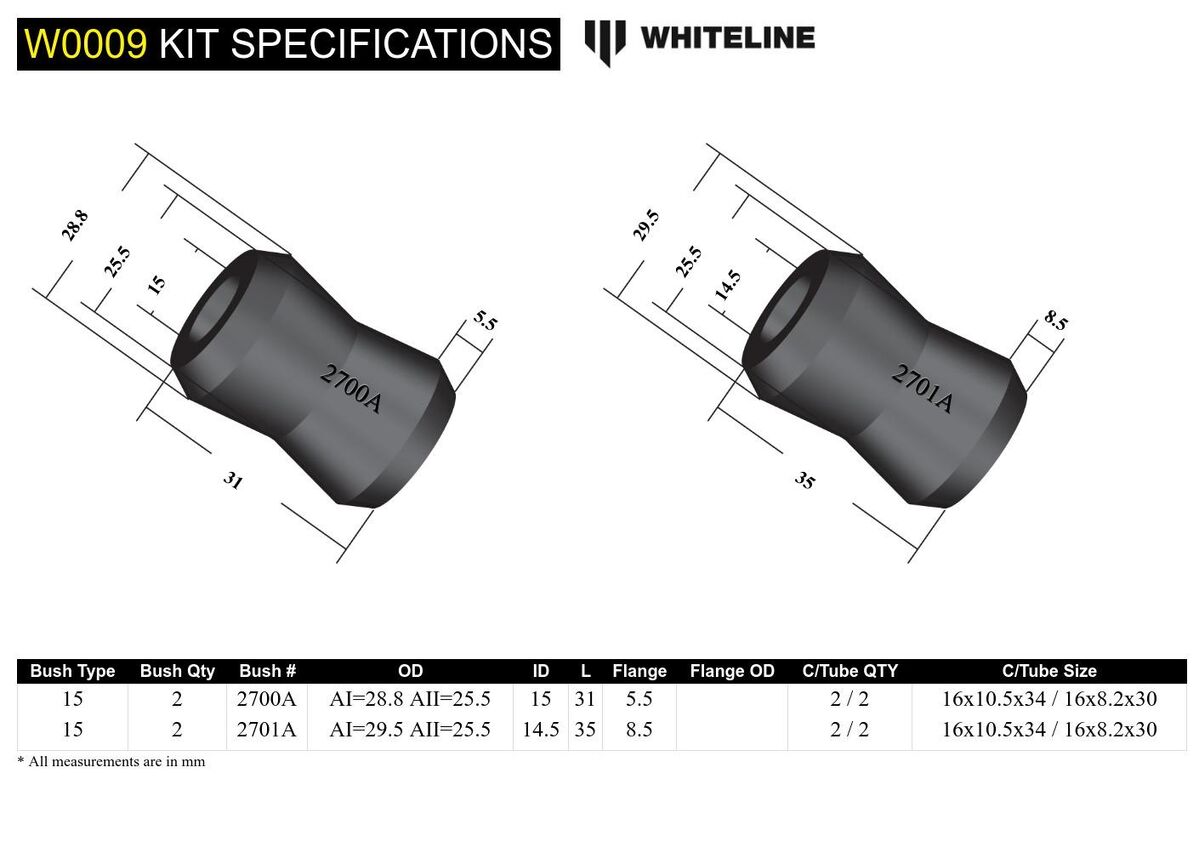

Bushing Design Dimensions (mm)

Bush Type 15 15
QTY 2 2
OD (A) AI=29.5 AII=25.5 AI=28.8 AII=25.5
ID (B) 14.5 15
Length (C) 35.0 31.0
FL (D) 8.5 5.5
FLOD (E)
C/Tube Qty 2 / 2 2 / 2
C/Tube Size 16x10.5x34 / 16x8.2x30 16x10.5x34 / 16x8.2x30
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 15

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.1kg0.22lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW0009

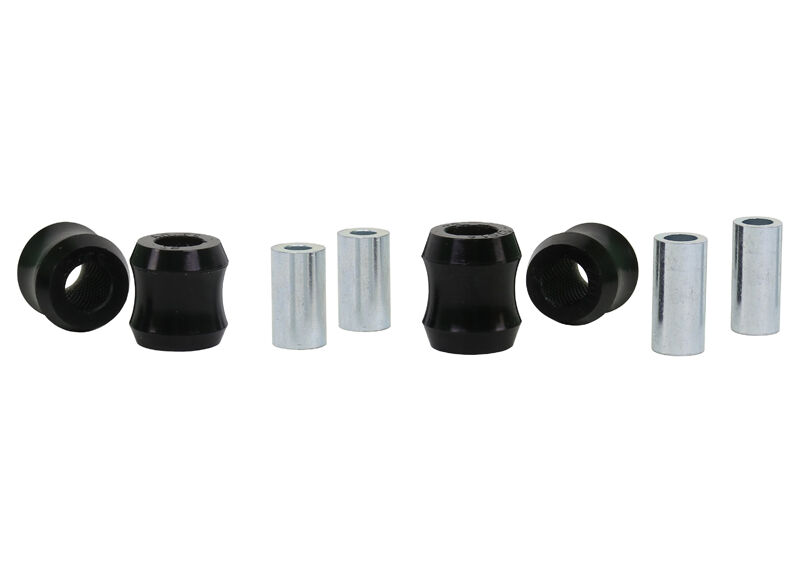

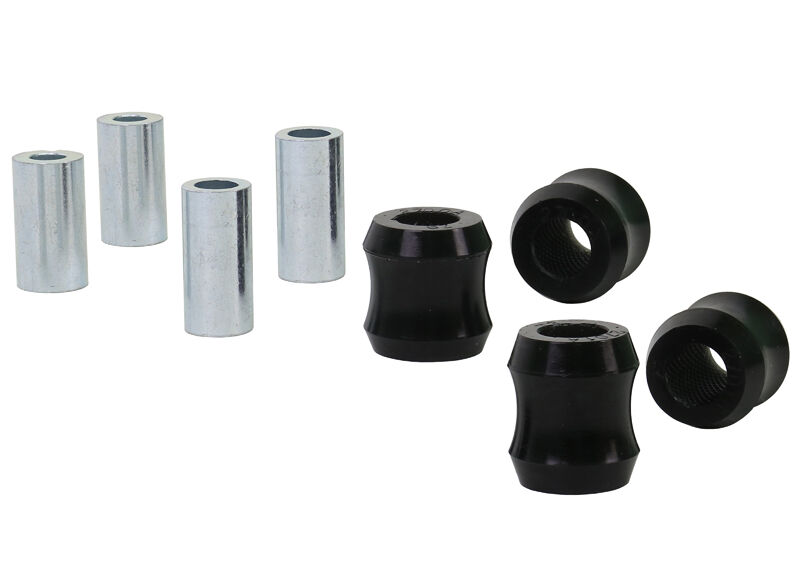

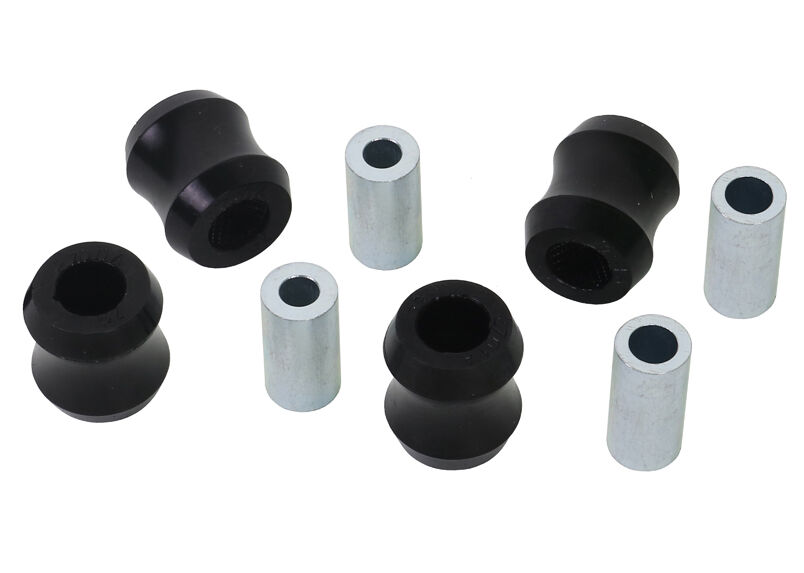

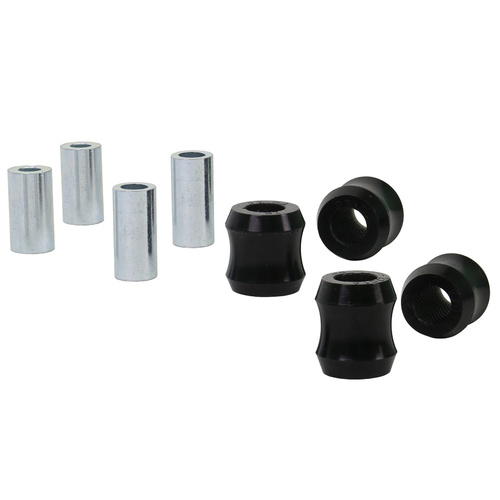

Components Per4 Bushings, 4 Tubes
Kits Required1
Sub brandPerformance
Product NoteReduces body roll, keeping your vehicle flatter through corners; the perfect, complete upgrade. Includes: 4 Bushings, 4 Tubes
EAN9319924346639
  • Lifetime Warranty
Brand Whiteline
SKU W0009
Unit Of Measure Kit
