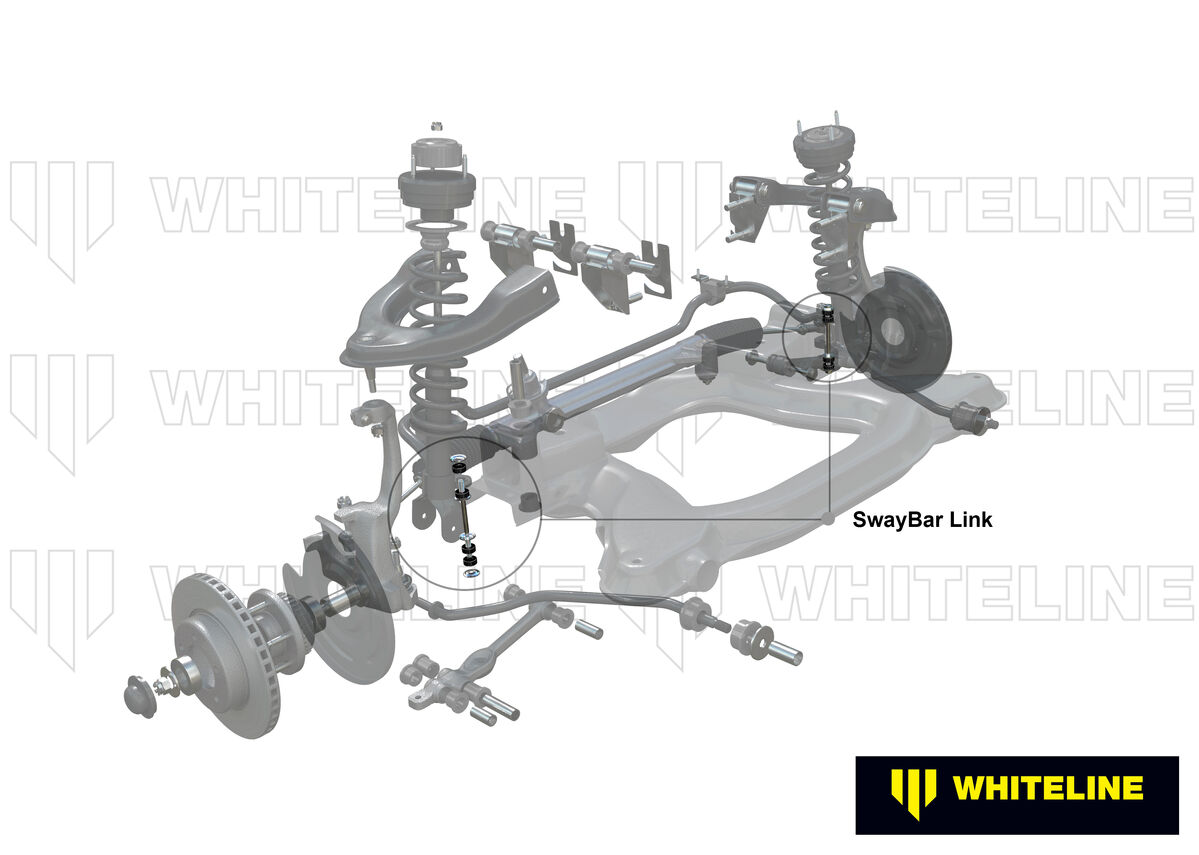

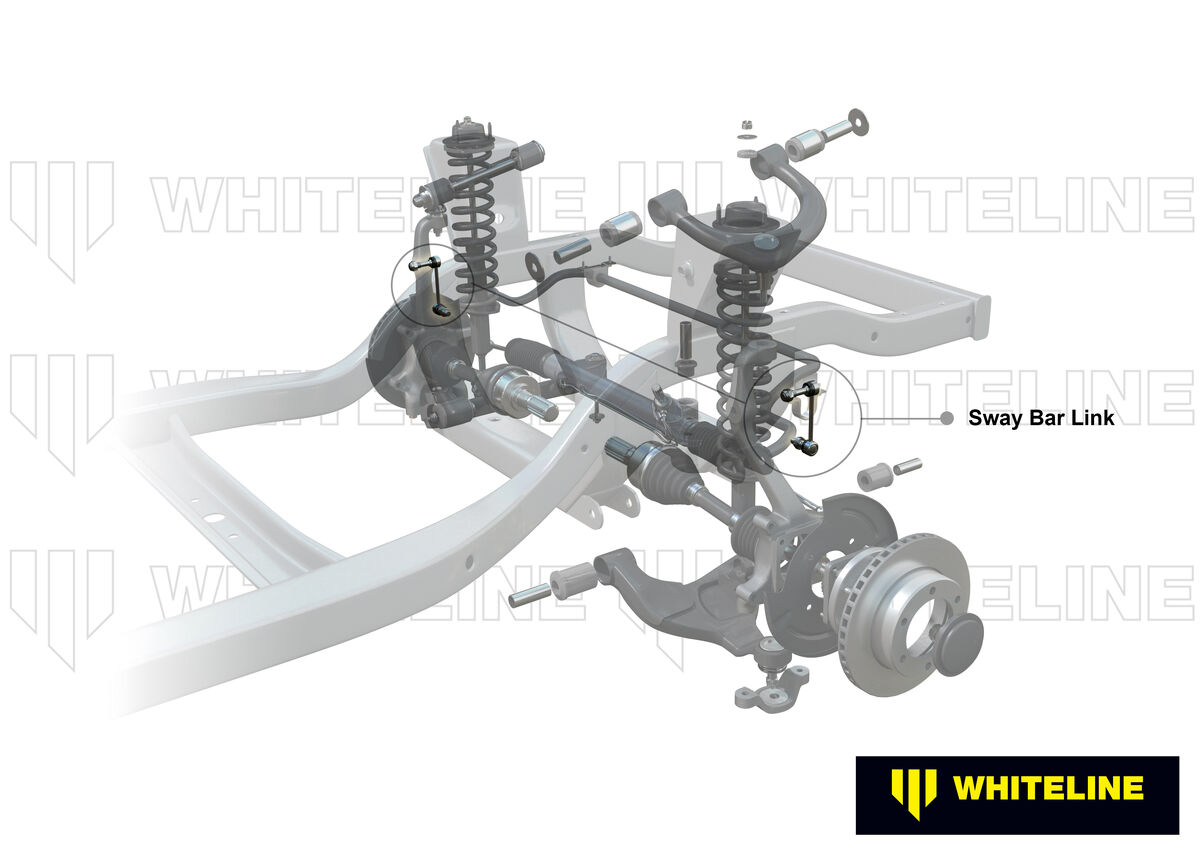

Whiteline Front Sway Bar Link - Bushing Kit to Suit Ford Ranger PJ, PK and Mazda BT-50 UN 2wd/4wd

SKU: W23753

Benefit Note: Worn or deteriorated link bushings although small can have considerable influence over sway bar performance and more notably vehicle handling behaviour. Whiteline bushings are engineered to last and deliver improved driving performance.

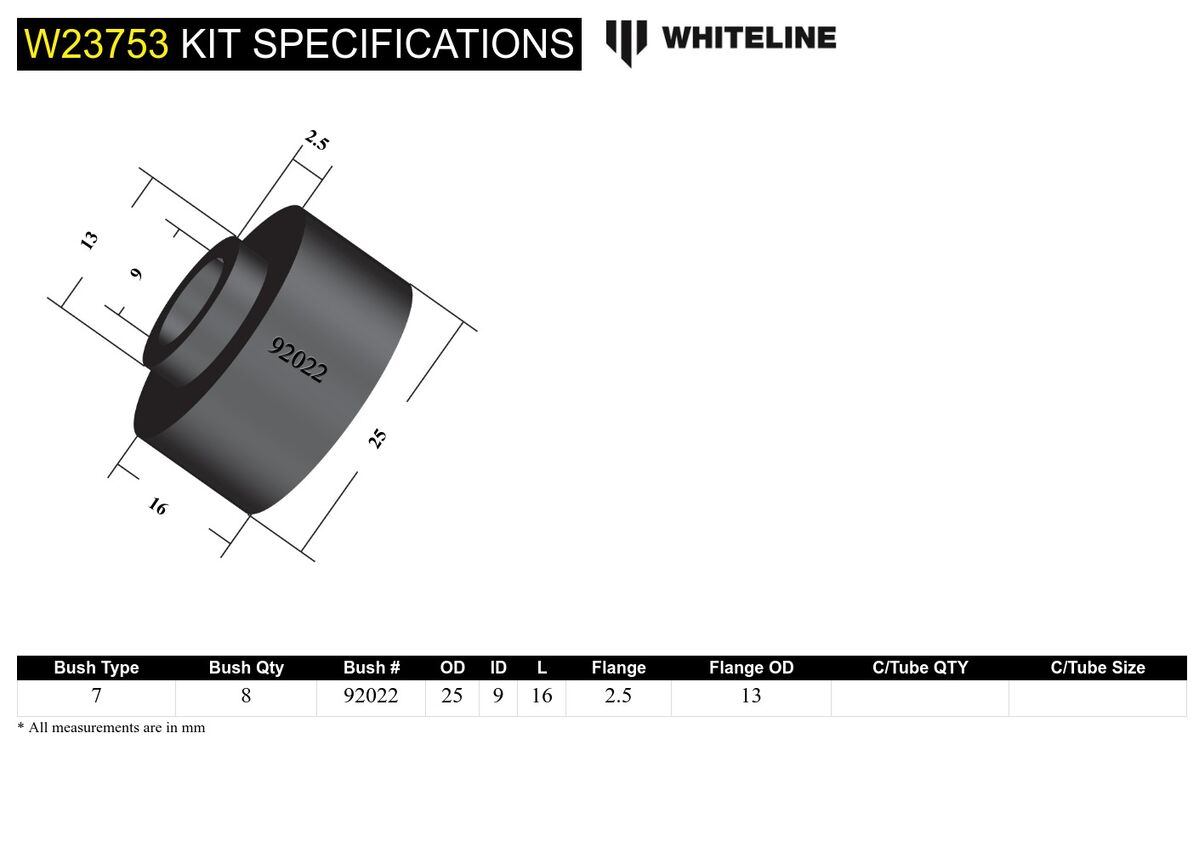

Kit Specifications

Bush Type 7 - Pin Bush With & Without Spigot
Bush Quantity 8 mm
OD (A) 25 mm
ID (B) 9 mm
Length (C) 16 mm
Flange Thickness (D) 2.5 mm
Flange OD (E) 13 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 7 - Pin Bush With & Without Spigot

Bushing Design Dimensions (mm)

Bush Type 7
QTY 8
OD (A) 25
ID (B) 9
Length (C) 16.0
FL (D) 2.5
FLOD (E) 13
C/Tube Qty
C/Tube Size
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 7

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.154kg0.34lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW23753

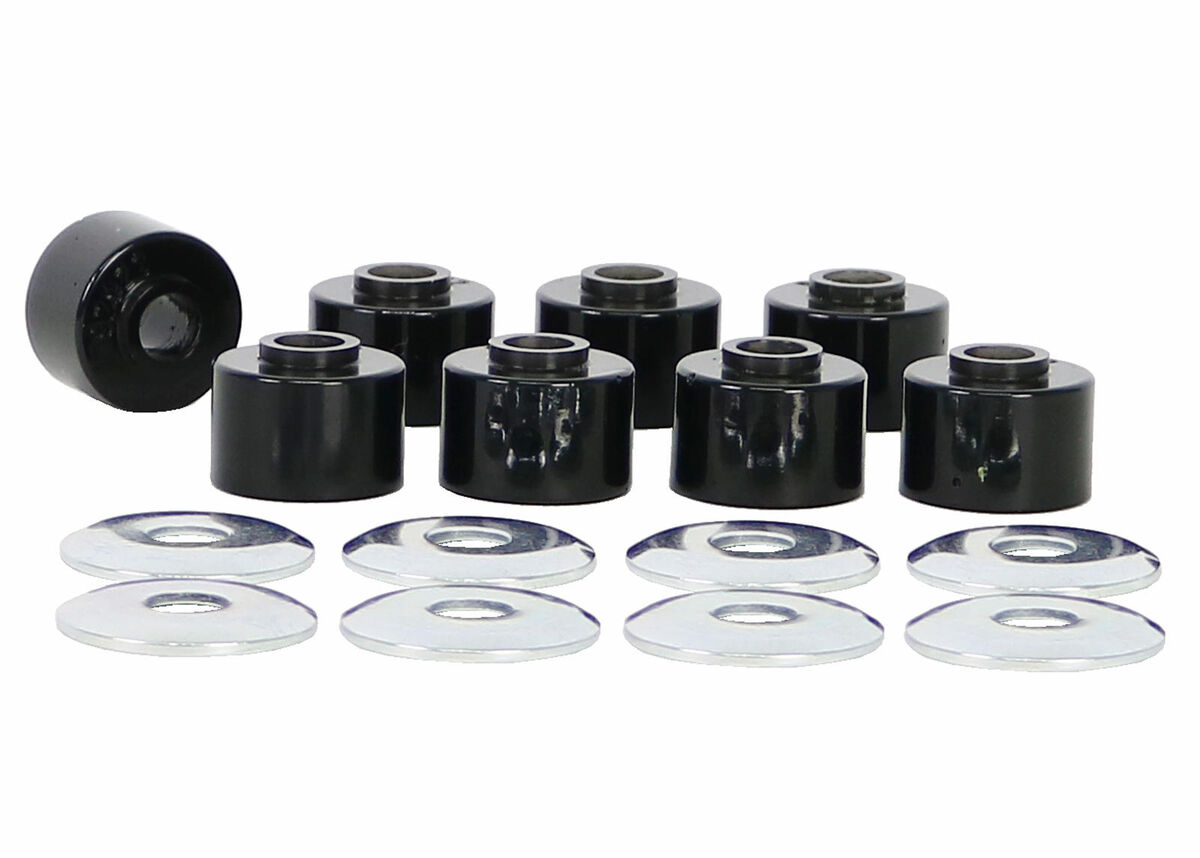

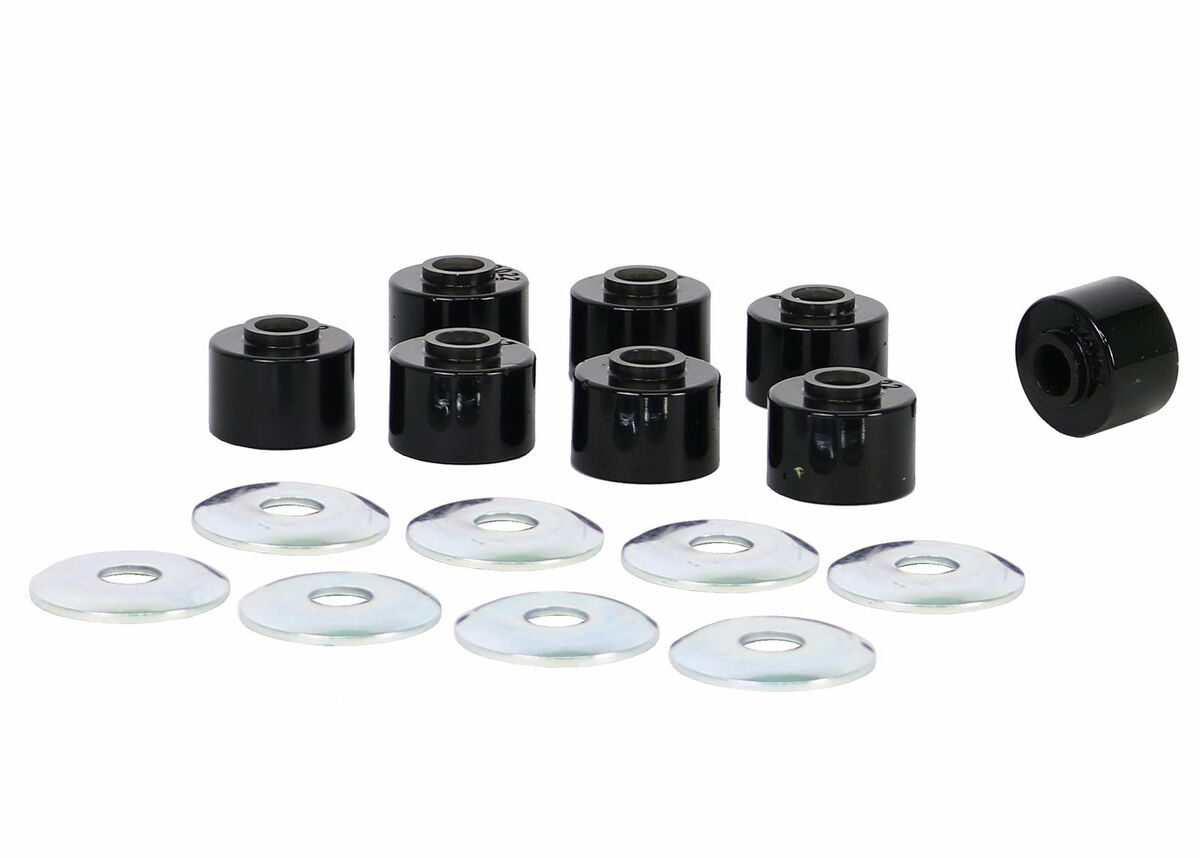

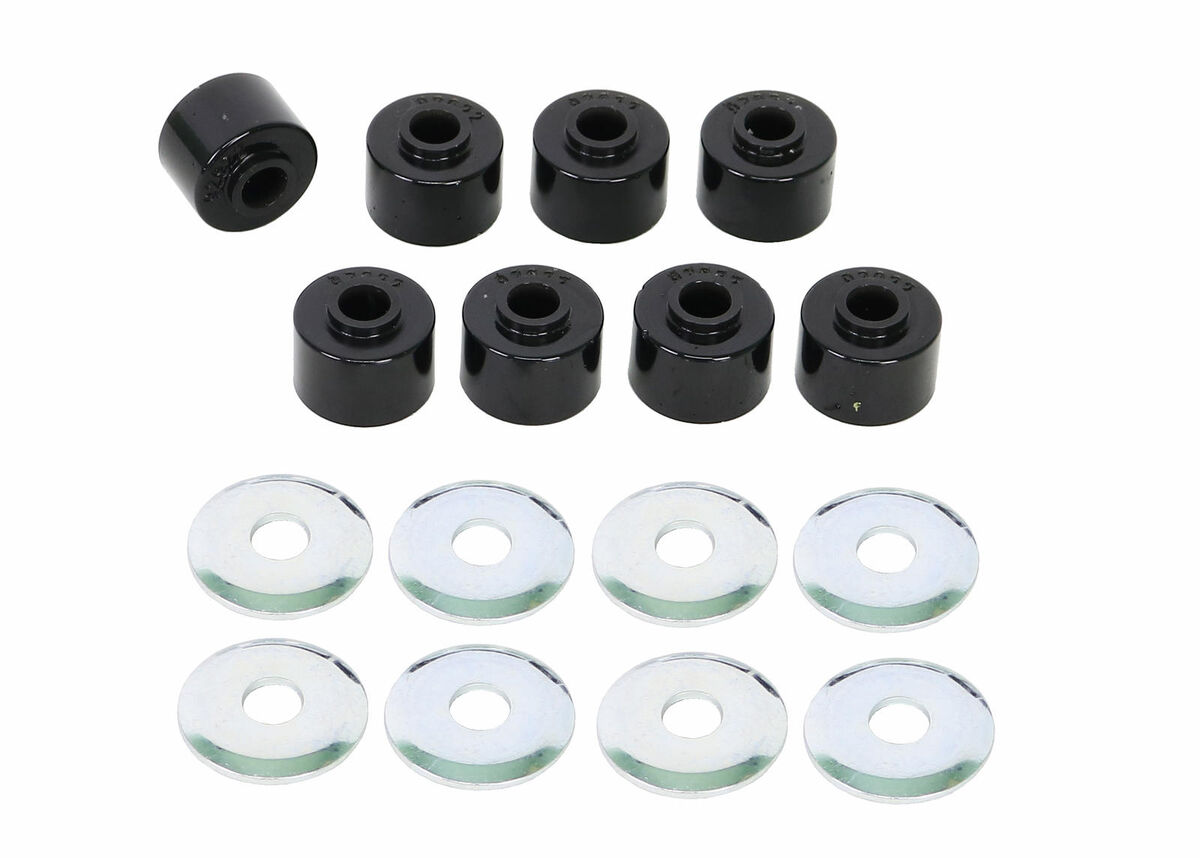

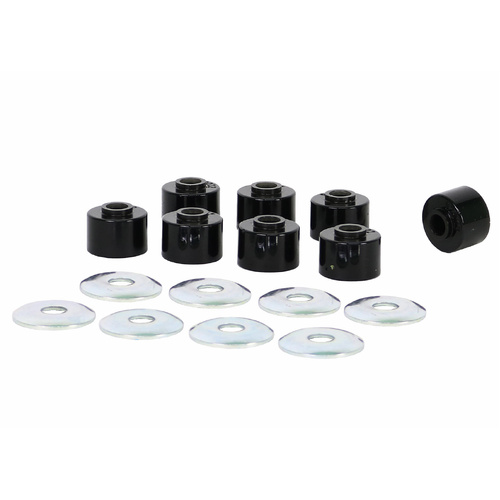

Components Per8 Bushings, 8 Washers
Kits Required1
Sub brandReplacement
Product NoteLink Bushes
OD=25, ID=9, L=16.5mm, locator OD=13mm
EAN9319924468270
  • Lifetime Warranty
Brand Whiteline
SKU W23753
Unit Of Measure Kit
