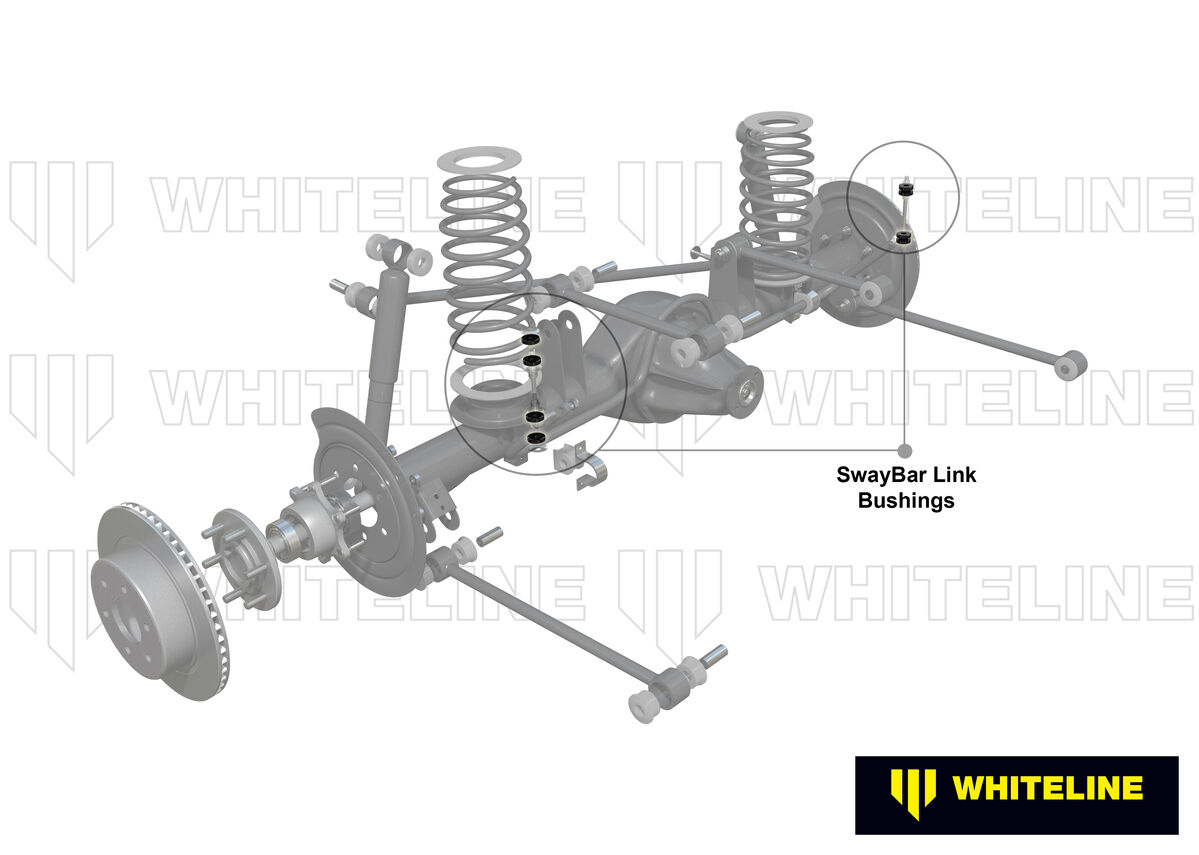

Whiteline Front Sway Bar Link - Bushing Kit to Suit Jeep Grand Cherokee WJ, WG

SKU: W23450

Benefit Note: Worn or deteriorated link bushings although small can have considerable influence over sway bar performance and more notably vehicle handling behaviour. Whiteline bushings are engineered to last and deliver improved driving performance.

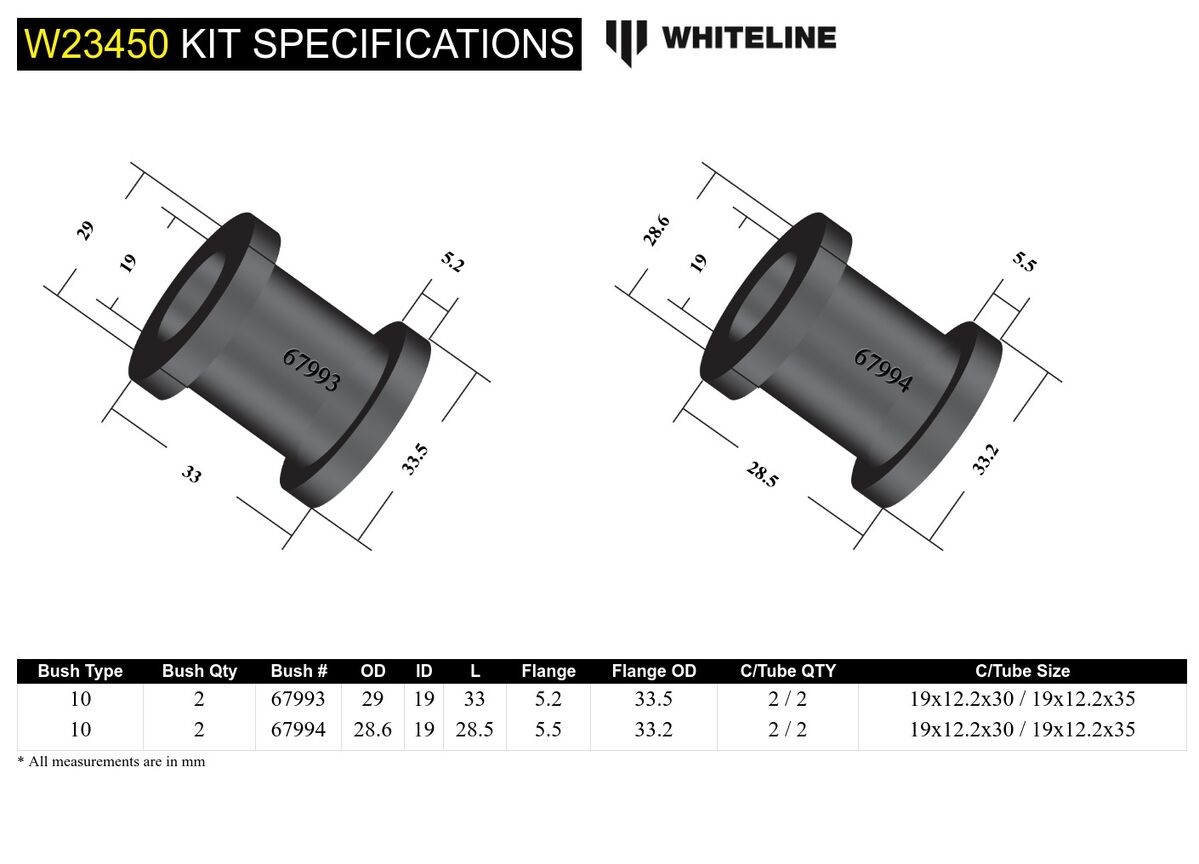

Kit Specifications

Bush Type 10 - Cotton Reel With & Without Tapper Bushing 10 - Cotton Reel With & Without Tapper Bushing
Bush Quantity 2 mm 2 mm
OD (A) 29 mm 28.6 mm
ID (B) 19 mm 19 mm
Length (C) 33 mm 28.5 mm
Flange Thickness (D) 5.2 mm 5.5 mm
Flange OD (E) 33.5 mm 33.2 mm
C/Tube Quantity 2 / 2 2 / 2
C/Tube ODxIDxL 19x12.2x30 / 19x12.2x35 mm 19x12.2x30 / 19x12.2x35 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10 - Cotton Reel With & Without Tapper Bushing
Bushing Type 10 - Cotton Reel With & Without Tapper Bushing

Bushing Design Dimensions (mm)

Bush Type 10 10
QTY 2 2
OD (A) 29 28.6
ID (B) 19 19
Length (C) 33.0 28.5
FL (D) 5.2 5.5
FLOD (E) 33.5 33.2
C/Tube Qty 2 / 2 2 / 2
C/Tube Size 19x12.2x30 / 19x12.2x35 19x12.2x30 / 19x12.2x35
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.238kg0.52lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW23450

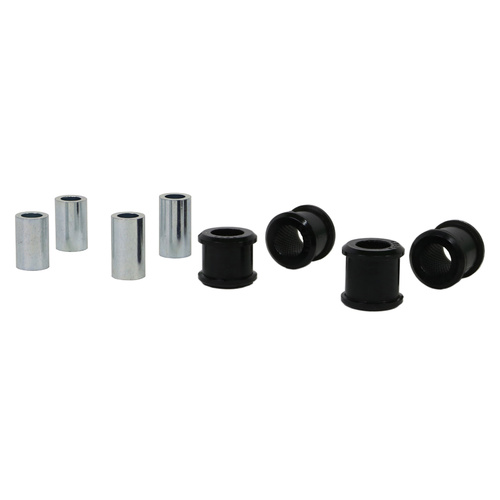

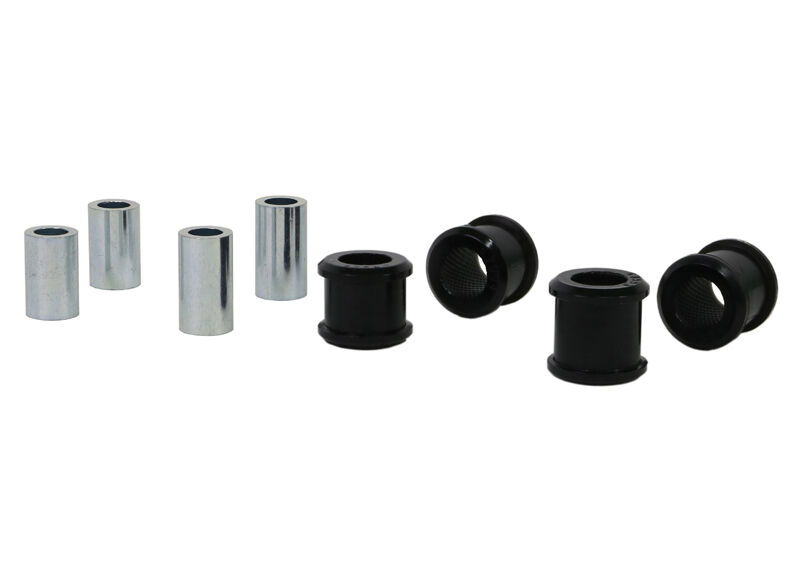

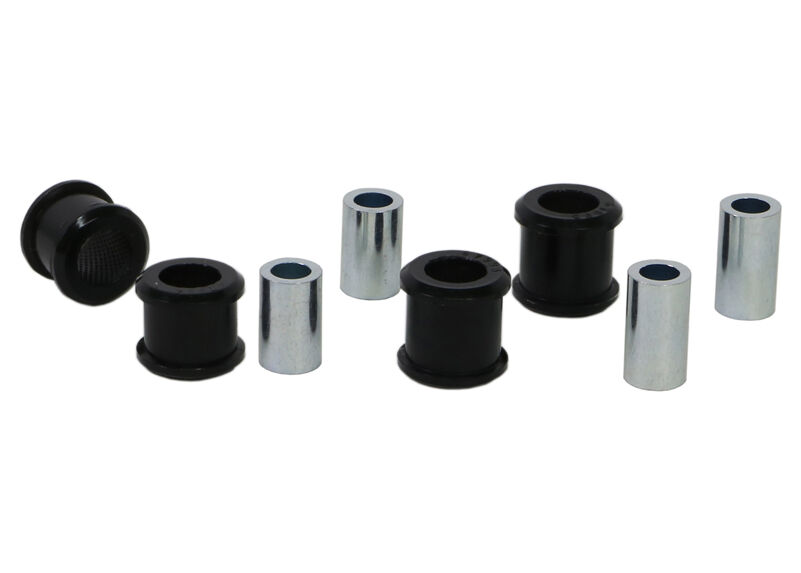

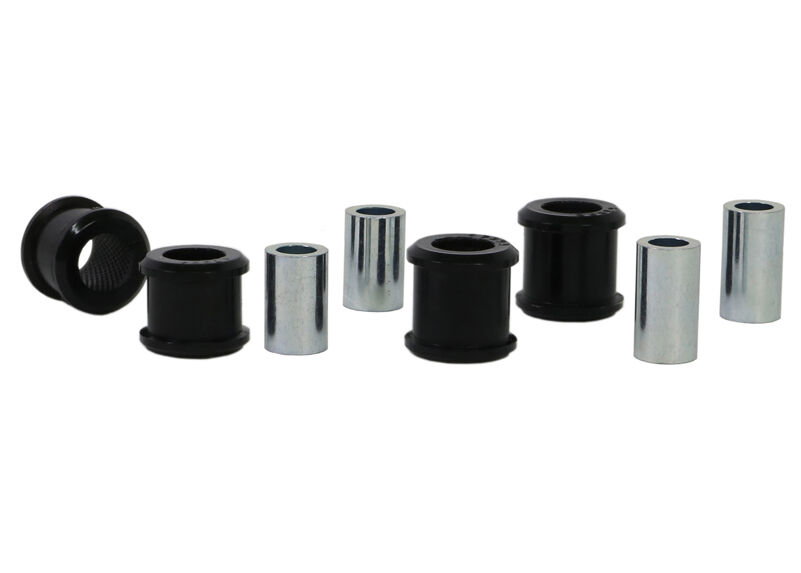

Components Per4 Bushings, 4 Tubes
Kits Required1
Sub brandReplacement
Product NoteEngineered for precision and balance and maintains optimal suspension geometry under load; the perfect, complete upgrade. Includes: 4 Bushings, 4 Tubes
EAN9319924392339
  • Lifetime Warranty
Brand Whiteline
SKU W23450
Unit Of Measure Kit
