Whiteline Front Sway Bar Link - Bushing Kit to Suit Jeep Wrangler TJ

SKU: W23449

Benefit Note: Worn or deteriorated link bushings although small can have considerable influence over sway bar performance and more notably vehicle handling behaviour. Whiteline bushings are engineered to last and deliver improved driving performance.

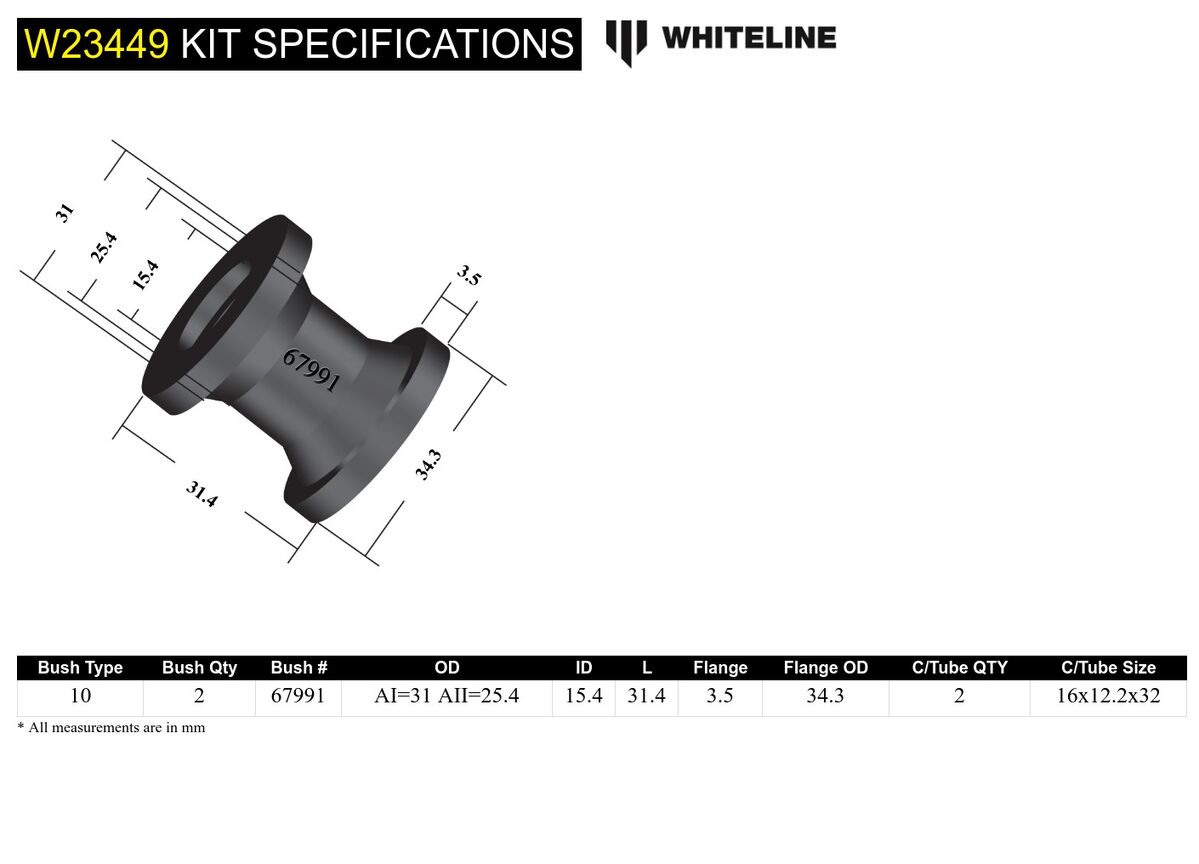

Kit Specifications

Bush Type 10 - Cotton Reel With & Without Tapper Bushing
Bush Quantity 2 mm
OD (A) AI=31 AII=25.4 mm
ID (B) 15.4 mm
Length (C) 31.4 mm
Flange Thickness (D) 3.5 mm
Flange OD (E) 34.3 mm
C/Tube Quantity 2
C/Tube ODxIDxL 16x12.2x32 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10 - Cotton Reel With & Without Tapper Bushing

Bushing Design Dimensions (mm)

Bush Type 10
QTY 2
OD (A) AI=31 AII=25.4
ID (B) 15.4
Length (C) 31.4
FL (D) 3.5
FLOD (E) 34.3
C/Tube Qty 2
C/Tube Size 16x12.2x32
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.088kg0.19lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW23449
Components Per2 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement

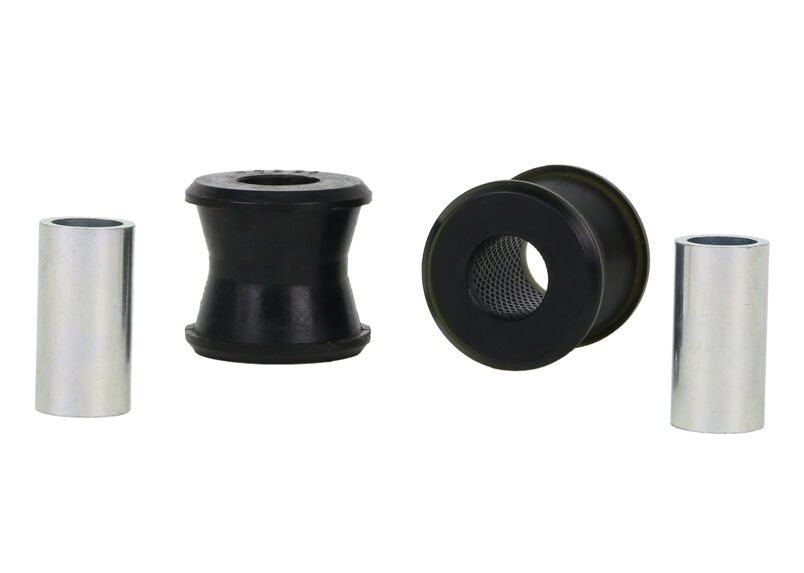

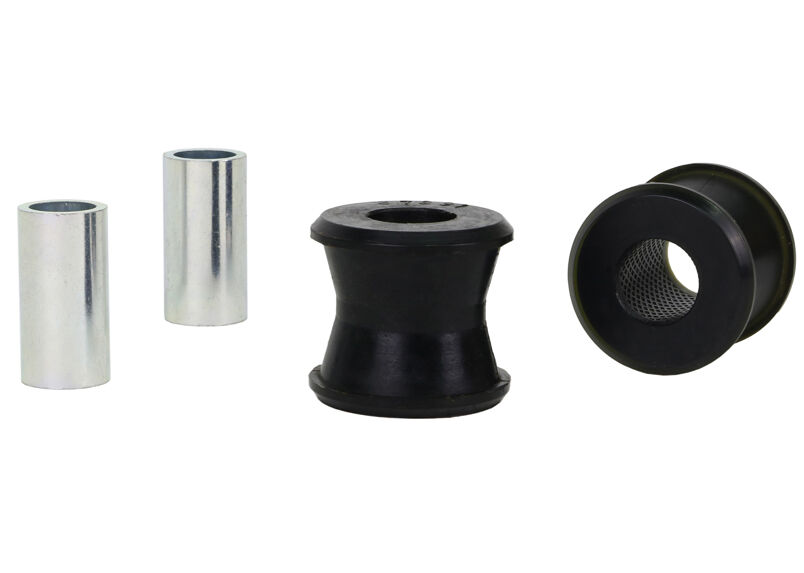

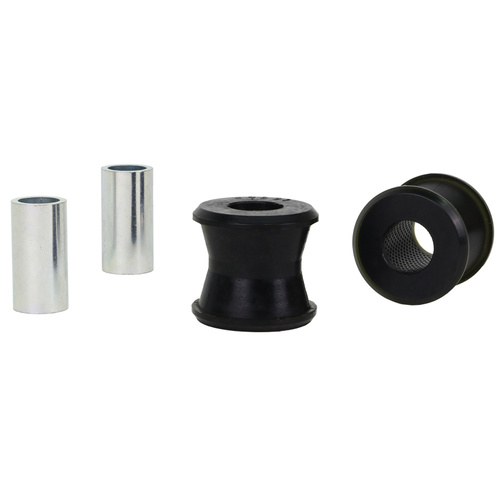

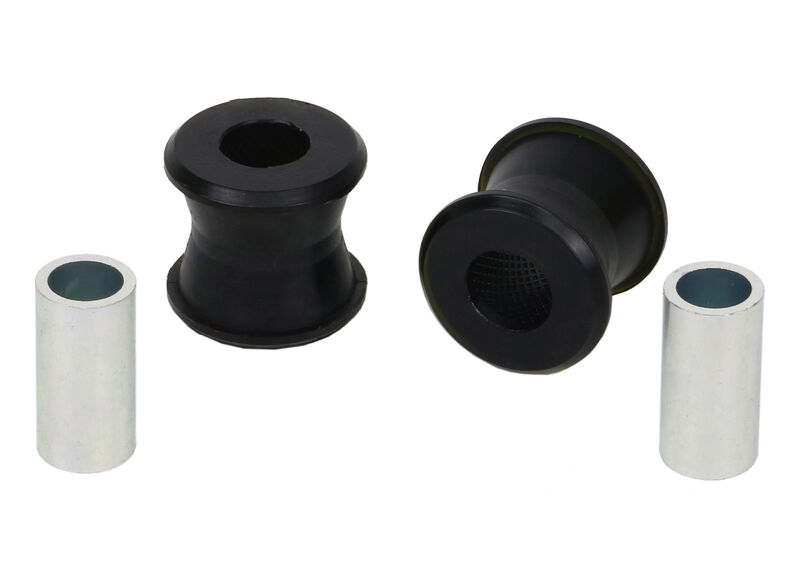

Product NoteImproves stability and control, transforming vehicle performance the perfect, complete upgrade. Includes: 2 Bushings, 2 Tubes
EAN9319924392322
  • Lifetime Warranty
Brand Whiteline
SKU W23449
Unit Of Measure Kit
